Nanlite

FC-500B LED Bi-Color Spotlight

FC-500B LED Bi-Color Spotlight

Regular price $869.00 USD
Regular price $1,089.00 USD Sale price $869.00 USD
Sale Sold out
  • 520W Rated Power, High Illuminance
    Up to 106,500 lux at 1m with the included 45° reflector at 5600K.
  • Accurate Bi-Color Light
    2700K–6500K CCT with CRI 96 and TLCI 98 for natural, accurate color.
  • Flexible Light Shaping
    Bowens mount and integrated umbrella holder support a wide range of modifiers.
  • Precise 0.1% Dimming
    Smooth 0–100% dimming in 0.1% increments for precise brightness control.
  • Quiet Cooling, Battery Ready
    Smart fan modes help minimize noise, with optional battery operation via the FC PowerController.
  • Easy, Professional Control
    Control onboard, via the NANLINK App, 2.4G, or DMX/RDM, with a carrying case included and with 1-Light and 2-Light Kit options available.
Light Kit

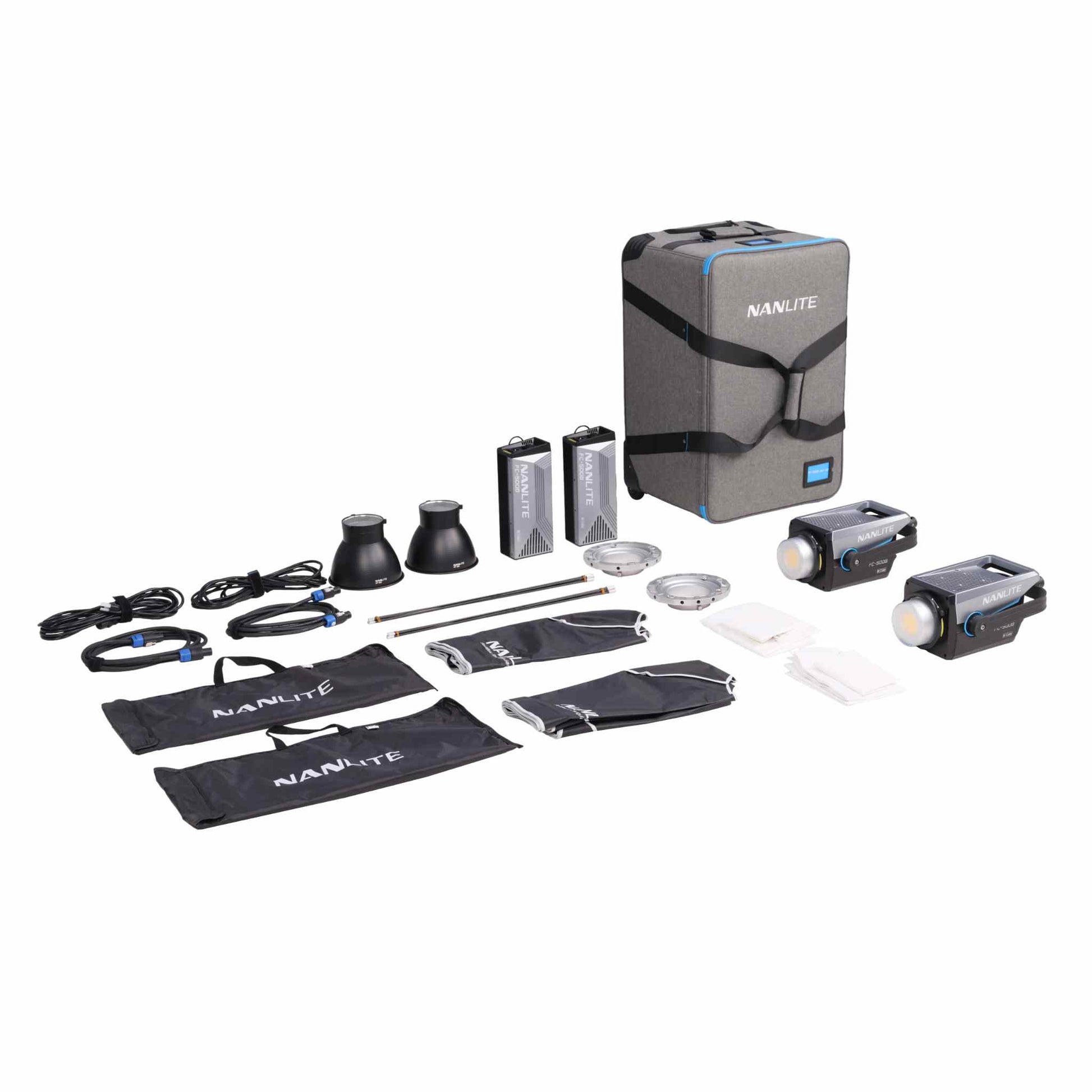

What's in the box

SKU:FC500B2KITST

Quantity
View full details
FC-500B delivering up to 106,500 lux at 1m with the included 45° reflector for powerful, even illumination.

Professional Performance & High Illuminance

With a rated power of 520W, the FC-500B delivers powerful output of up to 106,500 lux at 1m with the included 45° reflector at 5600K. Its professional-grade emitter produces a high-quality, even beam spread, while the glass-protected COB surface helps ensure reliable performance for professional production.

FC-500B with 2,700K–6,500K CCT range and two output modes for consistent, accurate color.

True to LifeRendition, Born to be Real

The FC-500B has a wide CCT range of 2700K–6500K with two output modes. Maximum Output Mode delivers the highest possible brightness at the selected CCT, while Constant Output Mode maintains consistent brightness across the entire CCT range. Its color reproduction has been comprehensively evaluated and optimized to deliver accurate and faithful colors.

FC-500B Bowens Mount Compatibility

Bowens Mount Compatibility, Shaping Flexibility

The FC-500B features a standard Bowens Mount and integrated umbrella hole, supporting a wide range of Nanlite and third-party modifiers, including diffuse and reflective umbrellas. This provides greater flexibility for shaping and controlling light across different shooting needs.

FC-500B with 0.0%–100.0% dimming in 0.1% increments for precise brightness control.

Precise 0.1% Dimming

With smooth 0–100% dimming in 0.1% increments, the FC-500B makes it easy to fine-tune brightness with confidence, from subtle adjustments to precise output matching across different lighting setups.
This level of control meets most lighting demands without the need for additional controls.

FC-500B with four fan modes and 27 dBA Smart Mode for quiet shooting and flexible on-location use.

Quiet Cooling, Battery Ready

The FC-500B features four adjustable fan modes: Smart, Full Speed, Low Speed, and Off. In Smart mode, average noise is only 27 dBA for quieter shooting, especially in interviews and live broadcasts. Optional battery operation via the FC PowerController adds flexibility for on-location shooting.

FC-500B offers flexible control via on-board controls, the NANLINK App, 2.4G, and DMX/RDM.

Flexible & Professional Control

The FC-500B offers flexible control via on-board controls, the NANLINK App, 2.4G, and DMX/RDM, with 12 built-in special effects and adjustable parameters. Its versatile control options support everything from simple setups to precise group control, making it suitable for content creation, live streaming, and professional productions.

Unique Photometrics Chart
☀ Photometrics
Bare Bulb and Reflector With Optional FL-20G
@ 1m 2700K 16320 lux / 1516 fc @ 3m 2700K Spot 15420 lux / 1433 fc
@ 3m 2700K 2010 lux / 187 fc @ 7m 2700K Spot 2790 lux / 259 fc
@ 1m 2700K with Reflector 49250 lux / 4575 fc @ 1m 2700K Flood 42070 lux / 3908 fc
@ 3m 2700K with Reflector 4524 lux / 420 fc @ 3m 2700K Flood 4914 lux / 457 fc
@ 1m 3200K 17660 lux / 1641 fc @ 3m 3200K Spot 17560 lux / 1631 fc
@ 3m 3200K 2224 lux / 207 fc @ 7m 3200K Spot 3154 lux / 293 fc
@ 1m 3200K with Reflector 54530 lux / 5066 fc @ 1m 3200K Flood 45720 lux / 4247 fc
@ 3m 3200K with Reflector 5011 lux / 466 fc @ 3m 3200K Flood 5481 lux / 509 fc
@ 1m 5600K 21110 lux / 1961 fc @ 3m 5600K Spot 22340 lux / 2075 fc
@ 3m 5600K 2624 lux / 244 fc @ 7m 5600K Spot 3987 lux / 370 fc
@ 1m 5600K with Reflector 65640 lux / 6098 fc @ 1m 5600K Flood 54150 lux / 5031 fc
@ 3m 5600K with Reflector 6005 lux / 558 fc @ 3m 5600K Flood 6507 lux / 605 fc
@ 1m 6500K 19880 lux / 1847 fc @ 3m 6500K Spot 21530 lux / 2000 fc
@ 3m 6500K 2526 lux / 235 fc @ 7m 6500K Spot 3866 lux / 359 fc
@ 1m 6500K with Reflector 63760 lux / 5923 fc @ 1m 6500K Flood 52610 lux / 4887 fc
@ 3m 6500K with Reflector 5820 lux / 541 fc @ 3m 6500K Flood 6300 lux / 585 fc
With Optional PJ-BM-19 With Optional PJ-BM-36
@ 3m 2700K 15330 lux / 1424 fc @ 1m 2700K 77400 lux / 7190 fc
@ 5m 2700K 5042 lux / 468 fc @ 2m 2700K -13410lux / 1246 fc
@ 7m 2700K 2511 lux / 233 fc @ 3m 2700K 5515 lux / 512 fc
@ 3m 3200K 17250 lux / 1603 fc @ 1m 3200K 86800 lux / 8064 fc
@ 5m 3200K 5600 lux / 520 fc @ 2m 3200K 14980 lux / 1392 fc
@ 7m 3200K 2758 lux / 256 fc @ 3m 3200K 6114 lux / 568 fc
@ 3m 5600K 21550 lux / 2002 fc @ 1m 5600K 109000 lux / 10126 fc
@ 5m 5600K 6942 lux / 645 fc @ 2m 5600K 18490 lux / 1718 fc
@ 7m 5600K 3411 lux / 317 fc @ 3m 5600K 7598 lux / 706 fc
@ 3m 6500K 21000 lux / 1951 fc @ 1m 6500K 107000 lux / 9940 fc
@ 5m 6500K 6803 lux / 632 fc @ 2m 6500K 18060 lux / 1678 fc
@ 7m 6500K 3328 lux / 309 fc @ 3m 6500K 7445 lux / 692 fc
Specifications Table
⚙ Specifications
CCT2700K-6500K
CRIAverage 96
TLCIAverage 98
SSI 3200K84
SSI 5600K74
TM-30 RF (Average)95
TM-30 RG (Average)101
Beam Angle120°
Rated Power520W
Input Voltage/CurrentAC100-240V 50/60Hz, DC48V/10.4A Max
Operating Temperatureta45℃
Dimming0–100%
EffectsCCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding
ControlBuilt-in Controls and Screen, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box
Dimensions14.69 × 9.7 x 5.87" (37.32 × 24.64 x 14.9cm)
Weight6.97lbs (3.16kg)
