Nanlite

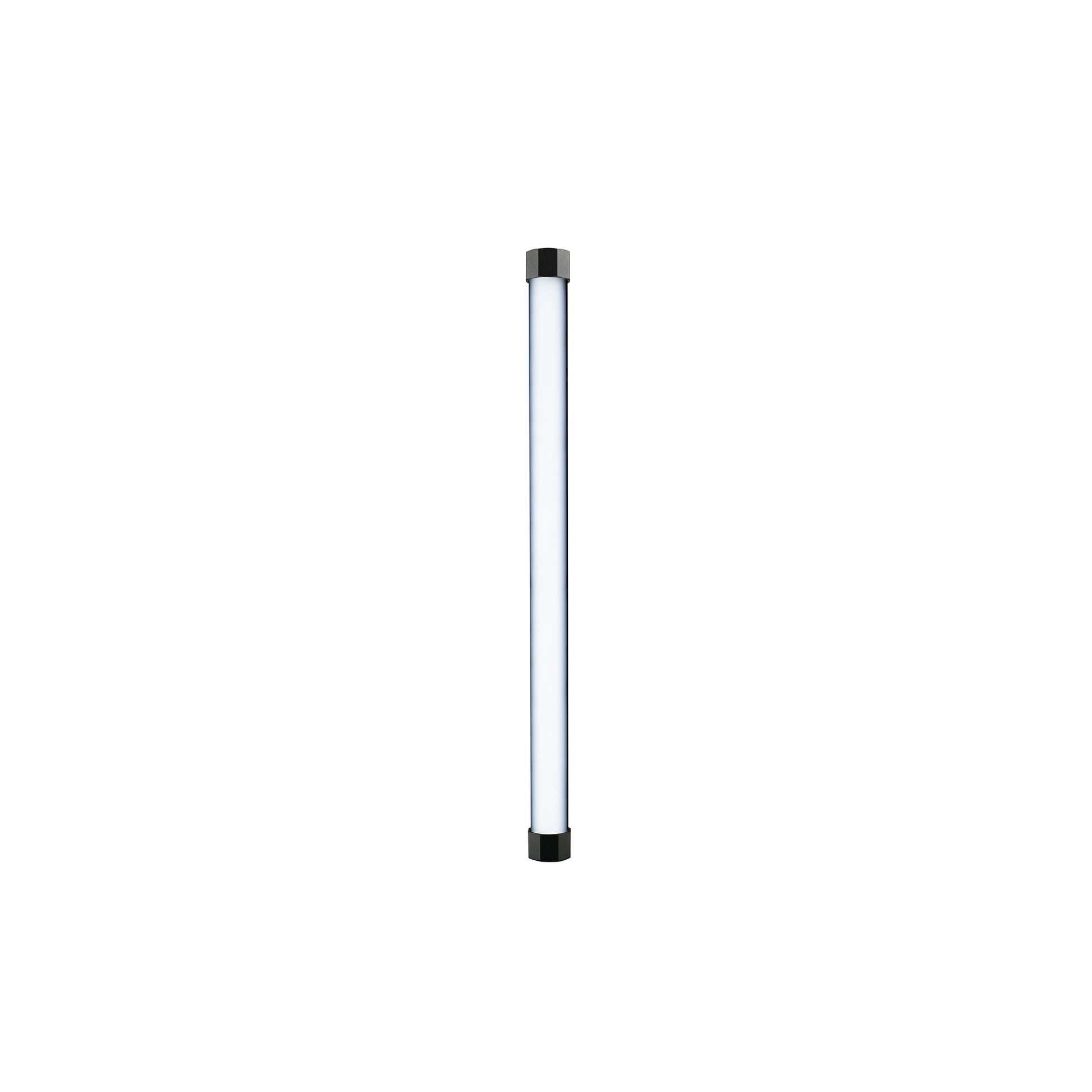

PavoTube II 15XR 2' RGBWW LED Pixel Tube with Built-In CRMX 8-Light Kit

PavoTube II 15XR 2' RGBWW LED Pixel Tube with Built-In CRMX 8-Light Kit

Regular price $3,299.00 USD
Regular price Sale price $3,299.00 USD
Sale Sold out
Quantity

SKU:PT15XR8KIT

STUDIO-QUALITY ANYWHERE
With a wide CCT, G/M adjustment, and color modes, this tube packs studio-quality lighting into a hardy, go-anywhere package

NEXT-GEN LED TUBE LIGHT

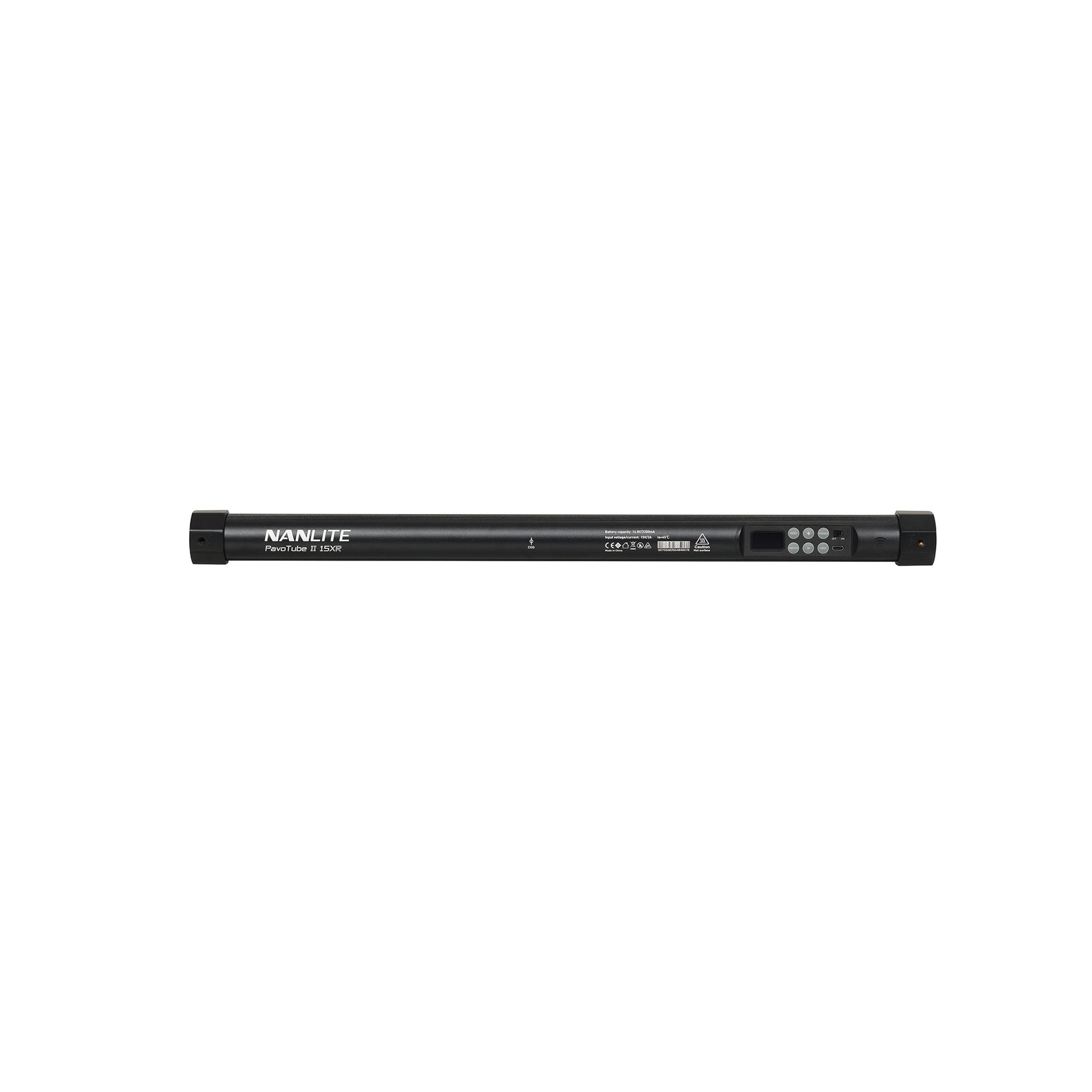

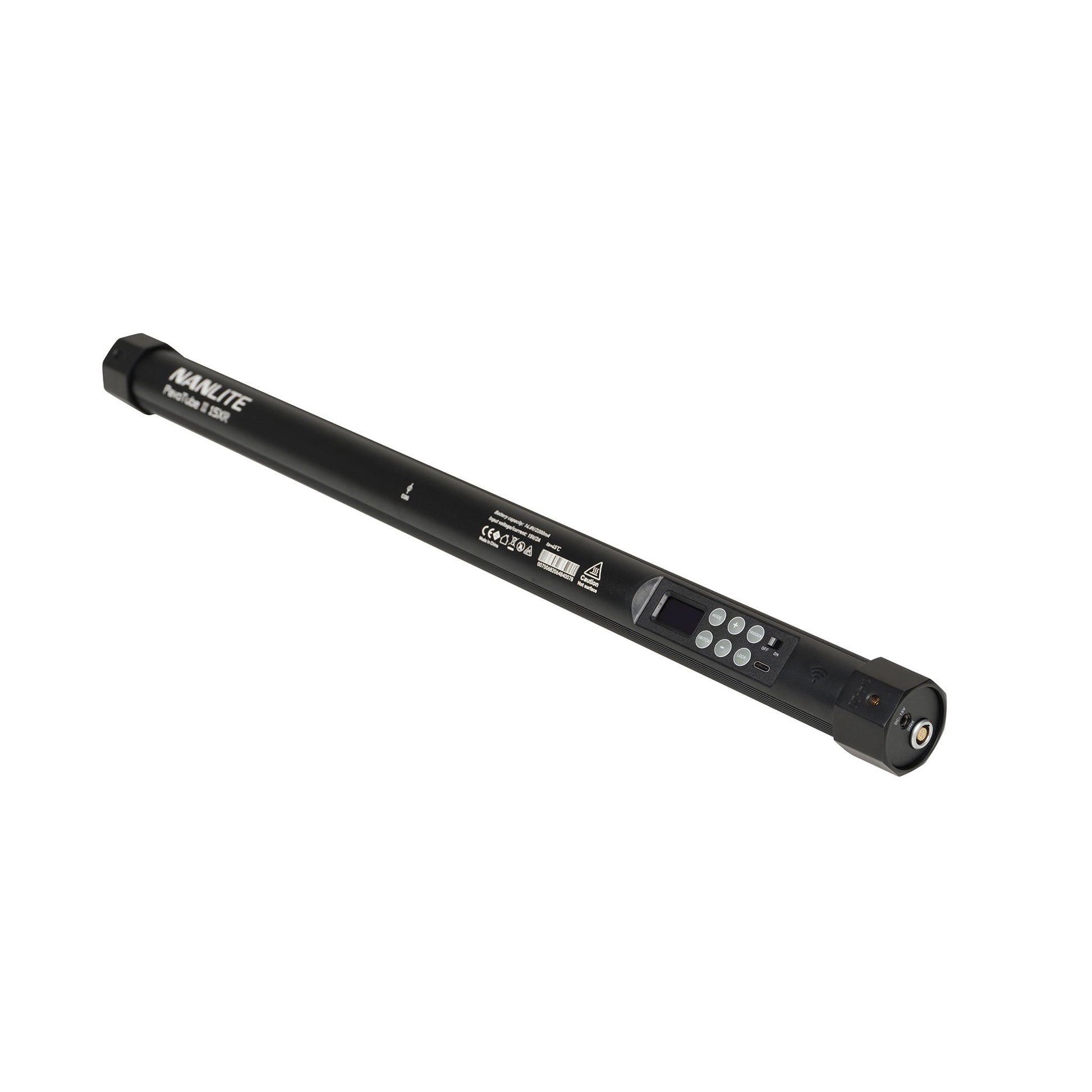

Brighter output with more uniform diffusion, upgraded control panel with locking buttons, built-in CRMX, DMX/RDM, and app control

NO CORDS NEEDED
Runs for 1 hour and 26 minutes at 100% brightness on internal battery, recharges with the included AC adapter, and runs continuously on AC

PIXEL EFFECTS
In addition to 15 practical effects, it features 10 animated pixel effects, and all effects are deeply adjustable and can be saved as presets in the app

METAL HOUSING
Worrying about an accidental drop or risky light placements a thing of the past, and 3 incorporated ¼-20" receivers expand your mounting options

The PavoTube XR-Series have been refined based on feedback from creators around the globe with pixel-based special effects, brighter output, uniform diffusion, robust metal housings, DMX/RDM, 2.4G, Bluetooth control with the free NANLINK mobile app for iOS and Android, and CRMX. This is an 8-light kit that includes accessories and a hard case.

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Distance and CCT Distance and Color
@ 0.5m 2700K 1374 lux / 127.6 fc @ 0.5m Red 588 lux / 54.6 fc
@ 1m 2700K 343 lux / 31.8 fc @ 1m Red 150 lux / 14 fc
@ 2m 2700K 86 lux / 8 fc @ 2m Red 39 lux / 3.6 fc
@ 3m 2700K 38 lux / 3.5 fc @ 3m Red 17 lux / 1.5 fc
@ 0.5m 3200K 1399 lux / 130 fc @ 0.5m Green 1212 lux / 112.6 fc
@ 1m 3200K 350 lux / 32.5 fc @ 1m Green 308 lux / 28.6 fc
@ 2m 3200K 87 lux / 8.1 fc @ 2m Green 77 lux / 7.1 fc
@ 3m 3200K 39 lux / 3.6 fc @ 3m Green 34 lux / 3.1 fc
@ 0.5m 5600K 1507 lux / 140 fc @ 0.5m Blue 248 lux / 23 fc
@ 1m 5600K 377 lux / 35 fc @ 1m Blue 63 lux / 5.8 fc
@ 2m 5600K 94 lux / 8.7 fc @ 2m Blue 15 lux / 1.4 fc
@ 3m 5600K 42 lux / 3.9 fc @ 3m Blue 7 lux / 0.6 fc
@ 0.5m 6500K 1545 lux / 143.5 fc
@ 1m 6500K 386 lux / 35.8 fc
@ 2m 6500K 97 lux / 9 fc
@ 3m 6500K 43 lux / 4 fc
@ 0.5m 7500K 1542 lux / 143.2 fc
@ 1m 7500K 385 lux / 35.7 fc
@ 2m 7500K 96 lux / 8.9 fc
@ 3m 7500K 43 lux / 4 fc
@ 1m 10000K 359 lux / 33.3 fc
@ 2m 10000K 90 lux / 8.3 fc
@ 3m 10000K 40 lux / 3.7 fc
@ 1m 12000K 333 lux / 31 fc
@ 2m 12000K 83 lux / 7.7 fc
@ 3m 12000K 37 lux / 3.4 fc
Specifications Table
⚙ Specifications
LED TypeRGBWW
CCT Range2700K-12000K, G/M Adjustment ±100
CRIAverage 97
TLCIAverage 98
Rated Power35W
Input Voltage/CurrentDC 15V/2A Max, AC 100-240V 50/60Hz
Built-In Battery2200mAh
Runtime at 100% Brightness1 hr 26 mins
Charge Time3 hrs
Operating Temperatureta45℃/td>
Dimming0–100%
EffectsHue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Pixel EffectsHue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, Driving

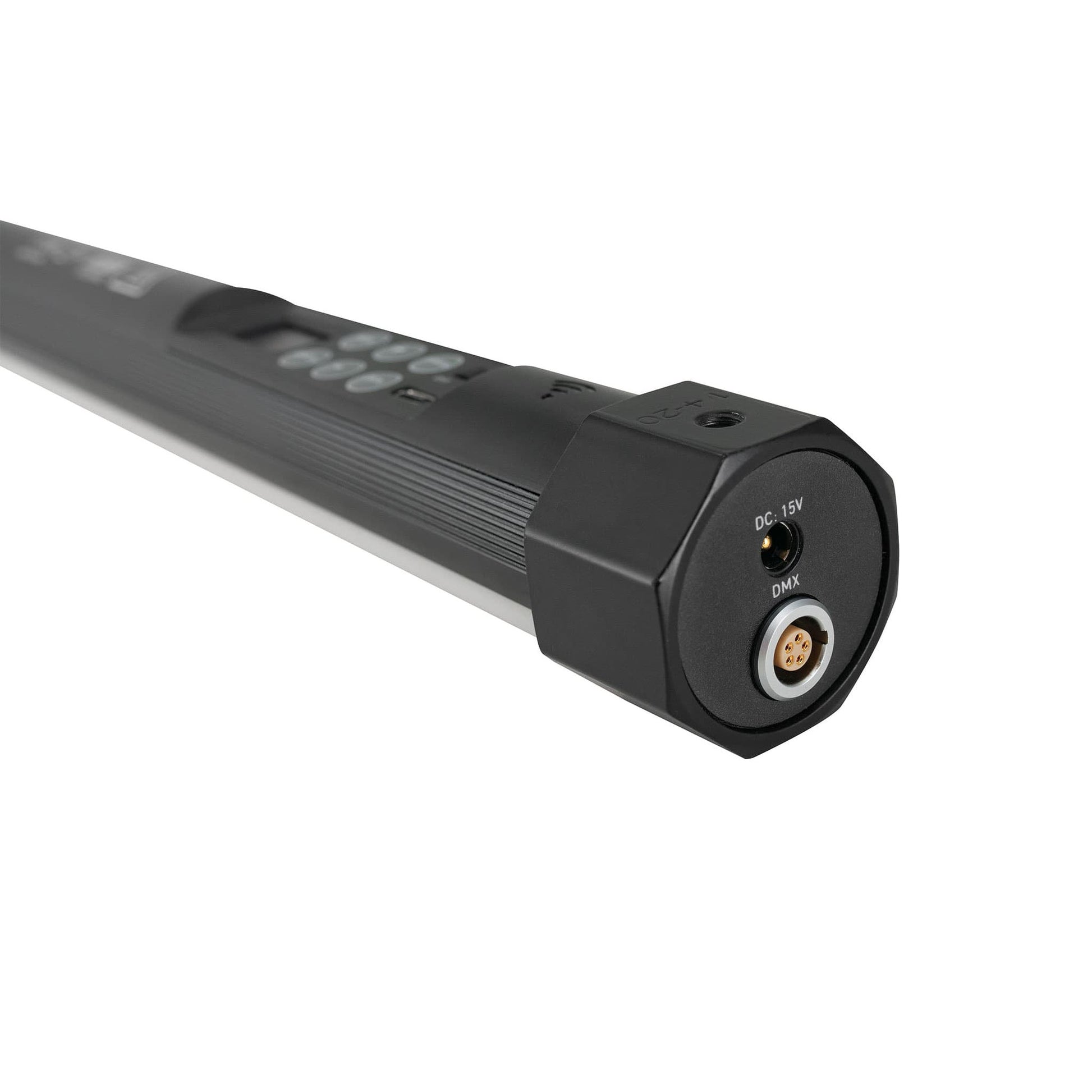

ControlBuilt-in Controls and Screen, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box, LumenRadio CRMX
Dimensions1.69 × 23.6" (4.3 × 60cm)
Weight1.81lbs (0.82kg)

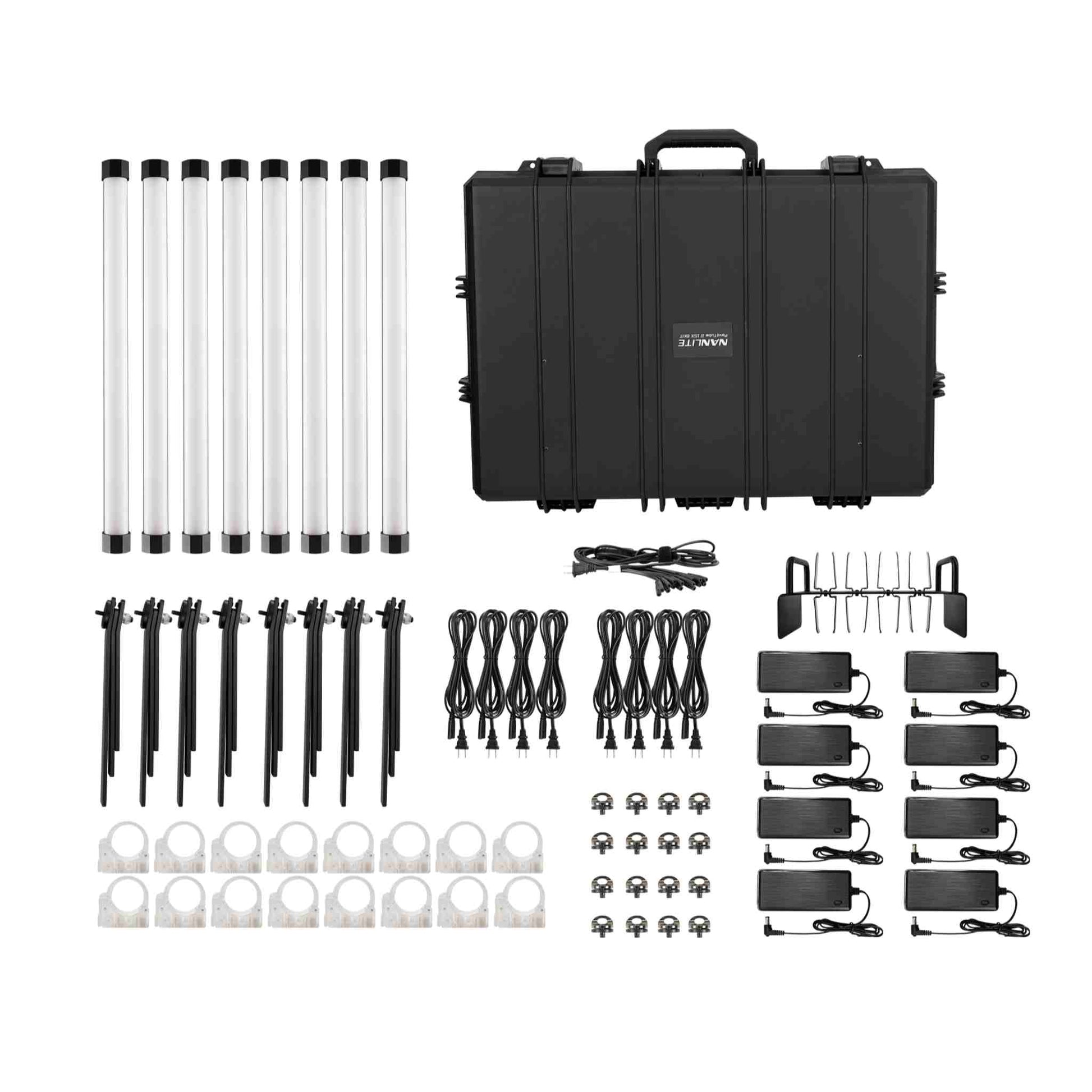

What's in the Box Table
⁂ What's in the Box
8x Nanlite PavoTube II 15X
8x 15V/2A Power Adapters
8x Power Cables 9.84-Foot (3m)

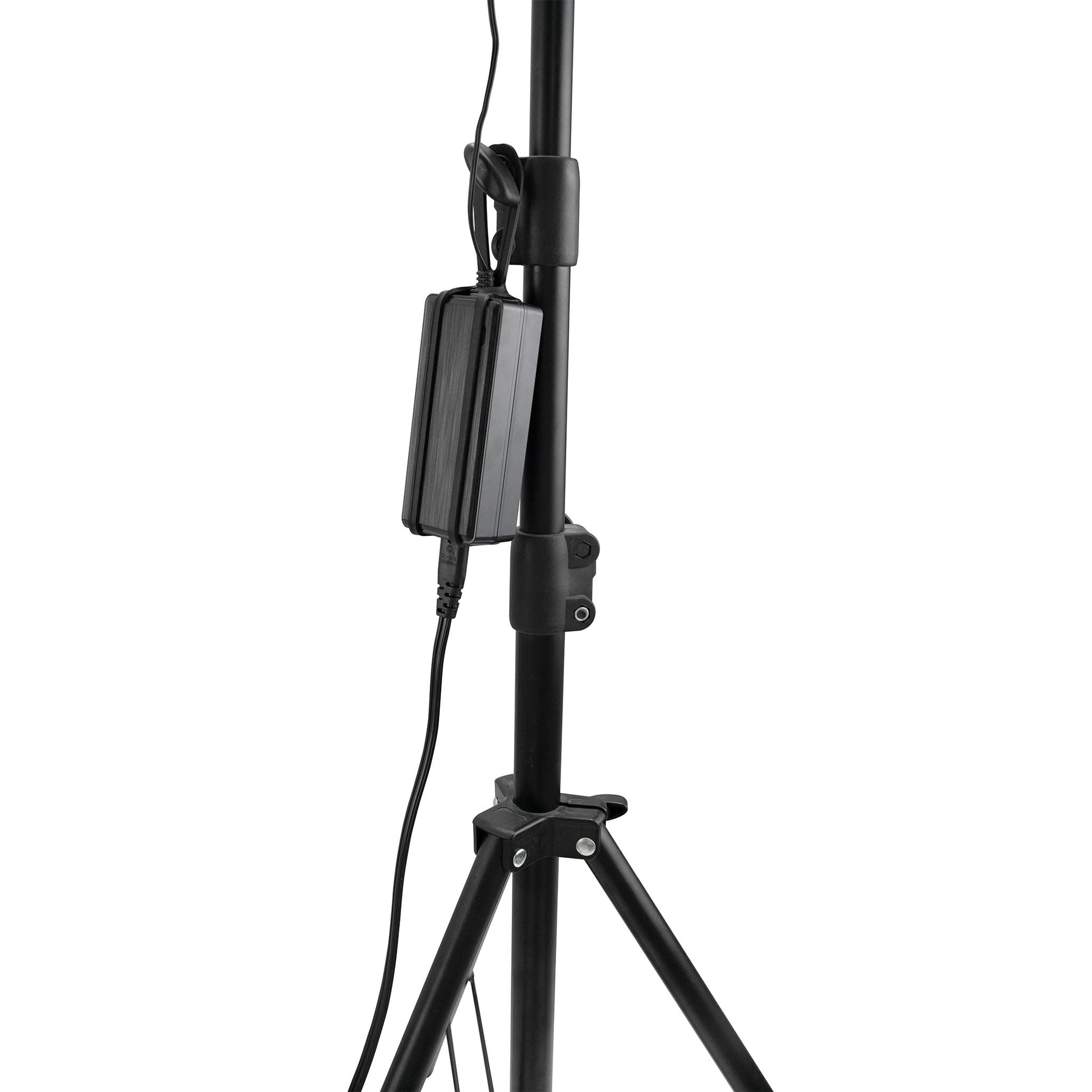

8x Power Adapter Safety Straps
16x Clear T12 Clips with Two 1/4"-20 Receivers
1x 8-in-1 Power Adapter Holder
1x 8-in-1 Power and Charging Cable
8x LSFL Floor Stands

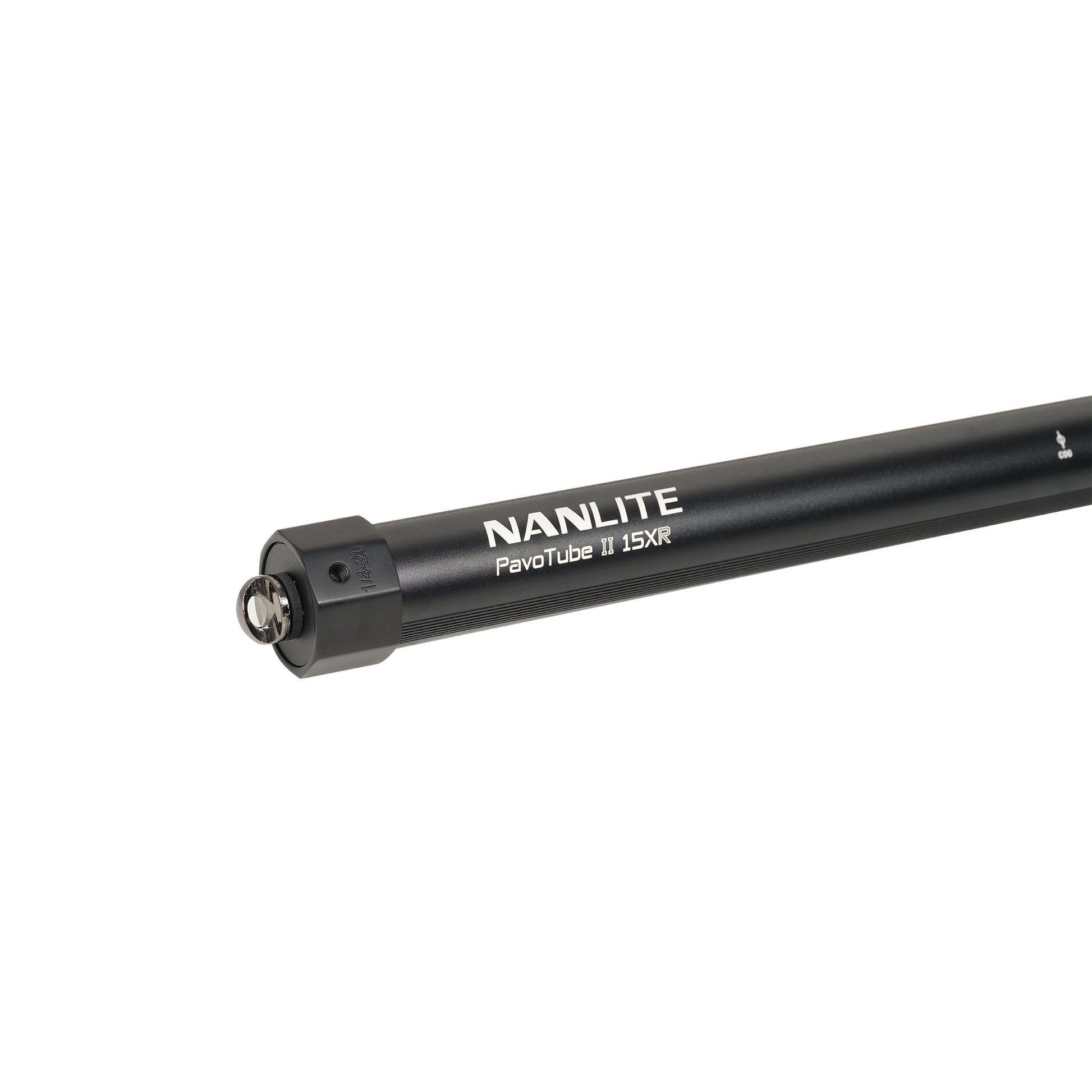

16x ASEB 1/4"-20 Eye Bolts
1x User Manual
1x Hard Case
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)
