Evoke 5C LED Full-Color Spotlight

Name: Evoke 5C LED Full-Color Spotlight
Brand: Nanlux
SKU: EV5C
Price: 219.00 USD
Availability: InStock

Evoke 5C LED Full-Color Spotlight

$219.00 USD

Sale Sold out

SKU:EV5C

BUILT TO DISAPPEAR

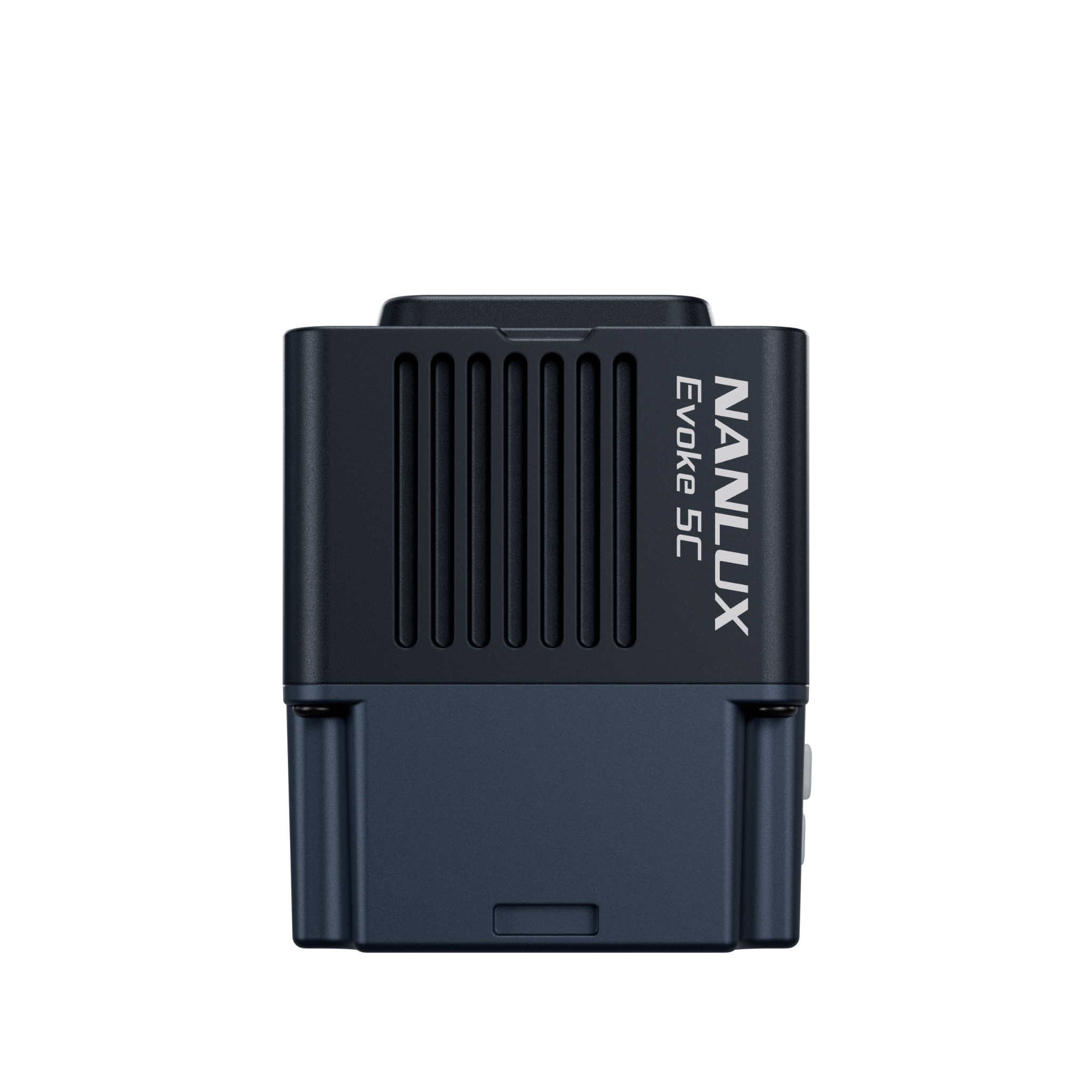

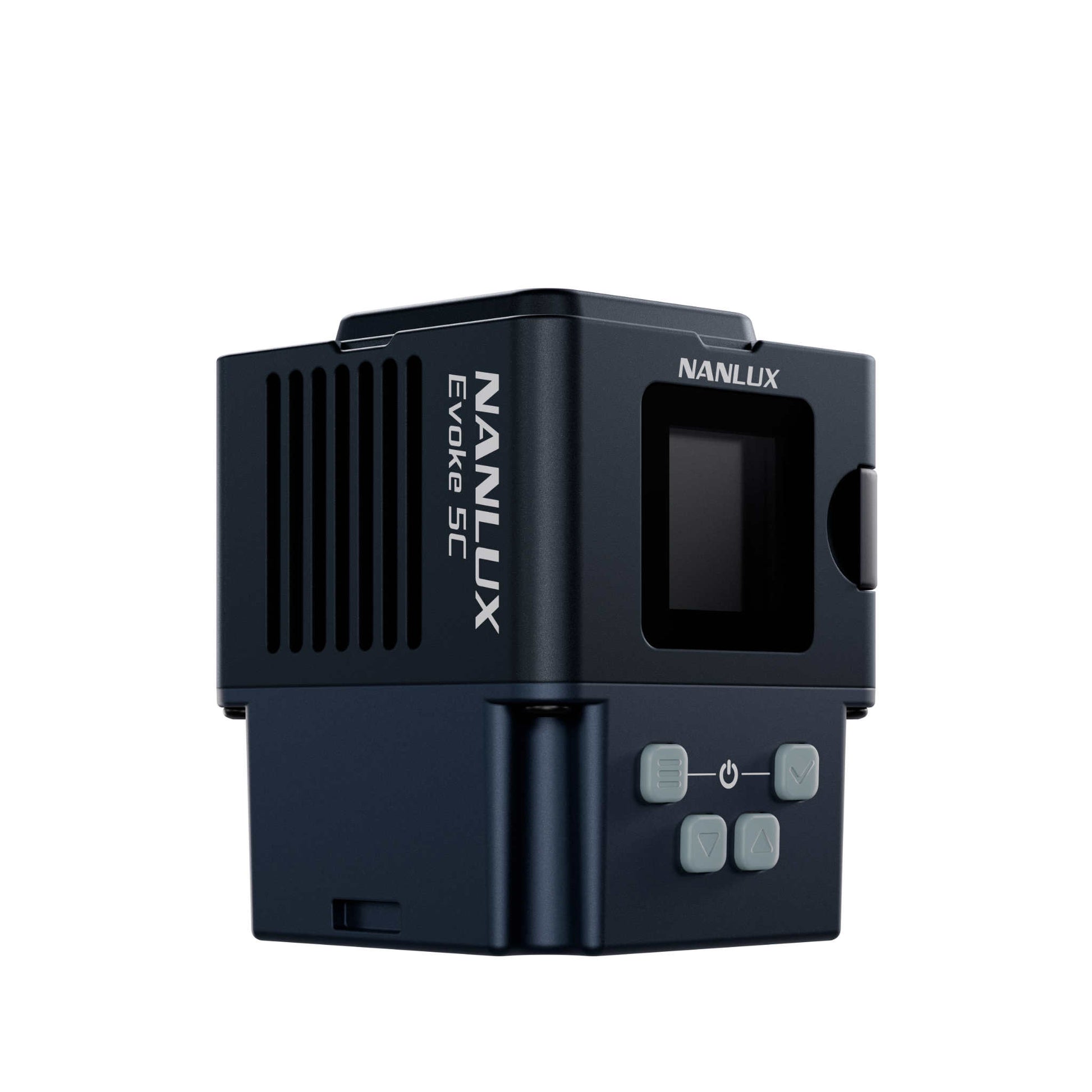

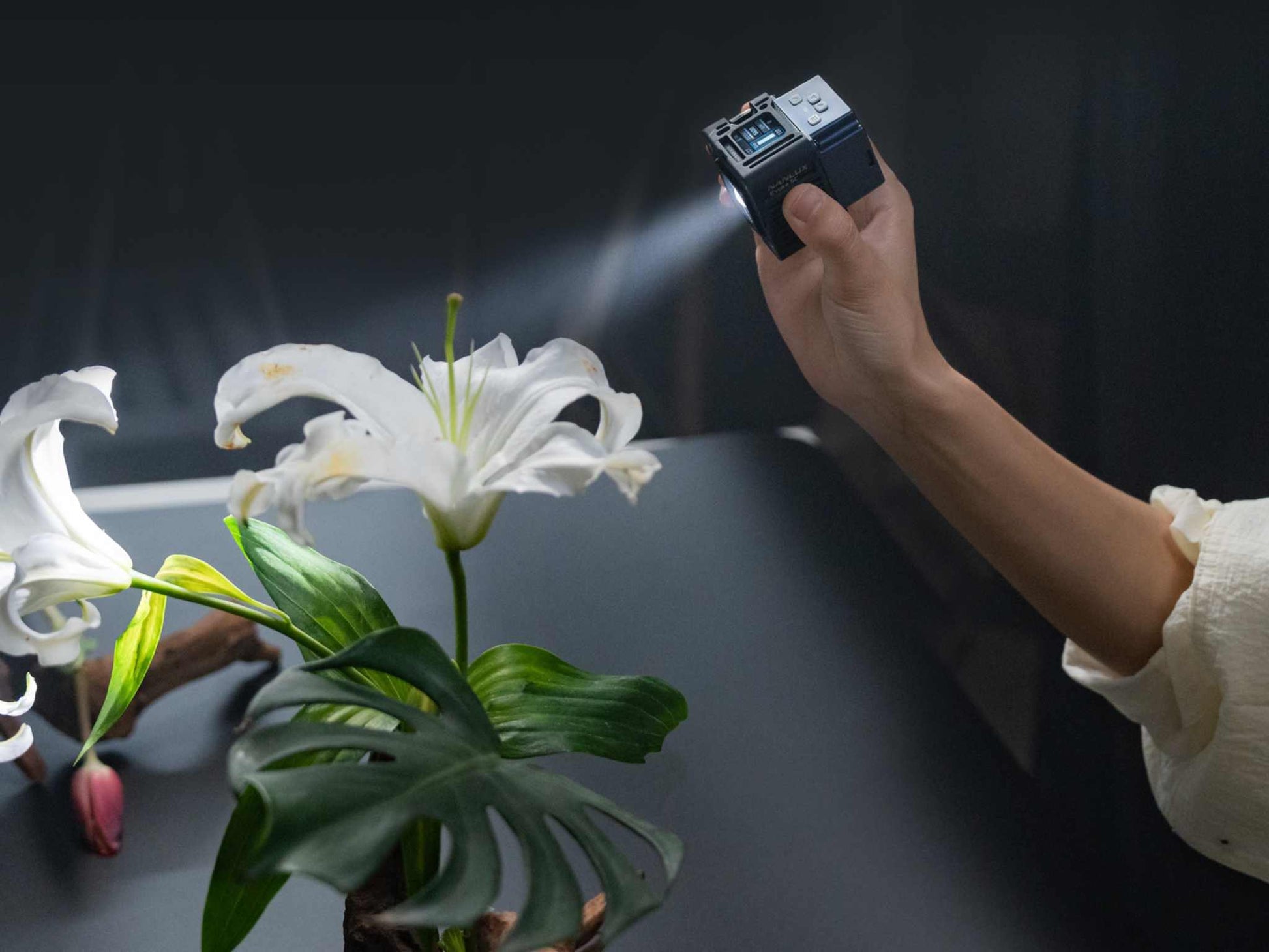

Evoke 5C is a tiny, battery-powered LED spotlight that can easily be hidden behind in-frame objects to add dimension to a scene, serve as a practical light, or provide unique illumination for product photography

ADVANCED ENGINE

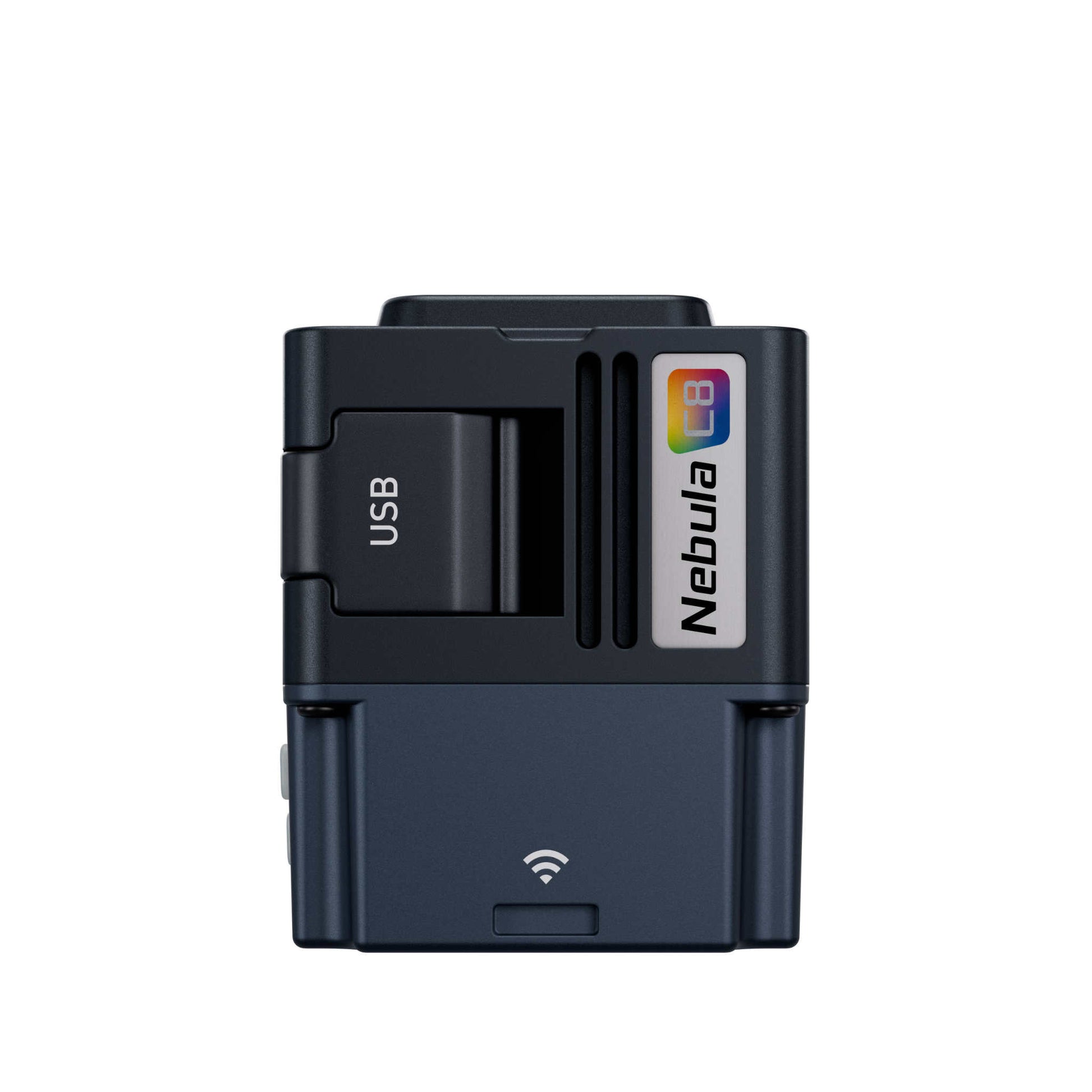

The Nebula C8 light source combines Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo to achieve 1,000K–20,000K with G/M±200 adjustment

MINI MODIFIERS
An entire ecosystem of ultra-compact modifiers is available, such as a fresnel lens, projection attachment, snoot, and more; this kit includes a magnetic diffuser

MOUNT & SUBMERGE

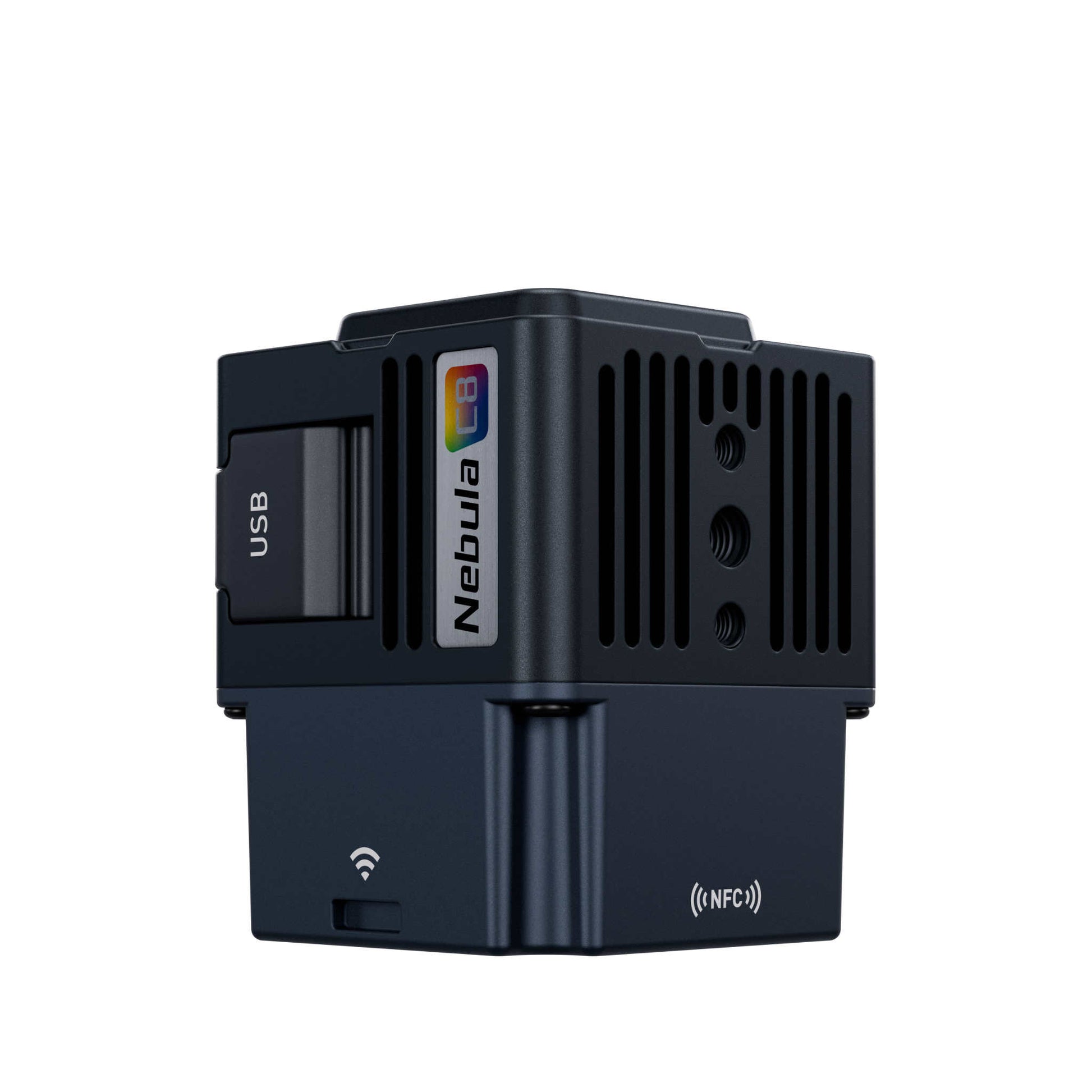

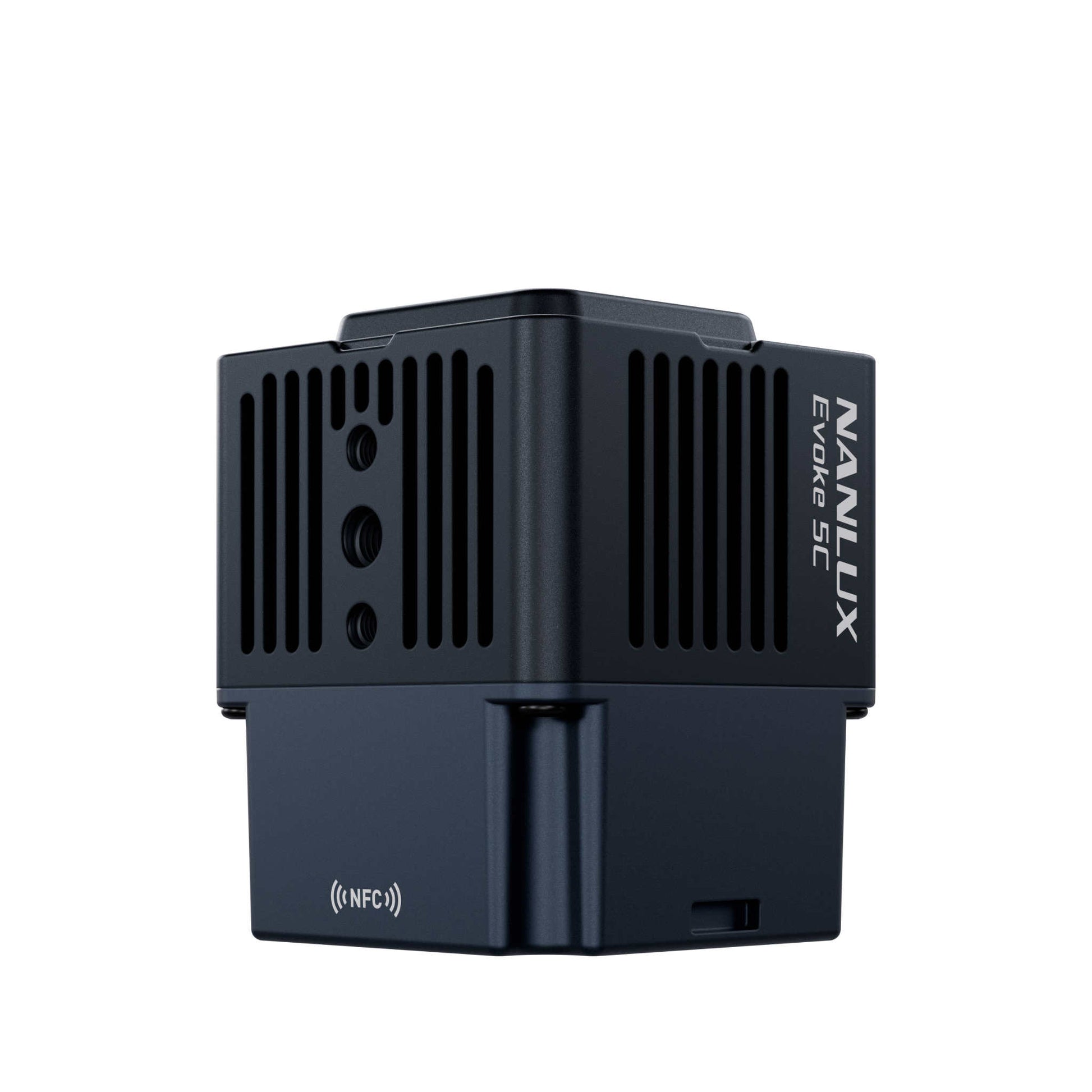

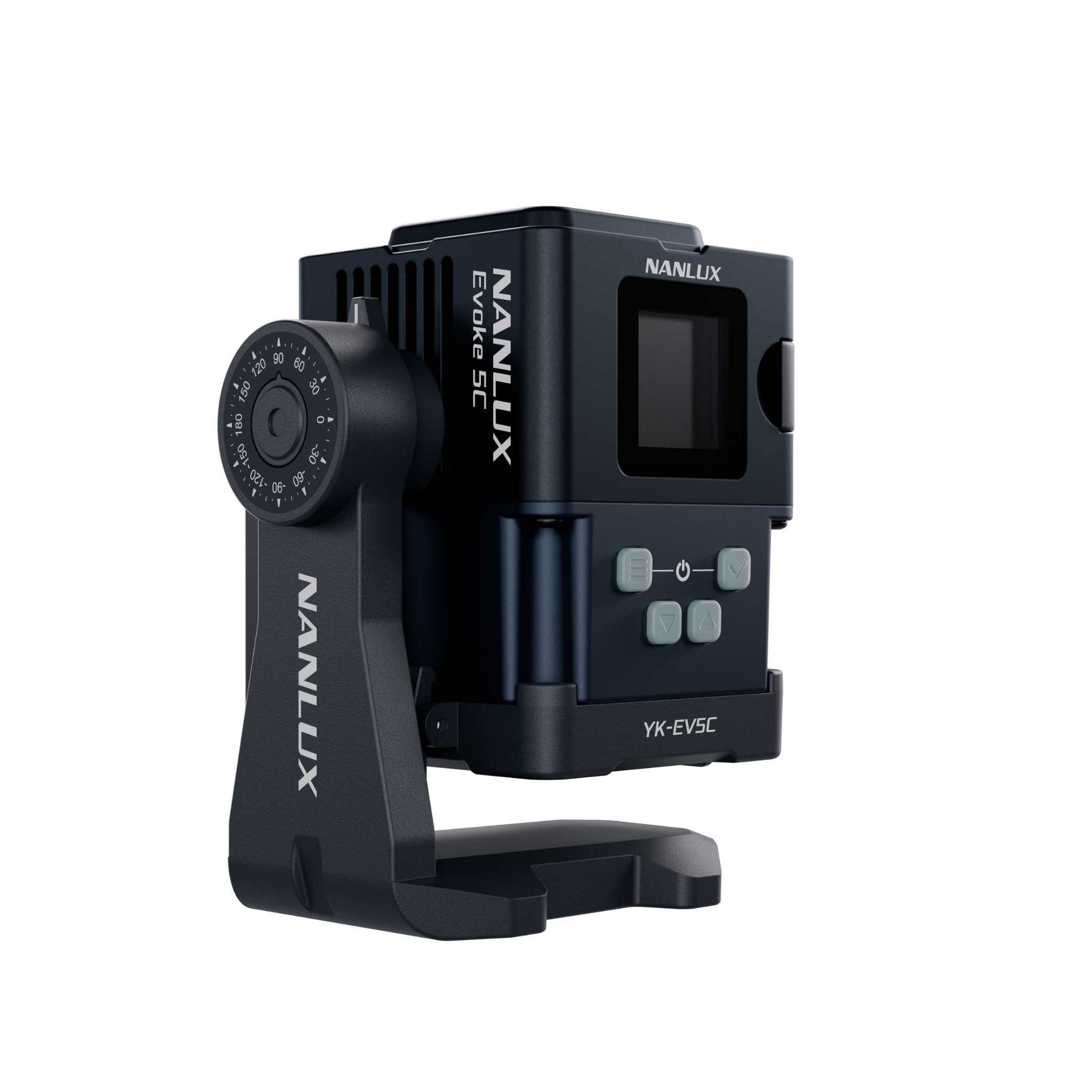

Includes an adjustable yoke mount, a 1/4”-20 mount with an anti-twist design, and an IP67 rating making it waterproof for 30 minutes up to 1 meter, an underwater housing is available separately for deep-water lighting

BIG PRODUCTIONS & BACKPACKS
Evoke 5C is just as at home on a large Hollywood set as it is in an influencer's crossbody bag—it's a small, versatile light designed to make your shots more engaging

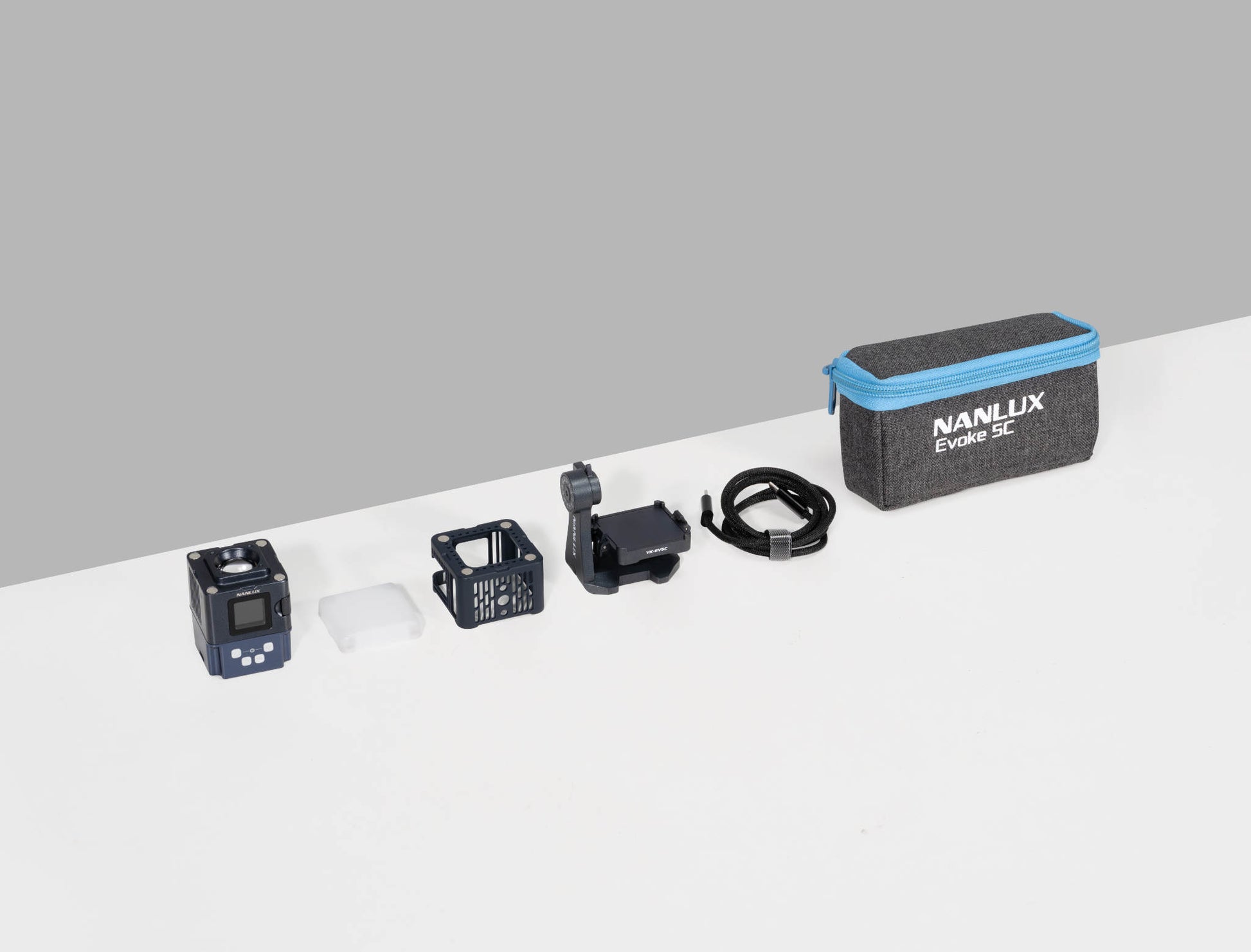

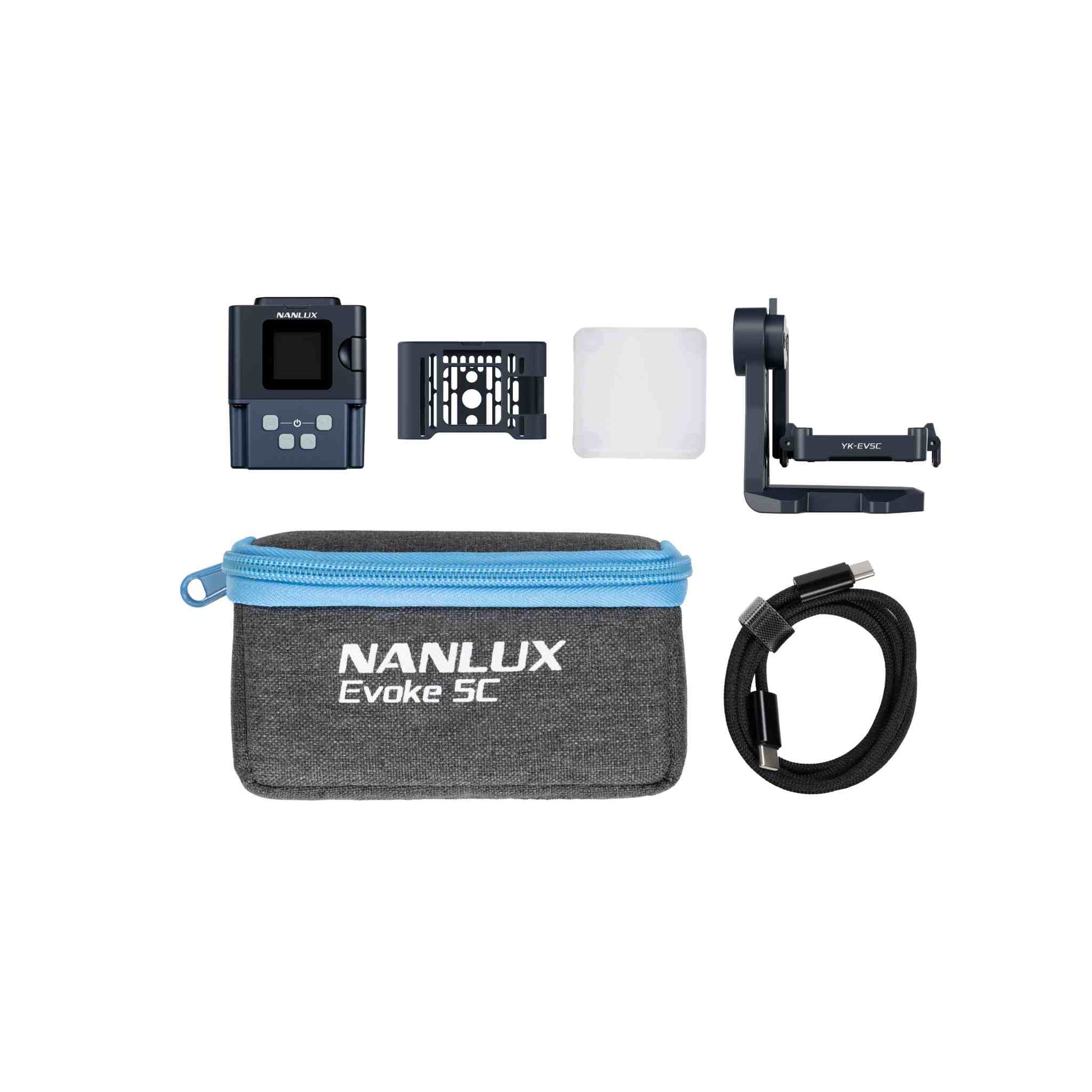

The Nanlux Evoke 5C Kit is an 8-color LED spotlight that provides new ways to light scenes and objects with its ultracompact size, modular design, and versatile ecosystem of miniaturized modifiers and accessories. It's ideal for fill lighting, subtle accent illumination, adding ambient light within the frame, used as a practical source, macro and product photography, and much more.

View full details

Unique Photometrics Chart

☀ Photometrics

Bare Bulb CCT		Bare Bulb Color
@ 0.3m 3200K	5480 lux / 509 fc	@ 0.3m Red	929 lux / 86 fc
@ 0.5m 3200K	1835 lux / 170 fc	@ 0.5m Red	308 lux / 29 fc
@ 1m 3200K	448 lux / 42 fc	@ 1m Red	73 lux / 7 fc
@ 0.3m 5600K	5970 lux / 555 fc	@ 0.3m Green	8080 lux / 751 fc
@ 0.5m 5600K	2026 lux / 188 fc	@ 0.5m Green	2755 lux / 256 fc
@ 1m 5600K	496 lux / 46 fc	@ 1m Green	671 lux / 62 fc
		@ 0.3m Blue	1174 lux / 109 fc
		@ 0.5m Blue	404 lux / 38 fc
		@ 1m Blue	99 lux / 9 fc
25° Magnetic Fresnel CCT		25° Magnetic Fresnel Color
@ 0.3m 3200K	12570 lux / 1168 fc	@ 0.3m Red	2120 lux / 197 fc
@ 0.5m 3200K	3630 lux / 337 fc	@ 0.5m Red	595 lux / 55 fc
@ 1m 3200K	750 lux / 70 fc	@ 1m Red	123 lux / 11 fc
@ 0.3m 5600K	13830 lux / 1285 fc	@ 0.3m Green	18800 lux / 1747 fc
@ 0.5m 5600K	4020 lux / 373 fc	@ 0.5m Green	5390 lux / 501 fc
@ 1m 5600K	830 lux / 77 fc	@ 1m Green	1127 lux / 105 fc
		@ 0.3m Blue	2720 lux / 253 fc
		@ 0.5m Blue	779 lux / 72 fc
		@ 1m Blue	164 lux / 15 fc
35° Magnetic Fresnel CCT		35° Magnetic Fresnel Color
@ 0.3m 3200K	7010 lux / 651 fc	@ 0.3m Red	1170 lux / 109 fc
@ 0.5m 3200K	2296 lux / 213 fc	@ 0.5m Red	385 lux / 36 fc
@ 1m 3200K	518 lux / 48 fc	@ 1m Red	86 lux / 8 fc
@ 0.3m 5600K	7860 lux / 730 fc	@ 0.3m Green	10410 lux / 967 fc
@ 0.5m 5600K	385 lux / 36 fc	@ 0.5m Green	3450 lux / 321 fc
@ 1m 5600K	580 lux / 54 fc	@ 1m Green	796 lux / 74 fc
		@ 0.3m Blue	1511 lux / 140 fc
		@ 0.5m Blue	505 lux / 47 fc
		@ 1m Blue	114 lux / 11 fc
Magnetic Spot Beam Lens CCT		Magnetic Spot Beam Lens Color
@ 0.5m 3200K	9710 lux / 902 fc	@ 0.5m Red	1622 lux / 151 fc
@ 1m 3200K	2548 lux / 237 fc	@ 1m Red	416 lux / 39 fc
@ 2m 3200K	604 lux / 56 fc	@ 2m Red	100 lux / 9 fc
@ 0.5m 5600K	10770 lux / 1001 fc	@ 0.5m Green	14910 lux / 1385 fc
@ 1m 5600K	2828 lux / 237 fc	@ 1m Green	3870 lux / 360 fc
@ 2m 5600K	677 lux / 63 fc	@ 2m Green	928 lux / 86 fc
		@ 0.5m Blue	2176 lux / 202 fc
		@ 1m Blue	557 lux / 52 fc
		@ 2m Blue	132 lux / 12 fc
Projection Attachment 15° CCT		Projection Attachment 15° Color
@ 0.5m 3200K	3050 lux / 283 fc	@ 0.5m Red	515 lux / 48 fc
@ 1m 3200K	656 lux / 61 fc	@ 1m Red	111 lux / 10 fc
@ 0.5m 5600K	3380 lux / 314 fc	@ 0.5m Green	4610 lux / 428 fc
@ 1m 5600K	726 lux / 67 fc	@ 1m Green	974 lux / 90 fc
		@ 0.5m Blue	682 lux / 63 fc
		@ 1m Blue	145 lux / 13 fc

Specifications Table

⚙ Specifications

LED Light Engine	Nebula C8 Light Engine: dRRALGCBI
CCT	1000K-20000K (G/M±200)
CRI	Average 98
TLCI	Average 98
SSI 3200K	86
SSI 5600K	78
TM-30 RF (Average)	96
TM-30 RG (Average)	100
Beam Angle	25°
Rated Power	6W
Input Voltage/Current	DC5V/2A
Dimming	0–100% by 1% Increments
Effects	CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Control	On-board, Nanlink App, DMX/RDM (via USB-C to DMX Adapter Cable sold separately), LumenRadio CRMX (via Magnetic CRXM Module sold separately), NFC
Battery Capacity	3.7V/1300mAh
Battery Runtime	100% brightness: 50 mins, 1% brightness: 2 hours 36 mins
Dimensions	2.2 × 1.73 × 1.77" (5.6 × 4.4 × 4.5cm)
Weight	0.353lbs (0.16kg)
