Nanlite

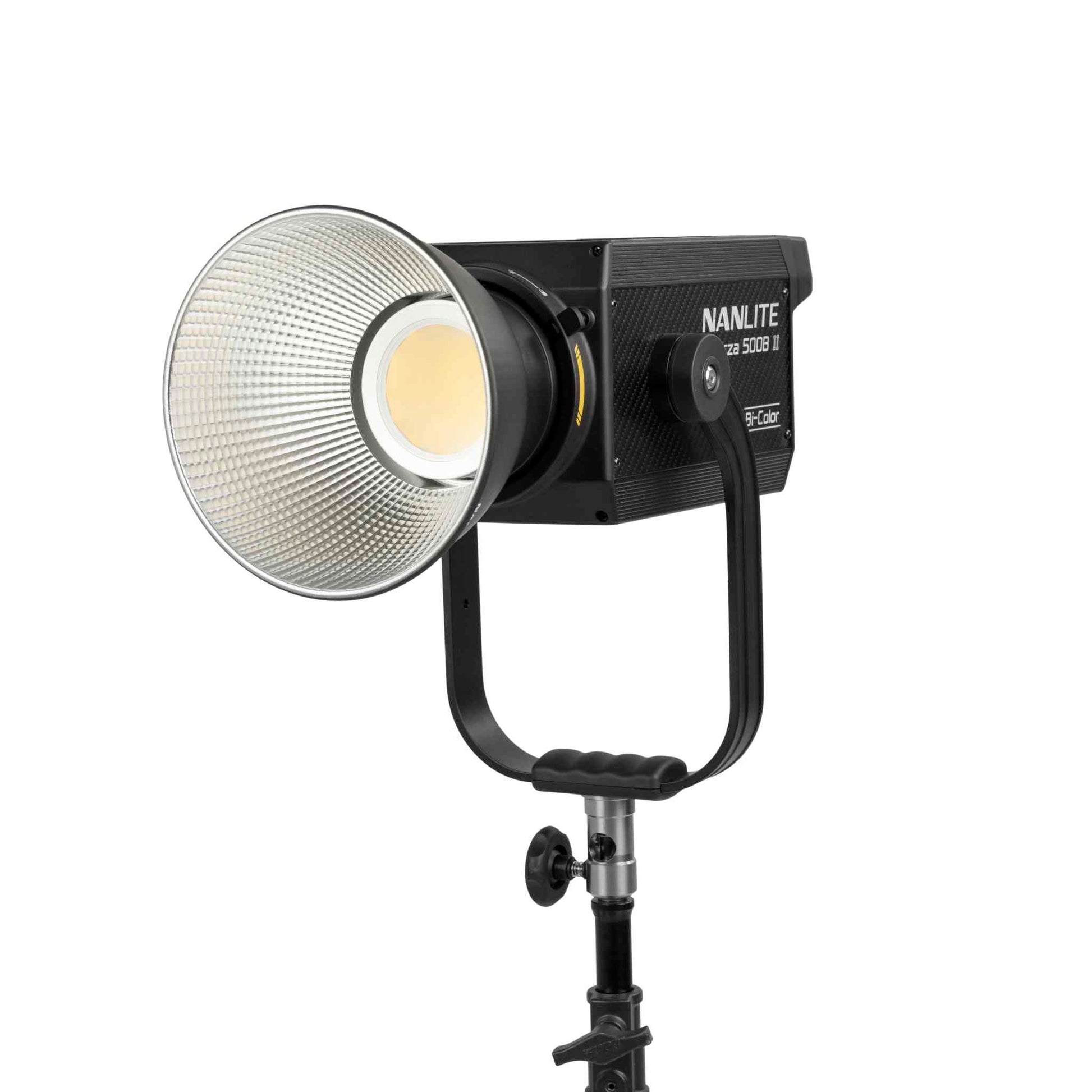

Forza 500B II LED Spotlight with Gold Mount

Forza 500B II LED Spotlight with Gold Mount

Regular price $1,499.00 USD
Regular price Sale price $1,499.00 USD
Sale Sold out
Quantity

SKU:Forza500BIIGM

COMPACT POWERHOUSE
Control Unit is ultracompact, fanless, can run on AC or 1 or 2 Gold-Mount batteries, provides lots of output: 67320 Lux, 6254 fc at 1 meter

G/M ADJUSTMENT Has the ability to adjust green-to-magenta shift by +/- 80, made possible by the frosted glass-protected WW(RG) LED source and light-mixing chamber

COMPREHENSIVE CONTROL
Bluetooth for direct control with the free NANLINK app for iOS & Android, locking ports for DMX/RDM, intuitive built-in controls, 2.4G for the WS-RC-C2 Remote Control and WS-TB-1 Transmitter Box (both sold separately)

NEXT-GEN ADVANCEMENTS
Forza 500B II has all of the latest improvements: a yoke with a one-sided stepless lock, power and head cables that are substantially longer, a quick-release clamp that's durable and versatile

TRUST WHAT YOU SEE
Nanlite users praise the beautiful light our fixtures produce first and foremost, but light from Forza 500B II doesn't just look good—it's accurate. With an SSI of 84 (3200K) and 74 (5600K), CRI of avg. 96, and TLCI of avg. 97, you won't waste time in post fixing color issues.

The Nanlite Forza 500B II Bi-Color LED Spotlight is exceptionally compact and lightweight yet delivers 67320 Lux (6254 fc) at 1 meter with the included reflector and has the versatility of an adjustable CCT range of 2700K–6500K.

It was made for professional production with durable construction, control options for Bluetooth, 2.4G, and DMX/RDM, a frosted glass-protected COB, a fully redesigned yoke, and a Control Unit that can run on AC or side-mounted 26V or 14.4V-14.8V Gold-Mount batteries (sold separately).

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Bare Bulb and Reflector With Optional FL-20G
@ 1m 2700K 16940 lux / 1574 fc @ 3m 2700K Spot 13050 lux / 1212 fc
@ 3m 2700K 2070 lux / 192 fc @ 5m 2700K Spot 4511 lux / 419 fc
@ 5m 2700K 857 lux / 80 fc @ 7m 2700K Spot 2309 lux / 215 fc
@ 1m 2700K with Reflector 51350 lux / 4770 fc @ 3m 2700K Flood 5541 lux / 515 fc
@ 3m 2700K with Reflector 4686 lux / 435 fc @ 5m 2700K Flood 2100 lux / 195 fc
@ 5m 2700K with Reflector 1757 lux / 163 fc @ 7m 2700K Flood 1126 lux / 105 fc
@ 1m 3200K 19090 lux / 1773 fc @ 3m 3200K Spot 14860 lux / 1380 fc
@ 3m 3200K 2367 lux / 220 fc @ 5m 3200K Spot 5149 lux / 478 fc
@ 3m 3200K 987 lux / 92 fc @ 7m 3200K Spot 2618 lux / 243 fc
@ 1m 3200K with Reflector 58290 lux / 5415 fc @ 3m 3200K Flood 6242 lux / 580 fc
@ 3m 3200K with Reflector 5312 lux / 493 fc @ 5m 3200K Flood 2341 lux / 217 fc
@ 5m 3200K with Reflector 1992 lux / 185 fc @ 7m 3200K Flood 2618 lux / 243 fc
@ 1m 5600K 22120 lux / 2055 fc @ 3m 5600K Spot 17400 lux / 1616 fc
@ 3m 5600K 2739 lux / 254 fc @ 5m 5600K Spot 5938 lux / 552 fc
@ 5m 5600K 1140 lux / 106 fc @ 7m 5600K Spot 2995 lux / 278 fc
@ 1m 5600K with Reflector 67320 lux / 6254 fc @ 3m 5600K Flood 7098 lux / 659 fc
@ 3m 5600K with Reflector 6180 lux / 567 fc @ 5m 5600K Flood 2673 lux / 248 fc
@ 5m 5600K with Reflector 1140 lux / 106 fc @ 7m 5600K Flood 1455 lux / 135 fc
@ 1m 6500K 22700 lux / 2109 fc @ 3m 6500K Spot 17520 lux / 1628 fc
@ 3m 6500K 2806 lux / 261 fc @ 5m 6500K Spot 6108 lux / 567 fc
@ 5m 6500K 1170 lux / 109 fc @ 7m 6500K Spot 3057 lux / 284 fc
@ 1m 6500K with Reflector 69020 lux / 6412 fc @ 3m 6500K Flood 7266 lux / 675 fc
@ 3m 6500K with Reflector 6298 lux / 585 fc @ 5m 6500K Flood 2734 lux / 254 fc
@ 5m 6500K with Reflector 2374 lux / 221 fc @ 7m 6500K Flood 1480 lux / 137 fc
With Optional PJ-BM-19 With Optional PJ-BM-36
@ 3m 2700K 12190 lux / 1132 fc @ 3m 2700K 4256 lux / 395 fc
@ 5m 2700K 3956 lux / 368 fc @ 5m 2700K 1491 lux / 139 fc
@ 7m 2700K 1945 lux / 181 fc @ 7m 2700K 754 lux / 70 fc
@ 3m 3200K 13920 lux / 1293 fc @ 3m 3200K 4915 lux / 457 fc
@ 5m 3200K 4450 lux / 413 fc @ 5m 3200K 1670 lux / 155 fc
@ 7m 3200K 2200 lux / 204 fc @ 7m 3200K 868 lux / 81 fc
@ 3m 5600K 16010 lux / 1487 fc @ 3m 5600K 5686 lux / 528 fc
@ 5m 5600K 5057 lux / 470 fc @ 5m 5600K 1950 lux / 181 fc
@ 7m 5600K 2522 lux / 234 fc @ 7m 5600K 988 lux / 92 fc
@ 3m 6500K 16280 lux / 1512 fc @ 3m 6500K 5836 lux / 542 fc
@ 5m 6500K 5141 lux / 478 fc @ 5m 6500K 1974 lux / 183 fc
@ 7m 6500K 2579 lux / 240 fc @ 7m 6500K 1015 lux / 94 fc
Specifications Table
⚙ Specifications
CCT2700K-6500K, ±80 G/M Adjustment
CRIAverage 96
TLCIAverage 97
SSI 3200K84
SSI 5600K74
TM-30 RF (Average)94
TM-30 RG (Average)101
Beam Angle100°
Rated Power580W
Input Voltage/CurrentDC(Battery) 14.4V-26V/12A, AC100-240V 50/60Hz
Operating Temperatureta45℃
Dimming0-100%, by 1% increments
EffectsCCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding
ControlBuilt-in Controls and Screen, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal ports, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box
Control Unit Dimensions6.1 x 5.5 x 12.1" (15.6 x 13.9 x 30.7cm)
Control Unit Weight7.9lbs (3.58kg)
Dimensions16 × 9.1 x 5.6" (40 × 23 x 14.2cm)
Weight9.6lbs (4.34kg)
What's in the Box Table
⁂ What's in the Box
1x Forza 500B II Bi-Color LED Spotlight
1x Control Unit with Gold-Mount Plates
1x Head Cable 9.8 feet (3 m)
1x Power Cable 19.8 feet (6 m)
1x RF-BM 55-Degree Bowens Mount Reflector
1x ASCPQRFZ Quick-Release Stand Clamp
1x AS-CAP-BW-B COB Protective Cap
1x Padded Carrying Bag
1x DMX Reference Guide
1x User Manual
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)

Resources for Forza 500B II
