Nanlux

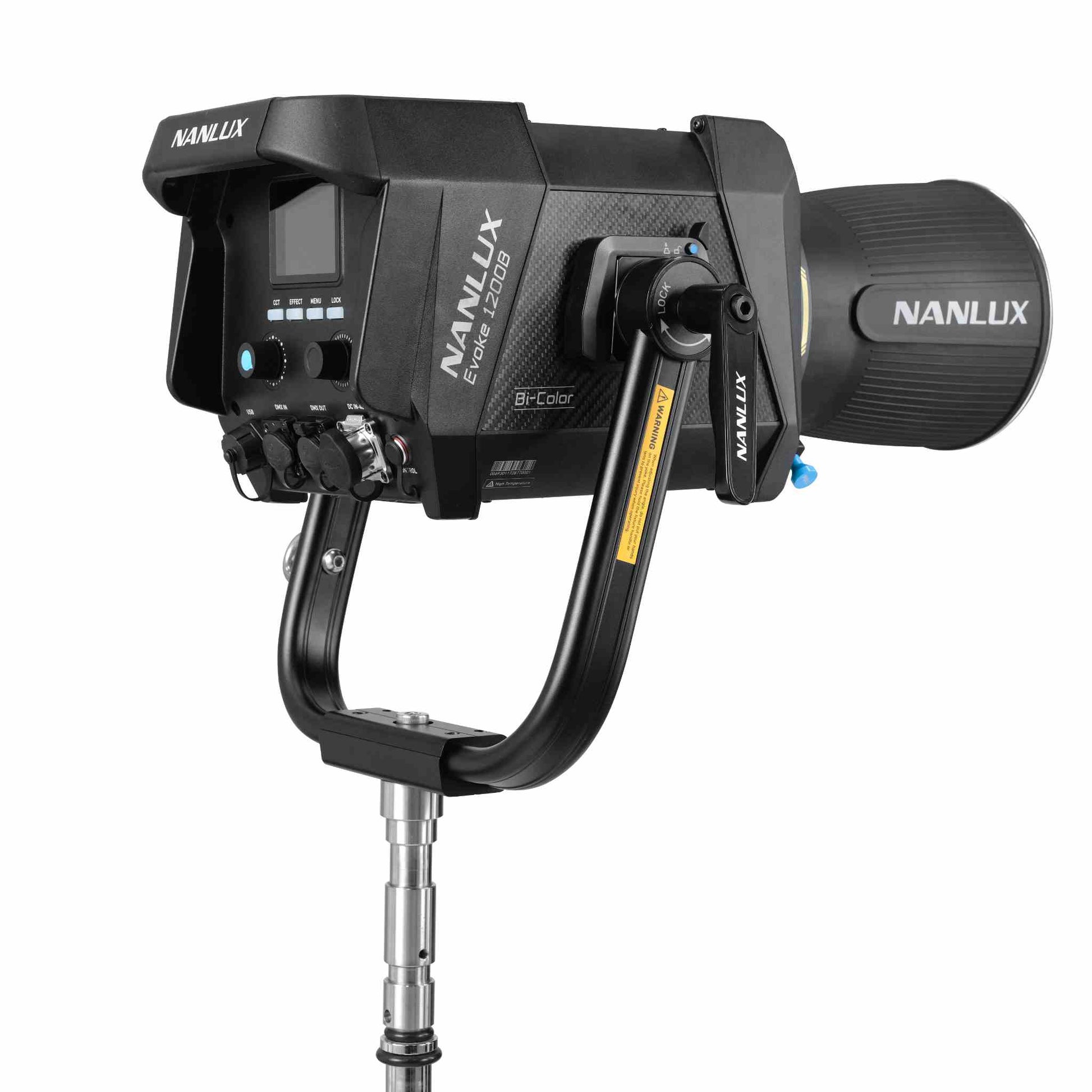

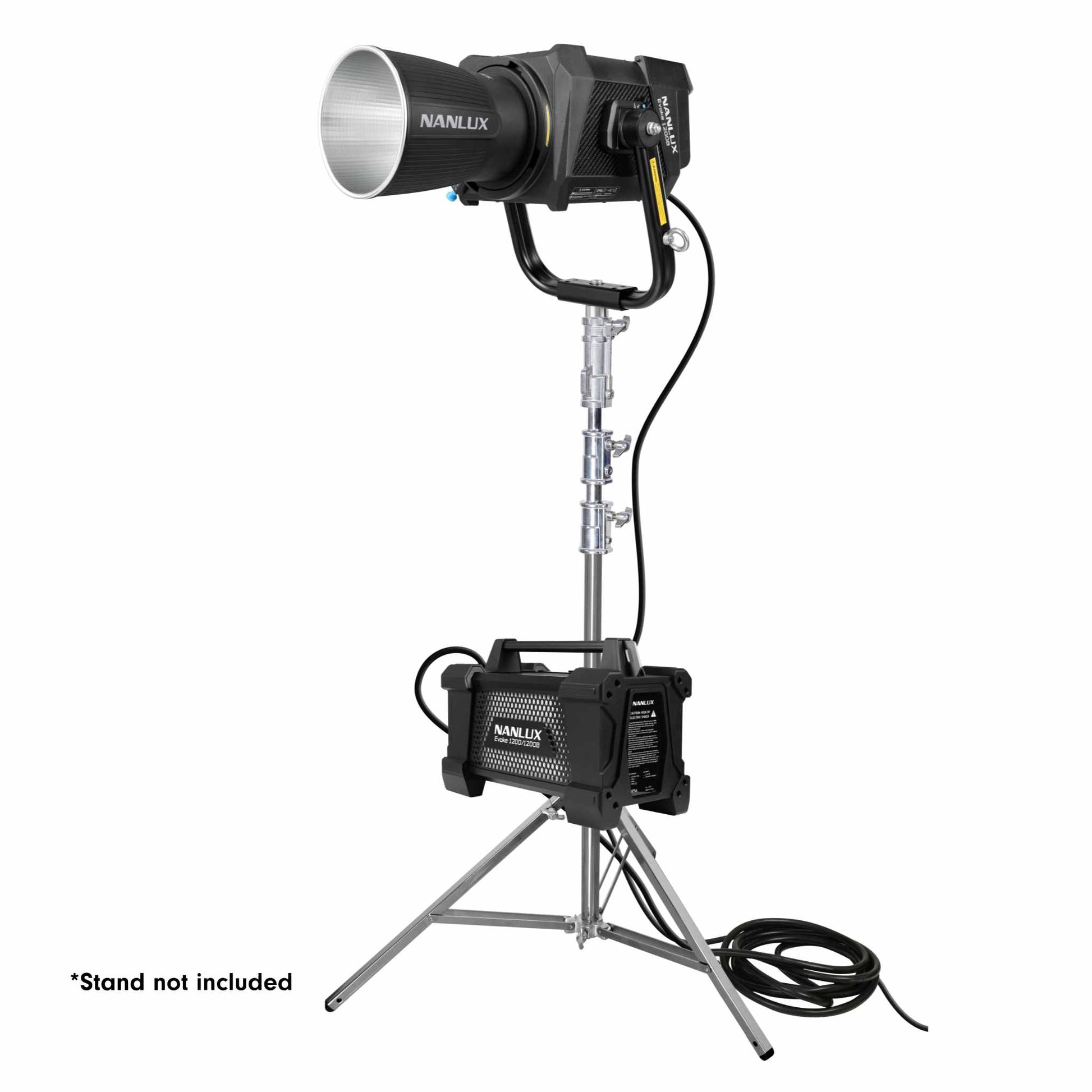

Nanlux Evoke 1200B LED Bi-Color Spotlight

Nanlux Evoke 1200B LED Bi-Color Spotlight

$1,869.60 USD
$2,920.00 USD $1,869.60 USD
Sale Sold out

Evoke 1200BD

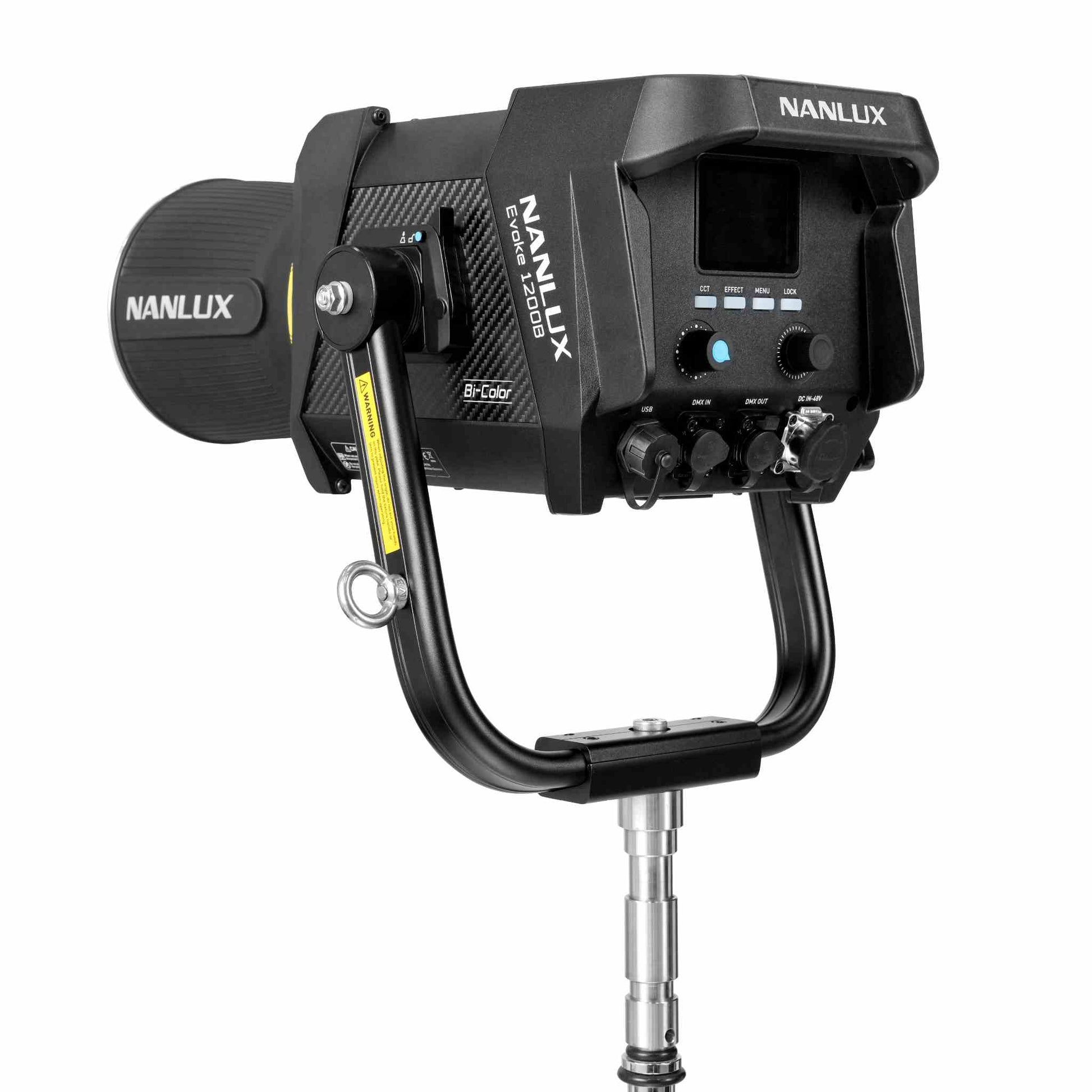

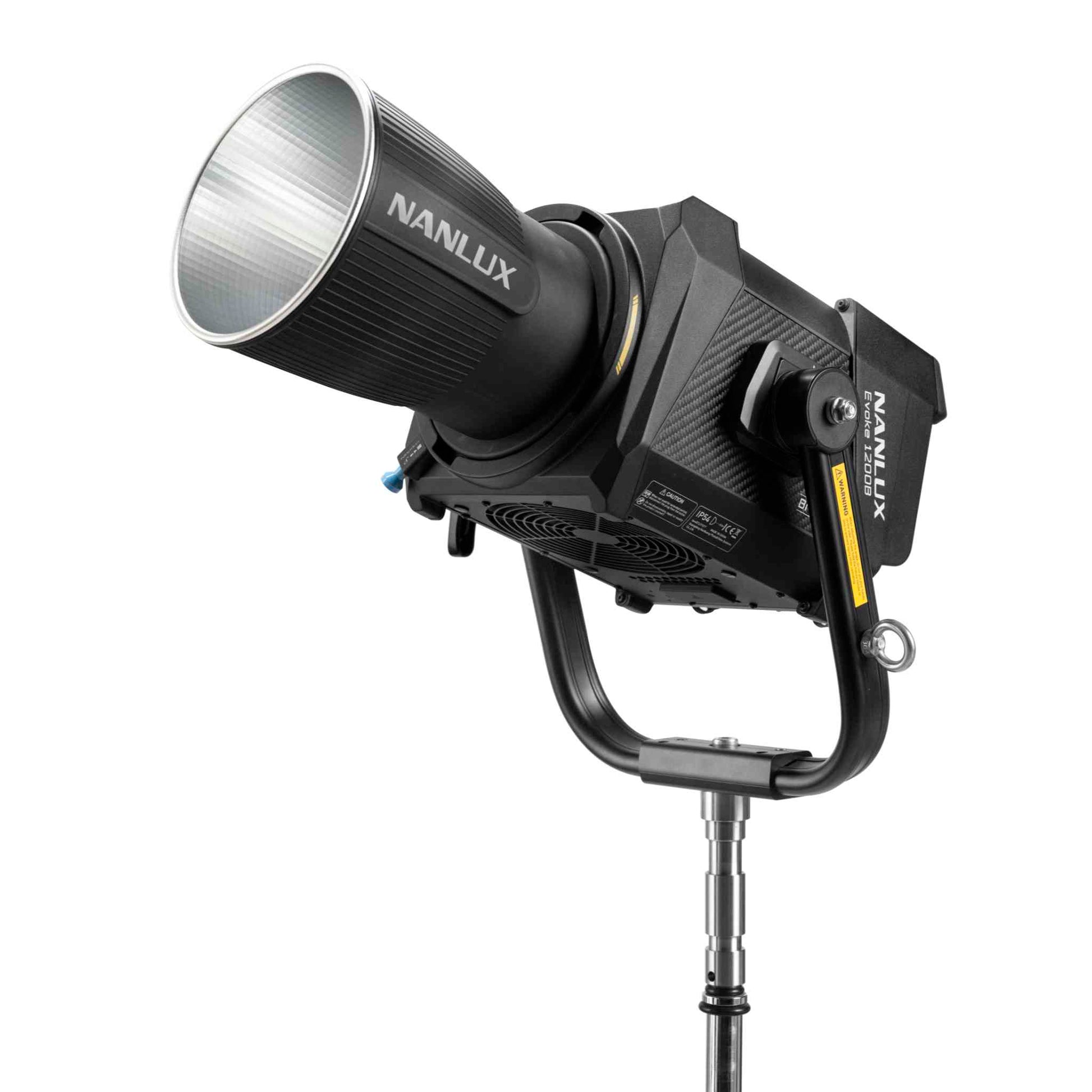

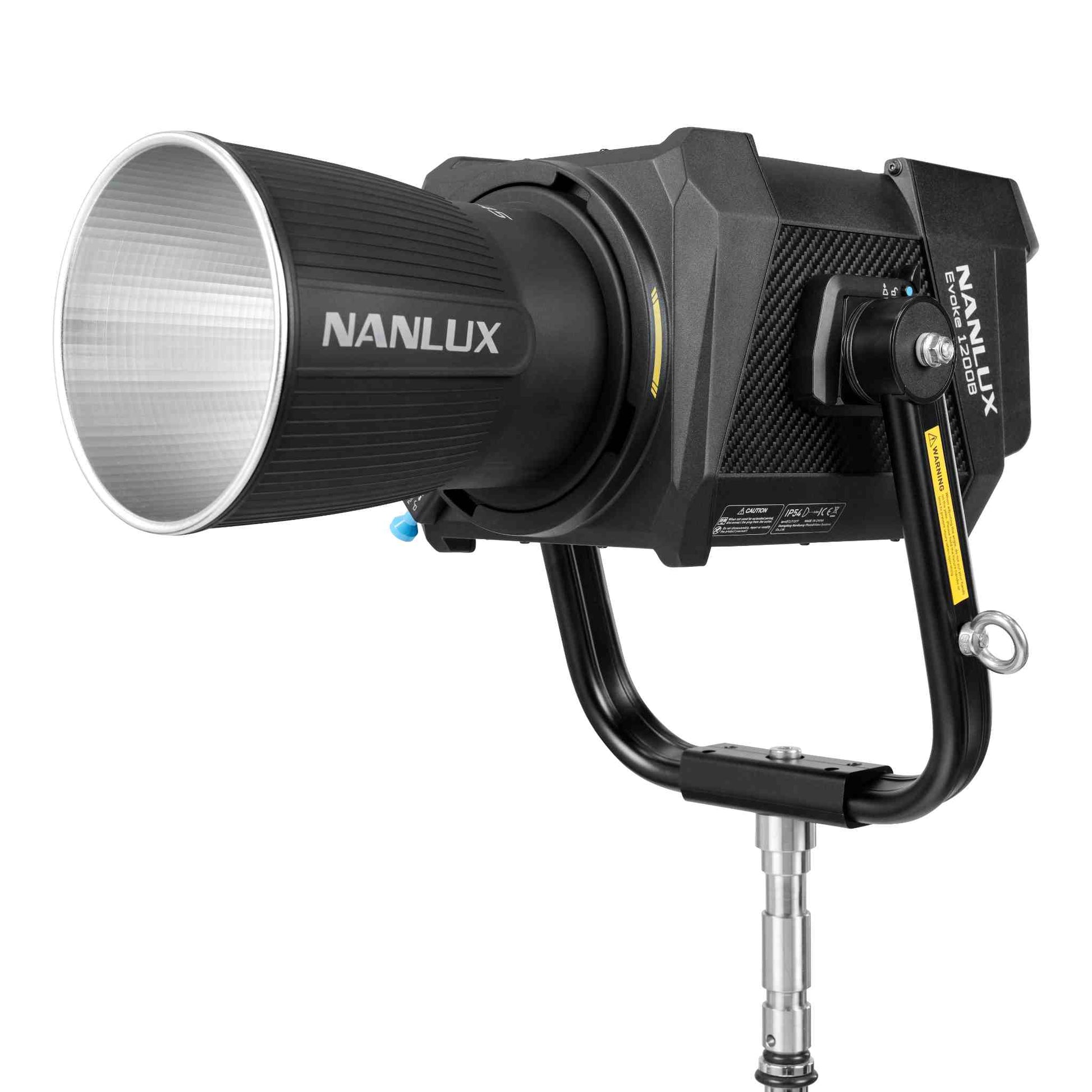

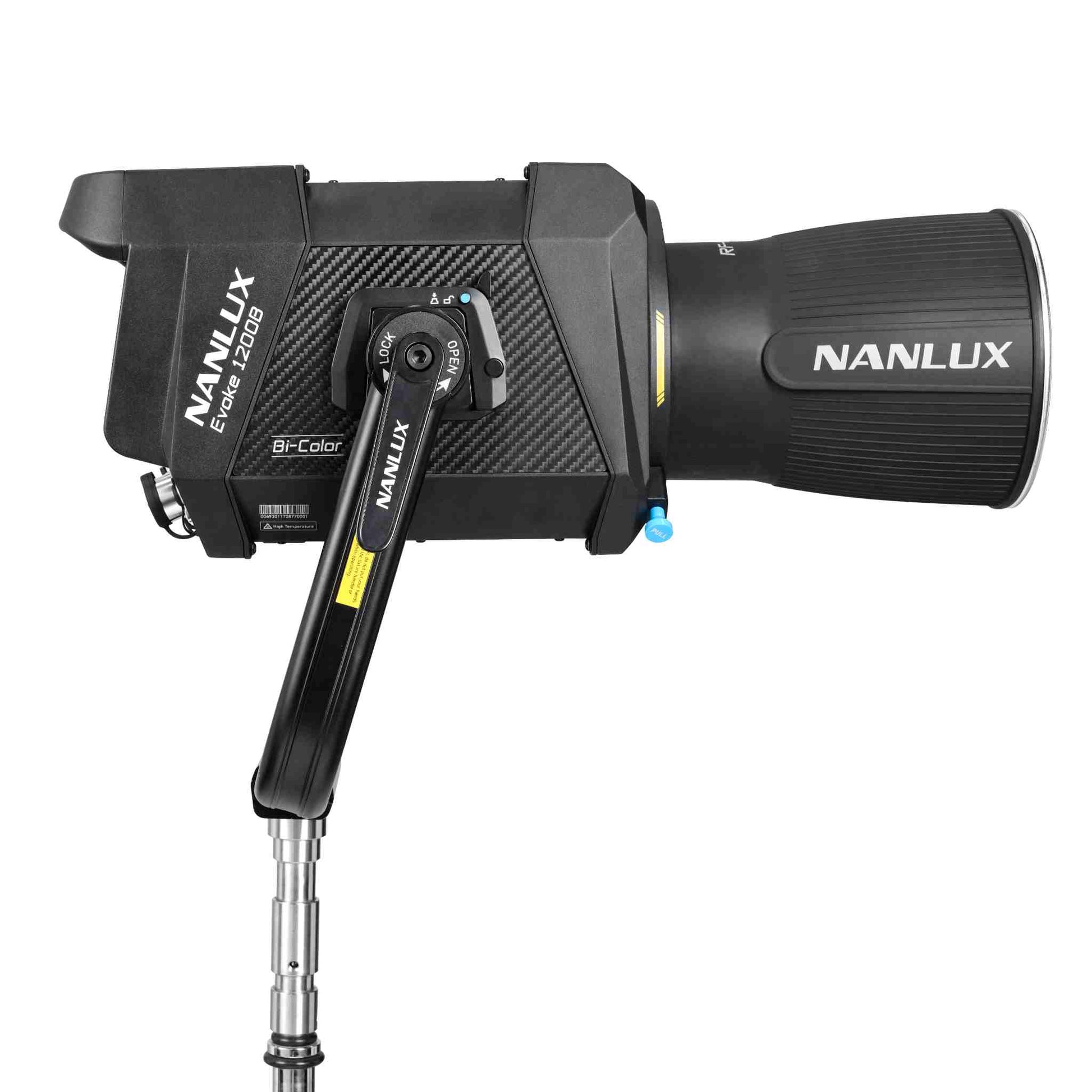

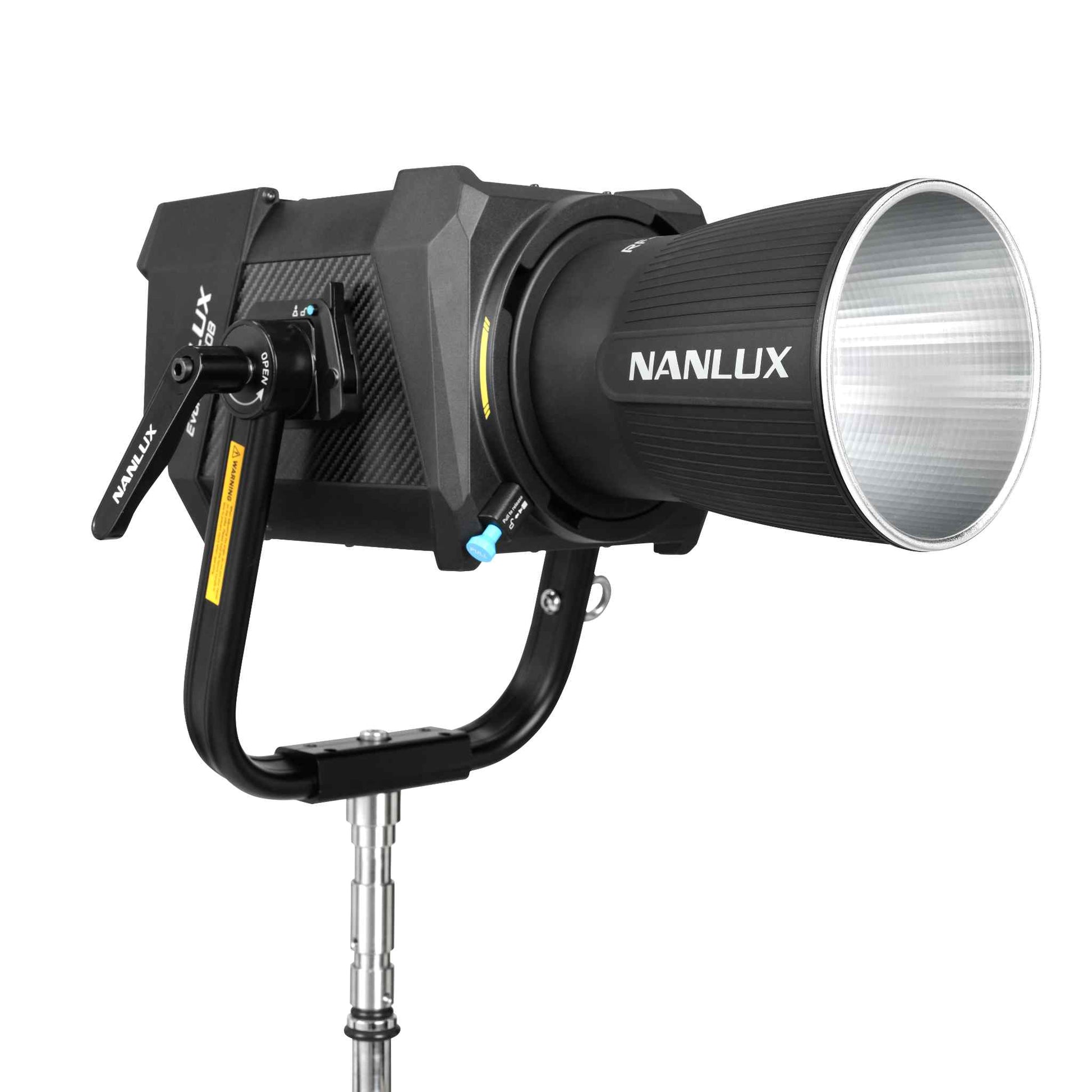

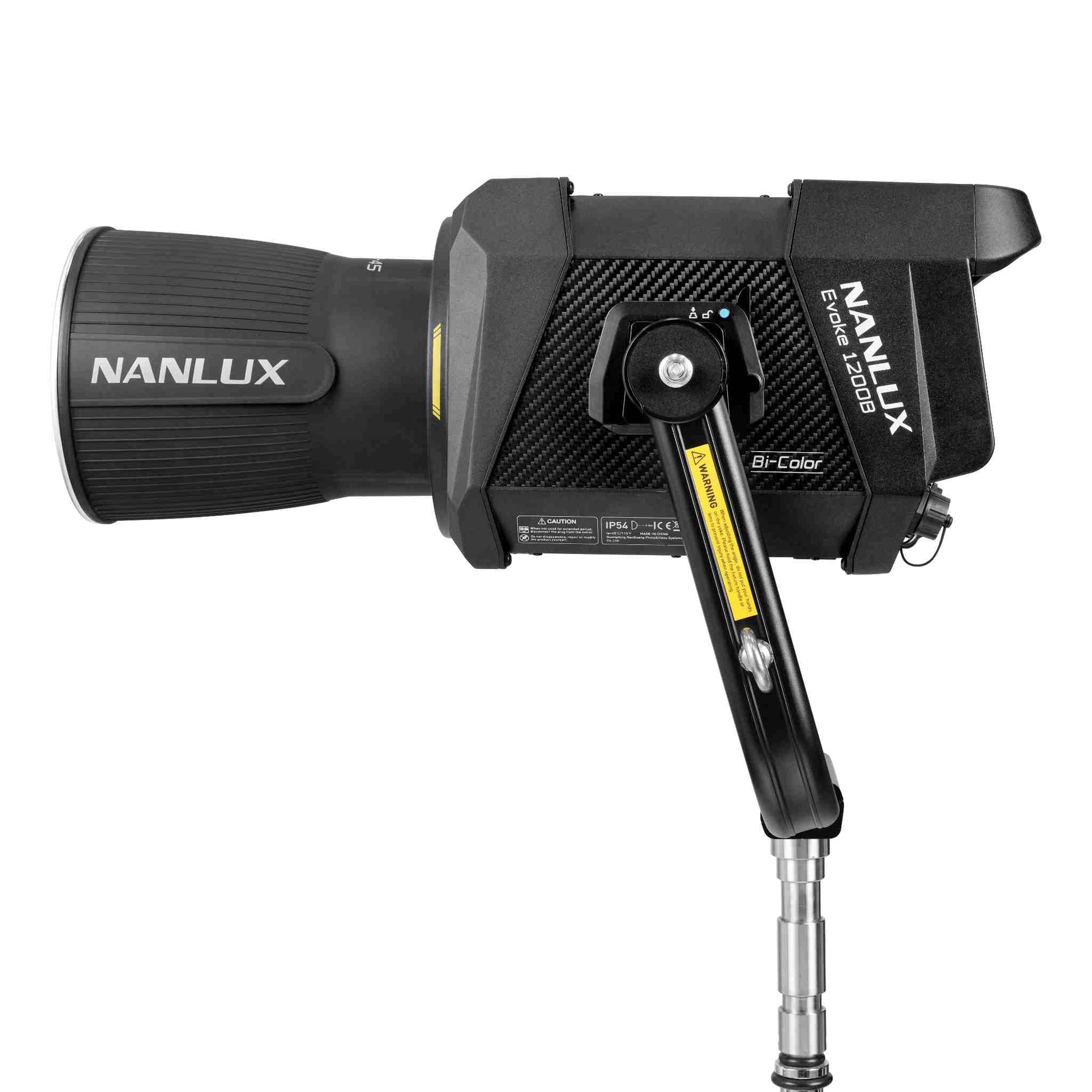

The Nanlux Evoke 1200B is a bi-color, point-source LED light with an NL mount that outputs up to 18,570 lux (1725 fc) @3m 5600K with the included 45° reflector, which is more powerful than a 1.8K HMI Par or a 2.5K fresnel. The light is flicker-free, adjustable between 2700K–6500K, and has excellent color rendering capabilites: SSI average 79, CRI average 96, TLCI average 97, TM-30Rf average 95, TM-30Rg average 102.

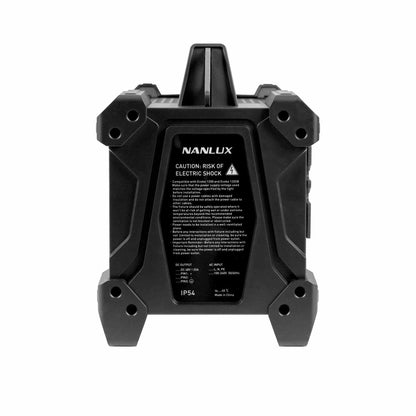

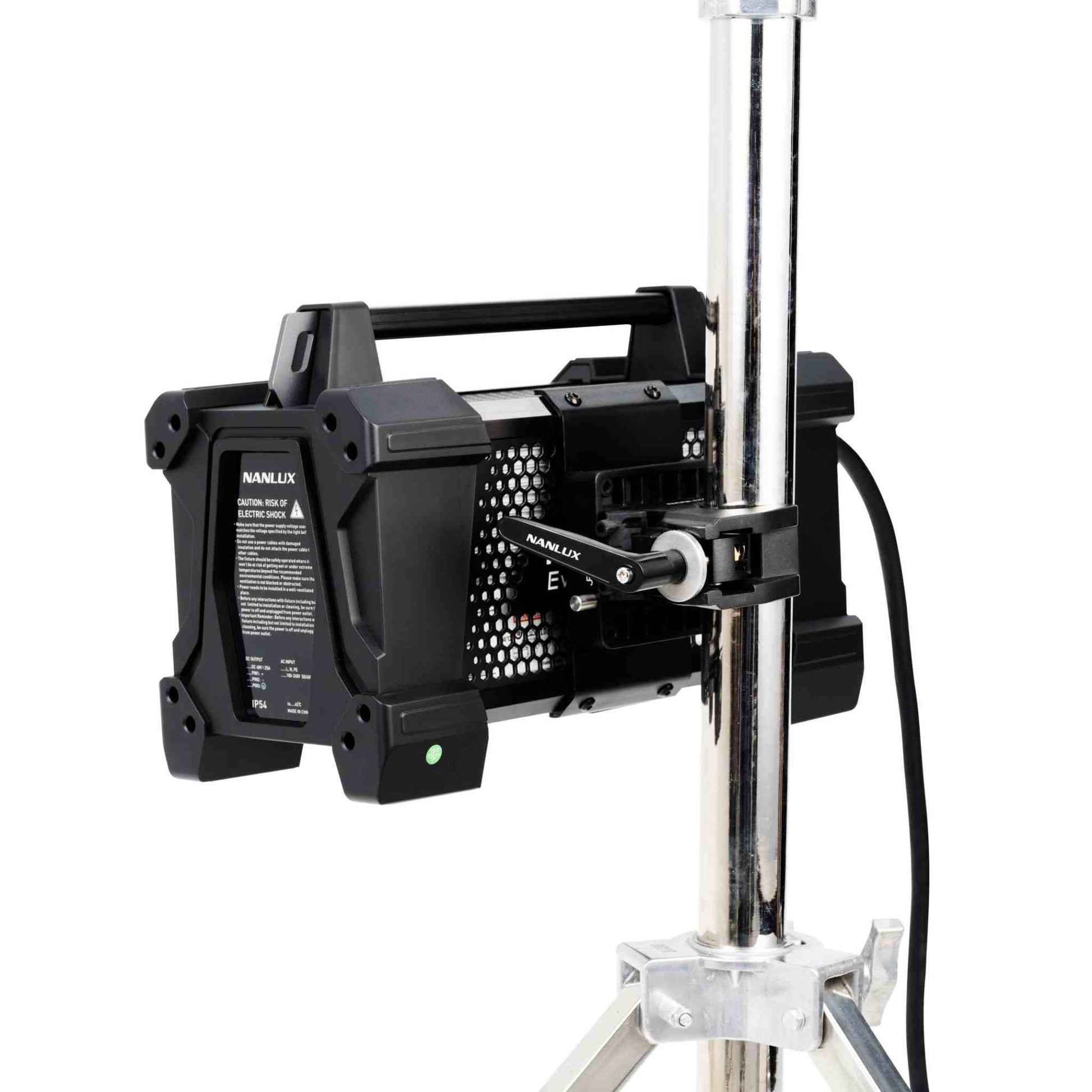

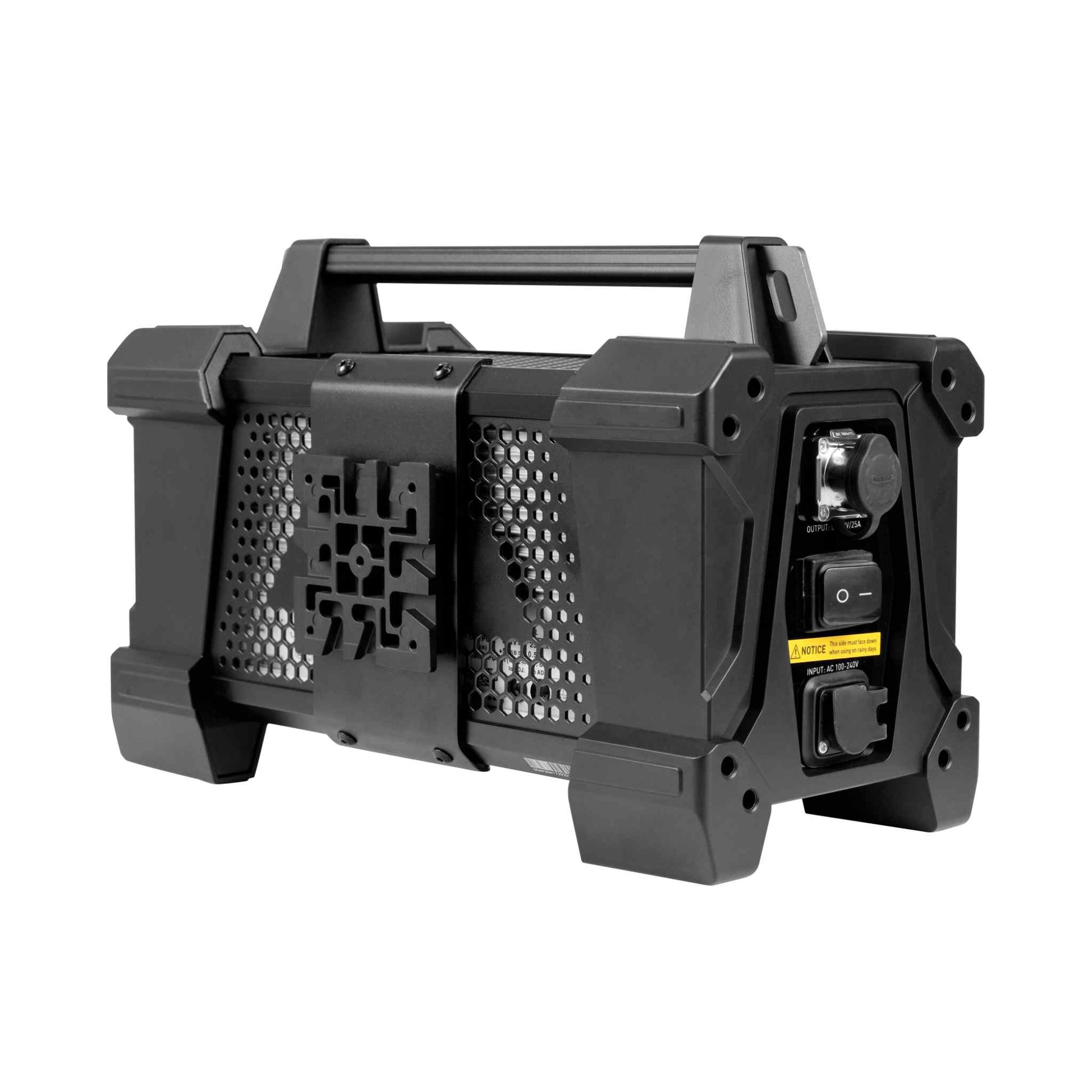

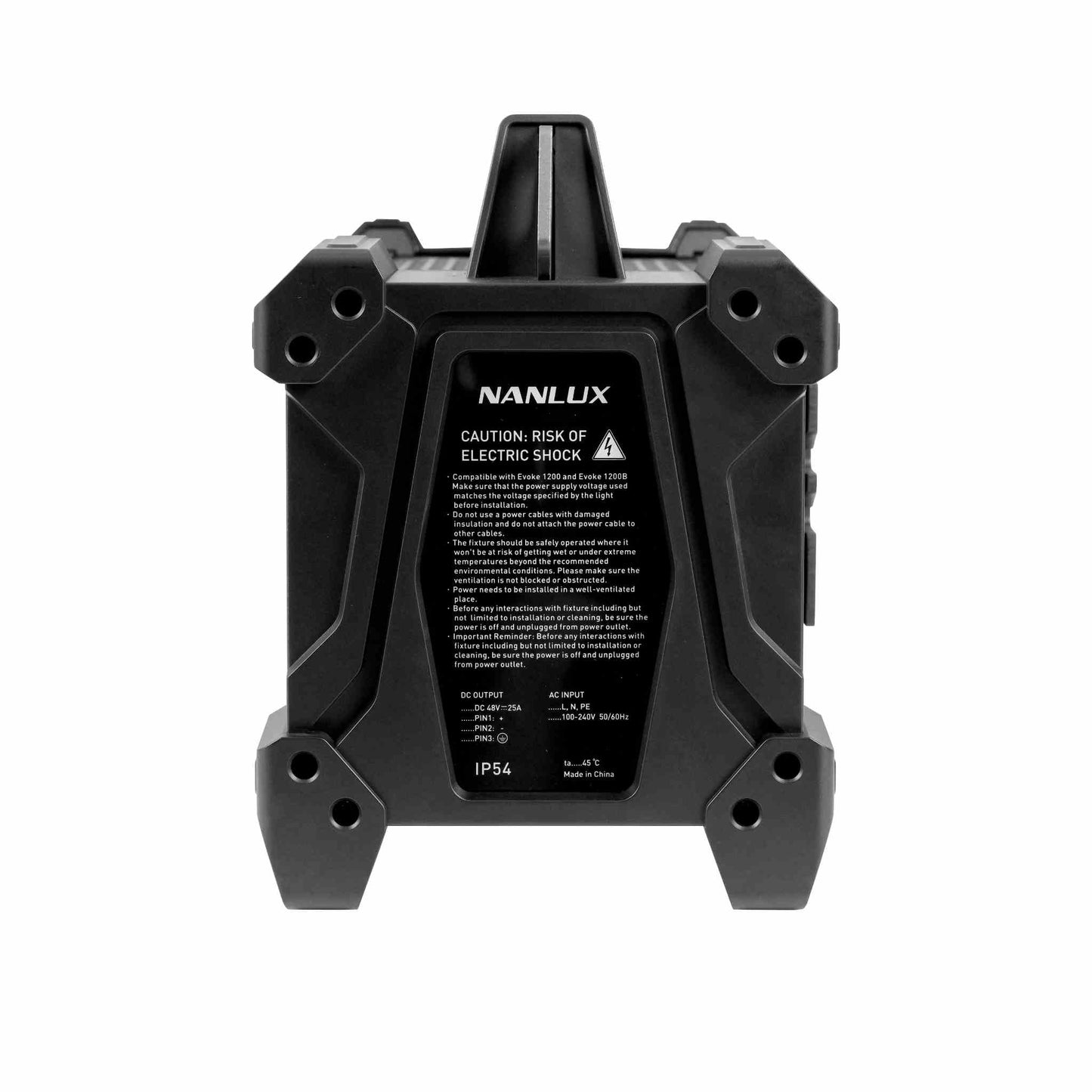

The entire fixture is IP54 rated. The hermetically sealed structure can withstand inclement weather and extreme conditions. The power supply has the same IP54 rating. Dimming is handled in 0.1% increments for fine control, and 5 dimming curves are available via DMX: LINEAR, EXPONENT, LOGARITHM, S CURVE, and GAMMA 2.2.

Open-box item, all sales final, no returns, 3-month limited warranty

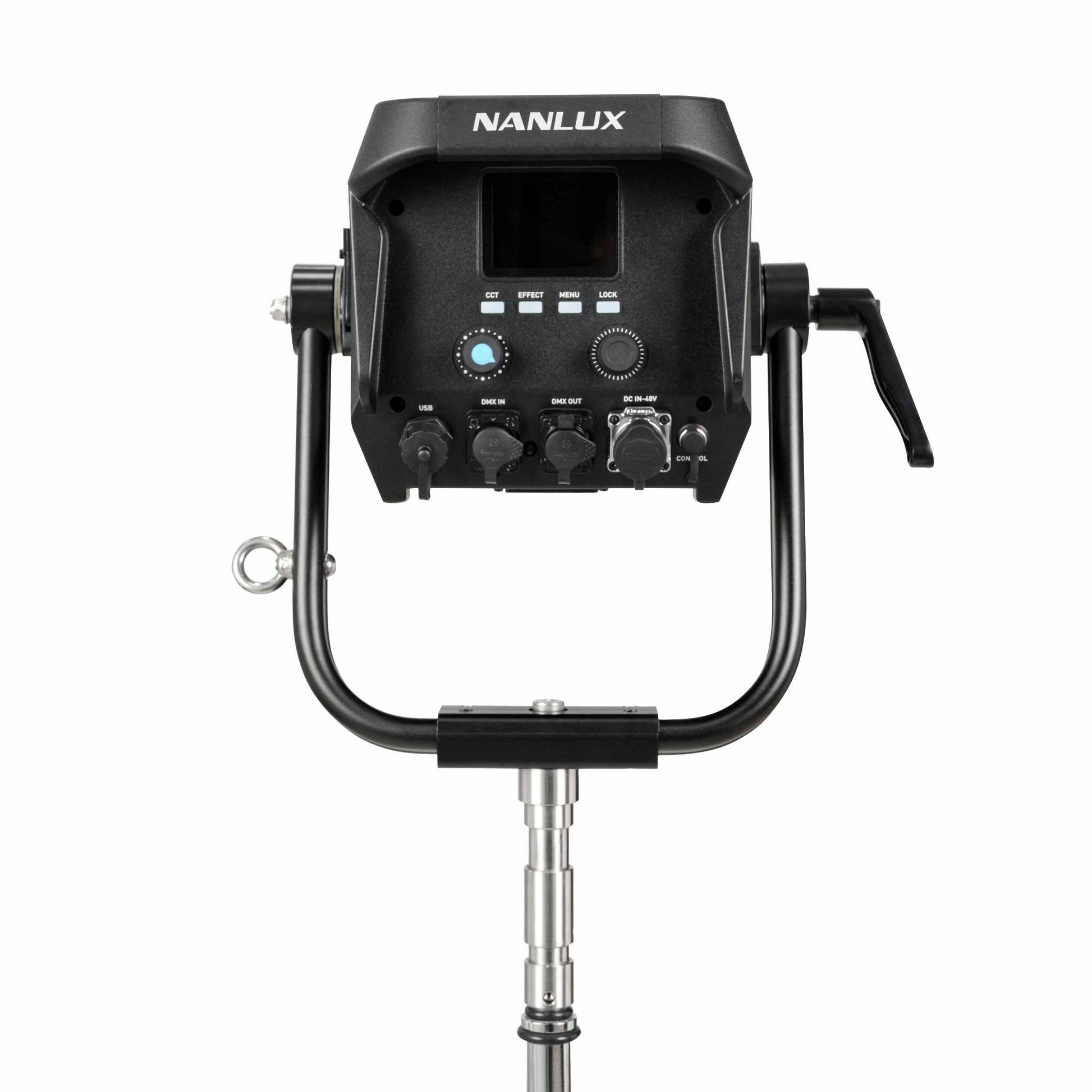

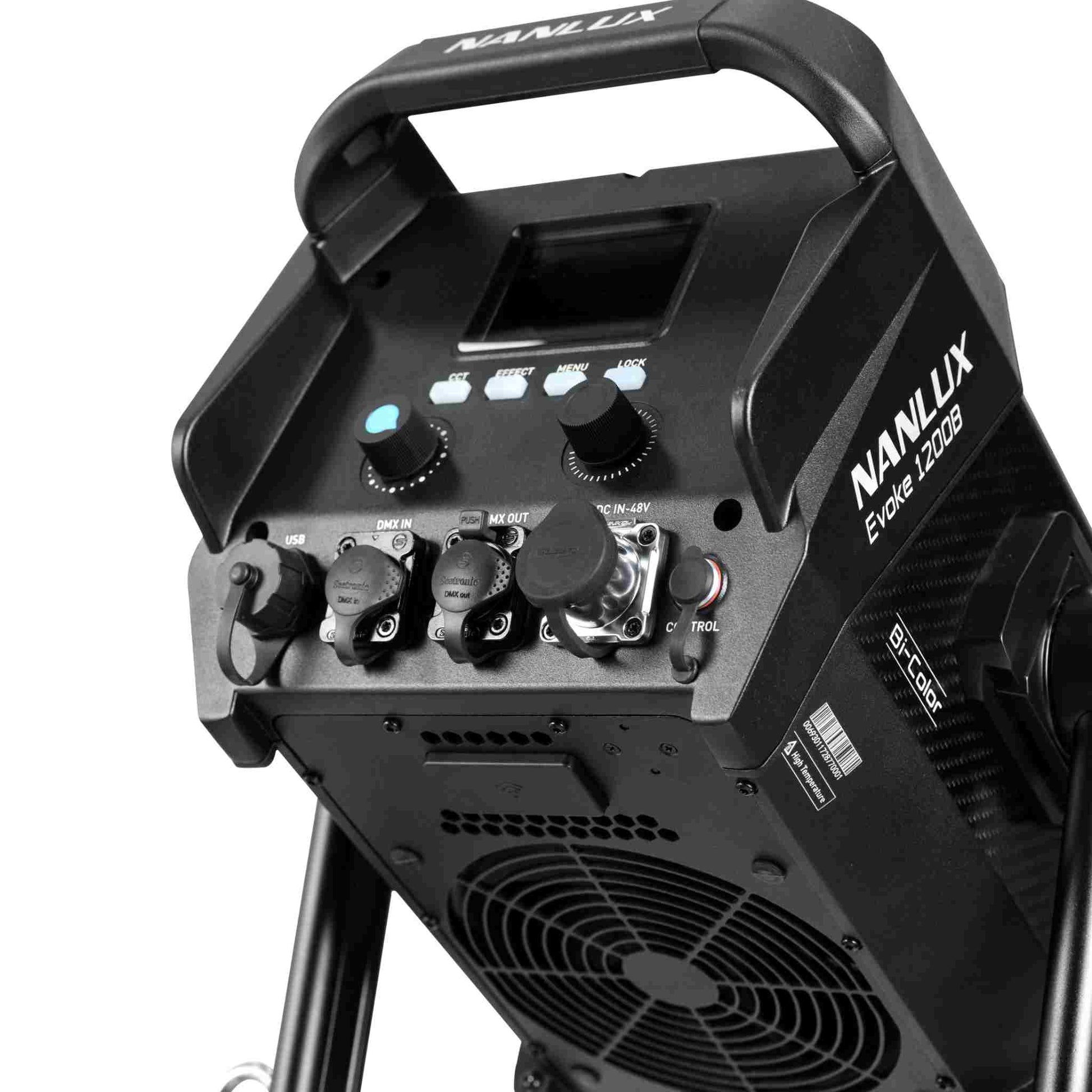

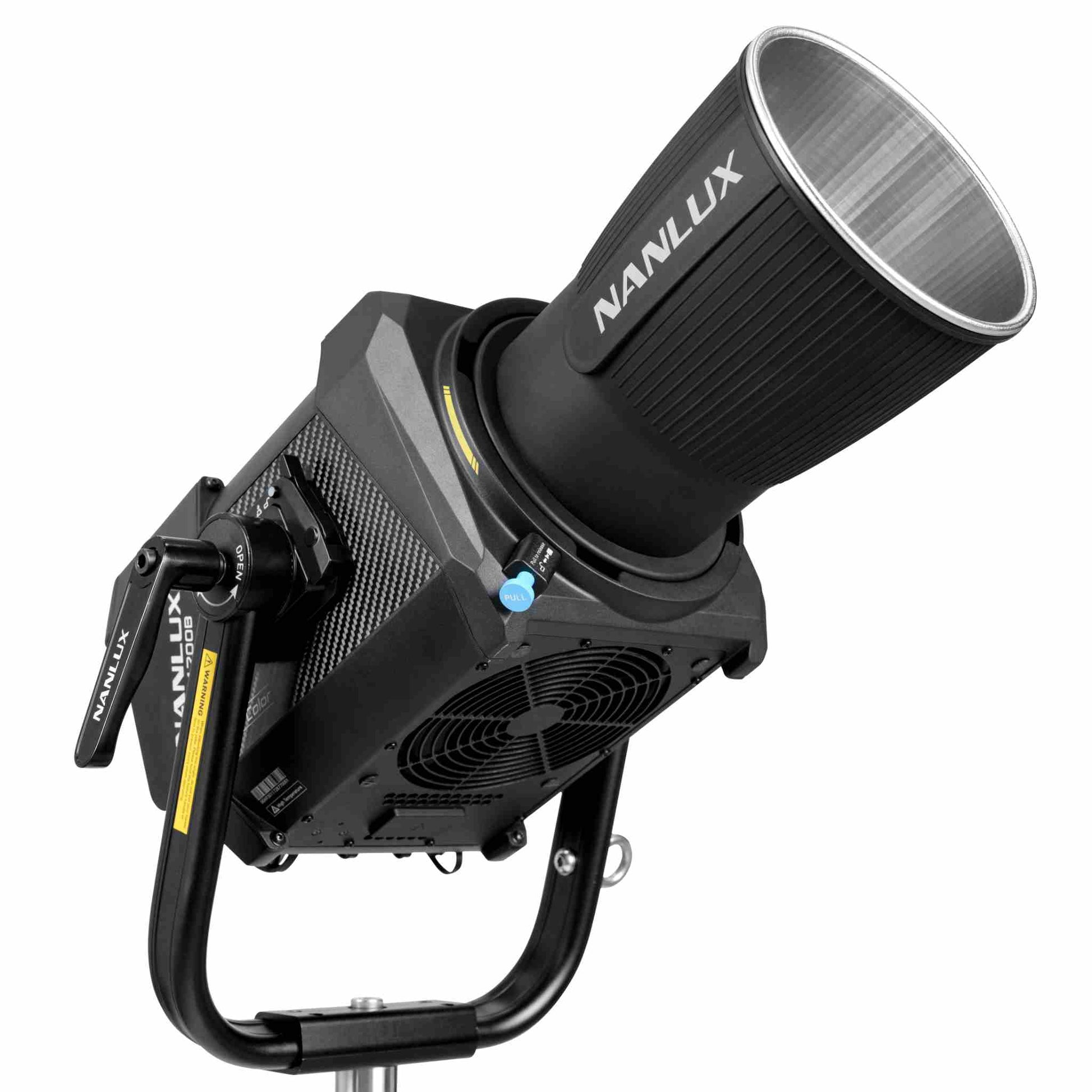

Evoke 1200B features easy-to-use onboard controls and a 2.8" screen, LumenRadio CRMX, Bluetooth, and 2.4G for wireless control, and 5-pin ports for DMX/RDM control. It's lightweight and has durable metal construction. Smart fan modes are provided for sound-sensitive sets. An entire ecosystem of modifiers and accessories are available for its NL mount.

View full details
Unique Photometrics Chart
☀ Photometrics
Bare Bulb and 45° Reflector With Optional Fresnel
@ 3m 2700K 4128 lux / 383 fc @ 3m 2700K Spot 39200 lux / 3642 fc
@ 5m 2700K 1762 lux / 164 fc @ 5m 2700K Spot 13880 lux / 1289 fc
@ 7m 2700K 997 lux / 93 fc @ 7m 2700K Spot 7154 lux / 665 fc
@ 3m 2700K with Reflector 14590 lux / 1355 fc @ 3m 2700K Flood 9960 lux / 925 fc
@ 5m 2700K with Reflector 5232 lux / 486 fc @ 5m 2700K Flood 4106 lux / 381 fc
@ 7m 2700K with Reflector 3014 lux / 280 fc @ 7m 2700K Flood 2375 lux / 221 fc
@ 3m 3200K 4571 lux / 425 fc @ 3m 3200K Spot 43480 lux / 4039 fc
@ 5m 3200K 1955 lux / 182 fc @ 5m 3200K Spot 15610 lux / 1450 fc
@ 7m 3200K 1088 lux / 101 fc @ 7m 3200K Spot 8056 lux / 748 fc
@ 3m 3200K with Reflector 15900 lux / 1477 fc @ 3m 3200K Flood 11320 lux / 1052 fc
@ 5m 3200K with Reflector 5816 lux / 540 fc @ 5m 3200K Flood 4603 lux / 428 fc
@ 7m 3200K with Reflector 15900 lux / 1477 fc @ 7m 3200K Flood 2693 lux / 250 fc
@ 3m 5600K 5258 lux / 488 fc @ 3m 5600K Spot 49940 lux / 4639 fc
@ 5m 5600K 2244 lux / 208 fc @ 5m 5600K Spot 17810 lux / 1655 fc
@ 7m 5600K 1261 lux / 117 fc @ 7m 5600K Spot 9211 lux / 856 fc
@ 3m 5600K with Reflector 18570 lux / 1725 fc @ 3m 5600K Flood 13010 lux / 1209 fc
@ 5m 5600K with Reflector 6800 lux / 632 fc @ 5m 5600K Flood 5286lux / 491 fc
@ 7m 5600K with Reflector 3872 lux / 360 fc @ 7m 5600K Flood 3067 lux / 285 fc
@ 3m 6500K 5214 lux / 484 fc @ 3m 6500K Spot 49440 lux / 4593 fc
@ 5m 6500K 2231 lux / 207 fc @ 5m 6500K Spot 17650 lux / 1640 fc
@ 7m 6500K 1259 lux / 117 fc @ 7m 6500K Spot 9081 lux / 844 fc
@ 3m 6500K with Reflector 18720 lux / 1739 fc @ 3m 6500K Flood 12840 lux / 1193 fc
@ 5m 6500K with Reflector 6774 lux / 629 fc @ 5m 6500K Flood 5228 lux / 486 fc
@ 7m 6500K with Reflector 3873 lux / 360 fc @ 7m 6500K Flood 3048 lux / 283 fc
Specifications Table
⚙ Specifications
CCT2700K-6500K
SSIAverage 79
CRIAverage 96
TLCIAverage 97
TM-30RfAverage 95
TM-30RgAverage 102
Rated Power1200W
Input Voltage/CurrentDC48V/25A Max, AC100-240V 50/60Hz
Dimming0-100% in 0.1% increments
EffectsCCT Loop [Bi-color], INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/File, Bad Bulb, Firework, Explosion, Welding
ControlOn-board, Remote Control, NANLINK APP, DMX/RDM, LumenRadio CRMX
Power Supply Dimensions14.82 × 7.12 × 9.68" (37.65 x 18.1 x 24.6cm)
Power Supply Weight23.15lbs (10.5kg)
Light Fixture with Yoke Dimensions12.99 × 9.48 × 8.26" (33 × 24.1 x 21cm)
Light Fixture Weight17.09lbs (7.75kg)
What's in the Box Table

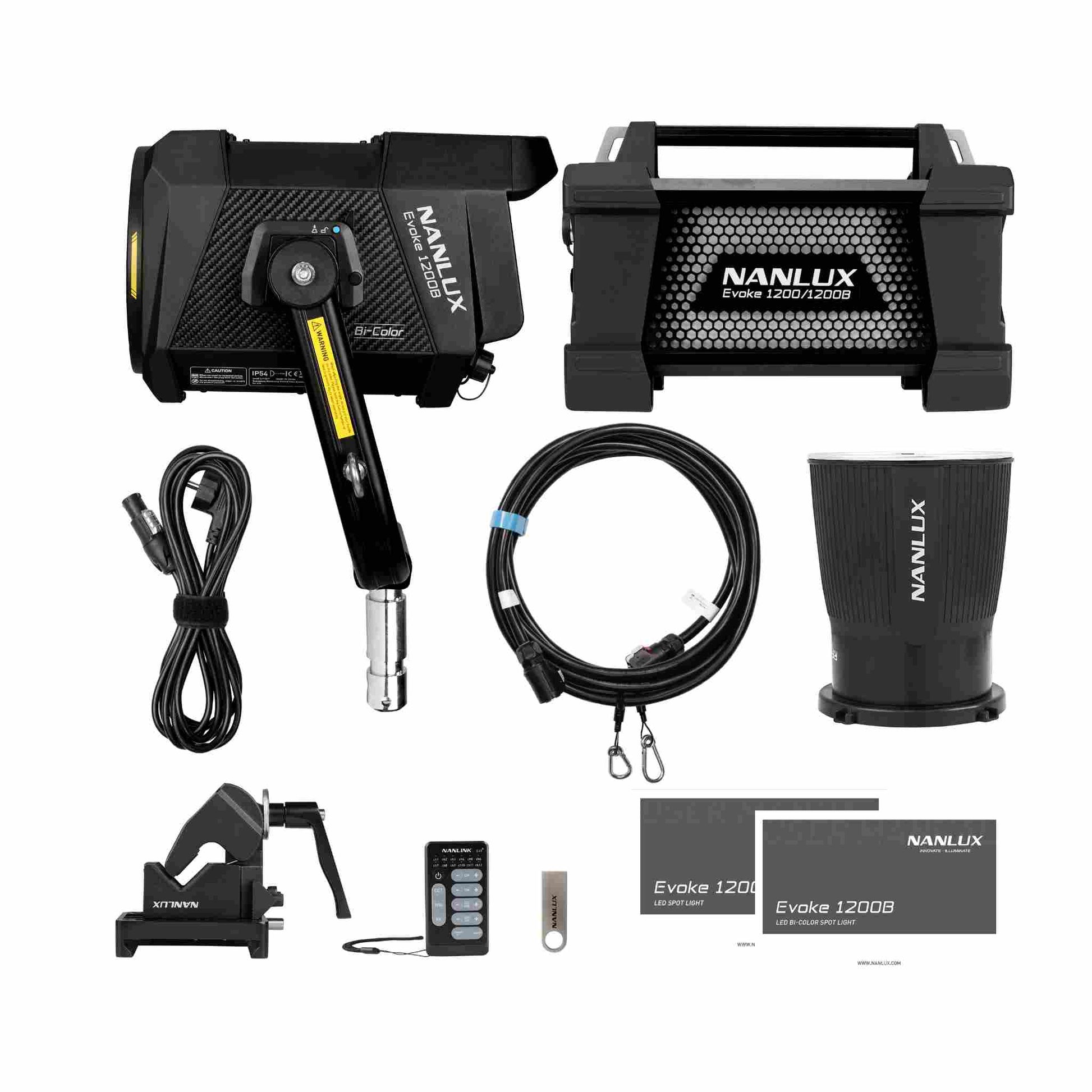

⁂ What's in the Box
1x Evoke 1200B
1x Yoke

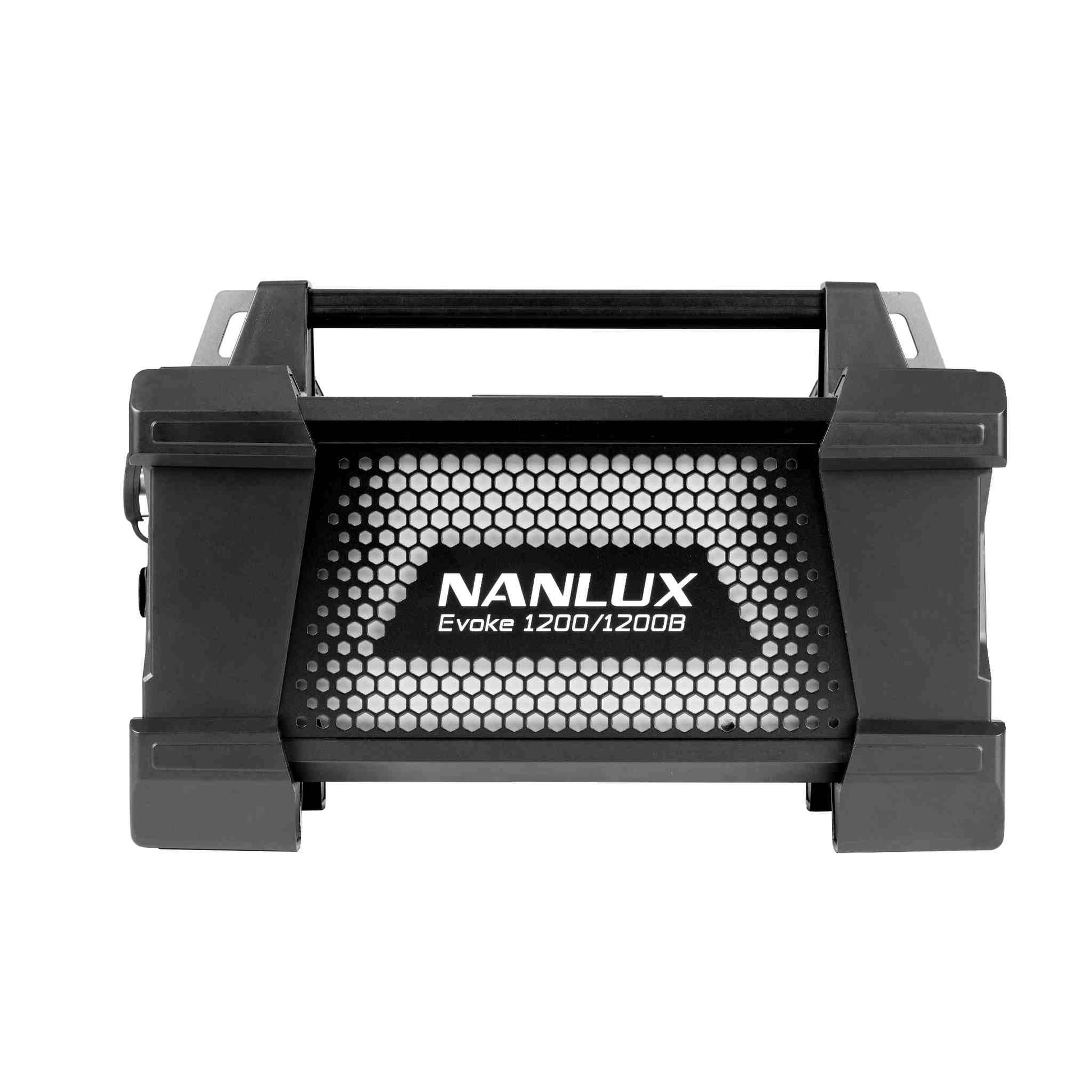

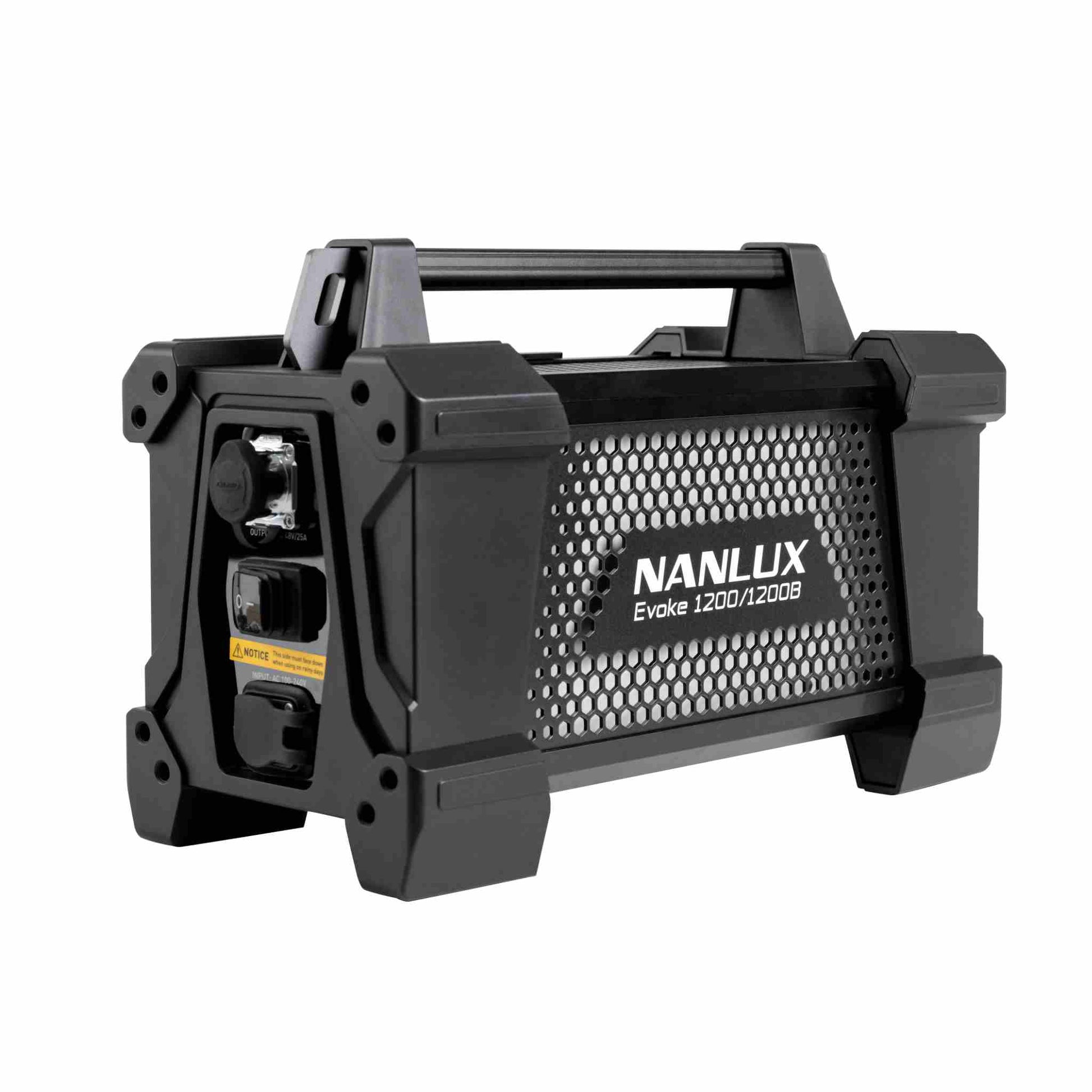

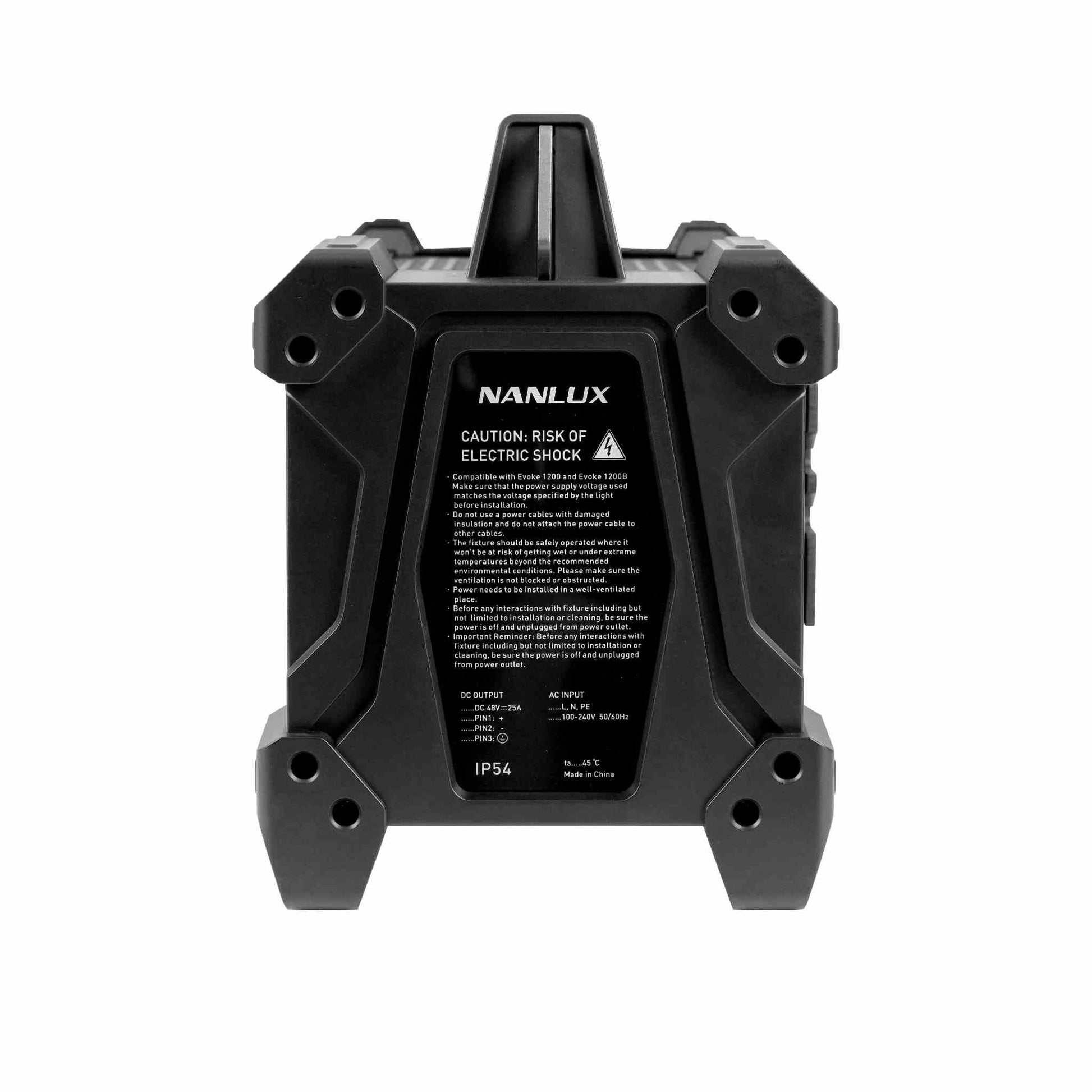

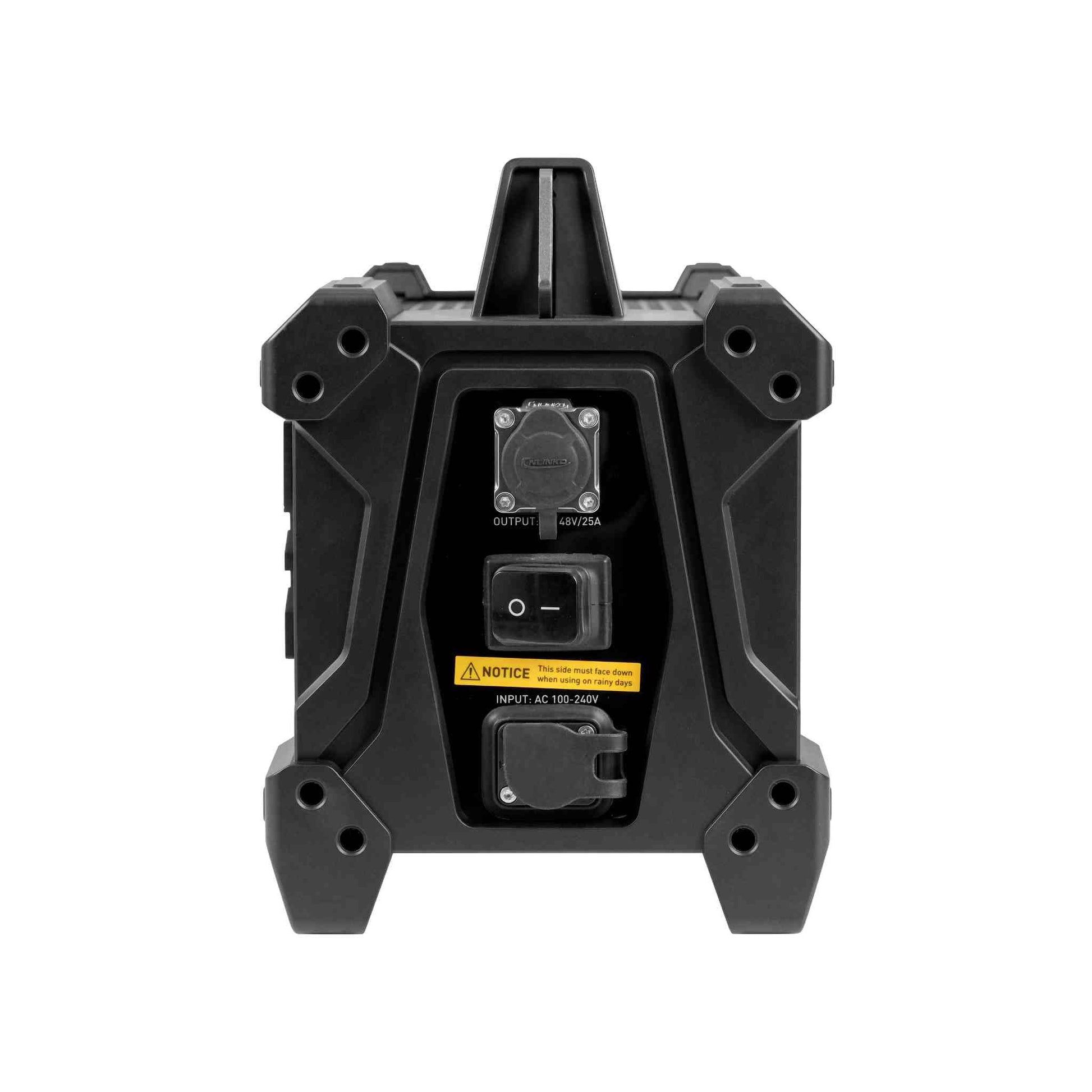

1x Power Supply
1x RF-NLM-45 Reflector
1x WS-RC-C2 Remote Controller
1x DC Connection Cable 24.6' (7.5M)
1x AC Power Cable 19.68' (6M)

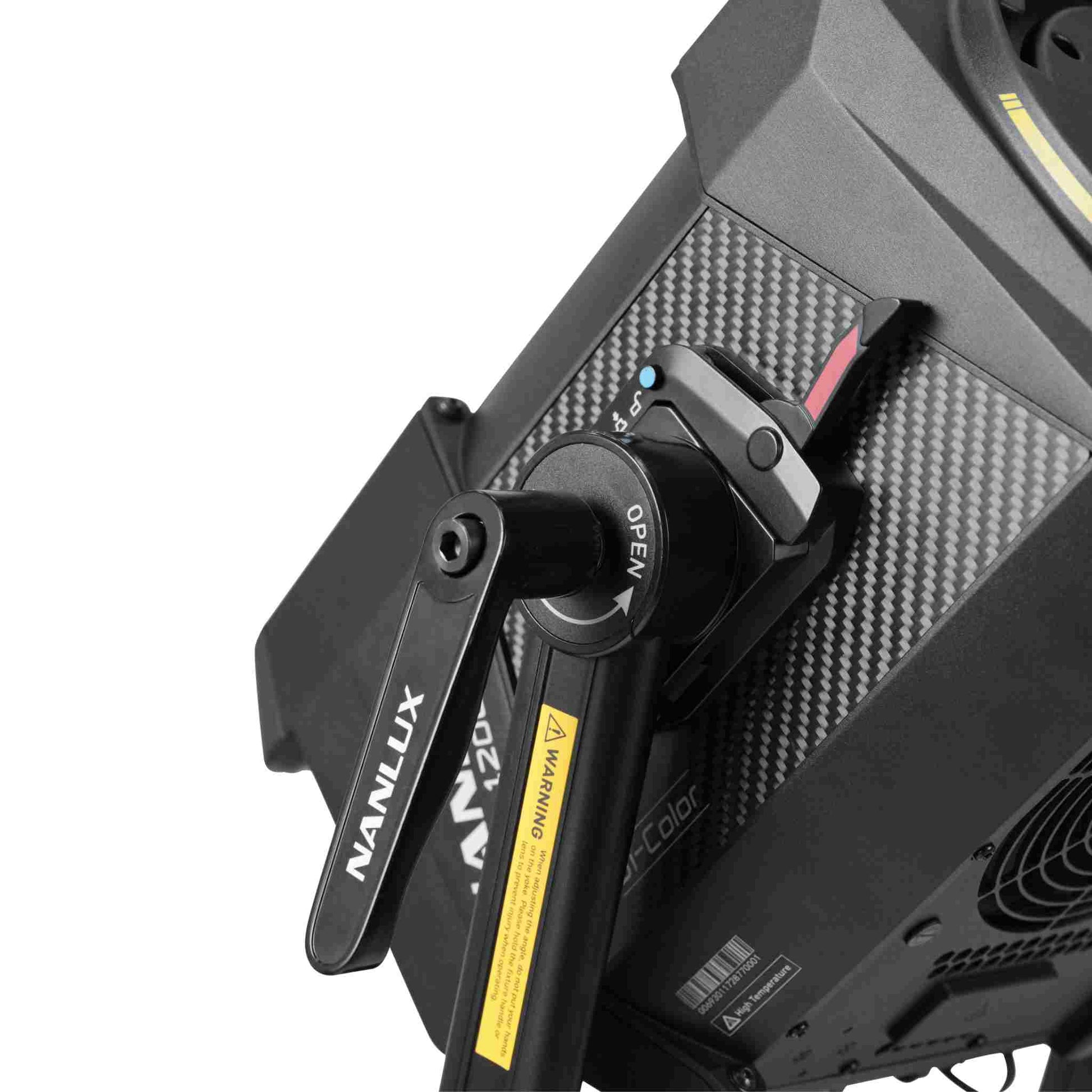

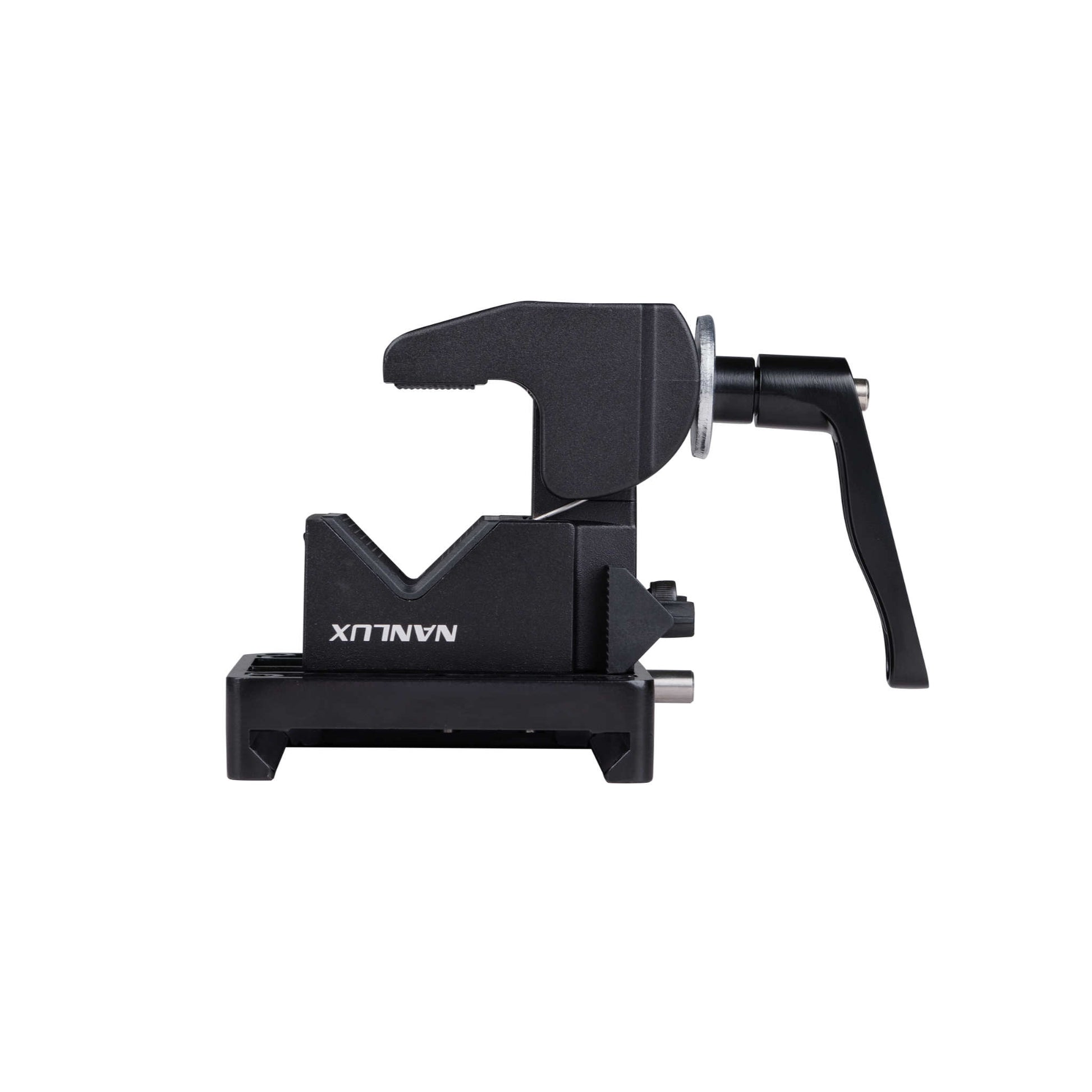

1x AS-CP-QR-EV Quick Release Clamp
1x USB Flash Drive
1x User Manual
1x DMX Reference Guide
