Nanlite

PavoSlim 120C 2x1 RGBWW LED Panel Light with CRMX

PavoSlim 120C 2x1 RGBWW LED Panel Light with CRMX

Regular price $799.00 USD
Regular price Sale price $799.00 USD
Sale Sold out
Quantity

SKU:PS120C

THIN, BRIGHT & TOUGH
Exceptionally slim and lightweight yet it provides an impressive output of 12830 lux (1192 fc)  @1M 5600K, and has solid construction that was designed to last

FAST SET UP & BREAK DOWN

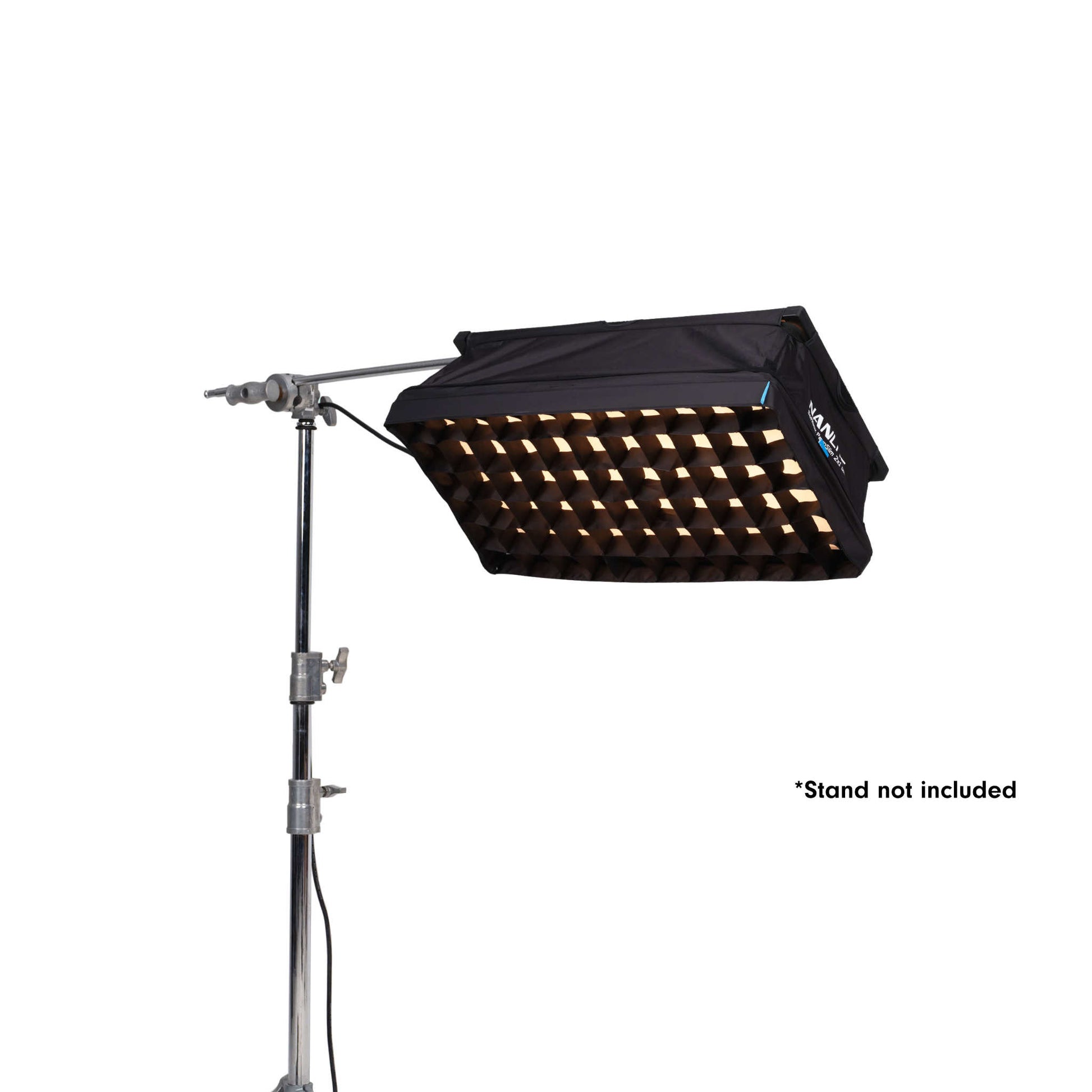

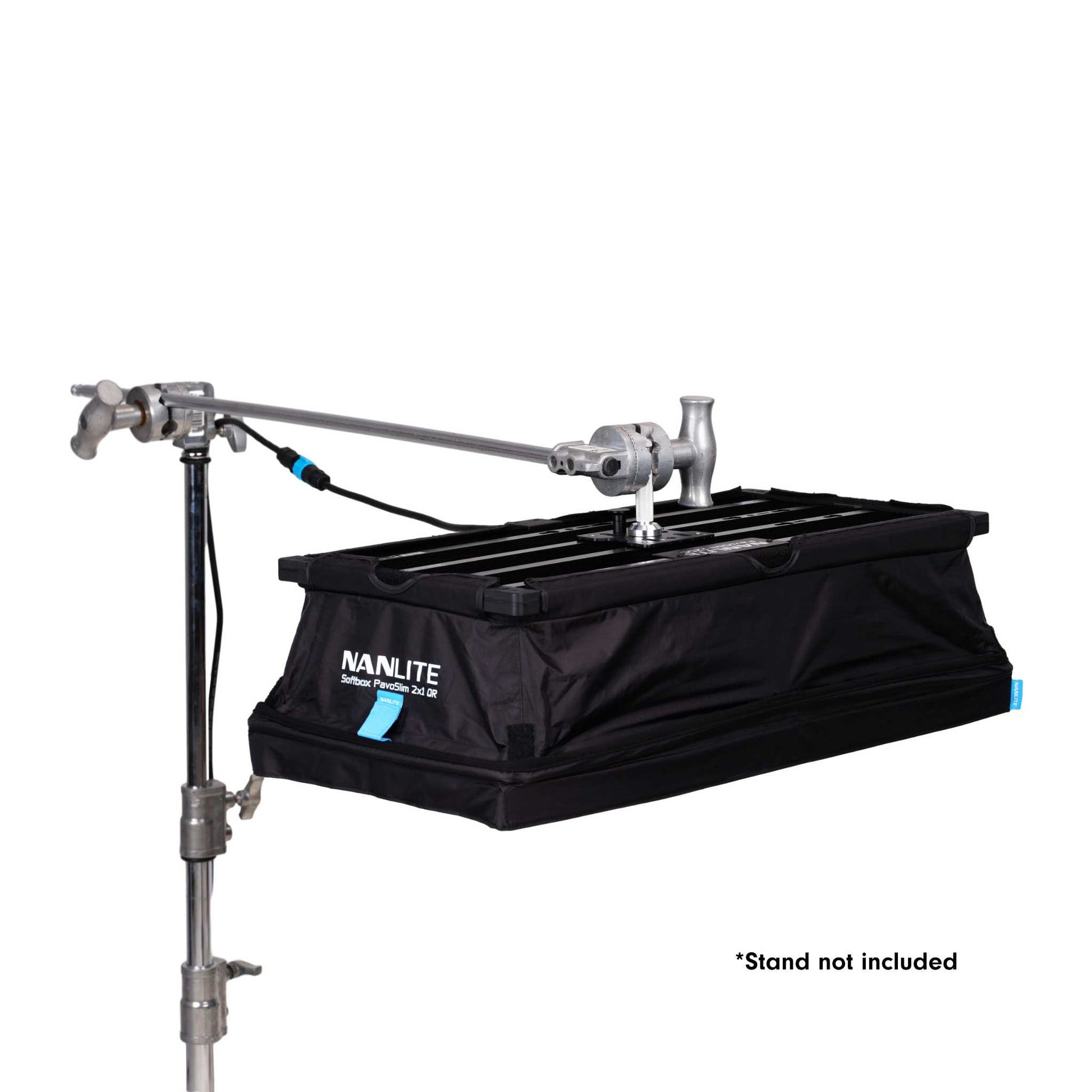

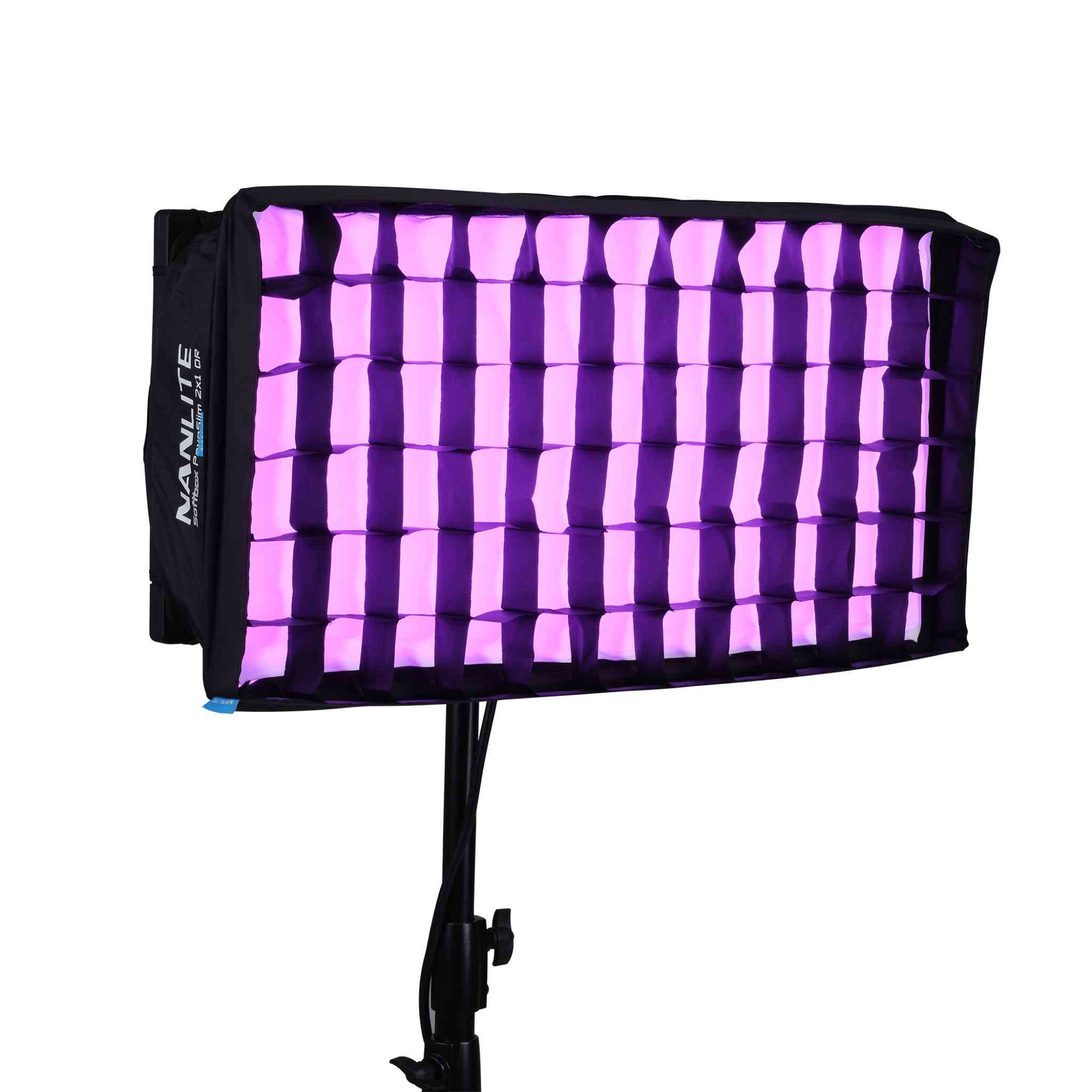

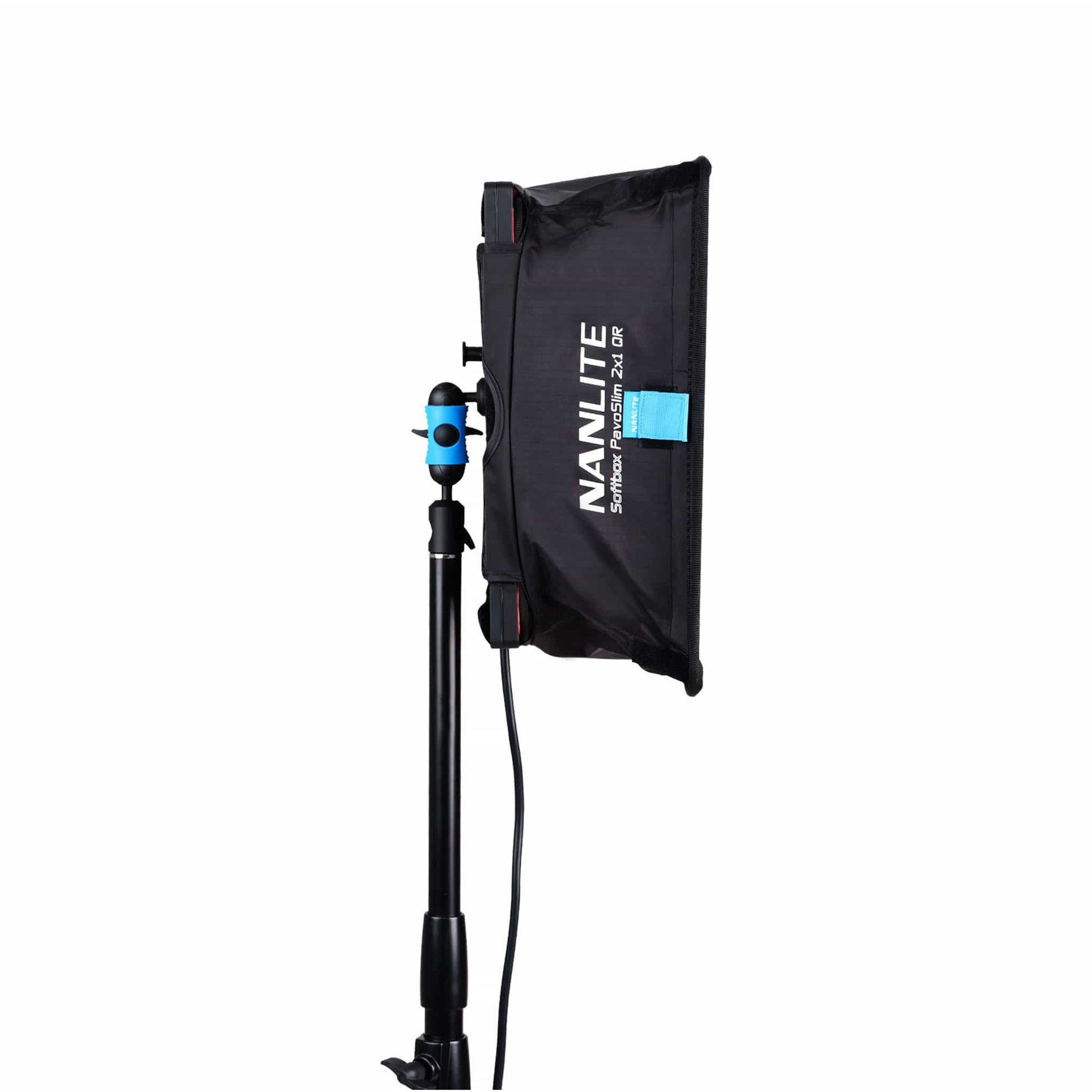

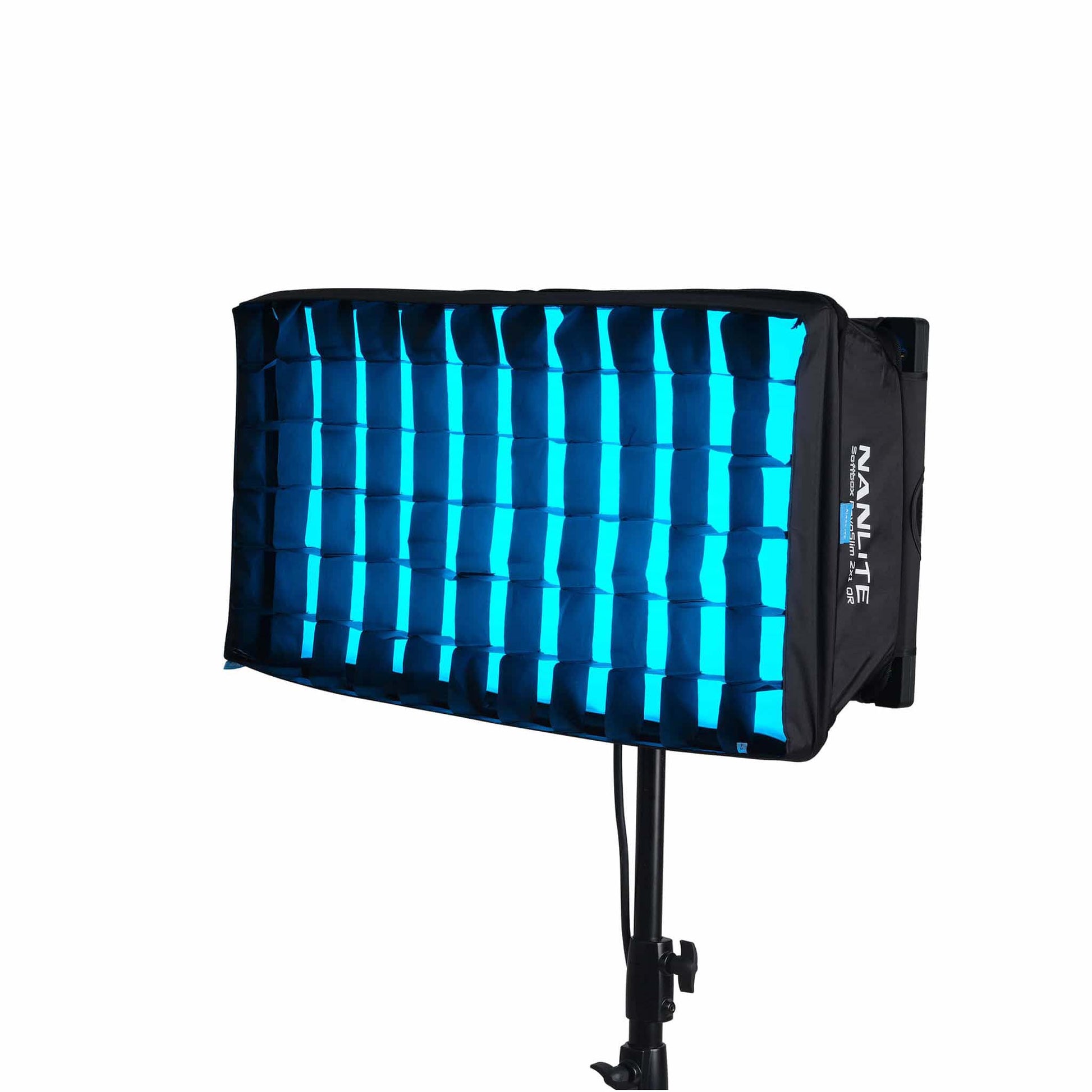

Designed for speed and efficiency, PavoSlim 120C and the included pop-up softbox and grid can be set up and put away impressively quickly

CRMX & EXPANDABLE
LumenRadio CRMX is built in, and the 3200K SSI of 84, 5600K SSI of 74, CRI of 96, and TLCI of 97 ensures your colors will always be accurate, plus separate accessories are available to couple two PavoSlims together to create larger light sources

AC OR BATTERY

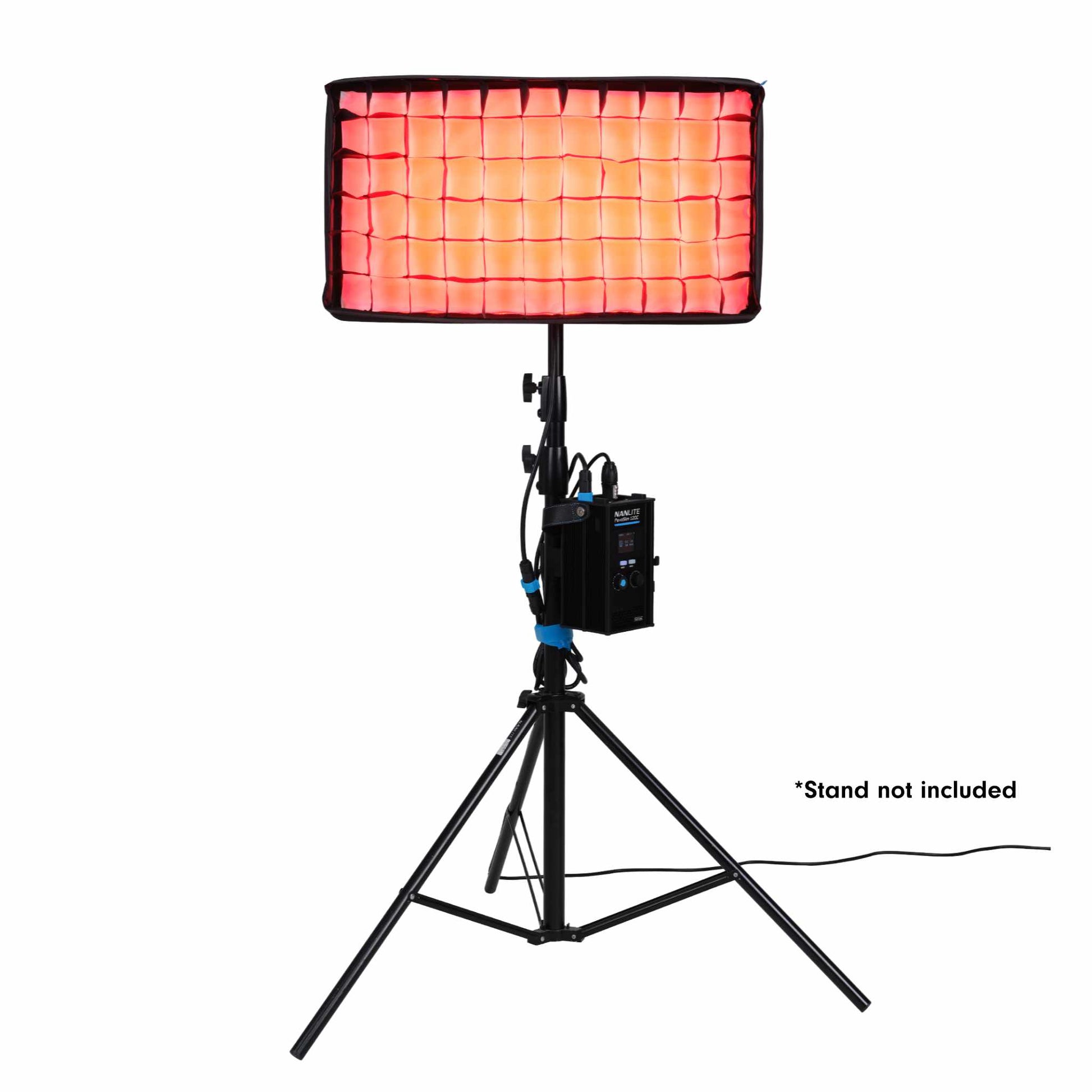

Run continuously on an AC outlet and features a V-Mount battery plate for working on location

SOFTBOX, MOUNT & 3-YEAR WARRANTY
Includes a case, pop-up softbox, 2 diffusions, grid, mount, Control Unit, super clamp, cables, and a 2-year warranty that extends to 3 years with online registration

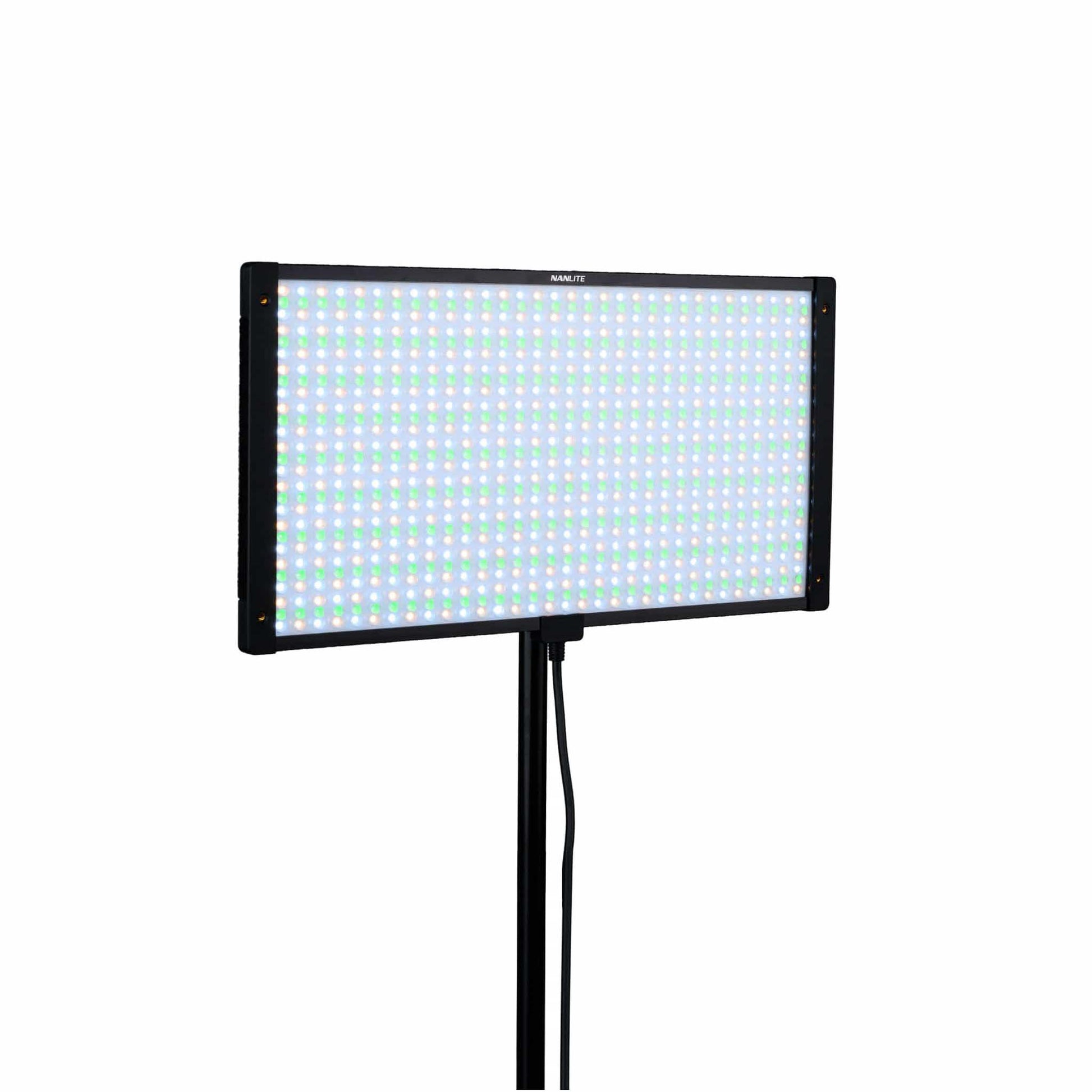

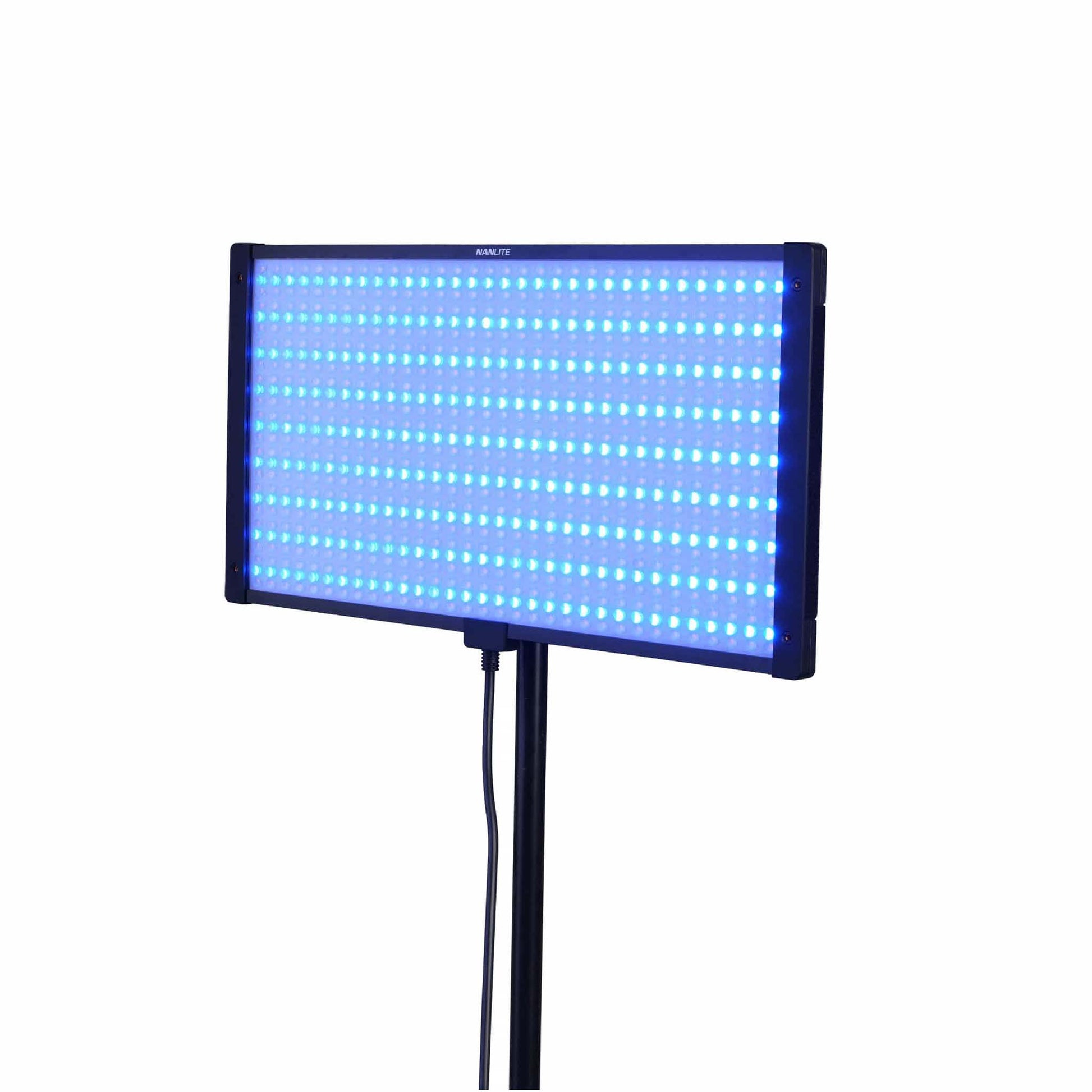

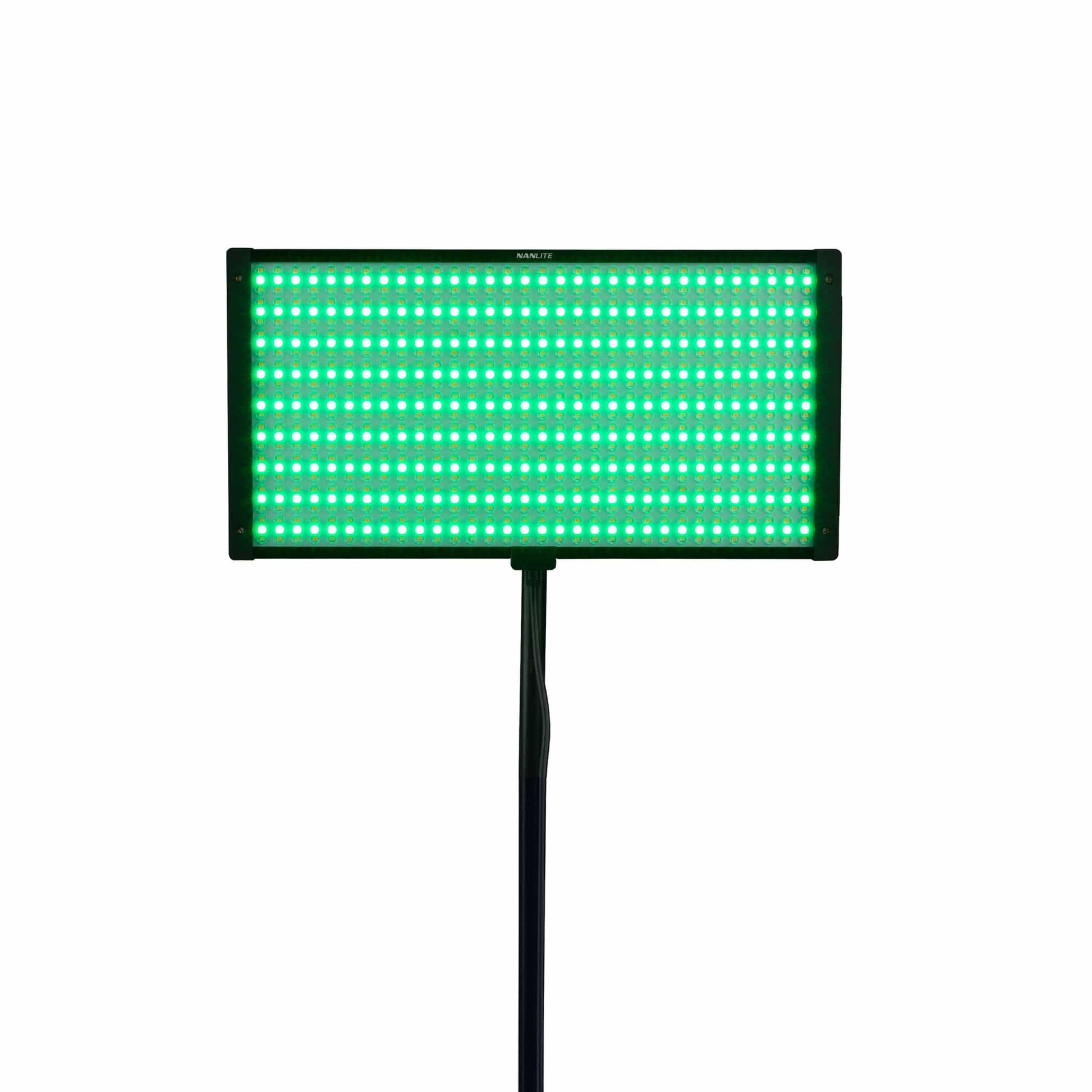

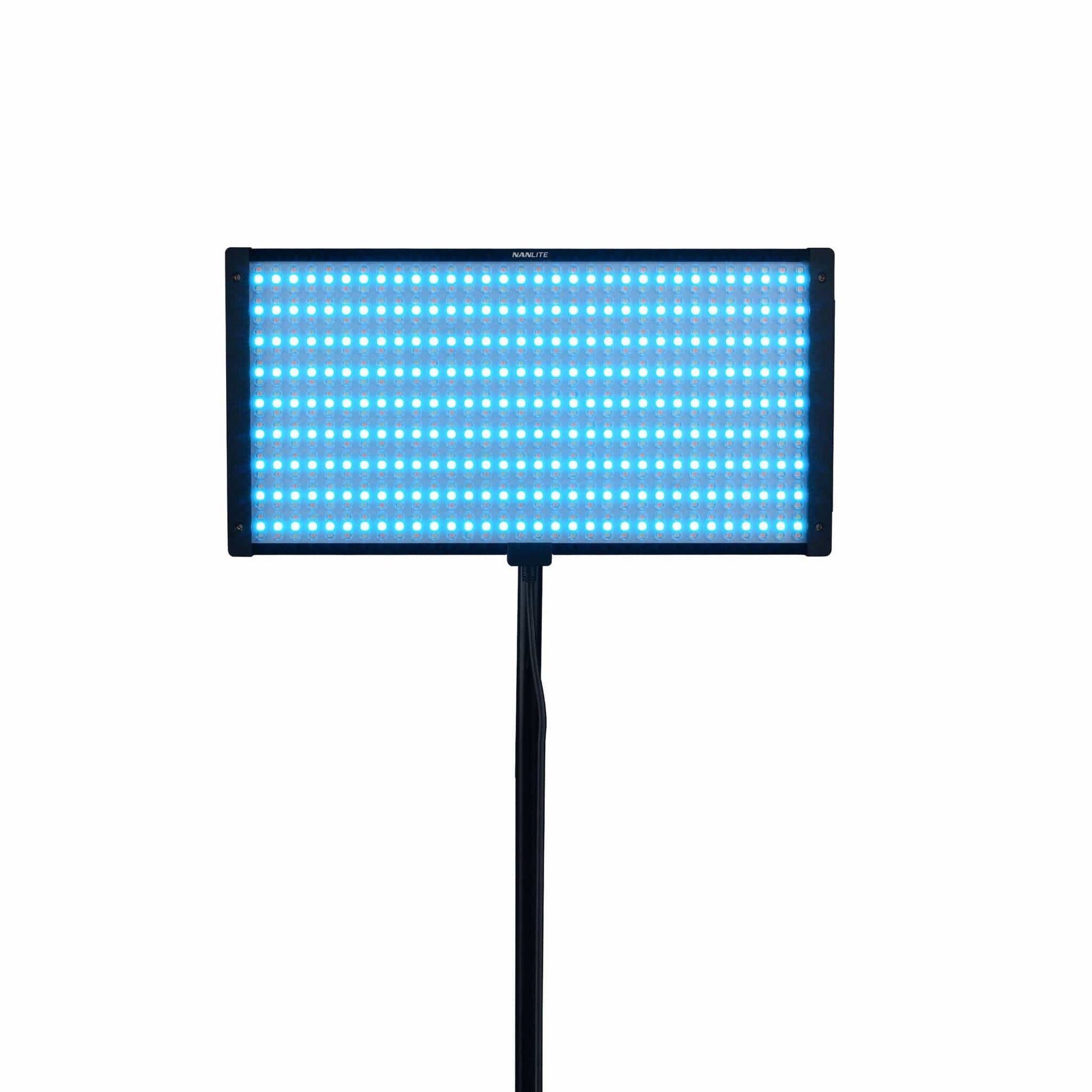

The Nanlite PavoSlim 120C is an exceptionally thin and lightweight 2x1 RGBWW LED panel light that provides impressive output (12830 lux, 1192 fc @1M 5600K), 0–100% dimming, a bi-color CCT range of 2700K–7500K with G/M adjustment of +/- 150, built-in CRMX LumenRadio, power through AC or V-Mount battery, and includes a Control Unit, super clamp, pop-up softbox, 2 sets of diffusion, eggcrate grid, a swivel mount, a baby-pin mount, and a compact padded carrying case that safely holds everything. It's covered by a 2-year warranty that extends to 3 years with online registration, and it's stocked, supported, and serviced by our responsive team in the USA.

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Distance and CCT Distance and Color
@ 1m 2700K 10500 lux / 975 fc @ 1m Red 5100 lux / 474 fc
@ 2m 2700K 2960 lux / 275 fc @ 2m Red 1340 lux / 124 fc
@ 3m 2700K 1388 lux / 129 fc @ 3m Red 641 lux / 60 fc
@ 1m 3200K 11200 lux / 1040 fc @ 1m Green 8655 lux / 804 fc
@ 2m 3200K 3146 lux / 292 fc @ 2m Green 2283 lux / 212 fc
@ 3m 3200K 1475 lux / 137 fc @ 3m Green 1063 lux / 99 fc
@ 1m 5600K 12830 lux / 1192 fc @ 1m Blue 1290 lux / 120 fc
@ 2m 5600K 3588 lux / 333 fc @ 2m Blue 337 lux / 31 fc
@ 3m 5600K 1675 lux / 156 fc @ 3m Blue 156 lux / 14 fc
@ 1m 6500K 12420 lux / 1154 fc
@ 2m 6500K 3463 lux / 322 fc
@ 3m 6500K 1613 lux / 150 fc
Specifications Table
⚙ Specifications
LED TypeRGBWW
CCT2700K-7500K, G/M Adjustment ±150
CRIAverage 96
TLCIAverage 97
SSI 3200K83
SSI 5600K74
TM-30 RF (Average)94
TM-30 RG (Average)100
Beam Angle60°
Rated Power150W
Input Voltage/CurrentDC24V, DC(Battery)14.4-26V, AC100-240V 50/60Hz
Operating Temperature-20℃-45℃
Dimming0–100%
EffectsHUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
ControlBuilt-in Controls and Screen, LumenRadio CRMX, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box, FC PowerController

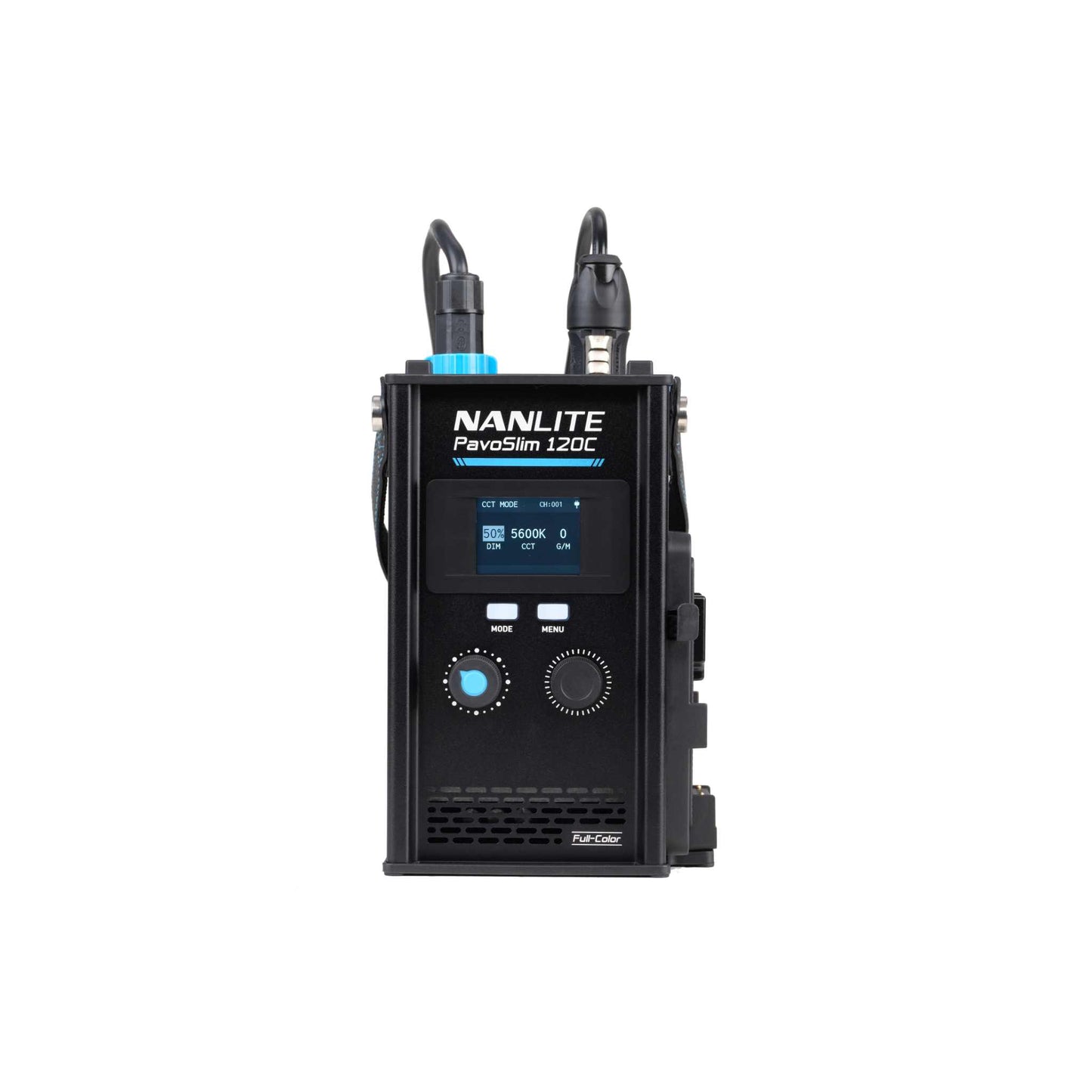

Control Unit Dimensions5.52 x 4.39 x 7.99" (14.03 x 11.14 x 20.3cm)
Control Unit Weight4.06lbs (1.84kg)
Head Dimensions23.7 × 12.06 x 0.73" (60.2 × 30.63 x 1.86cm)
Head Weight3.88lbs (1.76kg)

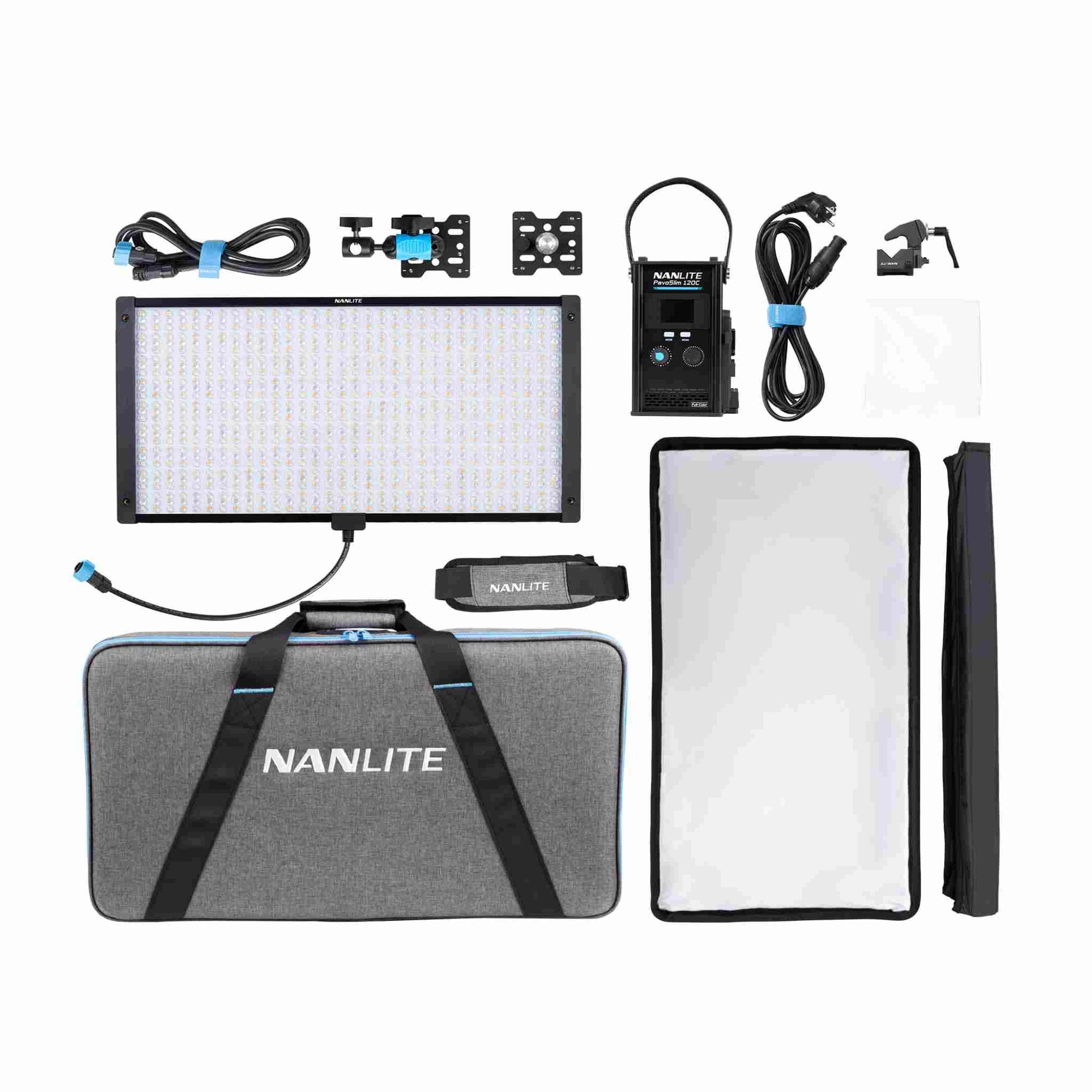

What's in the Box Table

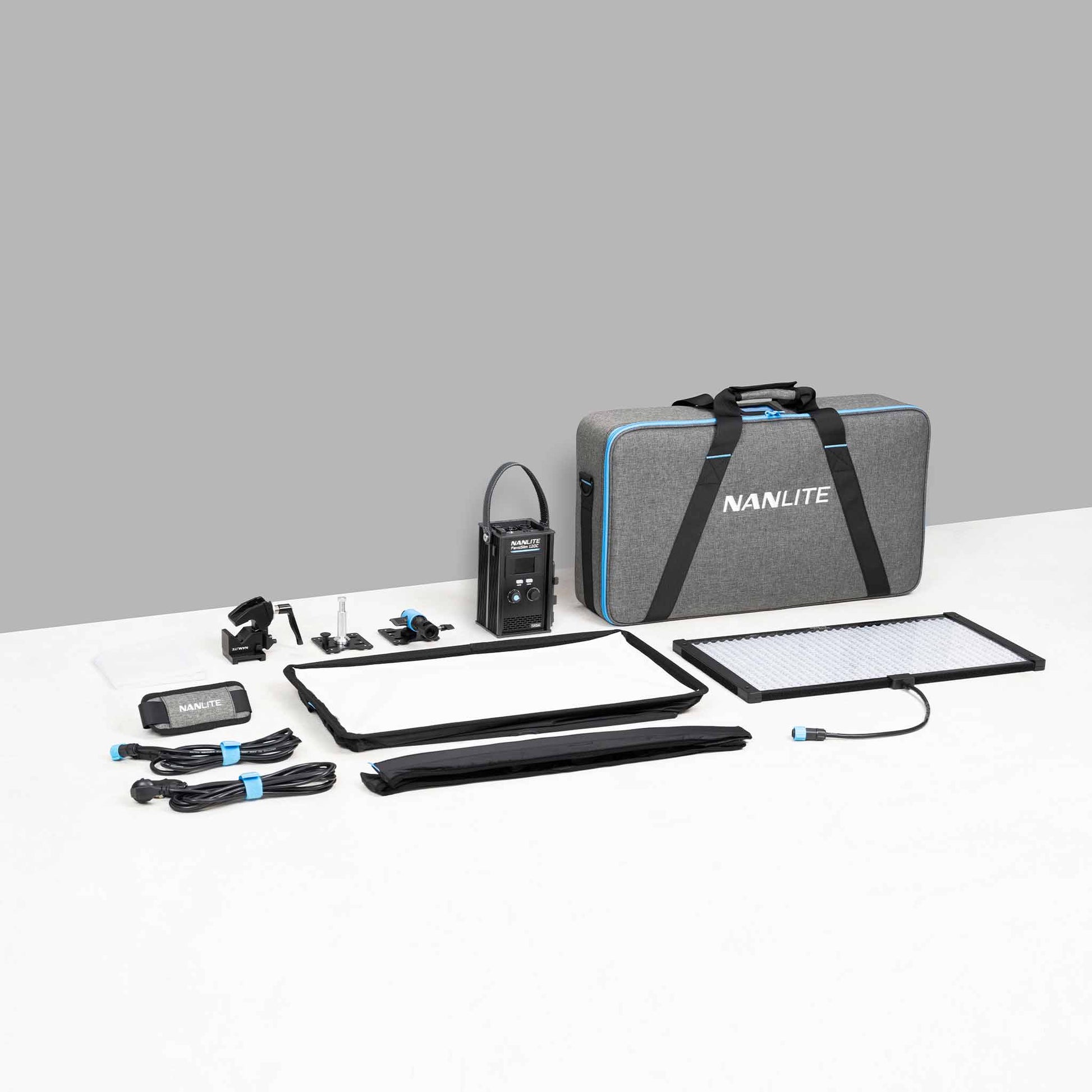

⁂ What's in the Box
1x PavoSlim 120C Full-Color LED Panel

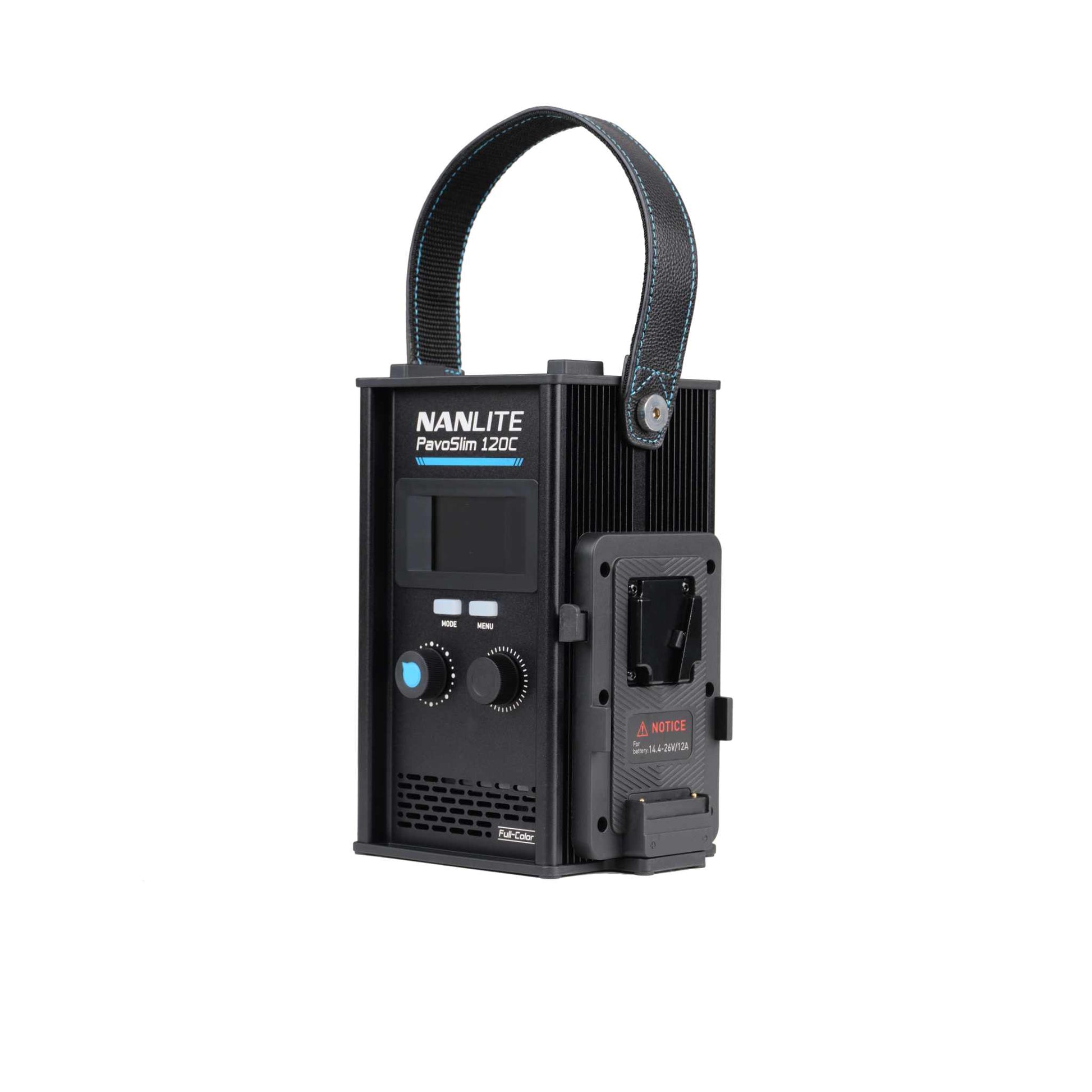

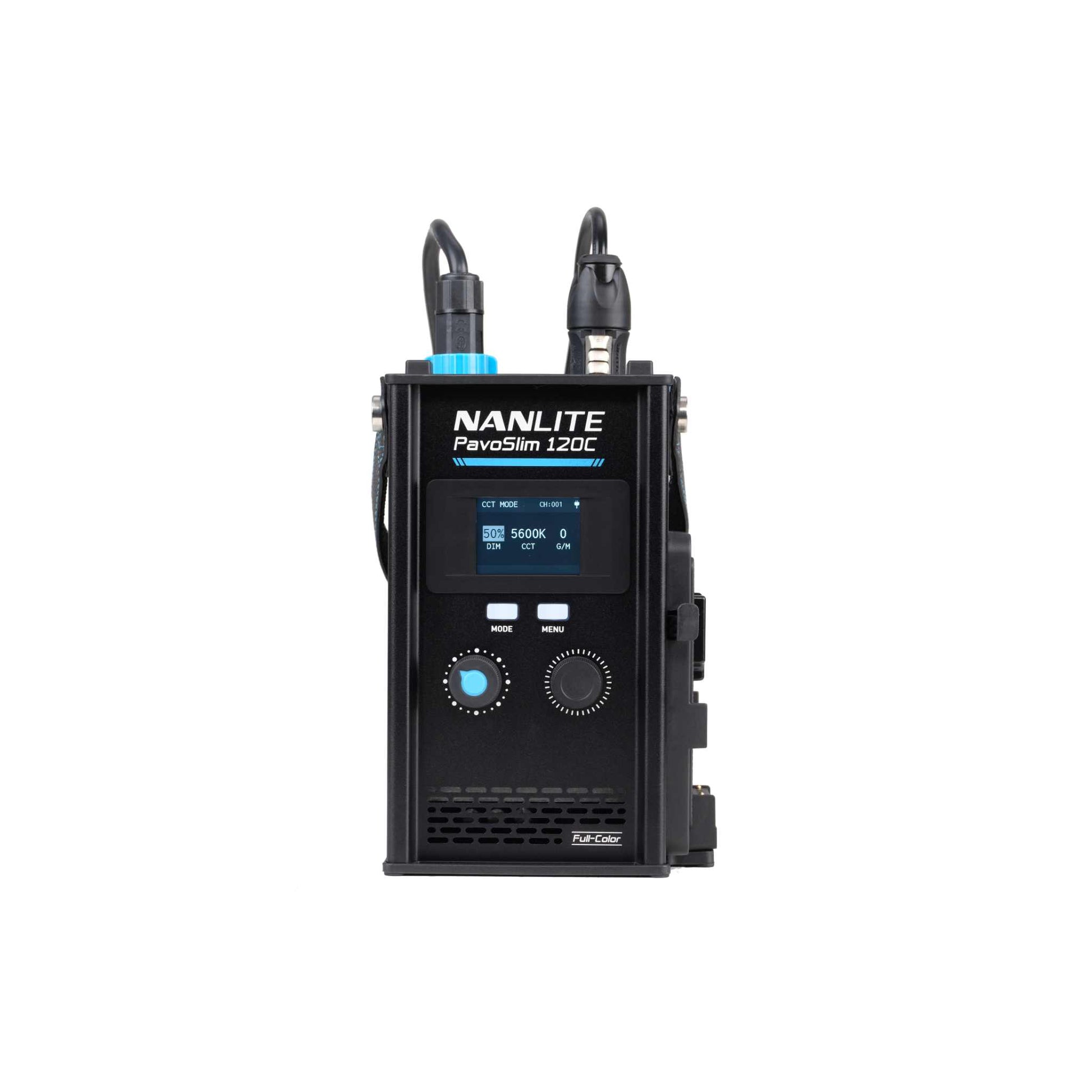

1x Control Unit with 1 V-Mount Battery Plate

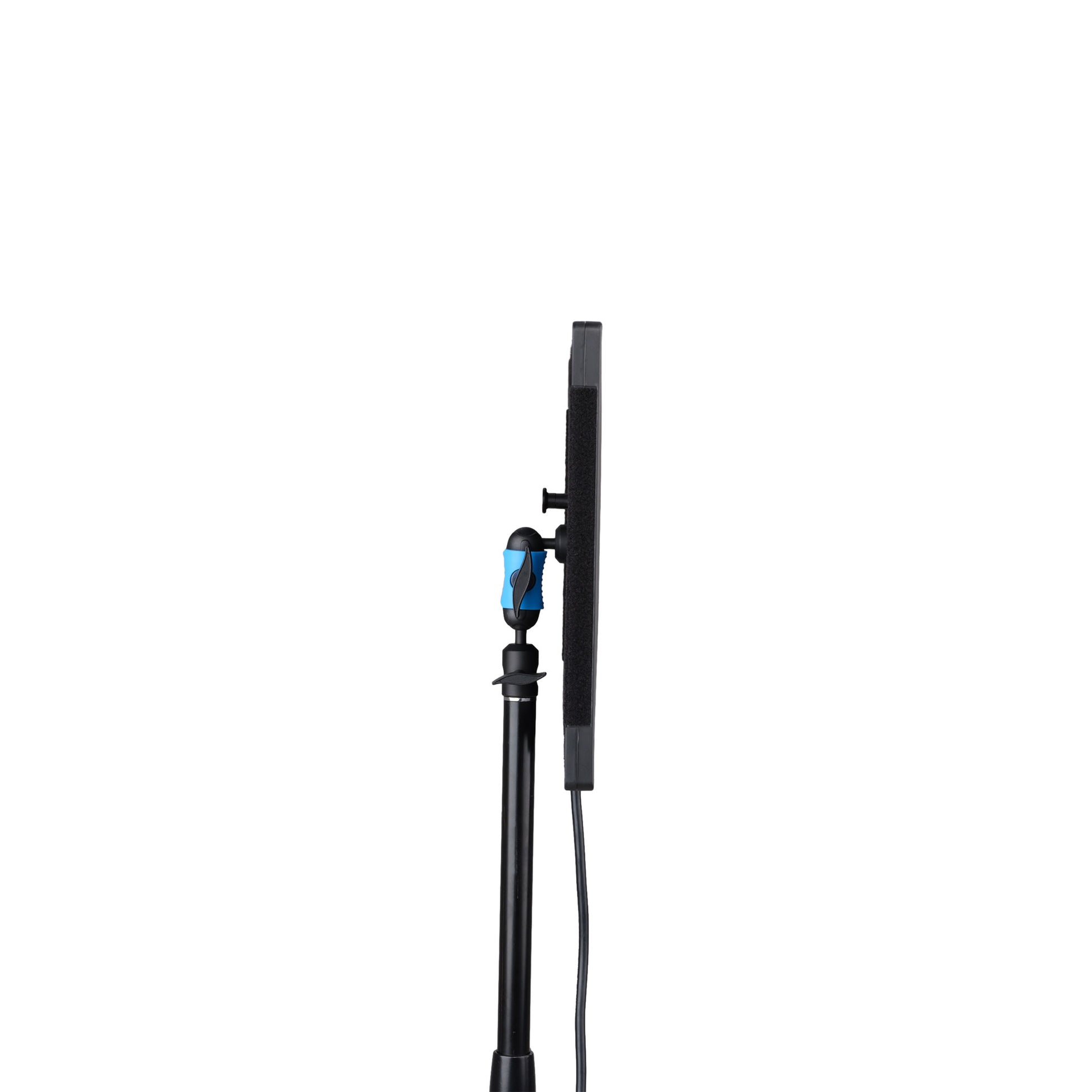

1x Swivel Holder
1x Baby-Pin Holder
1x Quick-Release Clamp
1x DC Connection Cable 8.5' (2.6m)
1x AC Power Cable 14.7' (4.5m)
1x Pop-Up Softbox
2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser)
1x Eggcrate Grid

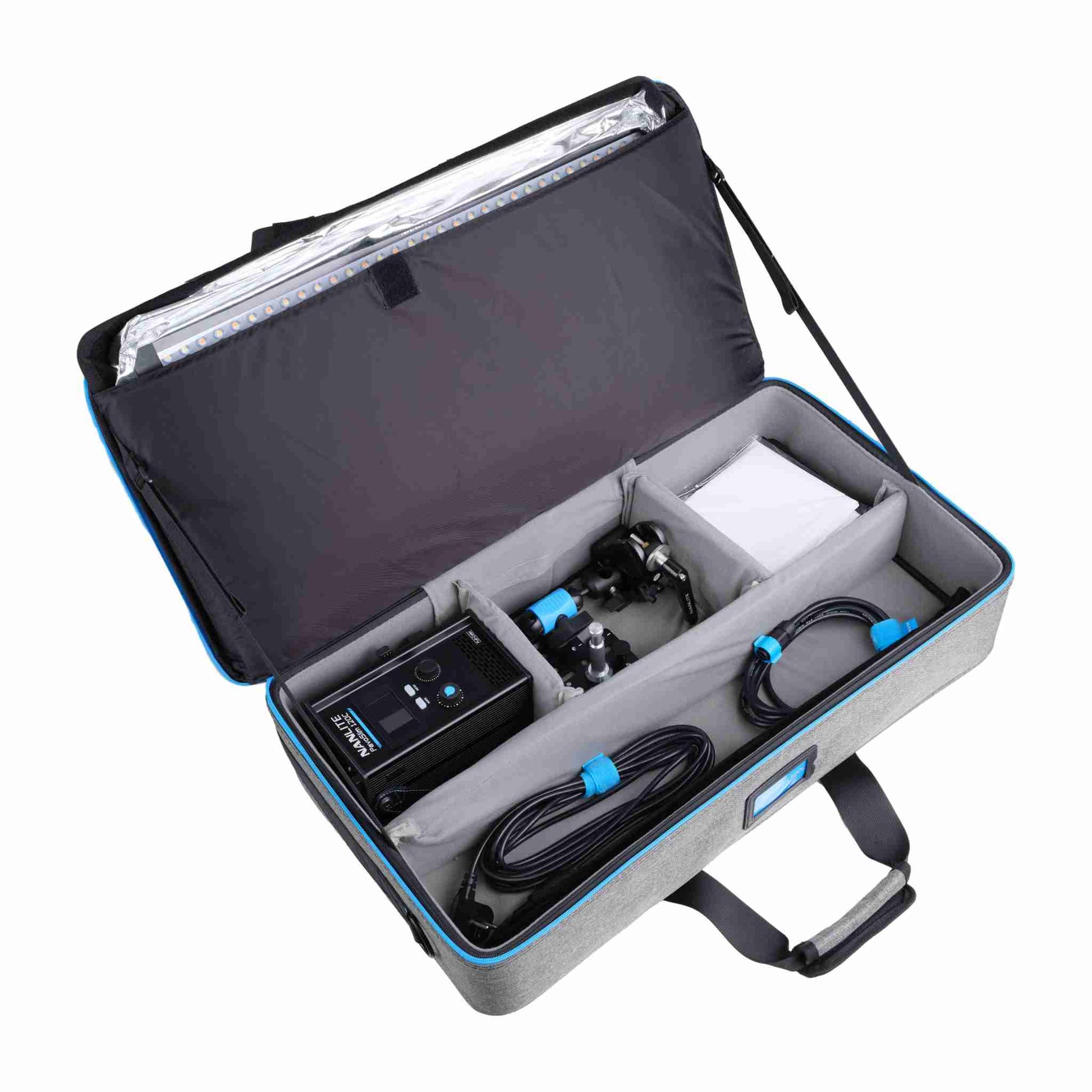

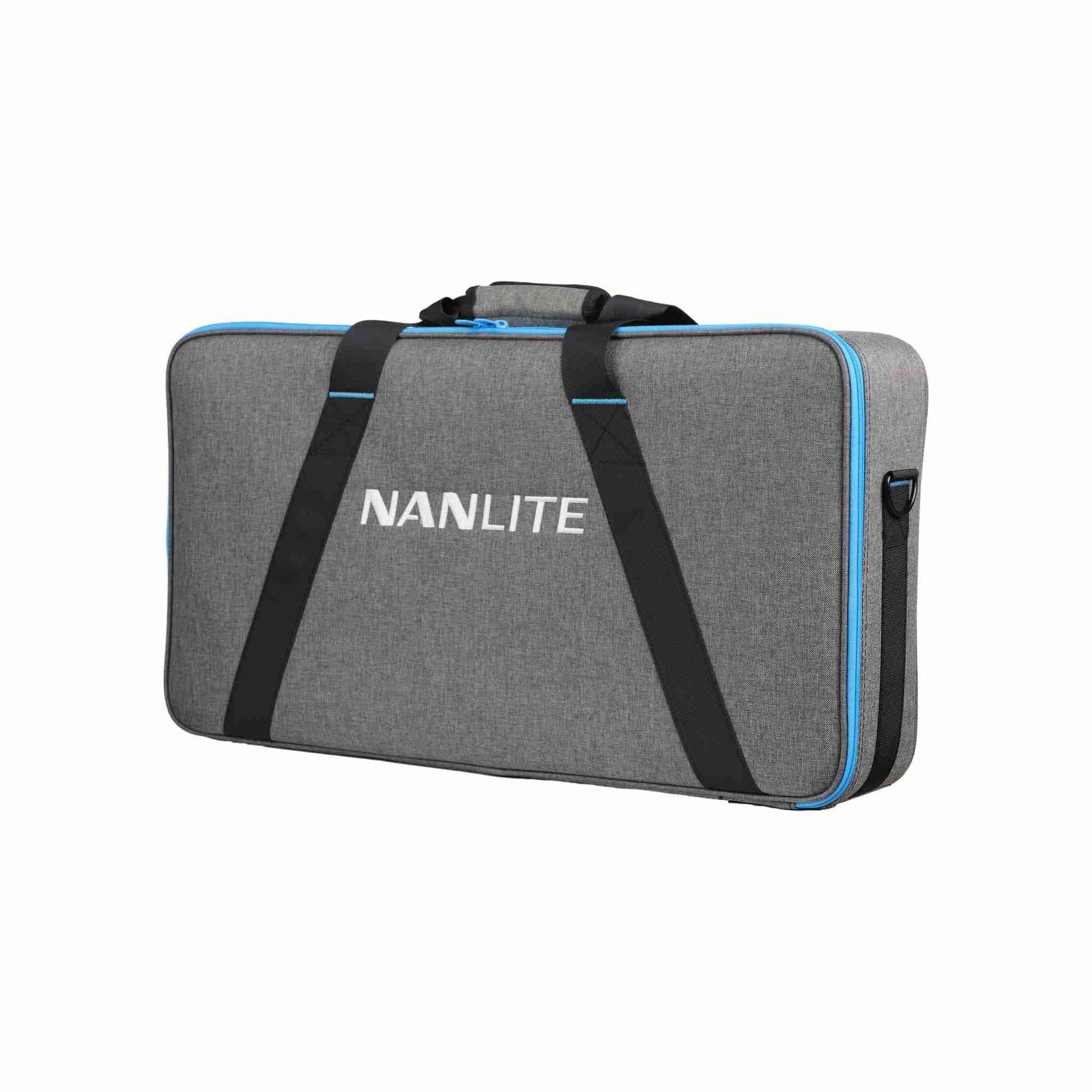

1x Padded Carrying Bag
1x User Manual
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)
