Nanlite

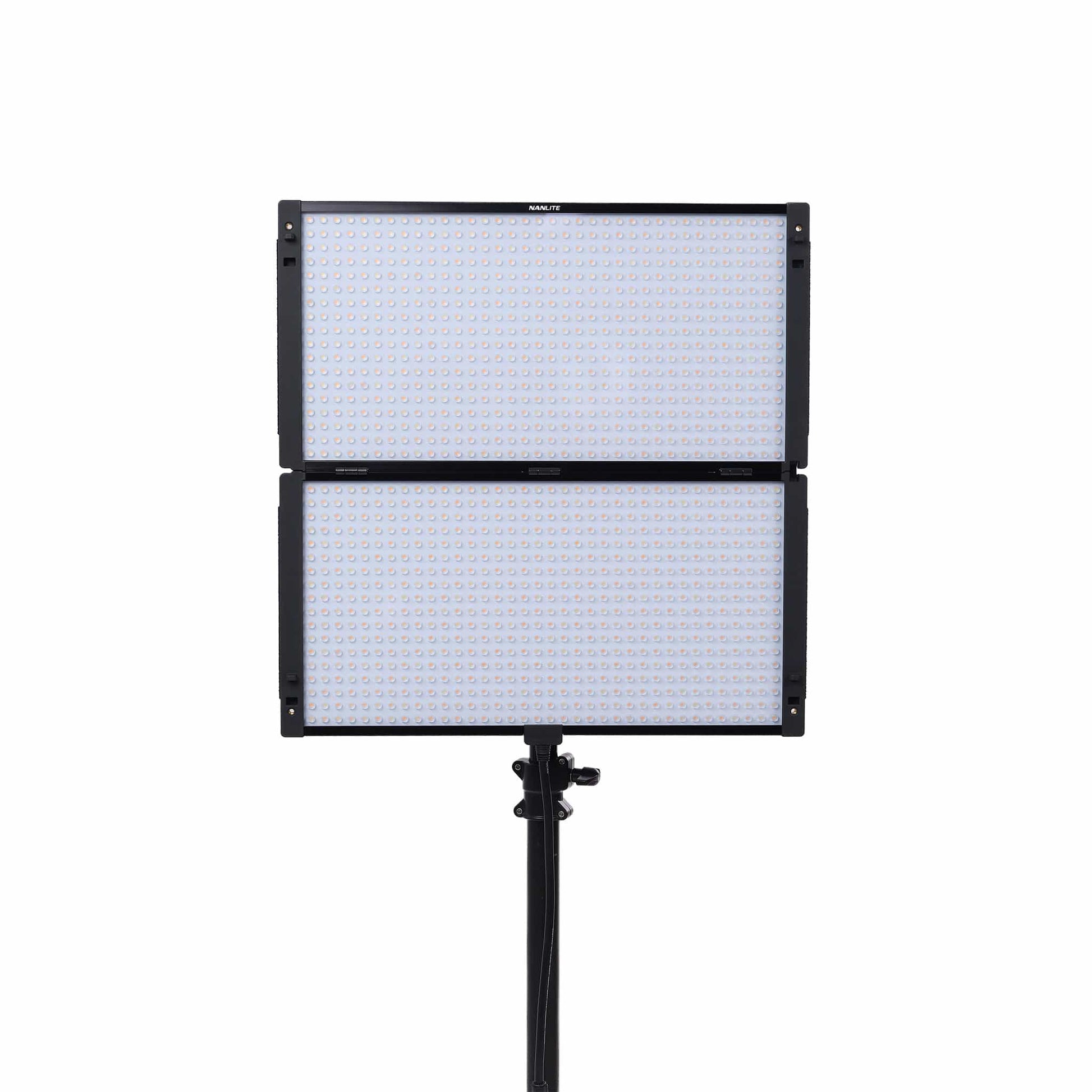

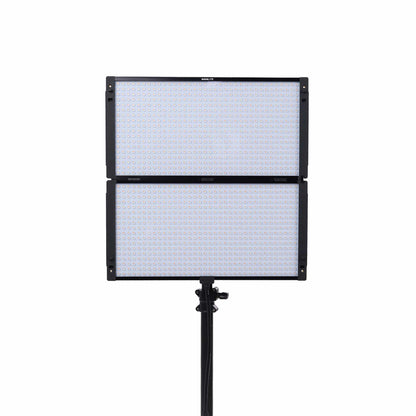

PavoSlim 240B 2x2 Bi-Color LED Panel Light
PavoSlim 240B 2x2 Bi-Color LED Panel Light
Couldn't load pickup availability
- Free shipping on orders over $50
- Up to 3-year warranty
SKU:PS240B
2X2 PANEL, 2X1 SIZE
PavoSlim 240B is a 2x2 bi-color LED panel that folds down to a 2x1 size for storage and travel and provides an impressive output of 22990 lux, 2135.8 fc @1m 5600K
FAST SET UP & BREAK DOWN
Designed for speed and efficiency, PavoSlim 240B and the included softbox and grid can be set up and put away impressively quickly
ACCURATE & FLICKER FREE
With a CRI of 95, TLCI of 97, SSI of 3200K 83 and 5600K 73, your colors and skin tones will always be accurate, and even if you're shooting with ultra-high frame rates, your footage will always be flicker free
AC OR BATTERY
Run continuously on an AC outlet and features a V-Mount battery plate for working on location
SOFTBOX, MOUNT & 3-YEAR WARRANTY
Includes a case, softbox, 2 diffusers, grid, mount, Control Unit, cables, and a 2-year warranty that extends to 3 years with online registration

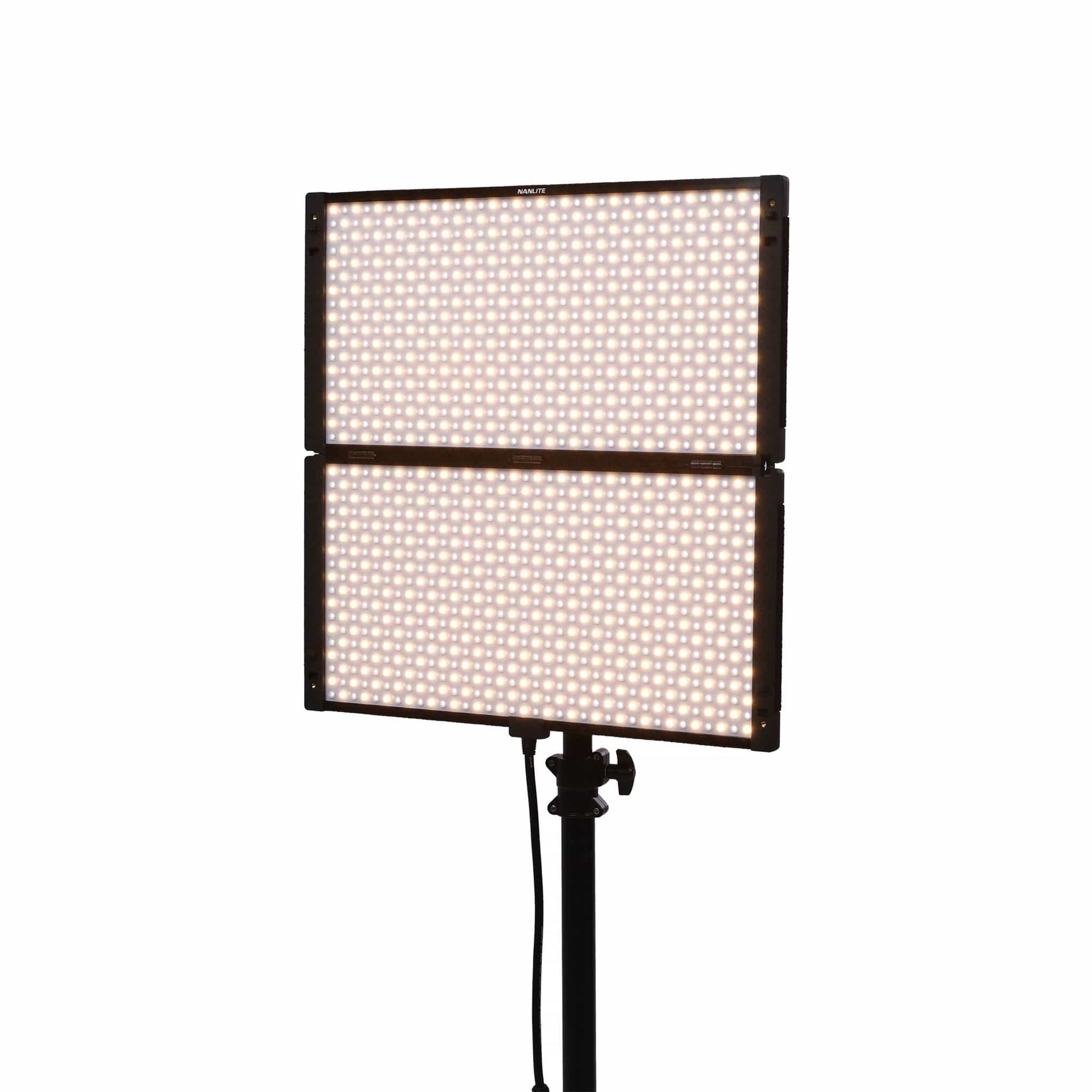

The Nanlite PavoSlim 240B is an exceptionally thin and lightweight 2x2 LED panel light that folds to half its size for storage and travel and provides an impressive amount of output, 0–100% dimming, a bi-color CCT range of 2700K–6500K, power through AC or V-Mount battery, and includes a Control Unit, softbox, 2 sets of diffusion, eggcrate grid, a swivel mount, and a compact padded carrying case that safely holds everything. It's covered by a 2-year warranty that extends to 3 years with online registration, and it's stocked, supported, and serviced by our responsive team in the USA.
Read more...Read less...

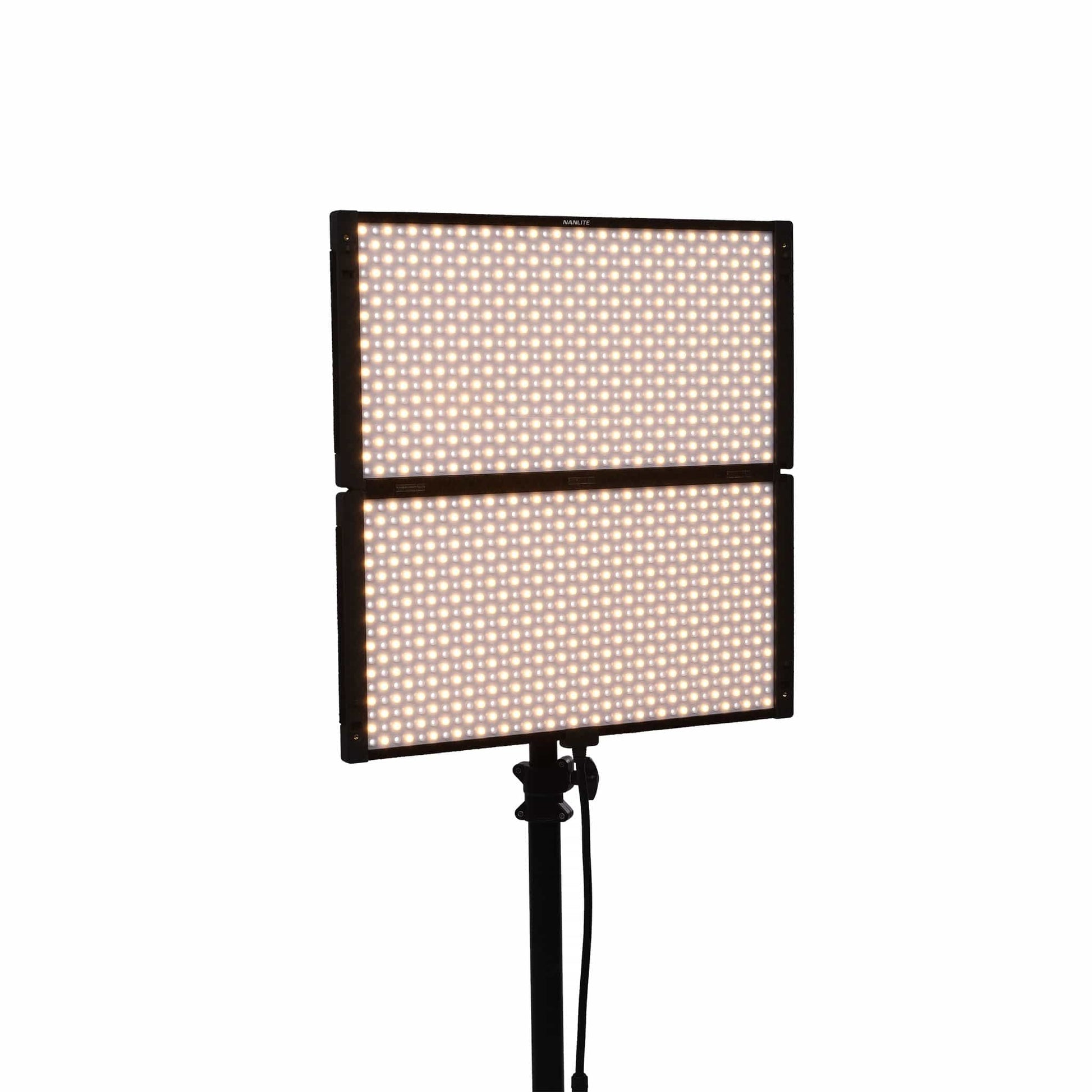

Doubles in Size

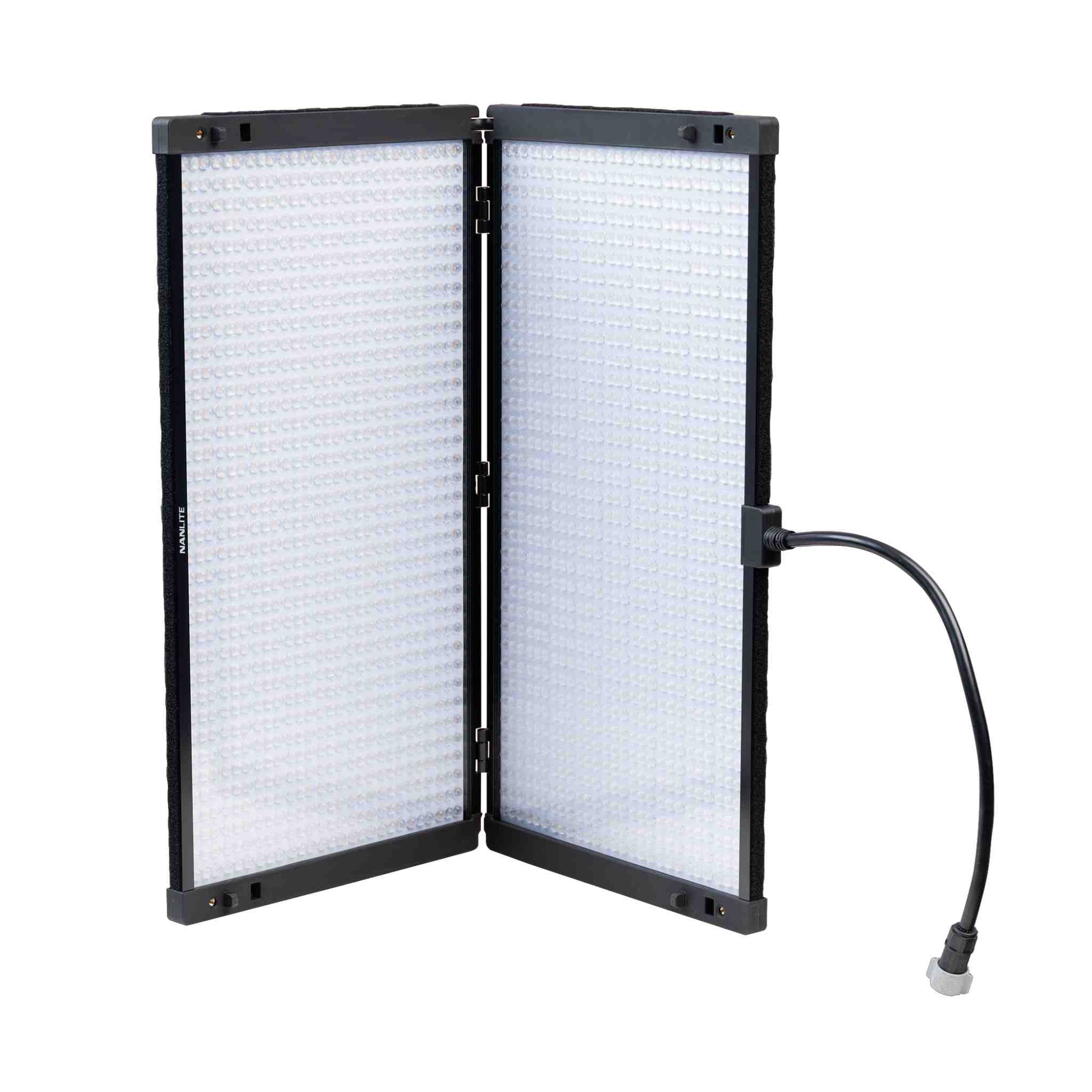

PavoSlim 240B folds in half for travel and storage, and expands to a full 2x2 panel when in use. It remains illuminated until fully closed, which adds versatility for how it can be used.
Space-Efficient & Fast
This is a compact fixture that expands to a larger size and quickly sets up and breaks down. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service.
Thin yet Powerful

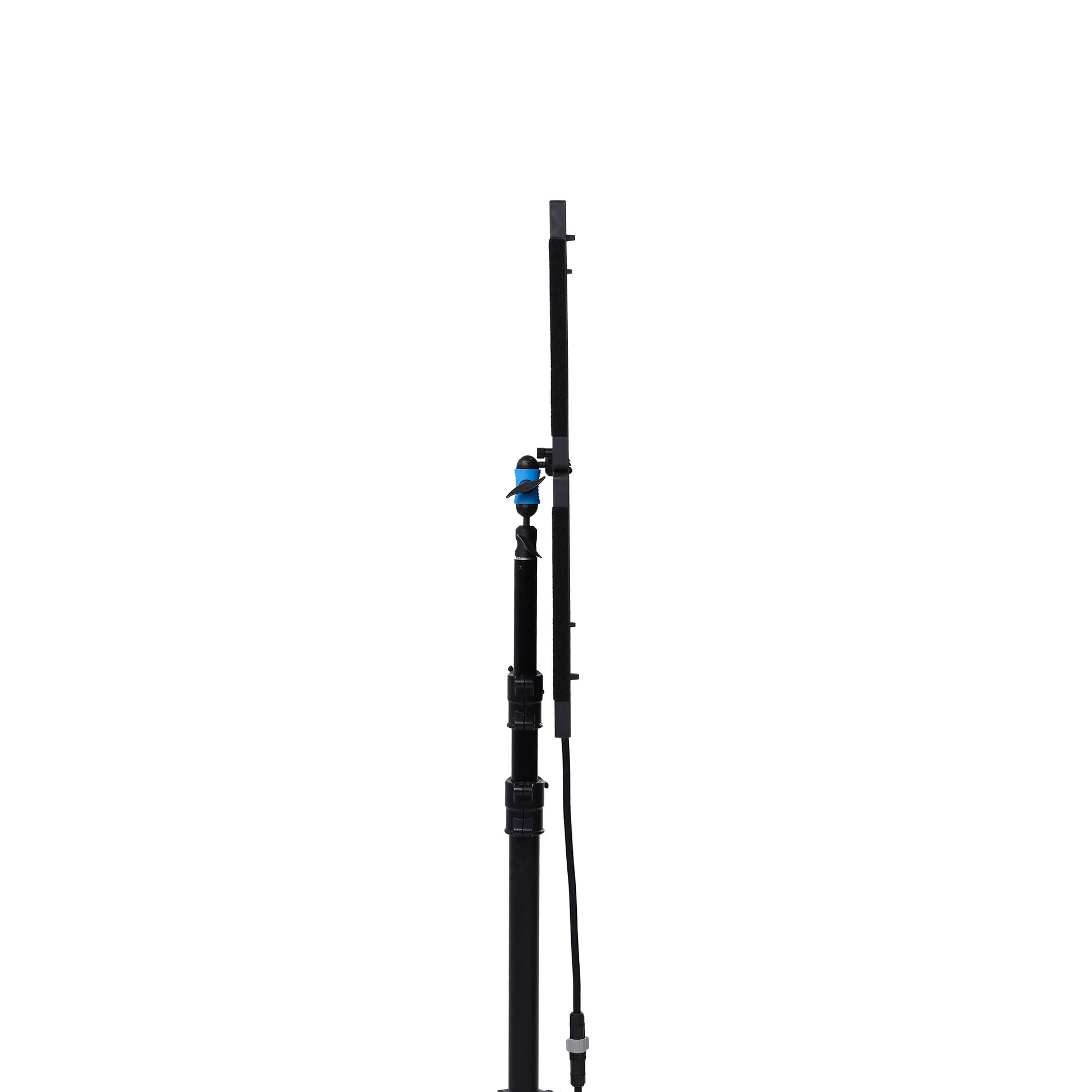

PavoSlim 240B is only 1.13" (2.86 cm) thick, yet it features an advanced optical system that's capable of outputting a sizable amount of light. The corners of the fixture feature 1/4"-20 mounting points for the separately available AS-MBA-1/4-SET magnetic mounting adapters.

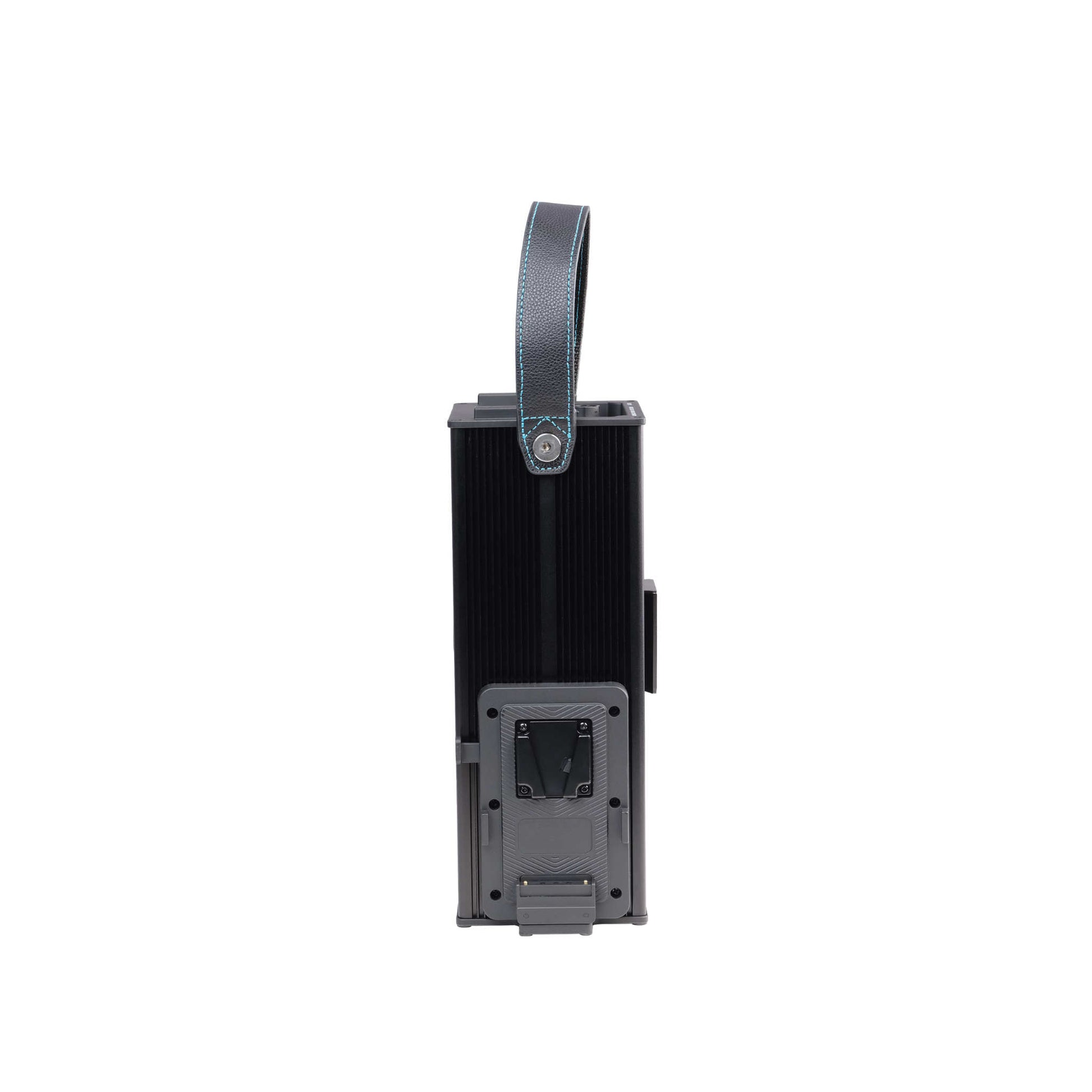

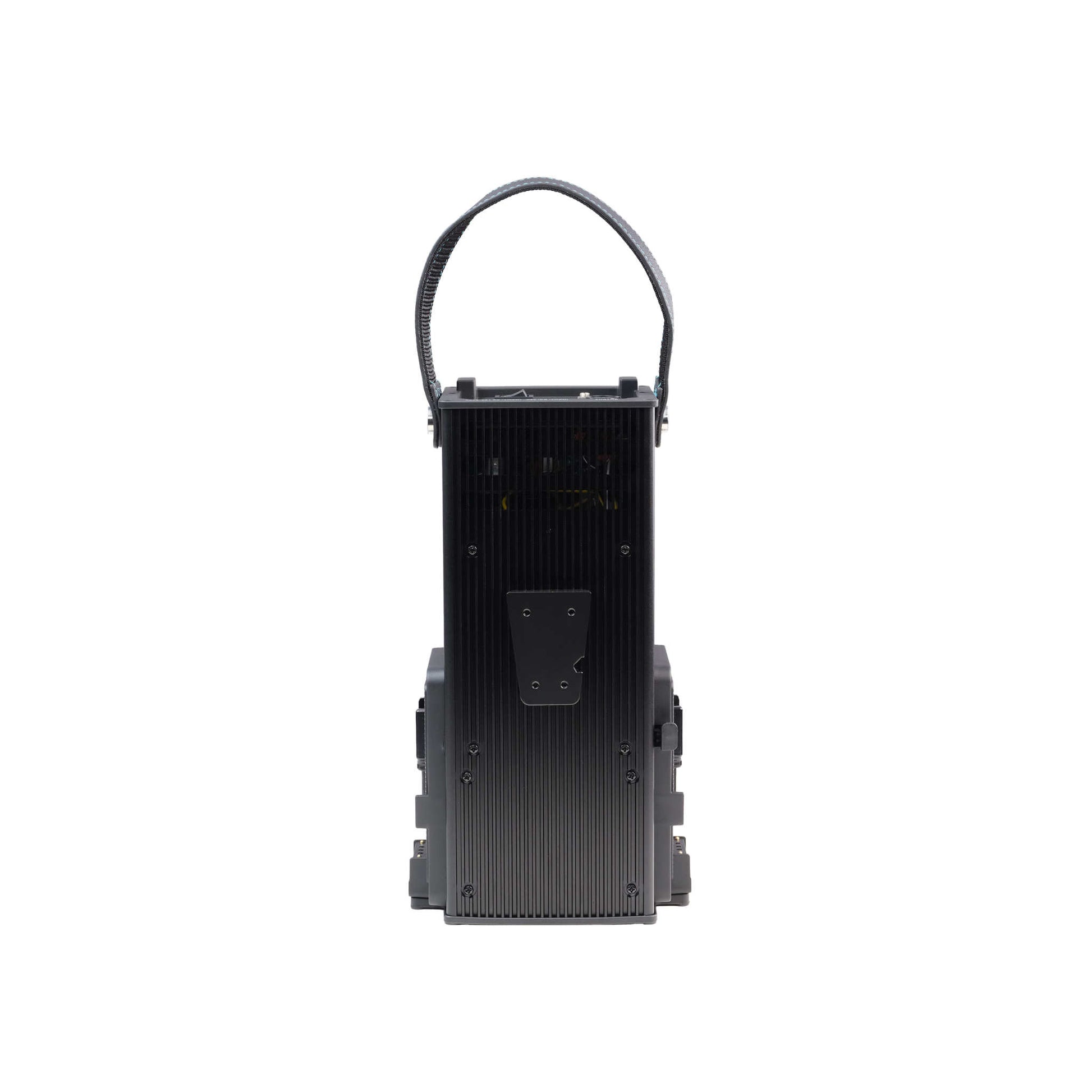

Complete Control

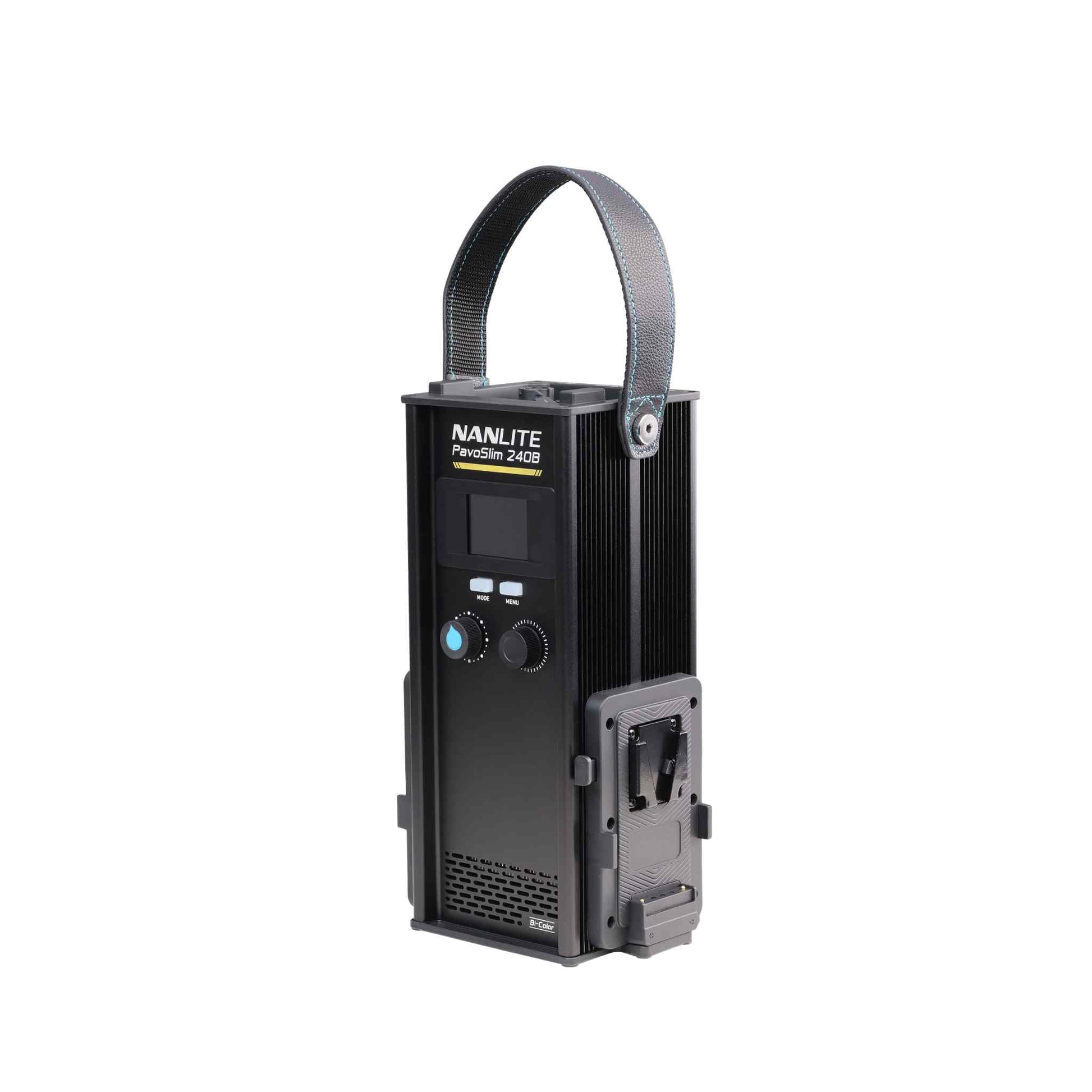

The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).

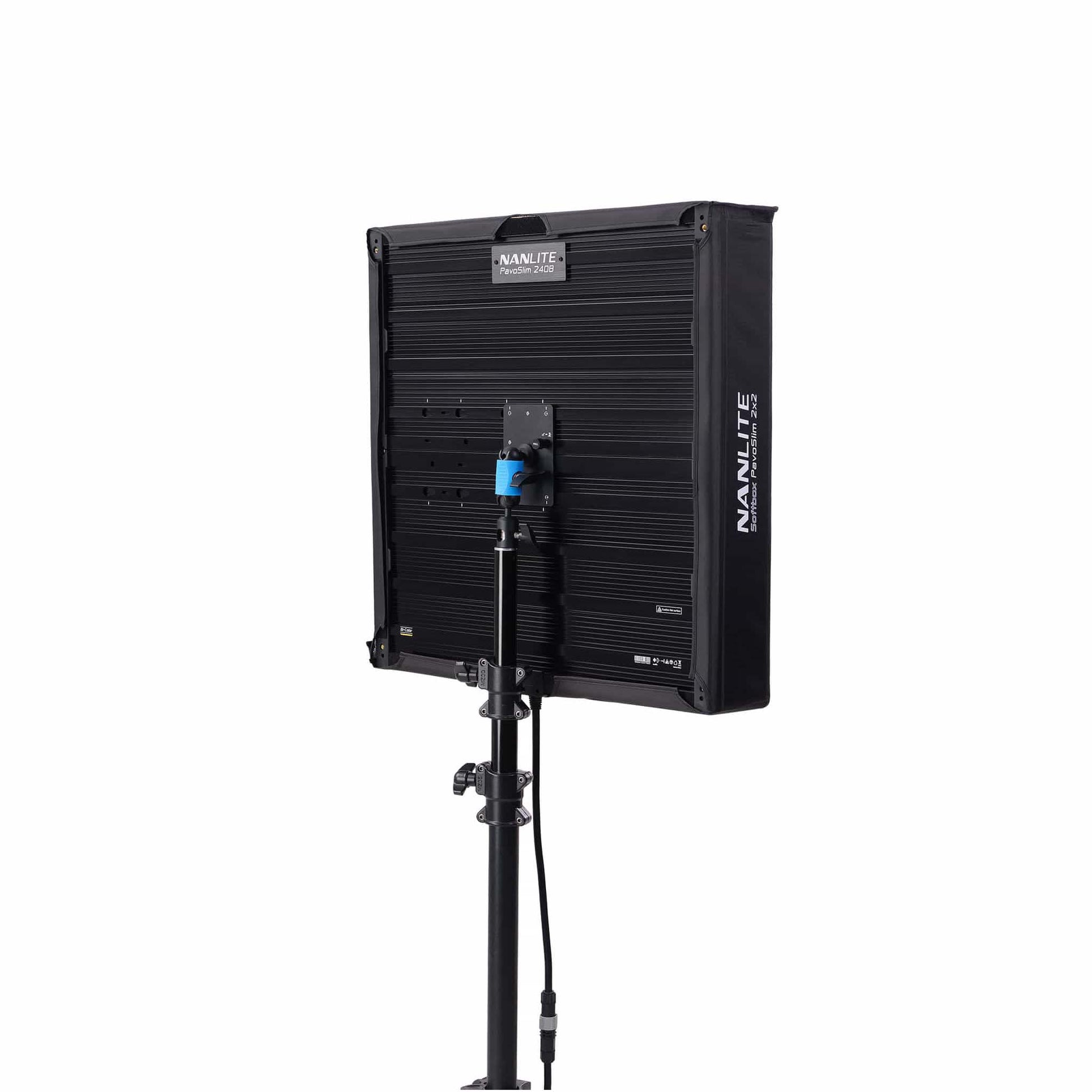

Versatile Mount

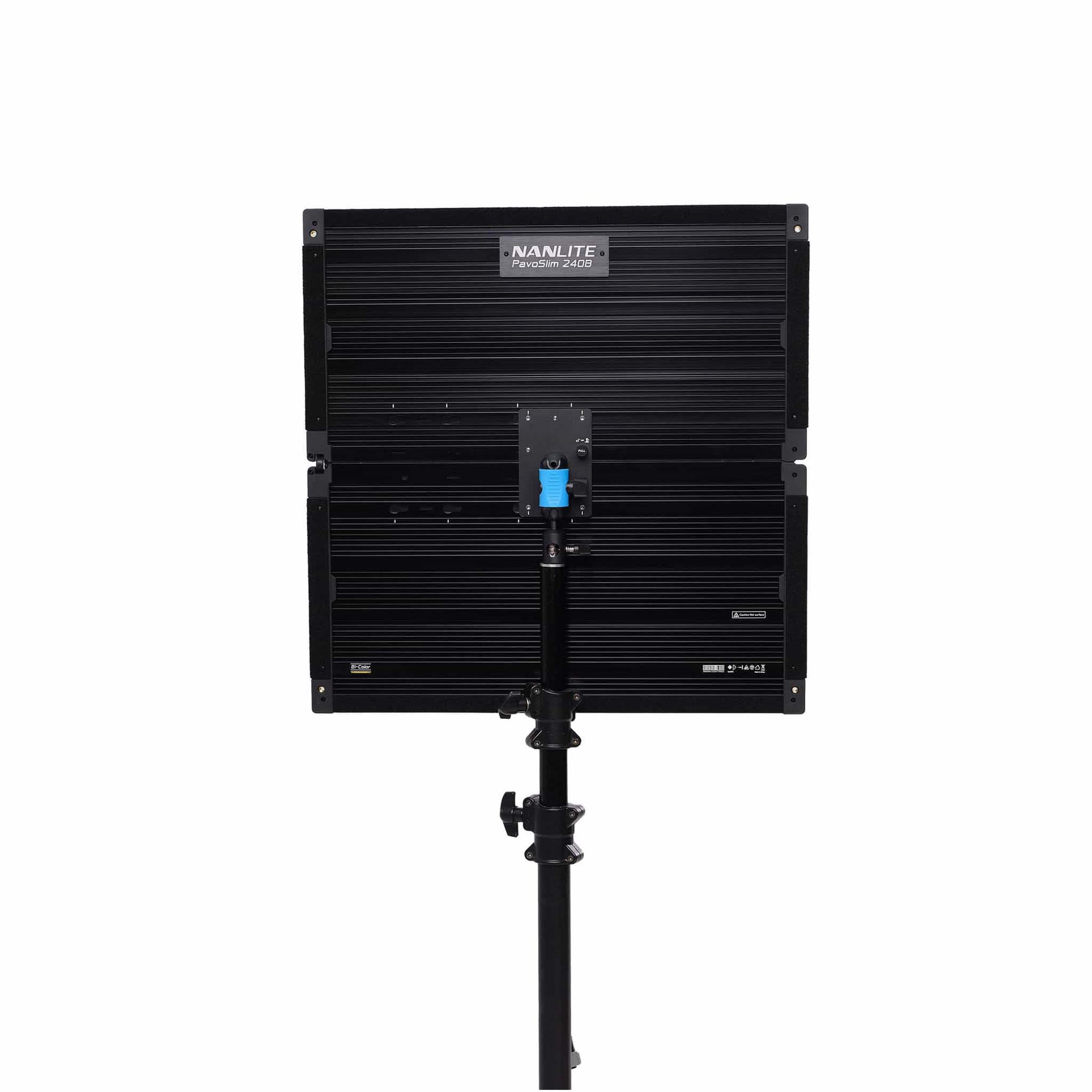

The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The included mount slides into the plates and locks securely. The mount has two ball joints that can be swiveled and locked in a wide range of vertical and upward angles.

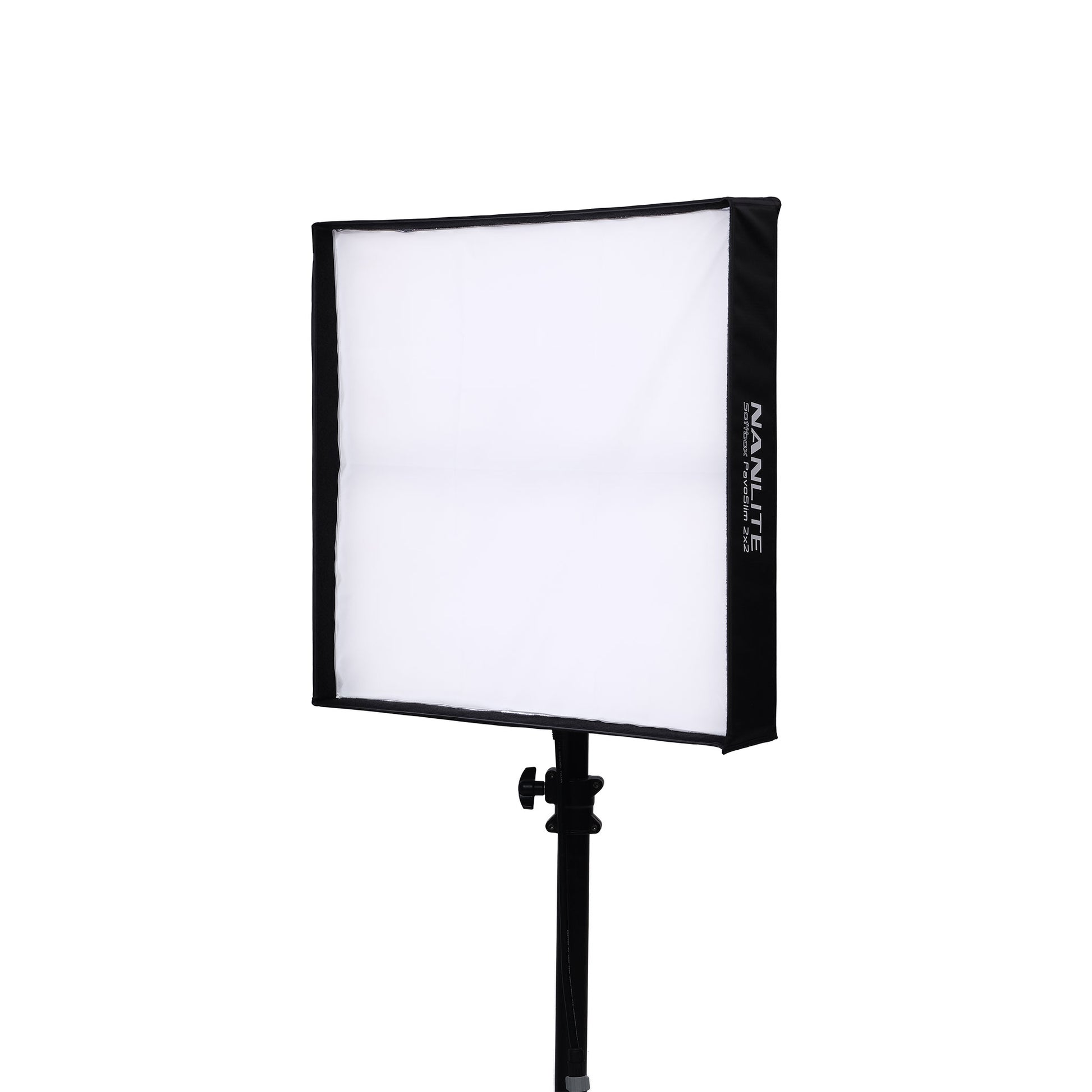

Softbox & Case

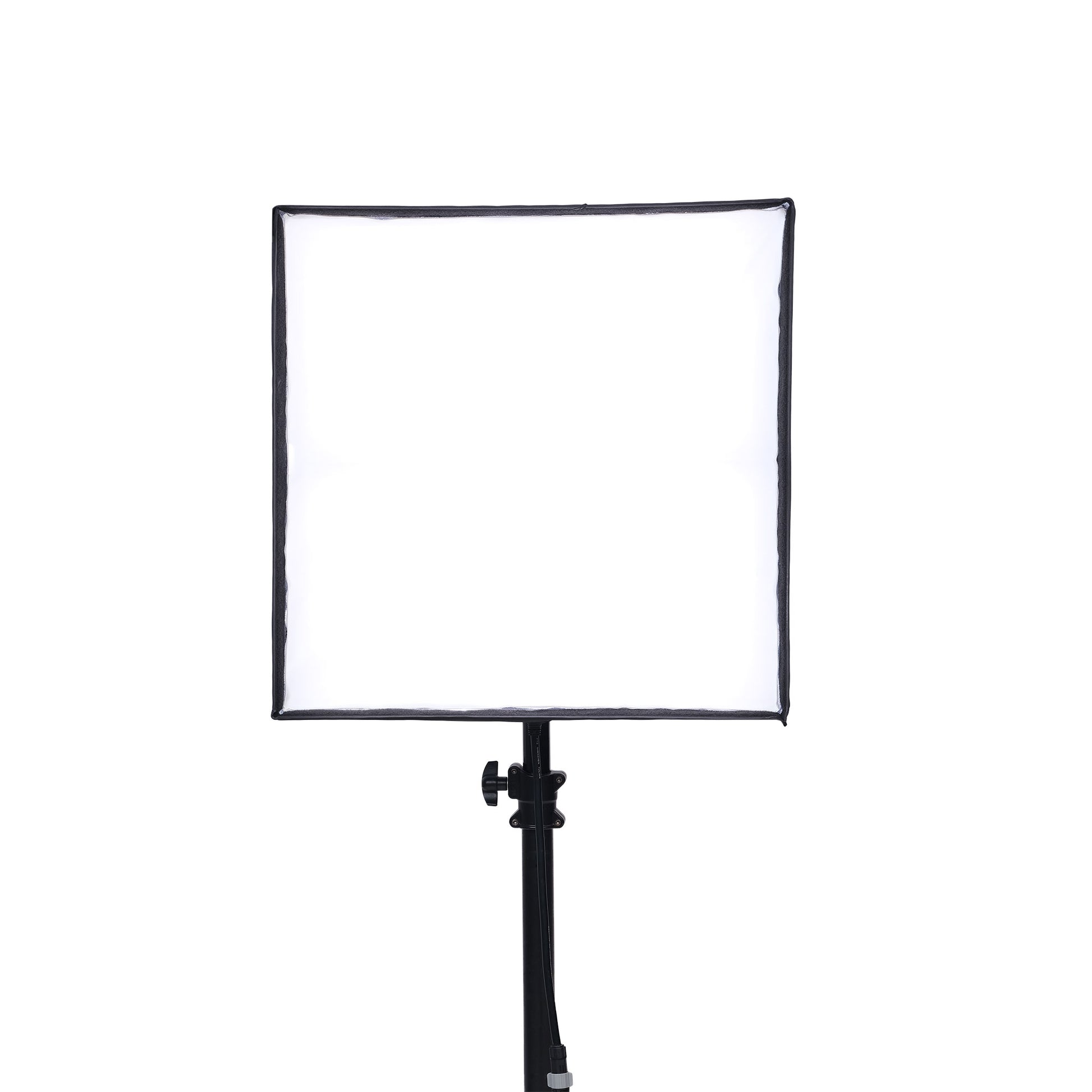

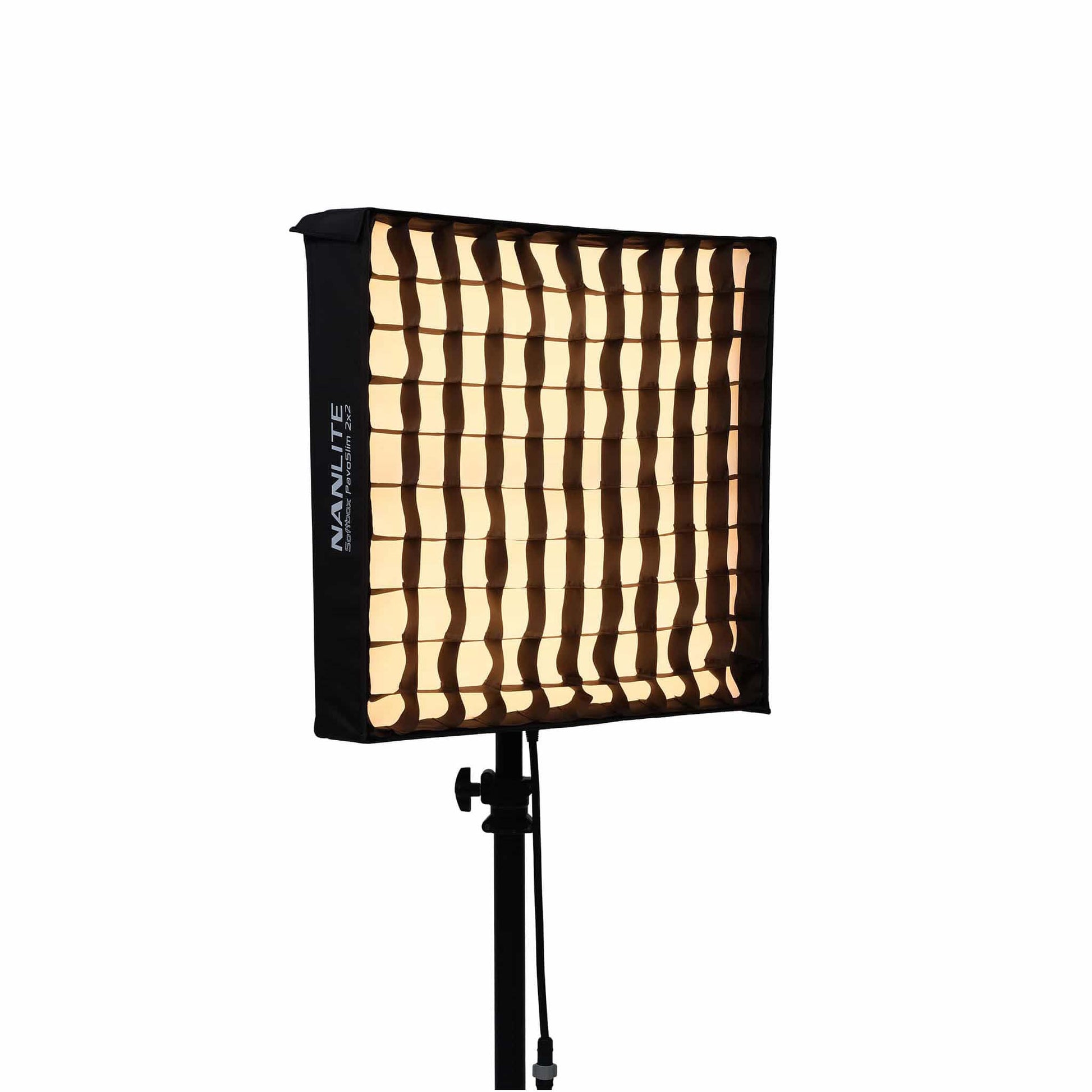

The slender padded carrying case has room for all the included accessories, like the folding softbox, grid, 1.5 stop, and 2.5 stop diffusers (which all set up and break down remarkably quickly with hook-and-loop fasteners). The case won't weigh you down and because it's half the size of the fixture, it won't consume unnecessary space in transit or storage.
Flicker-Free Accuracy
Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 240B, you can always have confidence in your colors: CRI average 95, TLCI average 97.
Made at Nanlite
One important distinction that makes Nanlite stand out is that we design, build, and test every single light in our own facility. This gives us the best possible control over Quality Assurance. We're a family-owned business that incorporates environmentally friendly practices into our work and we're filled with people who are passionate about image making and creativity. Join us!
☀ Photometrics
| Distance and Color Temperature | |
|---|---|
| @ 1m 2700K | 19920 lux / 1851 fc |
| @ 1m 3200K | 20890 lux / 1941 fc |
| @ 1m 5600K | 22990 lux / 2136 fc |
| @ 1m 6500K | 23410 lux / 2175 fc |
| @ 3m 2700K | 2668 lux / 248 fc |
| @ 3m 3200K | 2784 lux / 259 fc |
| @ 3m 5600K | 3060 lux / 284 fc |
| @ 3m 6500K | 3108 lux / 289 fc |
⚙ Specifications
| CCT | 2700K-7500K |
| CRI | Average 95 |
| TLCI | Average 97 |
| SSI 3200K | 83 |
| SSI 5600K | 73 |
| TM-30 RF (Average) | 95 |
| TM-30 RG (Average) | 102 |
| Beam Angle | 60° |
| Rated Power | 260W |
| Input Voltage/Current | AC 100-240V 50/60HZ, DC 48V/5.6A, DC(Battery)14.4-26V |
| Operating Temperature | -20℃-45℃ |
| Dimming | 0–100% |
| Effects | CCT Loop, INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding |
| Control | Built-in Controls and Screen, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box, FC PowerController |
| Control Unit Dimensions | 6.01 x 4.39 x 11.14" (15.26 x 11.15 x 28.3cm) |
| Head Dimensions Unfolded | 23.96 × 23.70 x 1.13" (60.87 × 60.21 x 2.86cm) |
| Head Dimensions Folded | 12.54 x 23.7 x 1.5" (31.84 x 60.21 x 3.82cm) |
| Head Weight | 7.58lbs (3.44kg) |
| Control Unit Weight | 5.84lbs (2.65kg) |

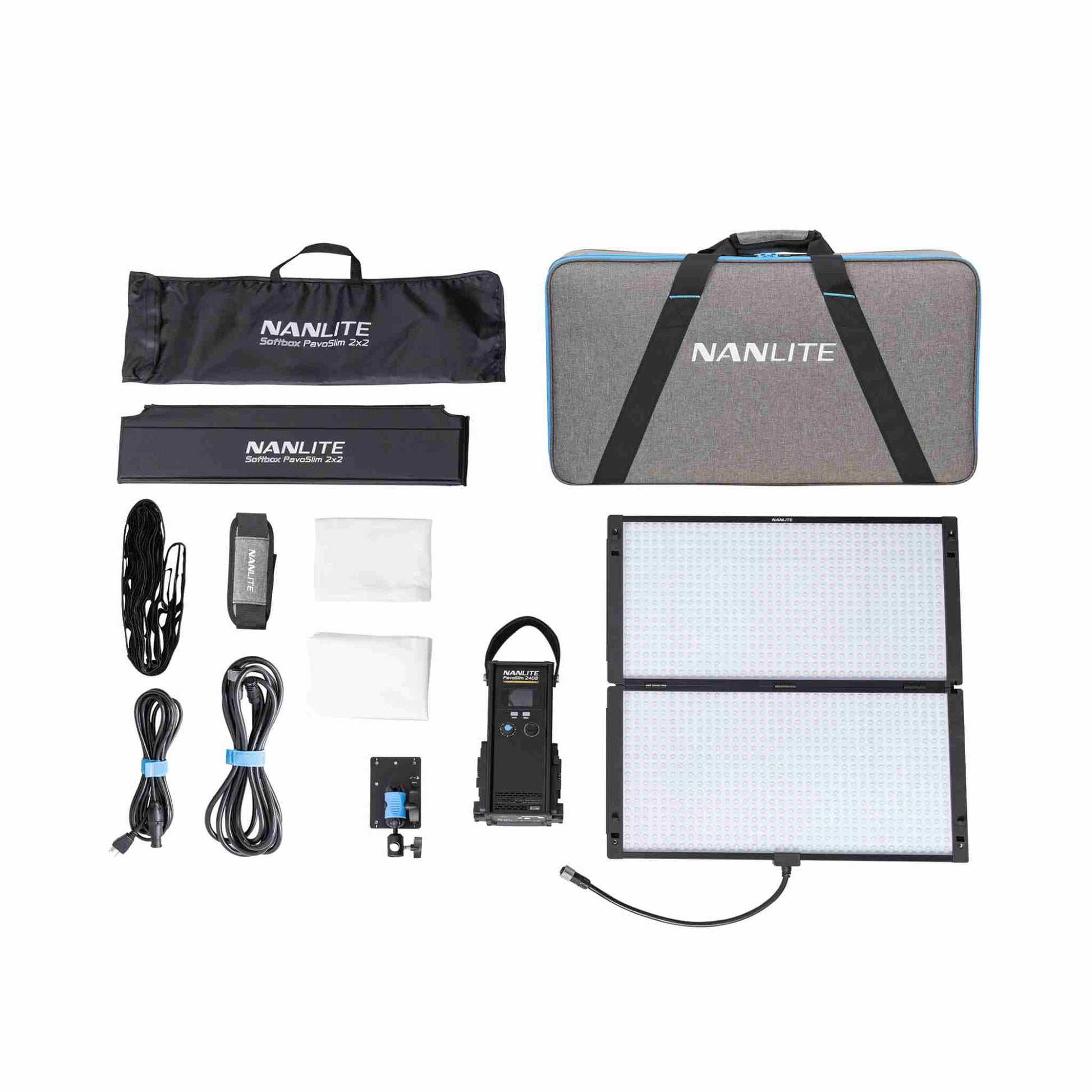

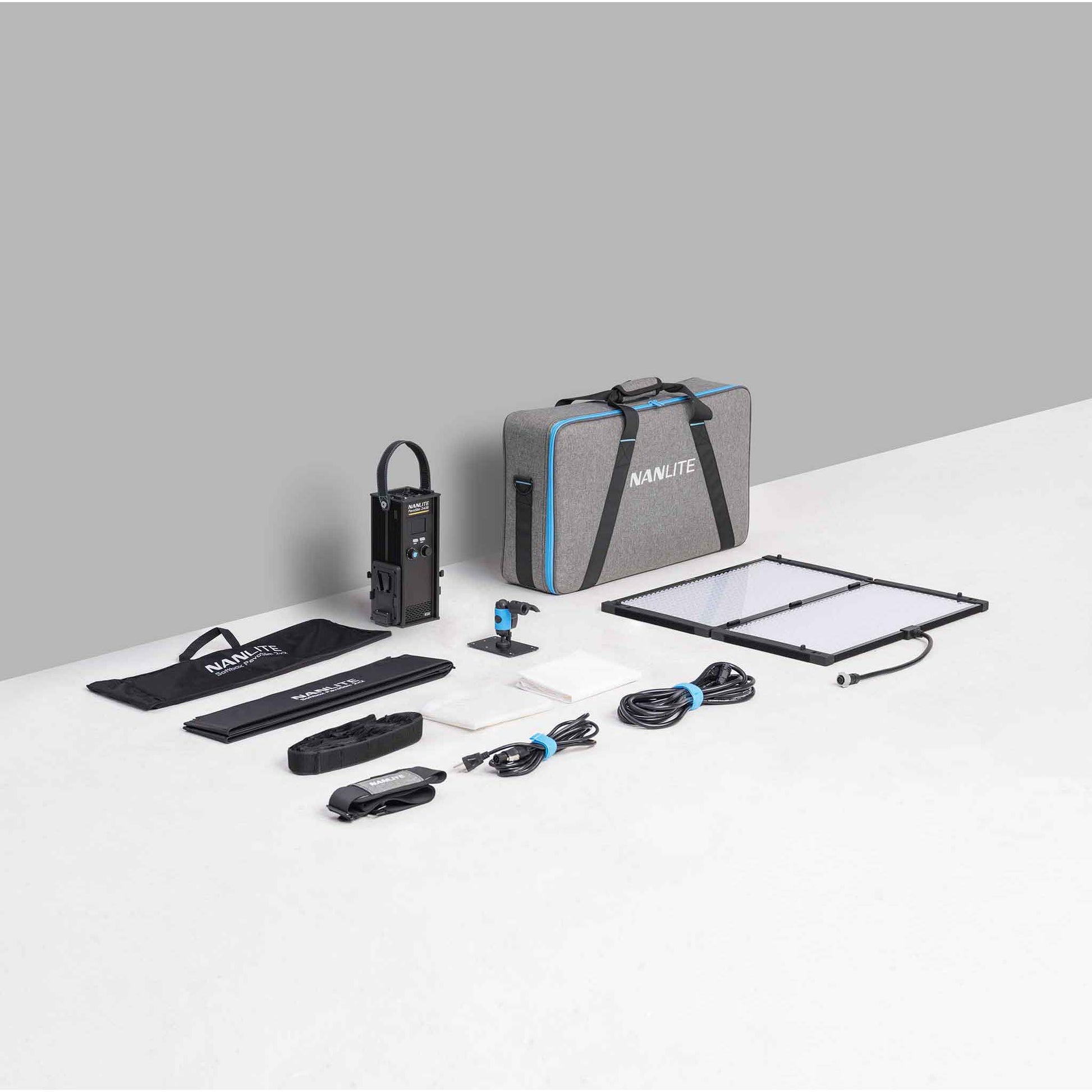

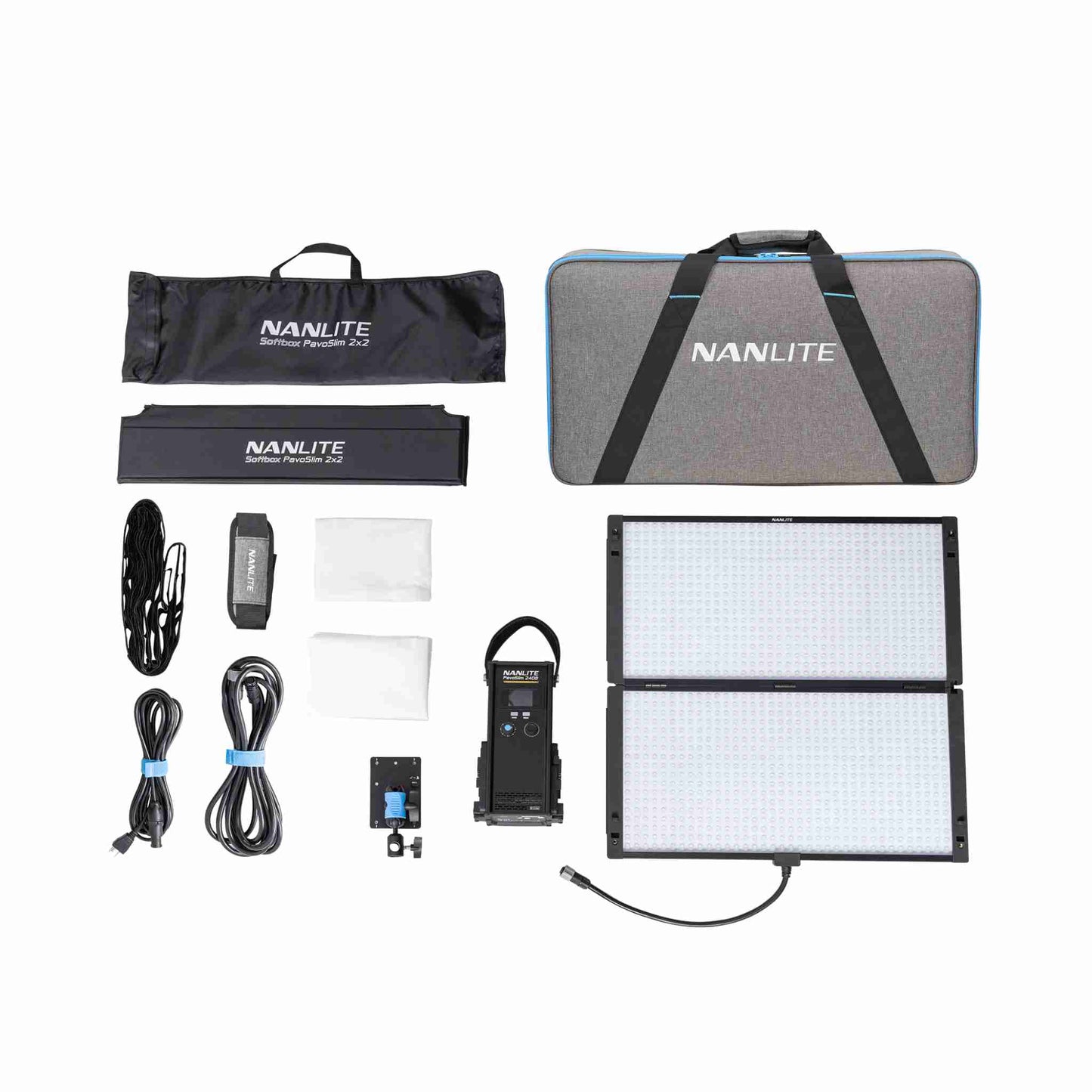

⁂ What's in the Box
| 1x PavoSlim 240B Bi-Color LED Panel |
| 1x Control Unit with 2 V-Mount Battery Plates |
| 1x Swivel Holder |
| 1x Quick-Release Clamp |
| 1x DC Connection Cable 16.4' (5m) |
| 1x AC Power Cable 14.7' (4.5m) |
| 1x Folding Softbox |
| 2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser) |
| 1x Eggcrate Grid |
| 1x Padded Carrying Bag |
| 1x User Manual |
| 2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com) |
