Nanlite
PavoSlim 240C 2x2 RGBWW LED Panel Light with CRMX
PavoSlim 240C 2x2 RGBWW LED Panel Light with CRMX
Couldn't load pickup availability
- Free shipping on orders over $50
- Up to 3-year warranty
SKU:PS240C
2X2 PANEL, 2X1 SIZE
PavoSlim 240C is a 2x2 RGBWW LED panel that folds down to a 2x1 size for storage and travel and provides an impressive output of 24970 lux, 2319.7 fc @1M 5600K
FAST SET UP & BREAK DOWN
Designed for speed and efficiency, PavoSlim 240C and the included softbox and grid can be set up and put away impressively quickly
ACCURATE & FLICKER FREE
With a CRI of 96, TLCI of 97, SSI of 3200K 83 and 5600K 74, your colors and skin tones will always be accurate, and even if you're shooting with ultra-high frame rates, your footage will always be flicker free
AC OR BATTERY
Run continuously on an AC outlet and features a V-Mount battery plate for working on location
SOFTBOX, MOUNTS & 3-YEAR WARRANTY
Includes a case, softbox, 2 diffusions, grid, 2 mounts, Control Unit, super clamp, cables, and a 2-year warranty that extends to 3 years with online registration

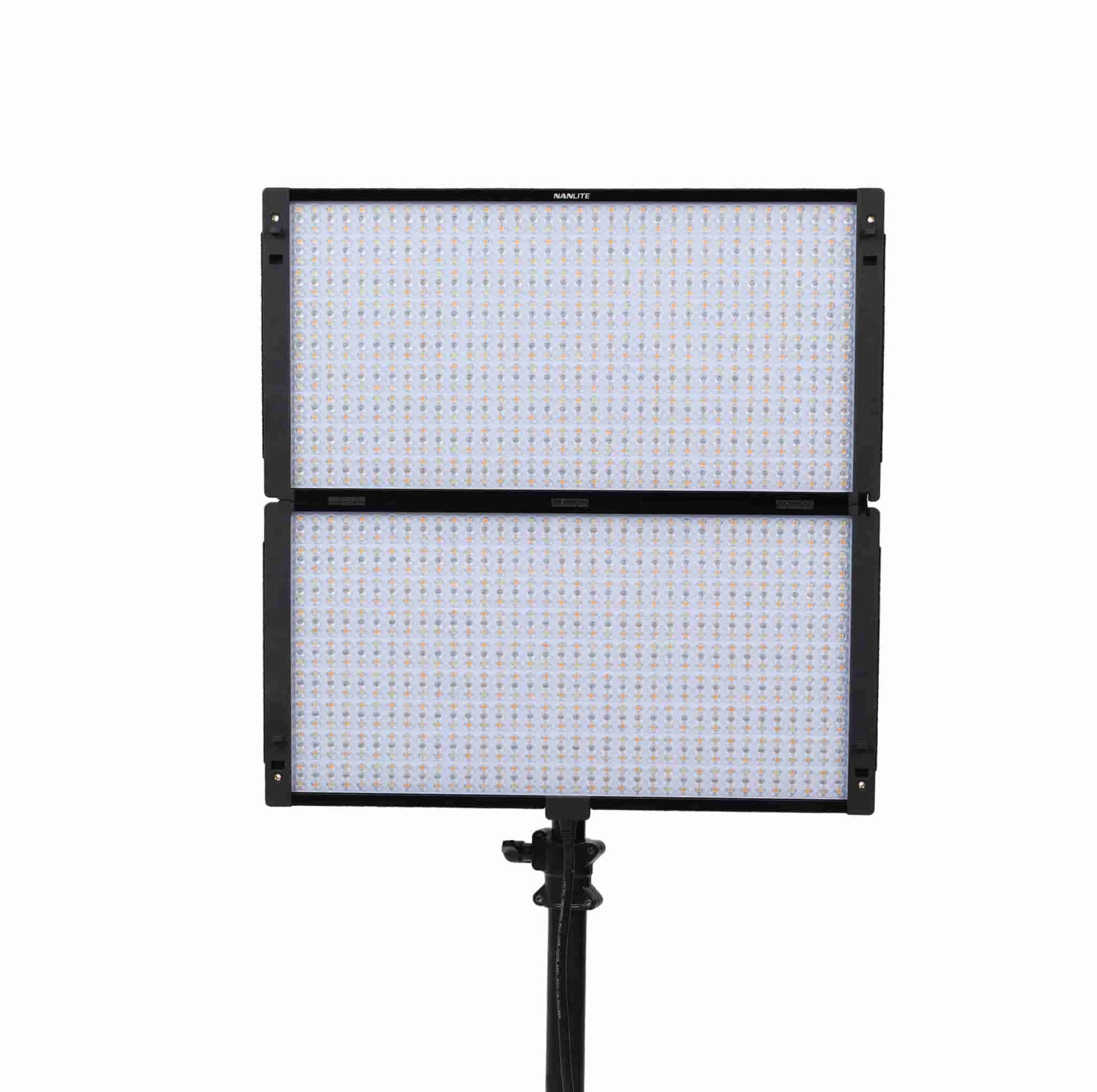

The Nanlite PavoSlim 240C is an exceptionally thin and lightweight 2x2 RGBWW LED panel light that folds to half its size for storage and travel and provides an impressive output of 24970 lux, 2319.7 fc @1M 5600K, 0–100% dimming, a bi-color CCT range of 2700K–7500K with G/M adjustment of +/- 150, built-in CRMX LumenRadio, power through AC or V-Mount battery, and includes a Control Unit, super clamp, softbox, 2 sets of diffusion, eggcrate grid, a swivel mount, a baby-pin mount, and a compact padded carrying case that safely holds everything. It's covered by a 2-year warranty that extends to 3 years with online registration, and it's stocked, supported, and serviced by our responsive team in the USA.
Read more...Read less...

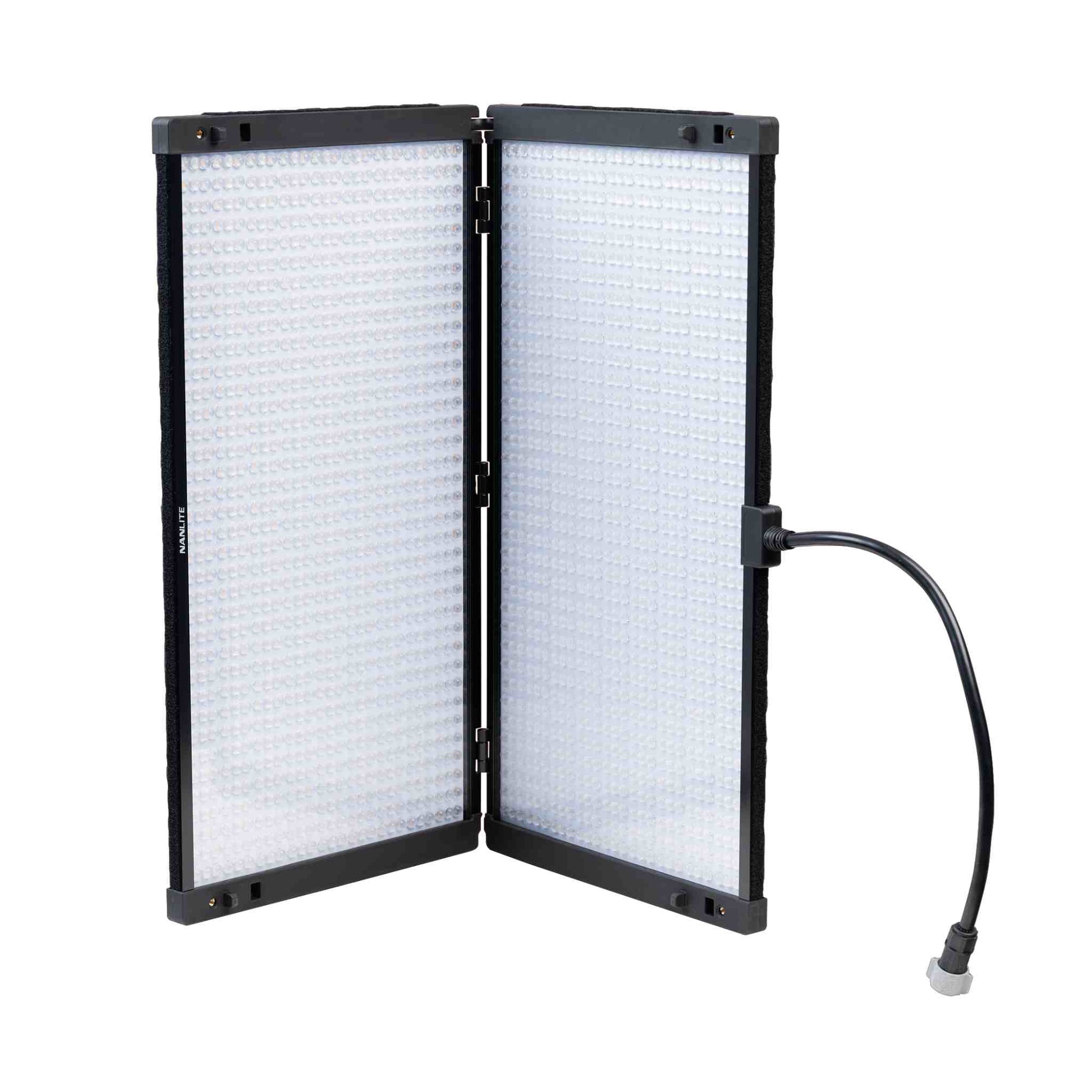

Doubles in Size

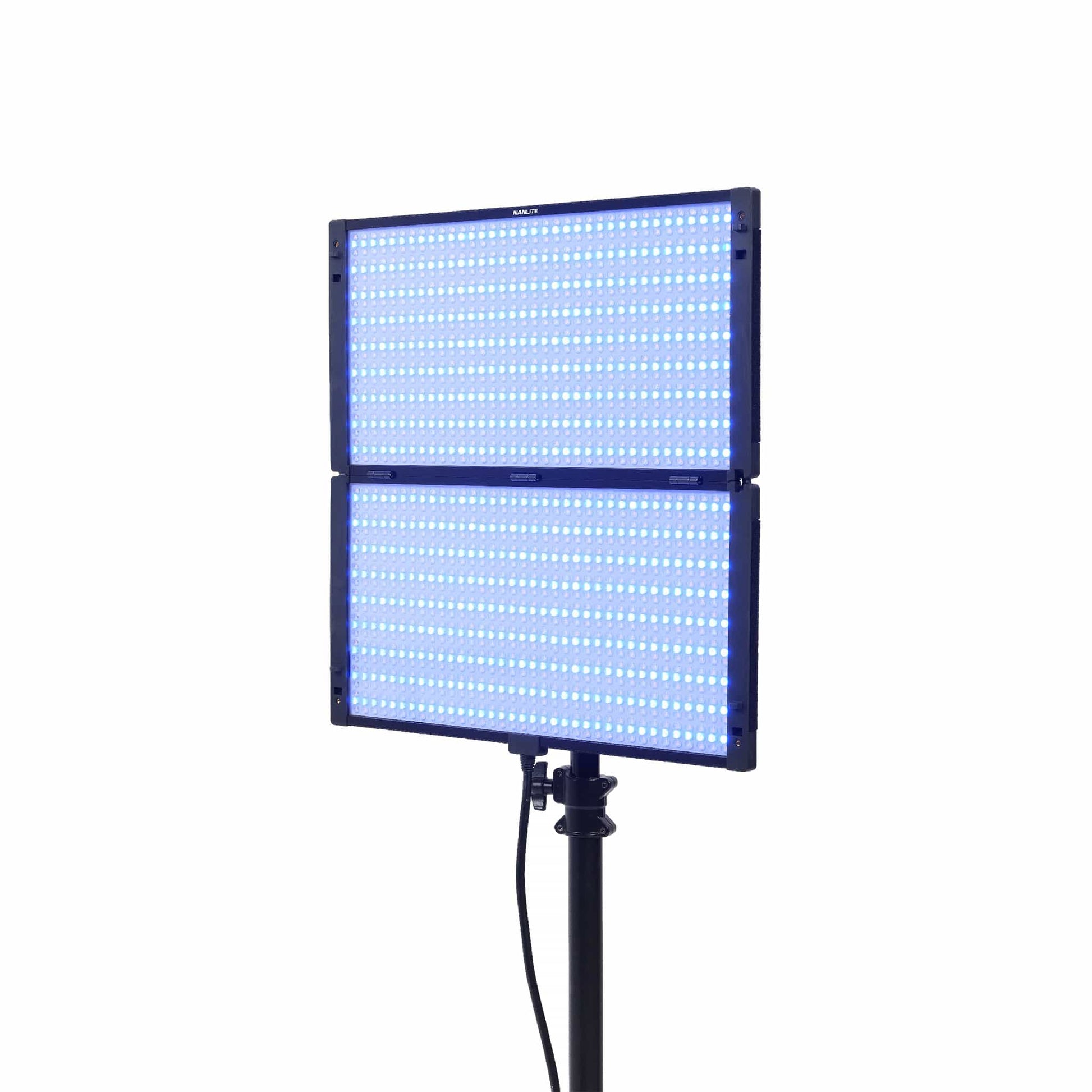

PavoSlim 240C folds in half for travel and storage, and expands to a full 2x2 panel when in use. It remains illuminated until fully closed, which adds versatility for how it can be used.
Space-Efficient & Fast
This is a compact fixture that expands to a larger size and quickly sets up and breaks down. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service. The corners of the light have 1/4"-20 mounting points for the separately available AS-MBA-1/4-SET magnetic mounting adapters.
Thin yet Powerful

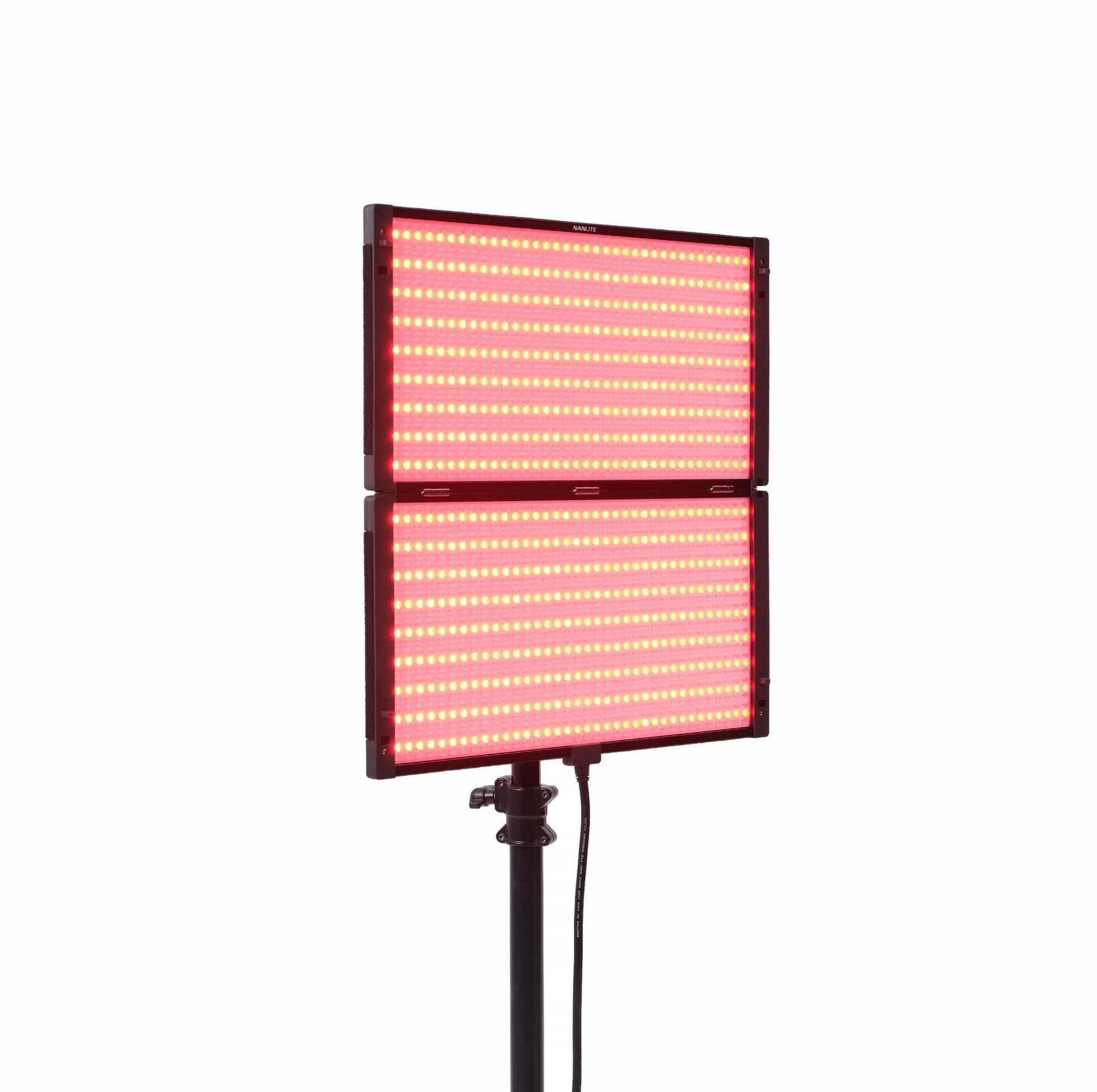

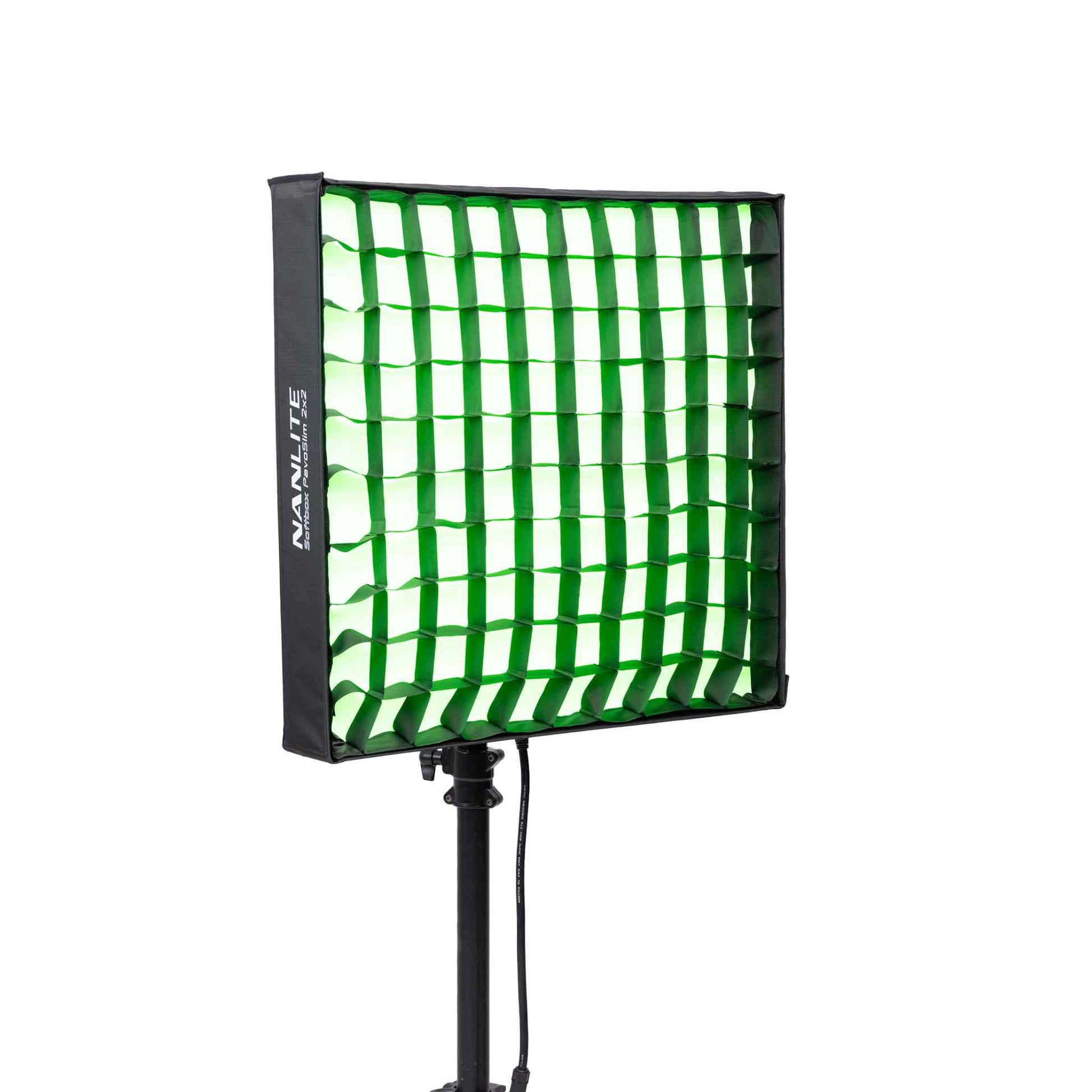

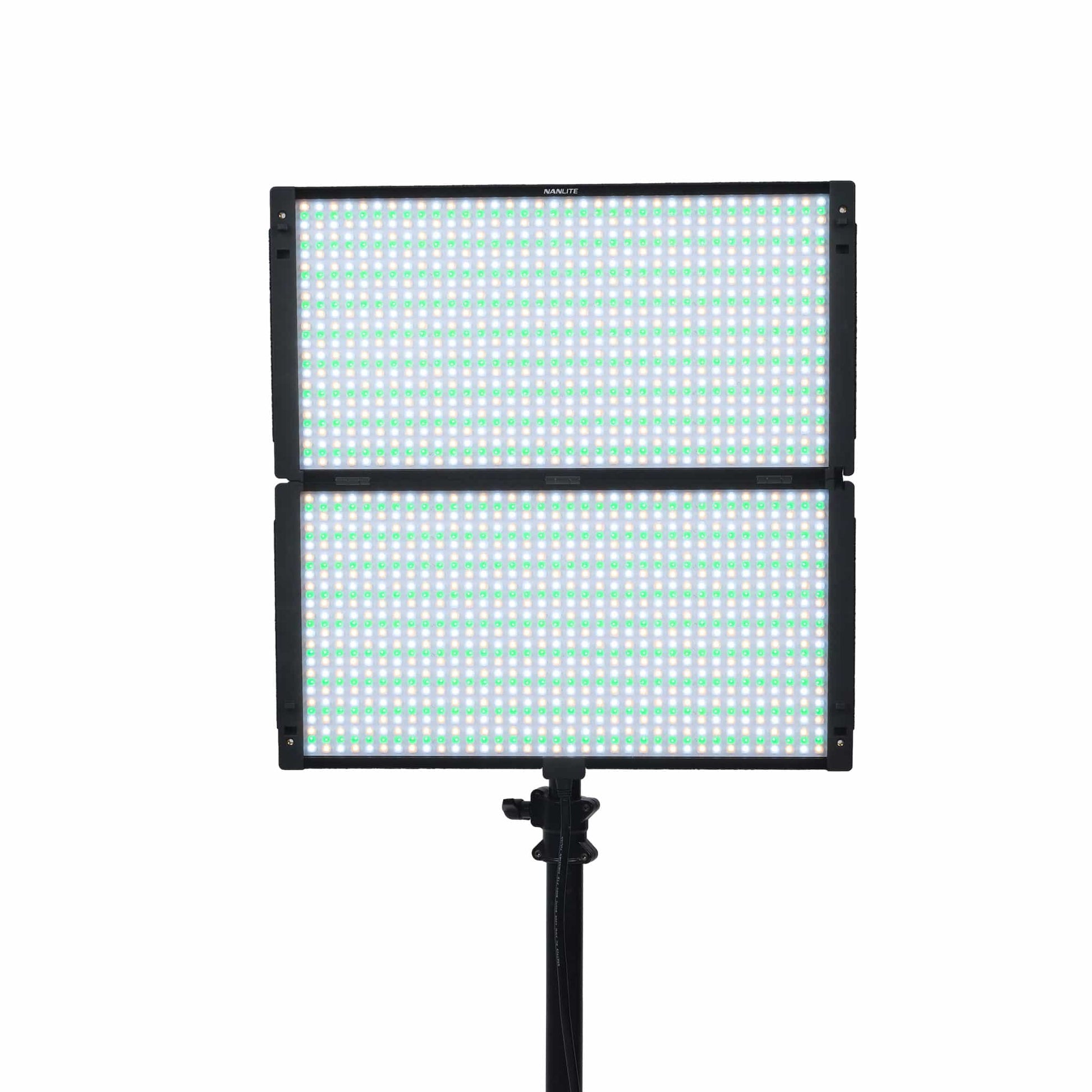

PavoSlim 240C is only 1.13" (2.86 cm) thick, yet it features an advanced optical system that's capable of outputting a sizable amount of light. In addition to bi-color and daylight-balanced output, PavoSlim 240C provides eye-catching RGB colors and 151 gel filter presets.

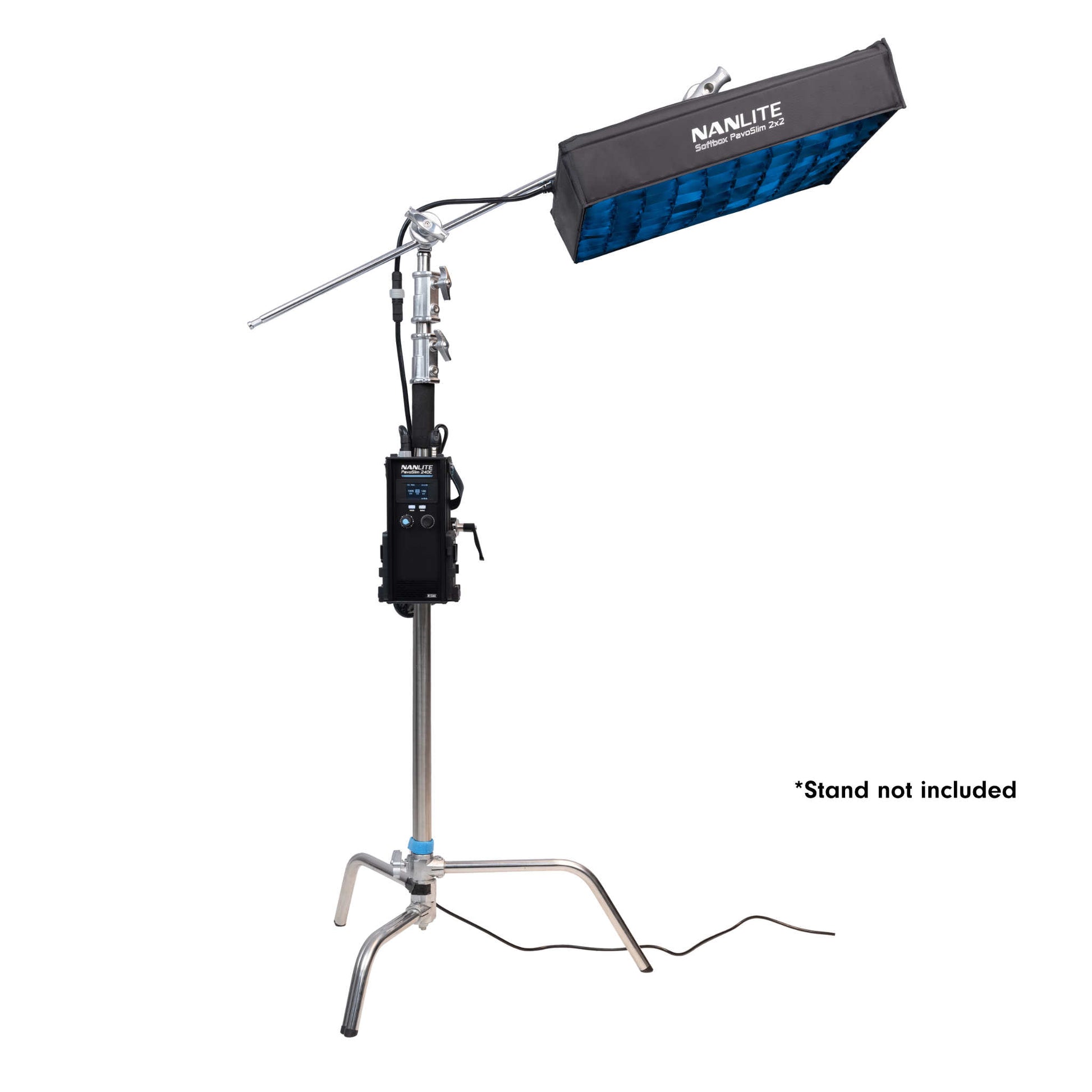

Complete Control

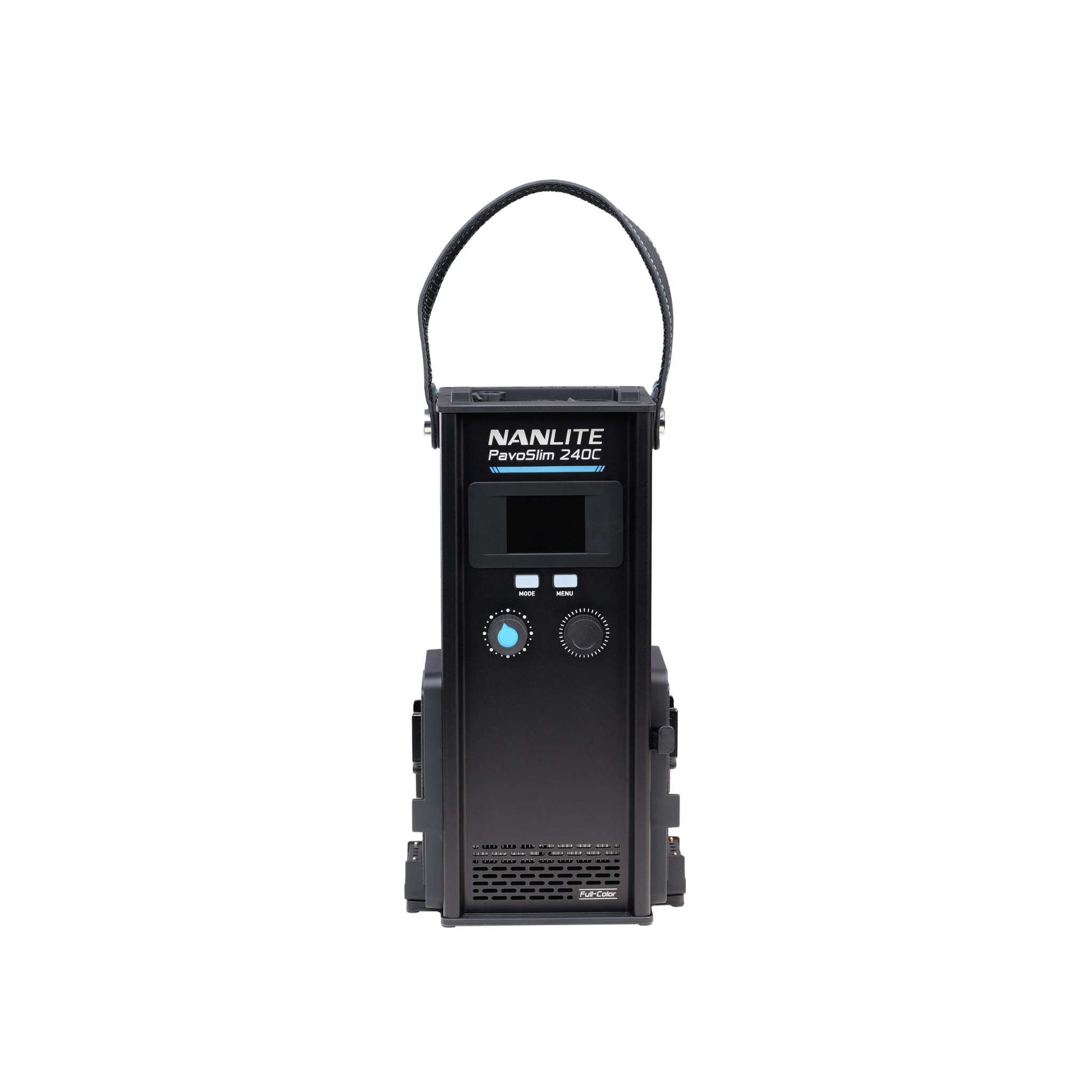

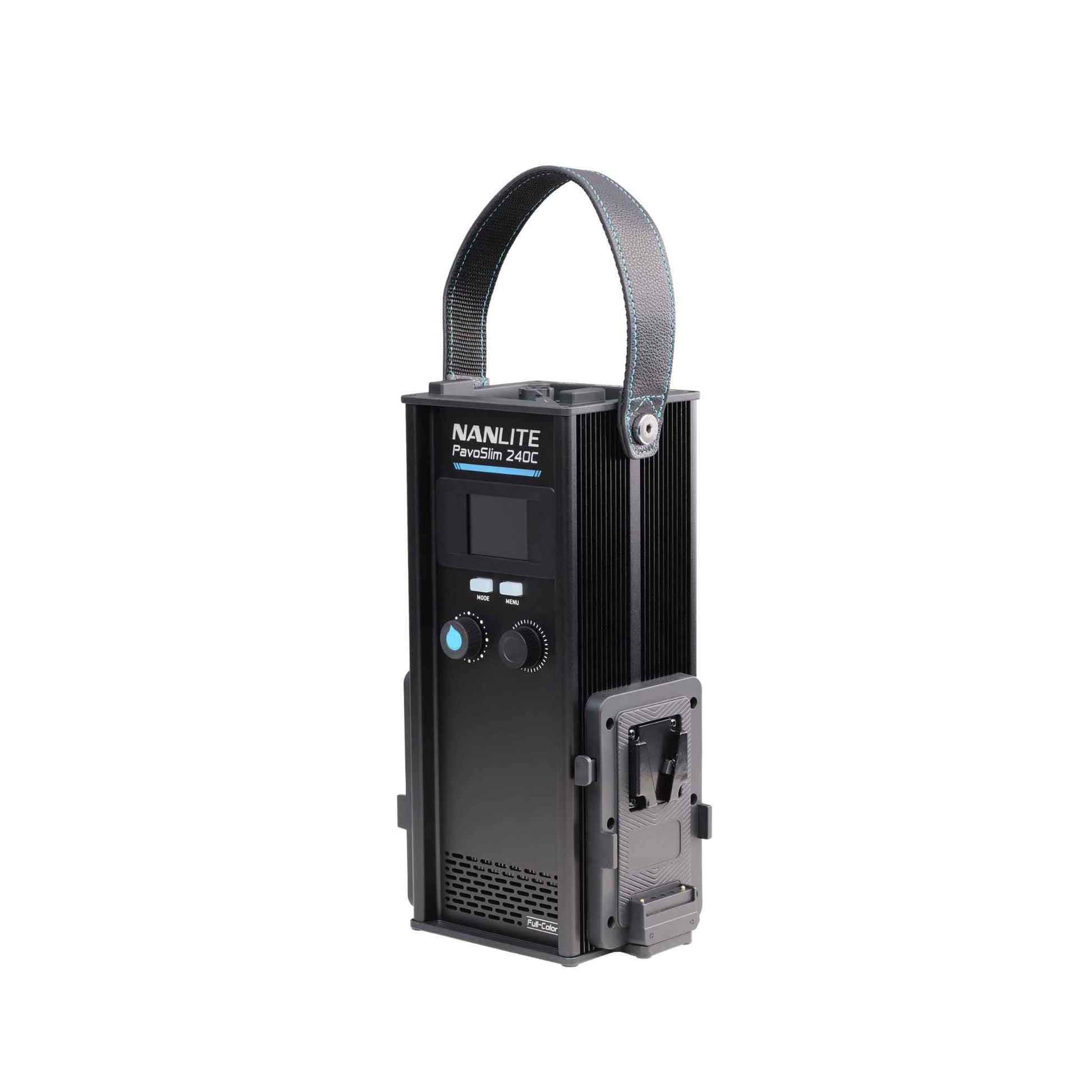

The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, built-in CRMX LumenRadio receiver, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).

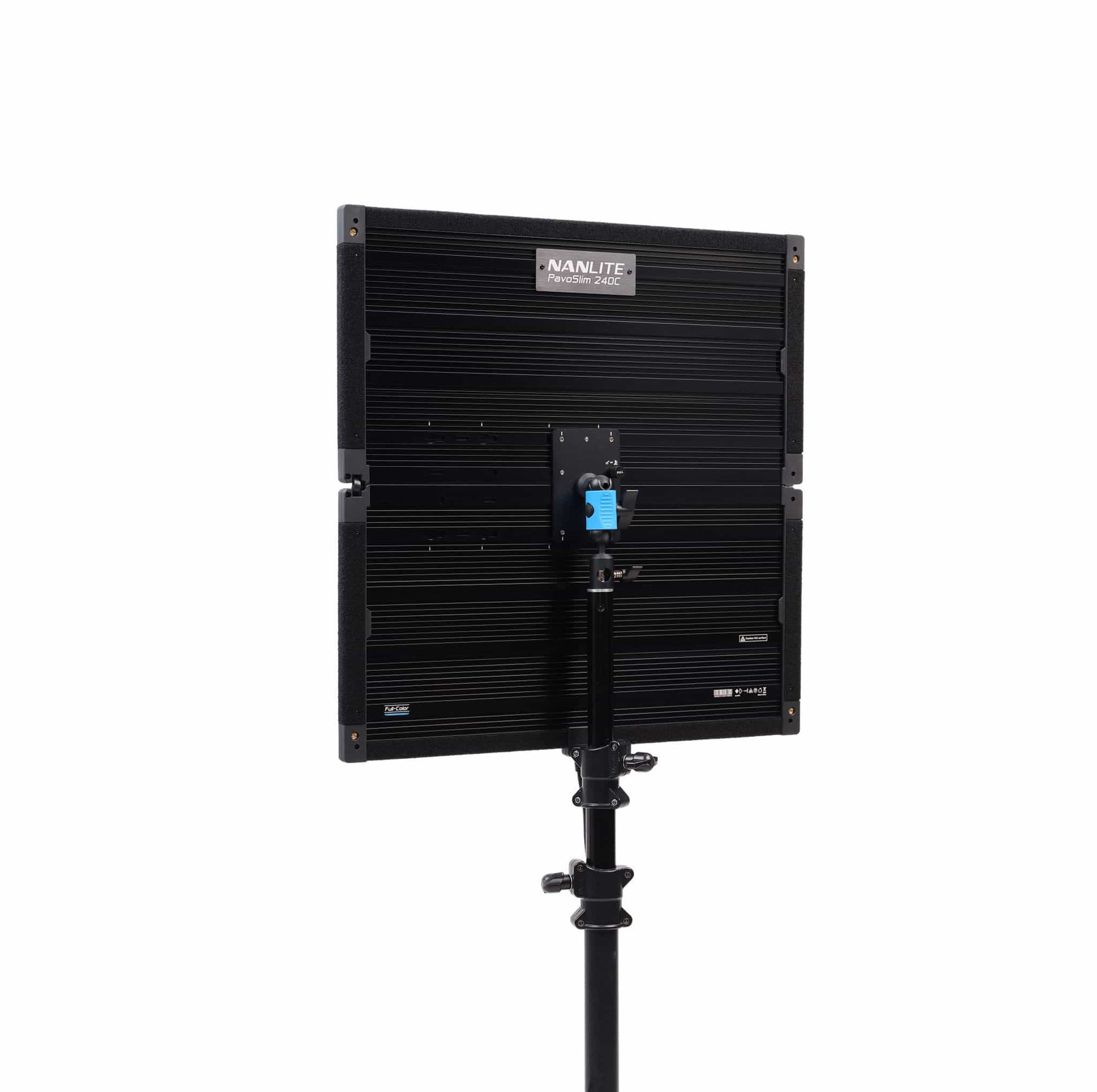

Multiple Mounts

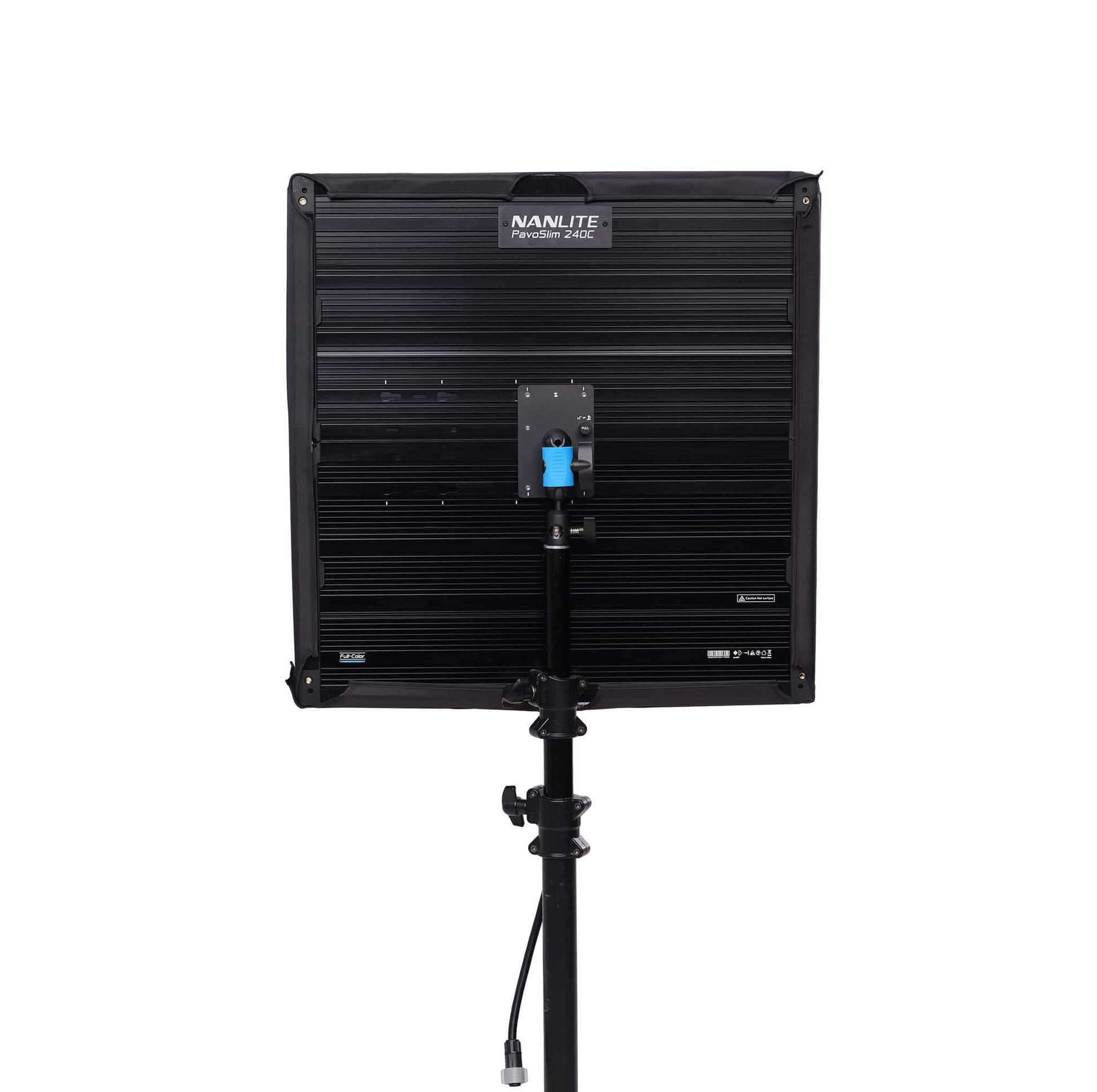

The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The 2 included mounts slide into the plates and lock securely. One of the mounts has a fixed baby-pin, the other has two ball joints that can be swiveled and locked in a wide range of vertical and upward angles.

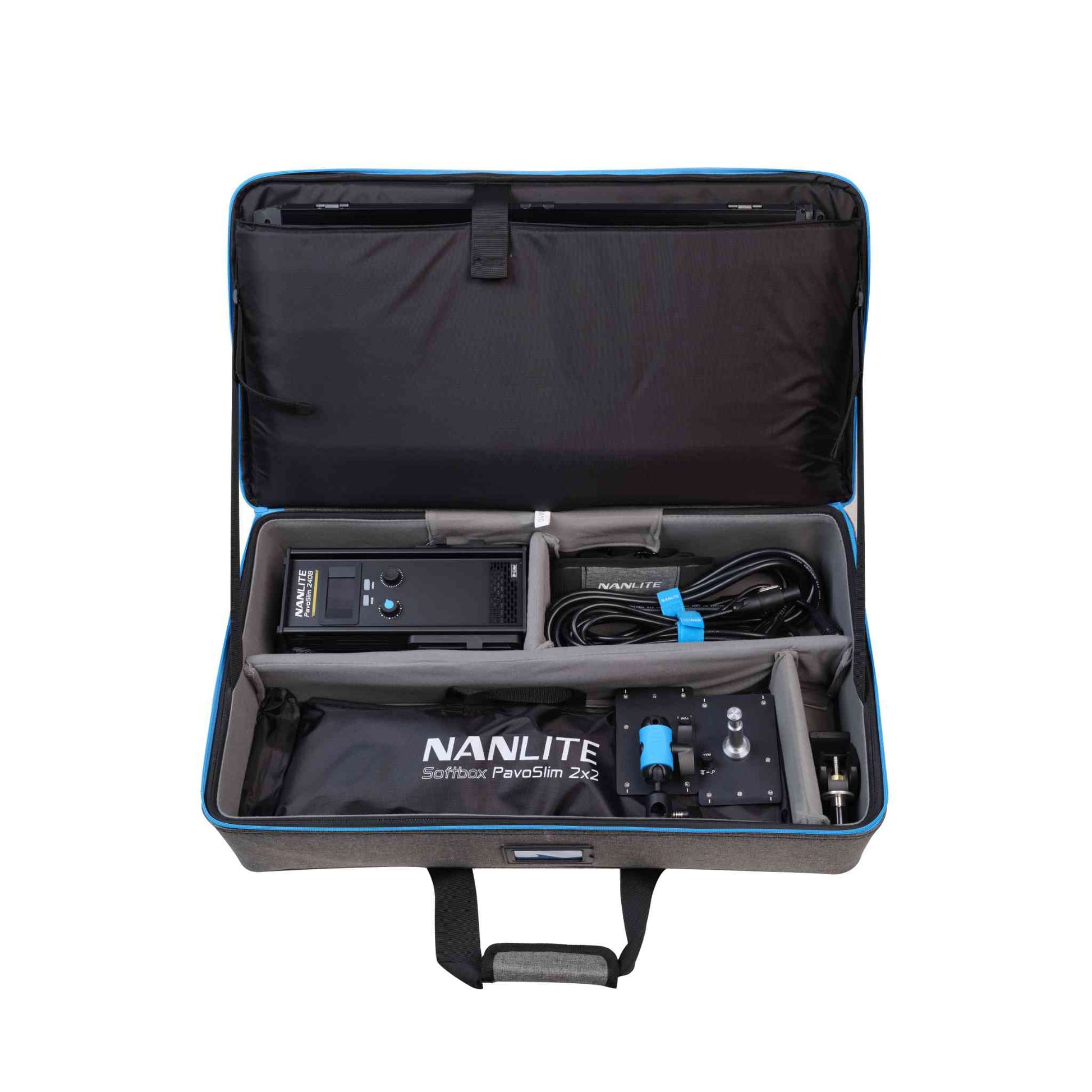

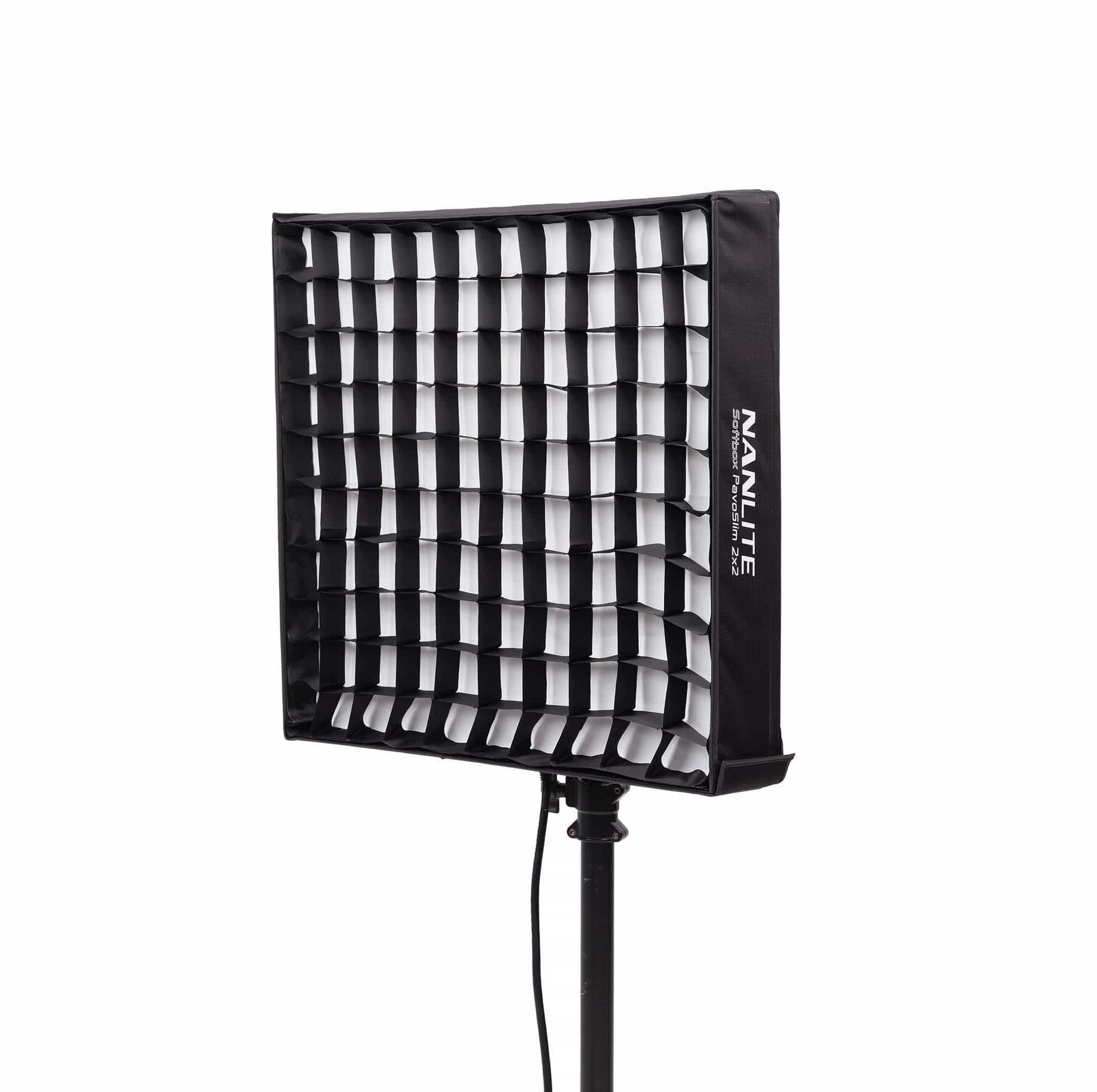

Softbox & Case

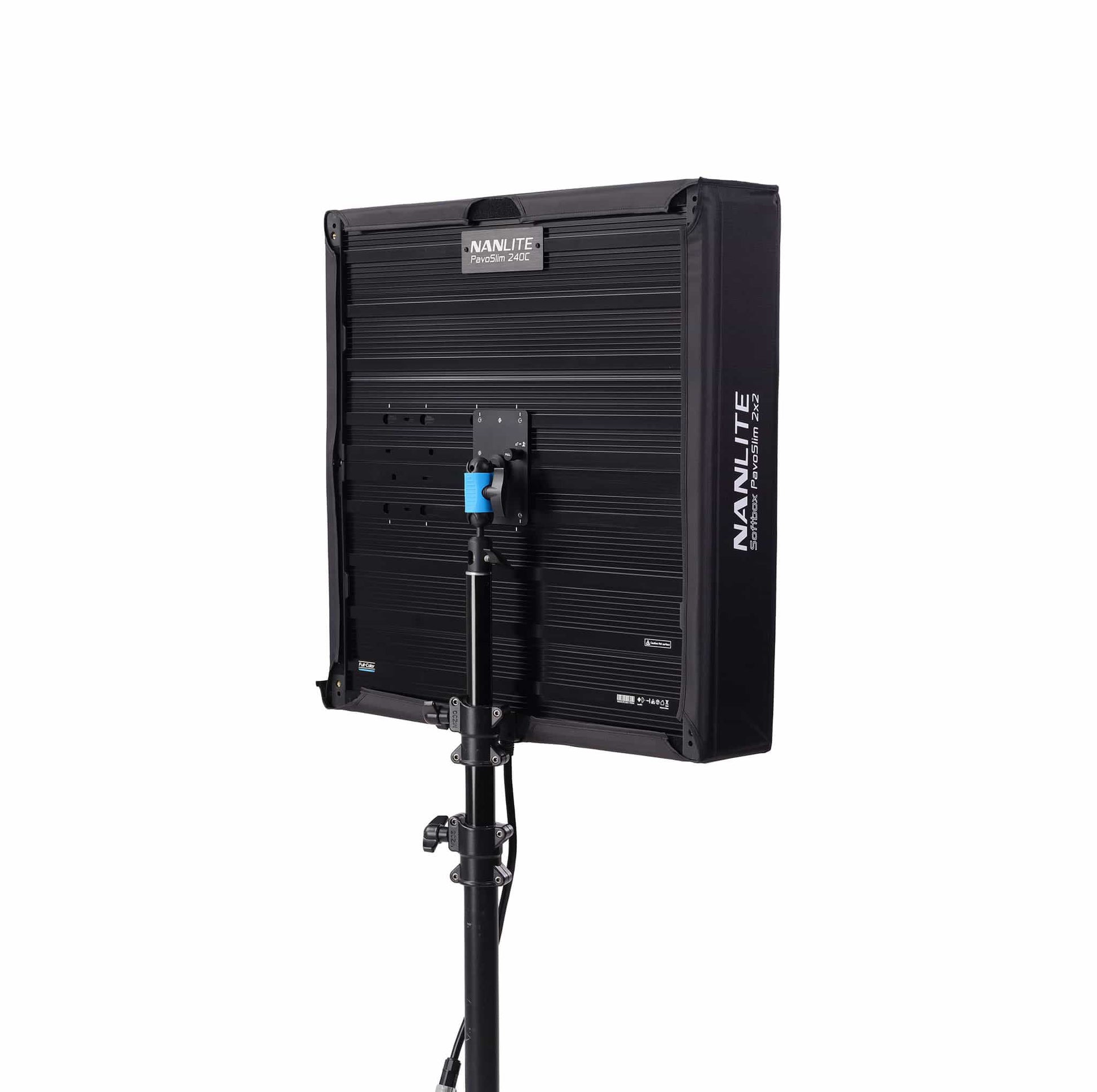

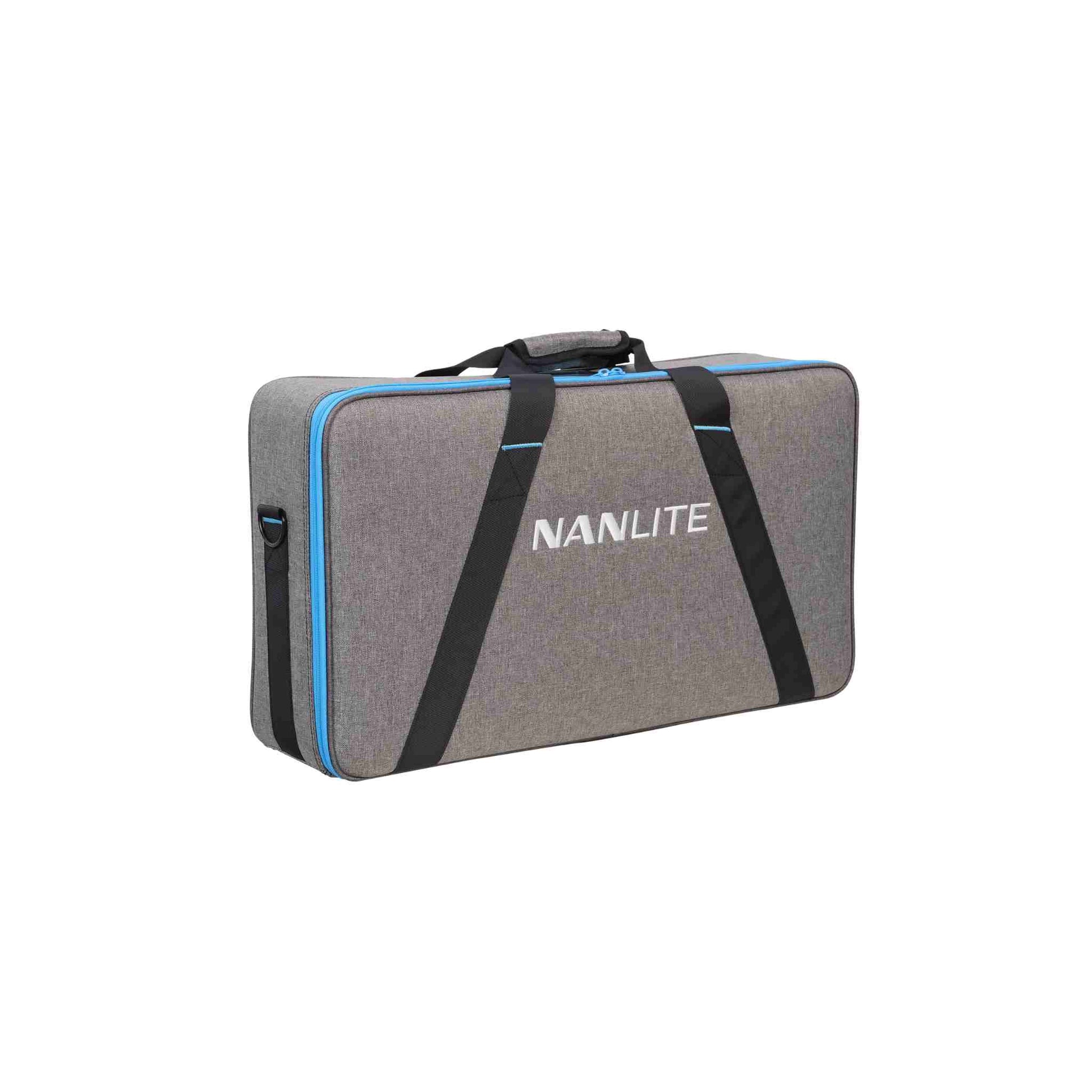

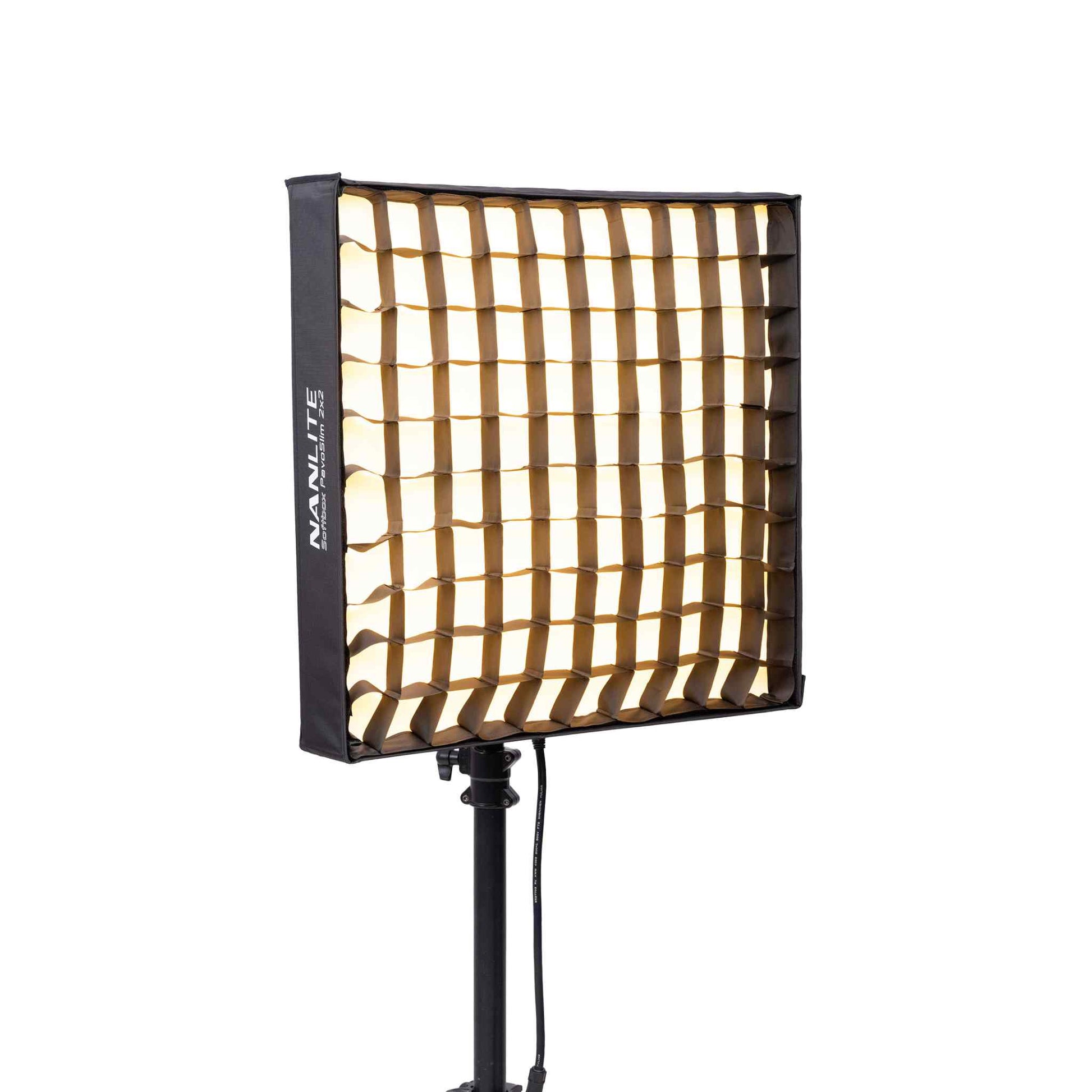

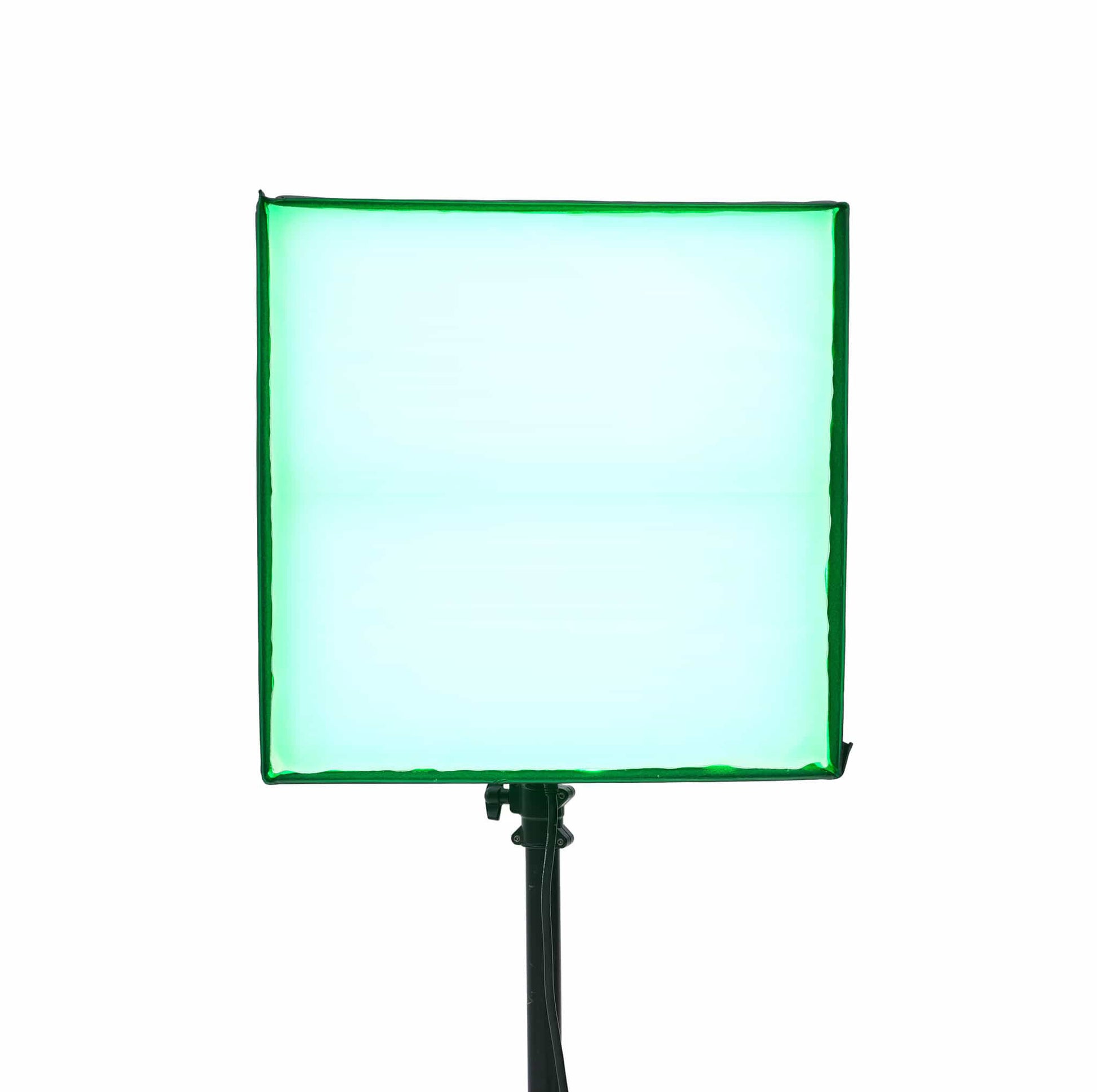

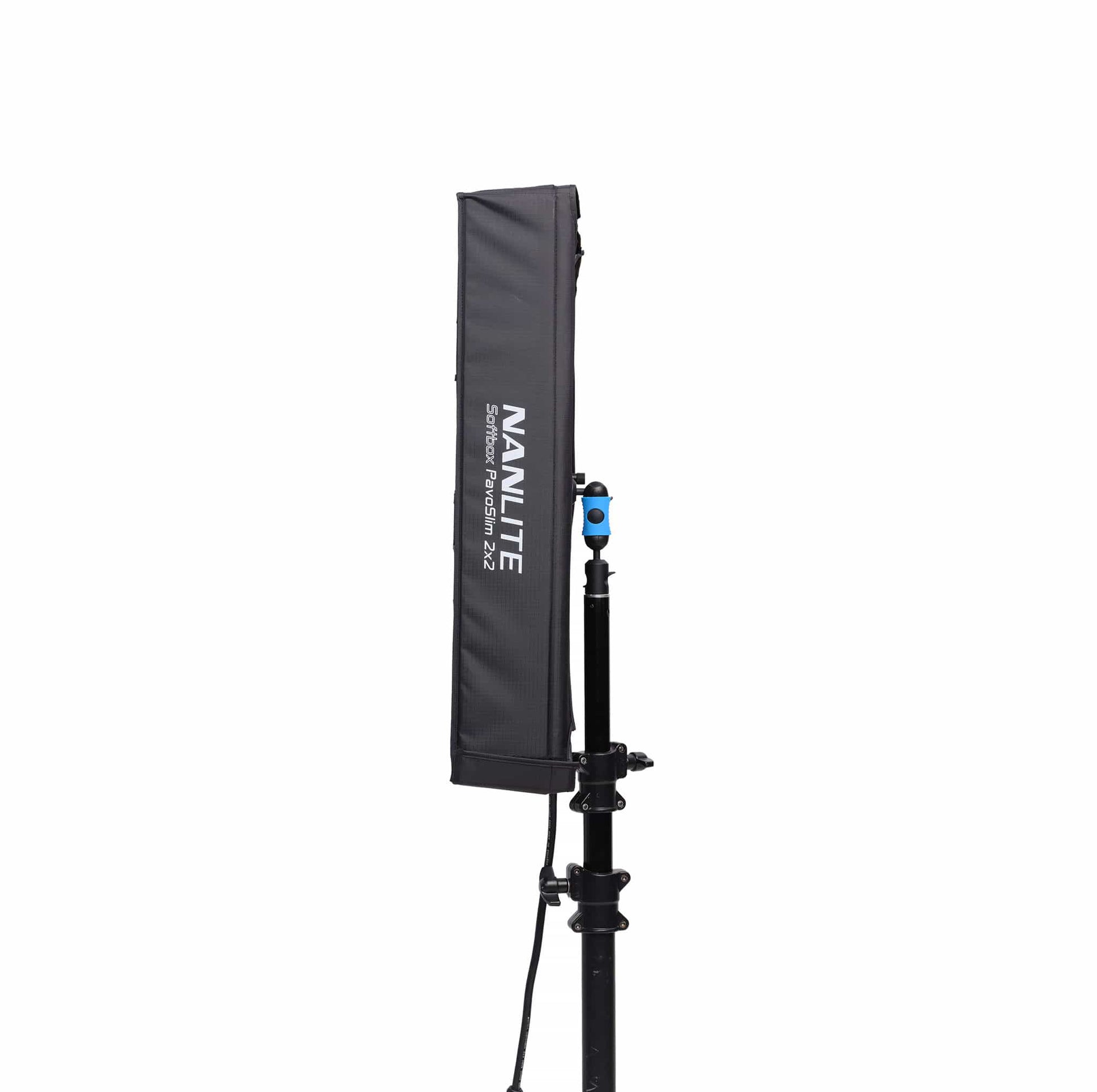

The slender padded carrying case has room for all the included accessories, like the folding softbox, grid, 1.5 stop, and 2.5 stop diffusers (which also set up and break down in seconds). The case won't weigh you down and because it's half the size of the fixture, it won't consume unnecessary space in transit or storage.
Flicker-Free Accuracy
Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 240C, you can always have confidence in your colors: CRI average 96, TLCI average 97.
Made at Nanlite
One important distinction that makes Nanlite stand out is that we design, build, and test every single light in our own facility. This gives us the best possible control over Quality Assurance. We're a family-owned business that incorporates environmentally friendly practices into our work and we're filled with people who are passionate about image making and creativity. Join us!
☀ Photometrics
| Distance and CCT | Distance and Color | ||
|---|---|---|---|
| @ 1m 2700K | 20690 lux / 1922 fc | @ 1m Red | 10390 lux / 965 fc |
| @ 3m 2700K | 2868 lux / 296 fc | @ 3m Red | 1364 lux / 127 fc |
| @ 1m 3200K | 22770 lux / 2115 fc | @ 1m Green | 16770 lux / 1558 fc |
| @ 3m 3200K | 3130 lux / 291 fc | @ 3m Green | 2145 lux / 199 fc |
| @ 1m 5600K | 24970 lux / 2320 fc | @ 1m Blue | 2060 lux / 191 fc |
| @ 3m 5600K | 3441 lux / 320 fc | @ 3m Blue | 260 lux / 24 fc |
| @ 1m 6500K | 24930 lux / 2316 fc | ||
| @ 3m 6500K | 3432 lux / 319 fc |
⚙ Specifications
| LED Type | RGBWW |
| CCT | 2700K-7500K, G/M Adjustment ±150 |
| CRI | Average 96 |
| TLCI | Average 97 |
| SSI 3200K | 83 |
| SSI 5600K | 74 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 100 |
| Beam Angle | 60° |
| Rated Power | 260W |
| Input Voltage/Current | AC 100-240V 50/60HZ, DC 48V/5.6A, DC(Battery)14.4-26V |
| Operating Temperature | -20℃-45℃ |
| Dimming | 0–100% |
| Effects | HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding |
| Control | Built-in Controls and Screen, LumenRadio CRMX, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box, FC PowerController |
| Control Unit Dimensions | 6.01 x 4.39 x 11.14" (15.26 x 11.15 x 28.3cm) |
| Head Dimensions Unfolded | 23.96 × 23.70 x 1.13" (60.87 × 60.21 x 2.86cm) |
| Head Dimensions Folded | 12.54 x 23.7 x 1.5" (31.84 x 60.21 x 3.82cm) |
| Head Weight | 8.05lbs (3.65kg) |
| Control Unit Weight | 6.08lbs (2.76kg) |

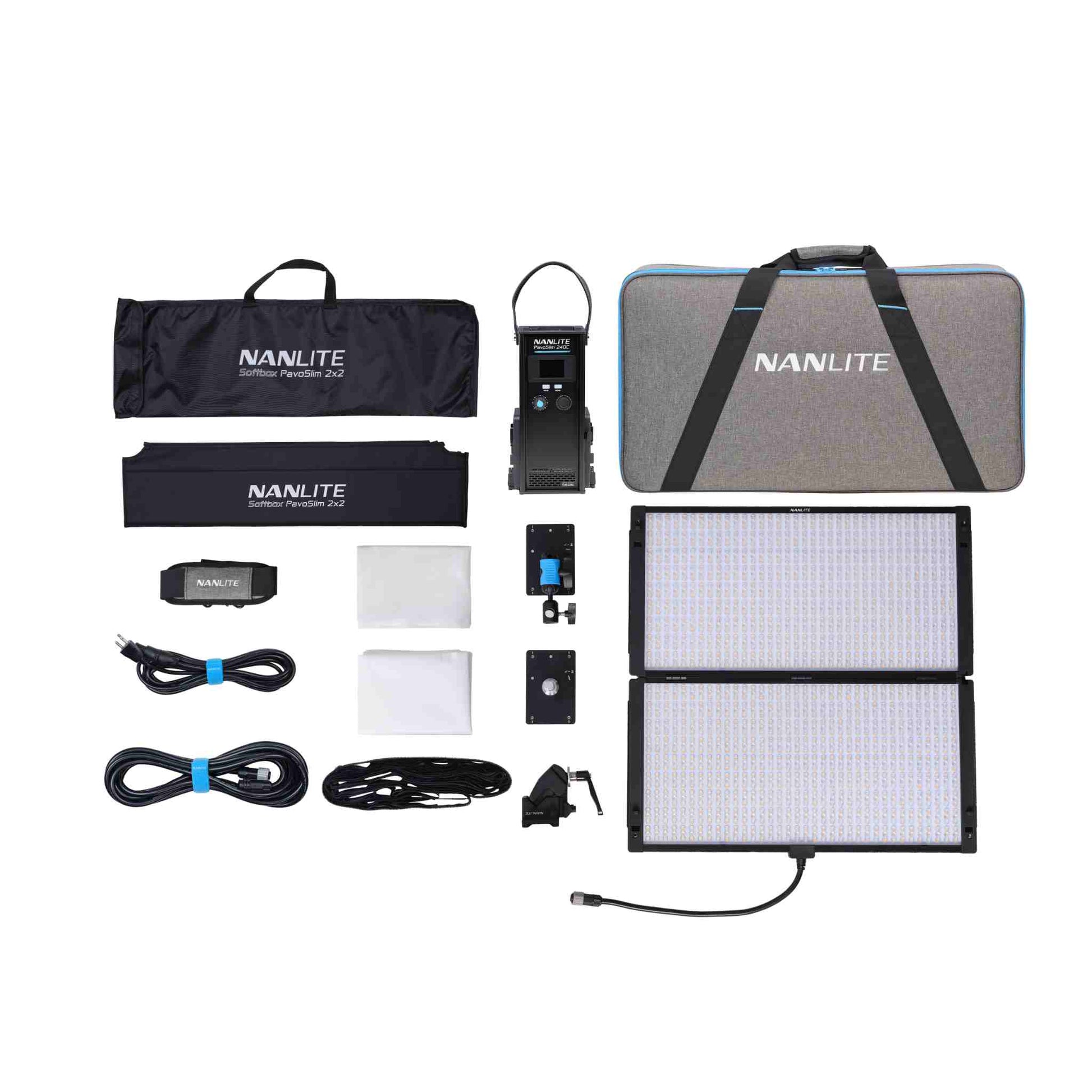

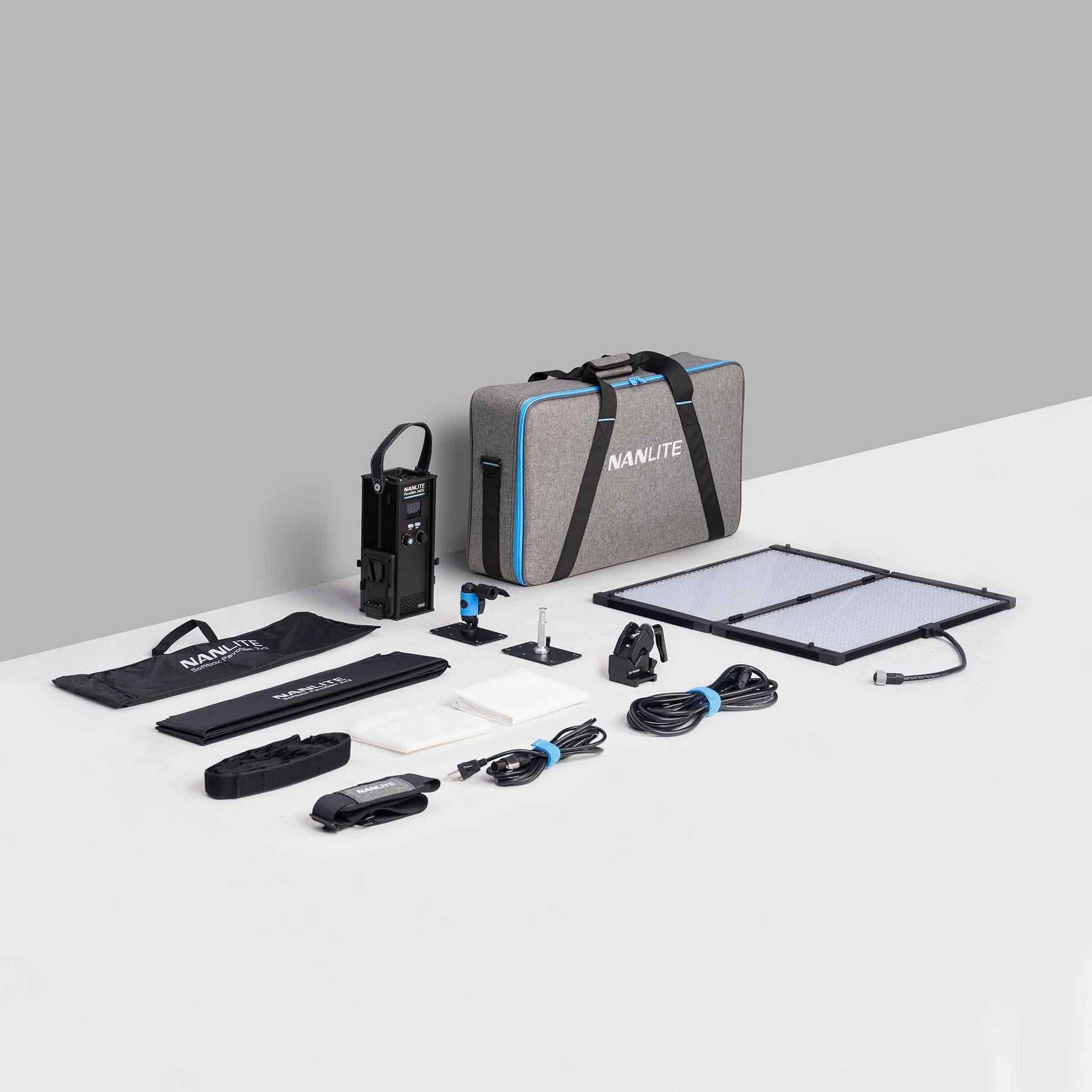

⁂ What's in the Box
| 1x PavoSlim 240C Full-Color LED Panel |
| 1x Control Unit with 2 V-Mount Battery Plates |
| 1x Baby-Pin Holder |
| 1x Swivel Holder |
| 1x Quick-Release Clamp |
| 1x DC Connection Cable 16.4' (5m) |
| 1x AC Power Cable 14.7' (4.5m) |
| 1x Folding Softbox |
| 2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser) |
| 1x Eggcrate Grid |
| 1x Padded Carrying Bag |
| 1x User Manual |
| 2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com) |
