PavoSlim 240CL 4x1 RGBWW LED Panel Light with CRMX
PavoSlim 240CL 4x1 RGBWW LED Panel Light with CRMX
Couldn't load pickup availability
- Free shipping on orders over $50
- Up to 3-year warranty
SKU:PS240CL
LARGE YET THIN & LIGHT
A sizable 4x1 source with a metal body that's only 0.92” (2.35cm) thick, and the panel weighs just 7.98 lbs (3.6 kg)
FAST SET UP & BREAK DOWN

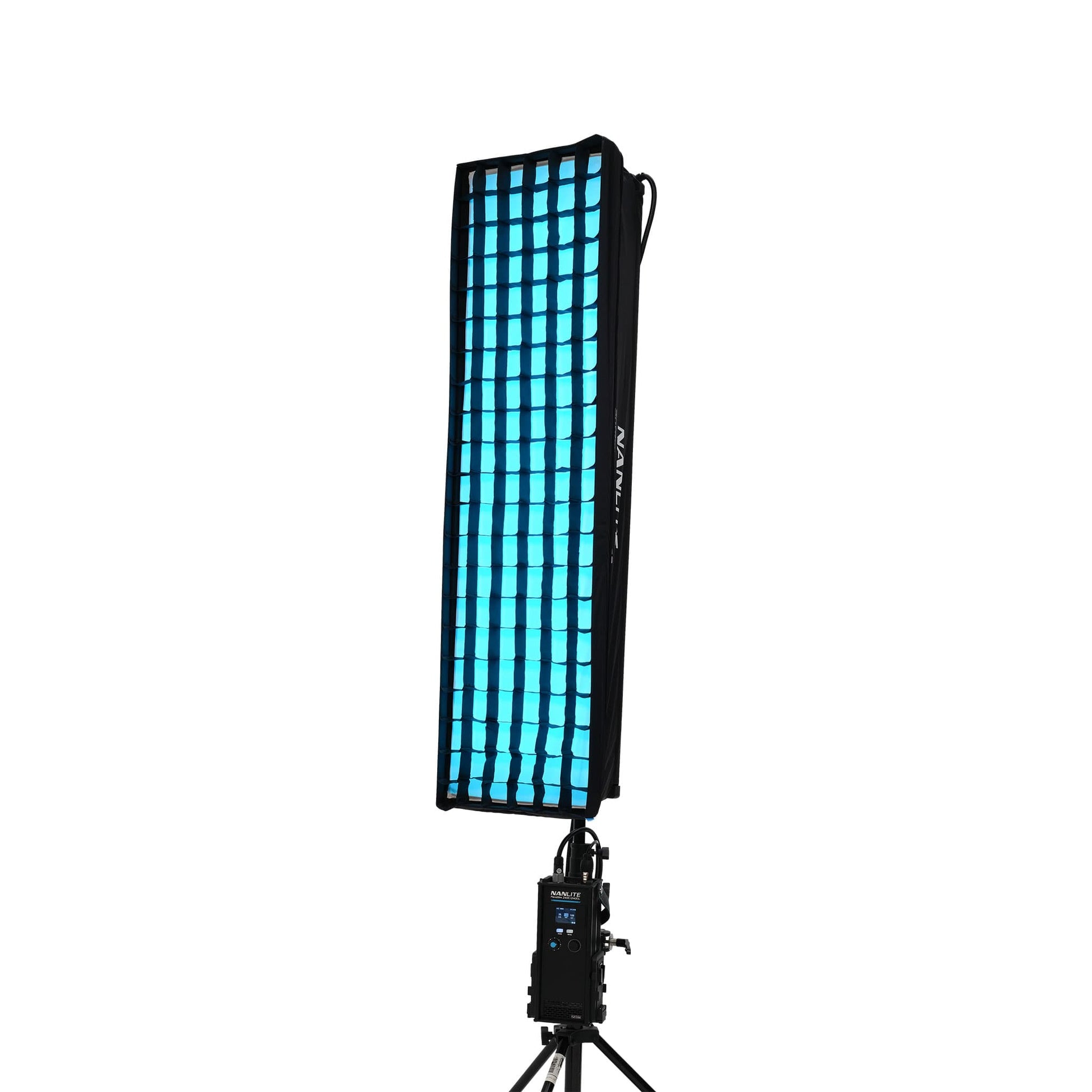

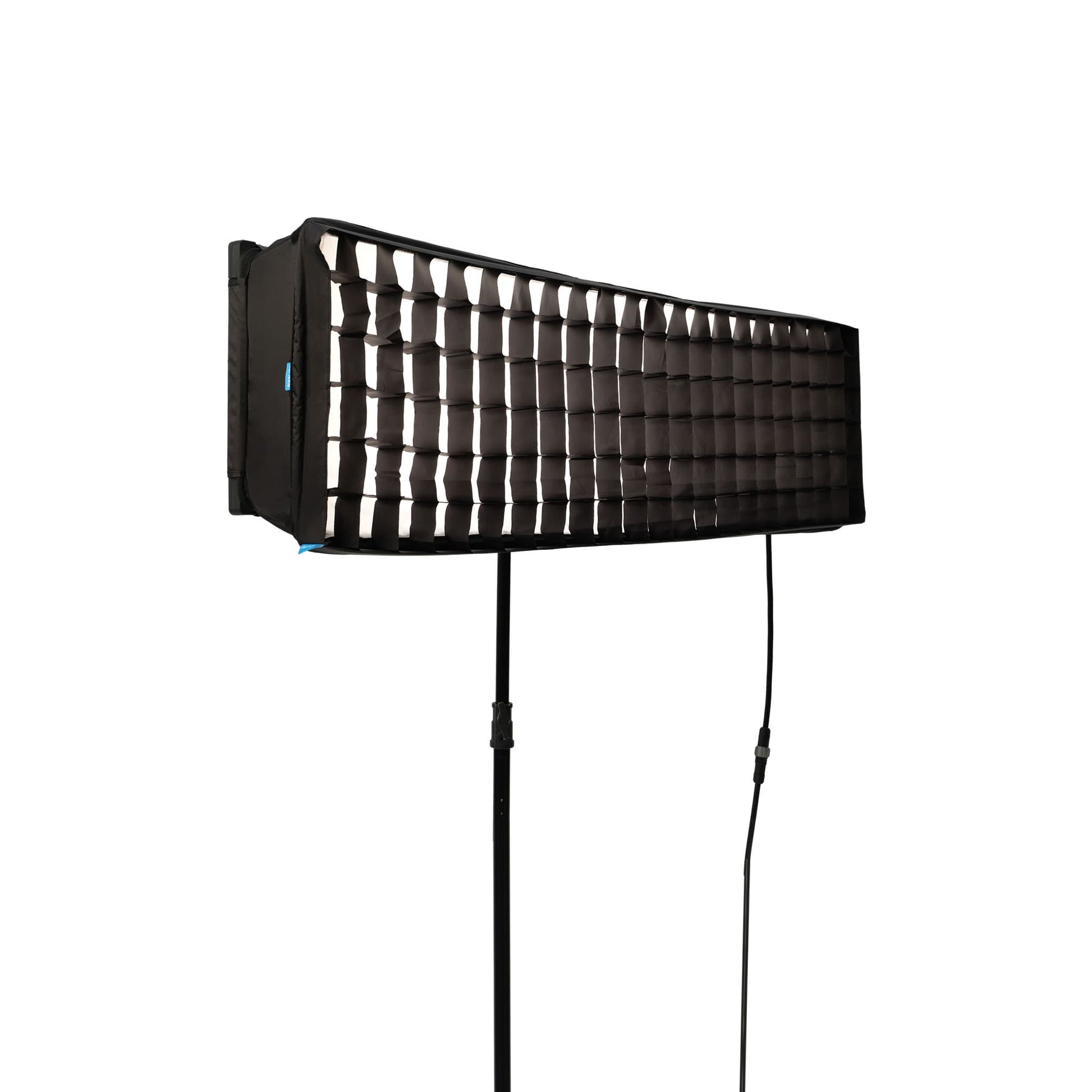

Designed for speed and efficiency, PavoSlim 240CL and the included pop-up softbox and grid can be set up and put away impressively quickly
POWER & VERSATILITY
Run continuously on an AC outlet and features 2 V-Mount battery plates for working on location, coupling accessory sold separately to fuse 2 panels together in 2x4 with softbox and grid
ACCURATE & FLICKER FREE
With a CRI of 96, TLCI of 97, SSI of 3200K 84 and 5600K 74, your colors and skin tones will always be accurate, and even if you're shooting with ultra-high frame rates, your footage will always be flicker free
SOFTBOX, MOUNTS & 3-YEAR WARRANTY
Includes a case, pop-up softbox, 2 diffusions, grid, 2 mounts, Control Unit, super clamp, cables, and a 2-year warranty that extends to 3 years with online registration
The Nanlite PavoSlim 240CL is a lightweight 4x1 RGBWW LED panel light that's only 0.92” (2.35cm) thick and provides an impressive output of 21030 lux, 1954 fc @1M 5600K, 0–100% dimming, a bi-color CCT range of 2700K–7500K with G/M adjustment of +/- 150, built-in CRMX LumenRadio, power through AC, V-Mount battery, or external 48V DC, and includes a Control Unit, a durable stand clamp, a "pop-up" softbox, 2 sets of diffusion, an eggcrate grid, a swivel mount, a baby-pin mount, and a padded carrying case that safely holds everything. It's covered by a 2-year warranty that extends to 3 years with online registration, and it's stocked, supported, and serviced by our responsive team in the USA.
Read more...Read less...

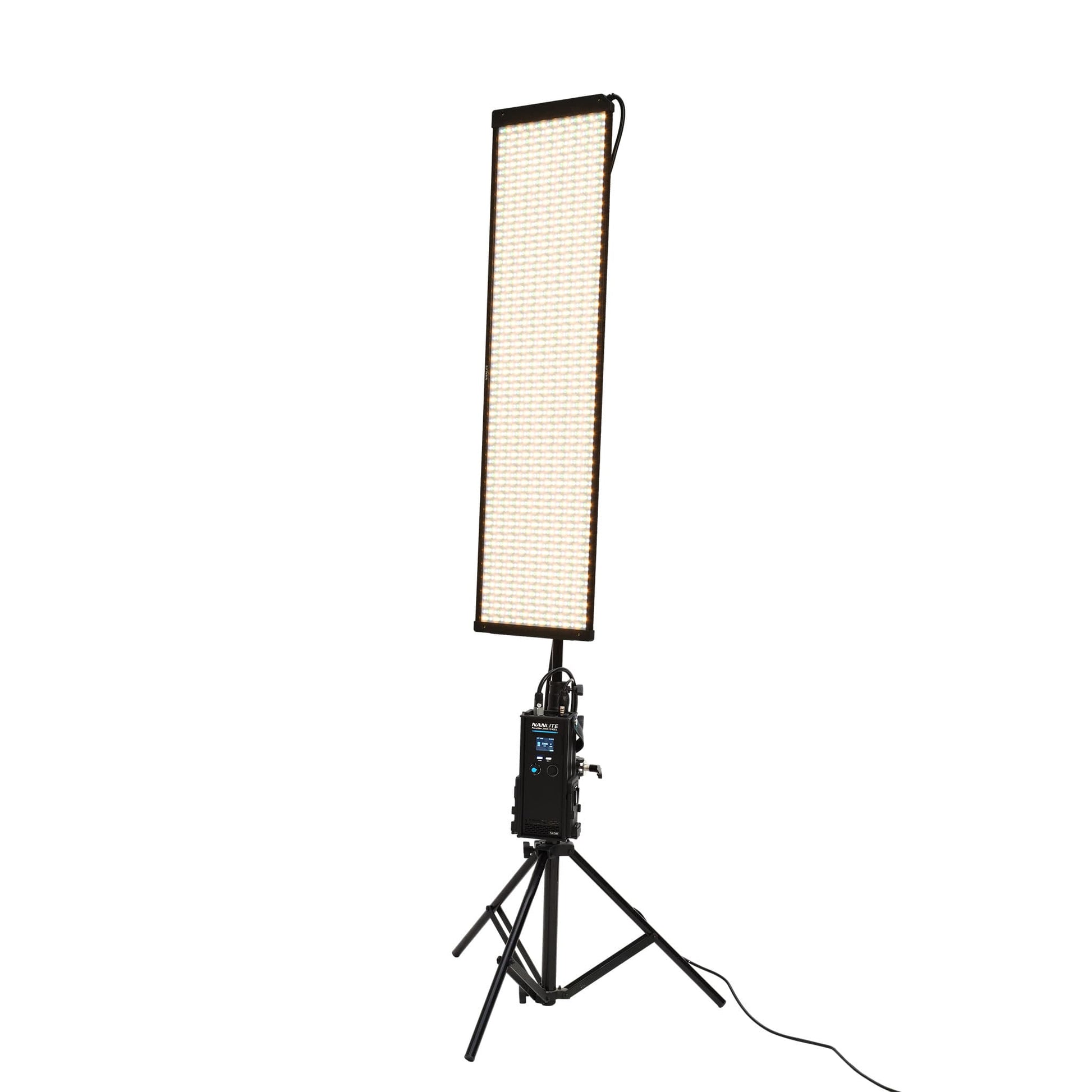

Thin Yet Large Source
PavoSlim 240CL is a sizable 4x1 light source, and even though its large size provides lots of coverage, its metal body is only 0.92” (2.35cm) thick, which means you can easily mount it close to the ceiling and in confined spaces, and the panel weighs just 7.98 lbs.
Efficient & Fast
With its included "pop-up" softbox, PavoSlim 240CL sets up quickly and can be packed away just as fast. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service.

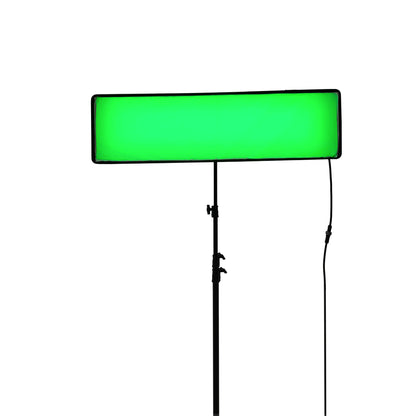

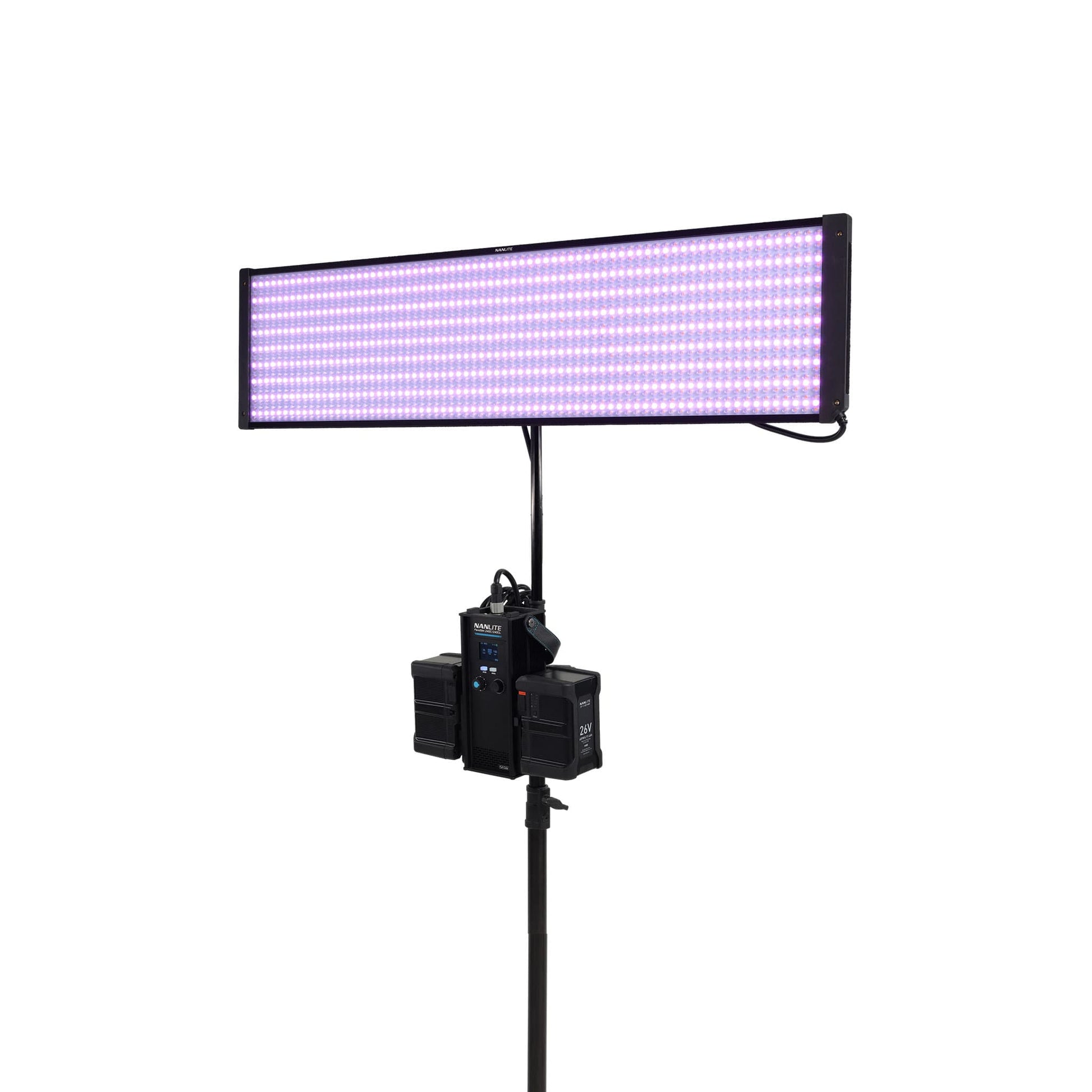

Optical Boost

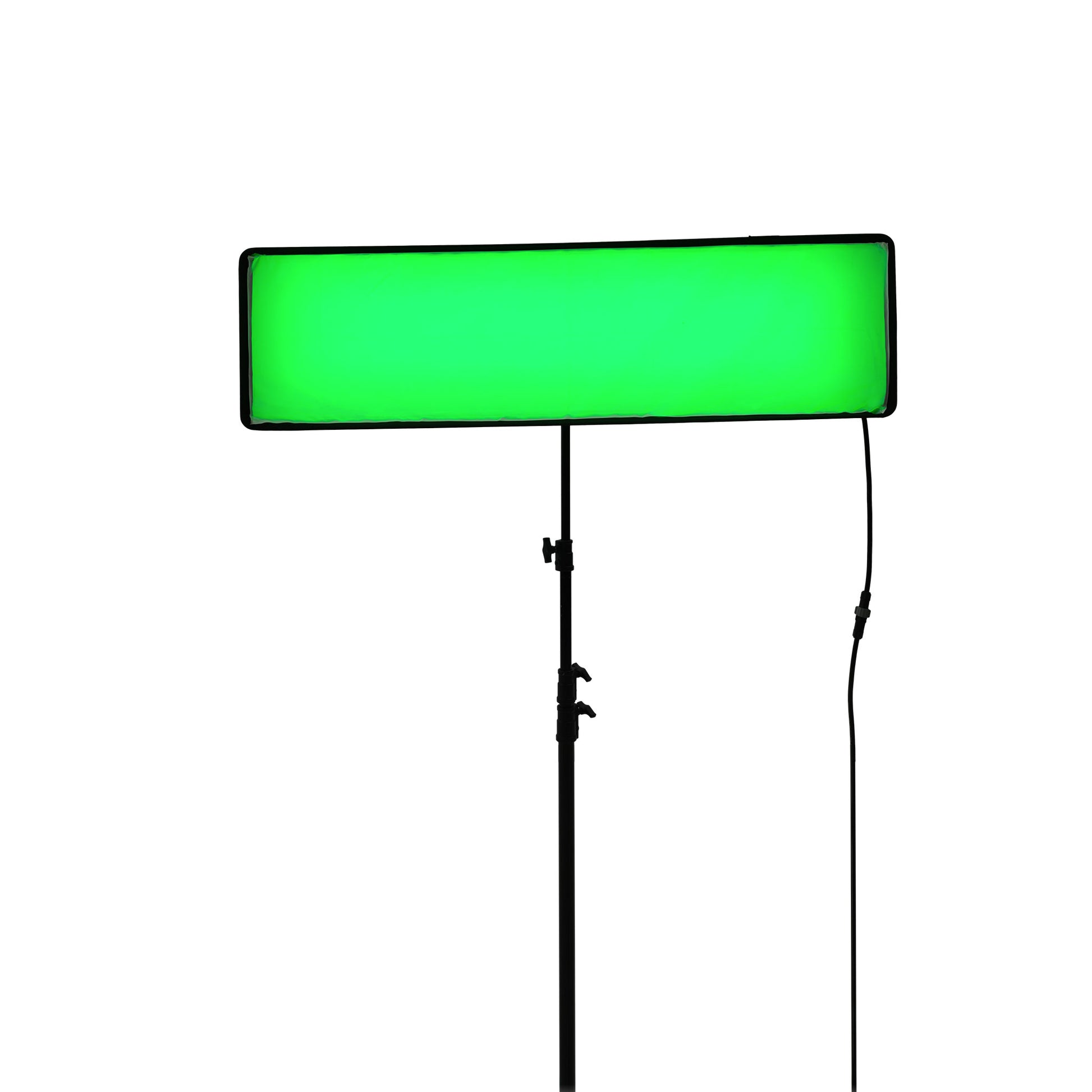

PavoSlim 240CL features an advanced optical system that's capable of outputting a sizable amount of light. In addition to bi-color and daylight-balanced output, PavoSlim 240CL provides eye-catching RGB colors and 151 gel filter presets.

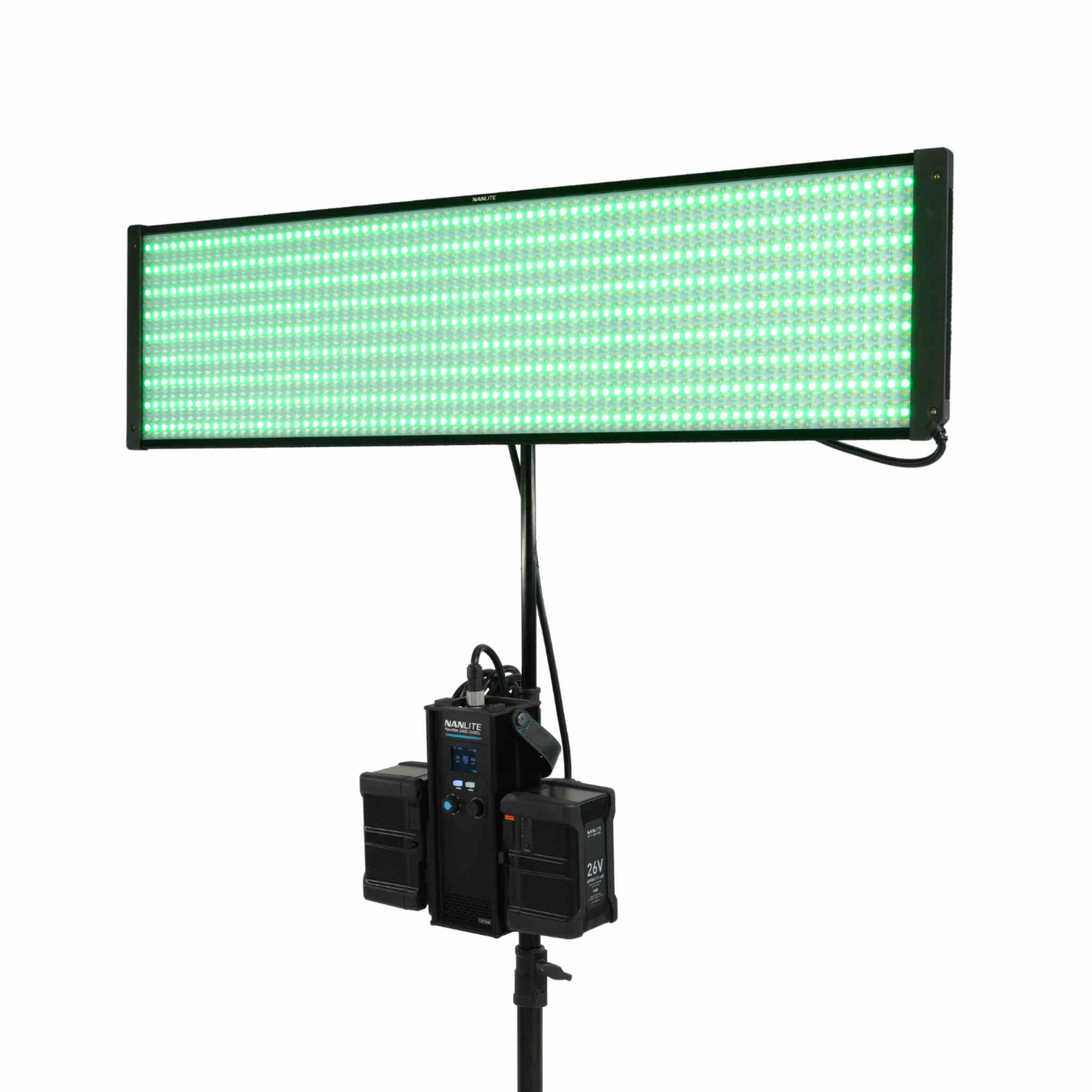

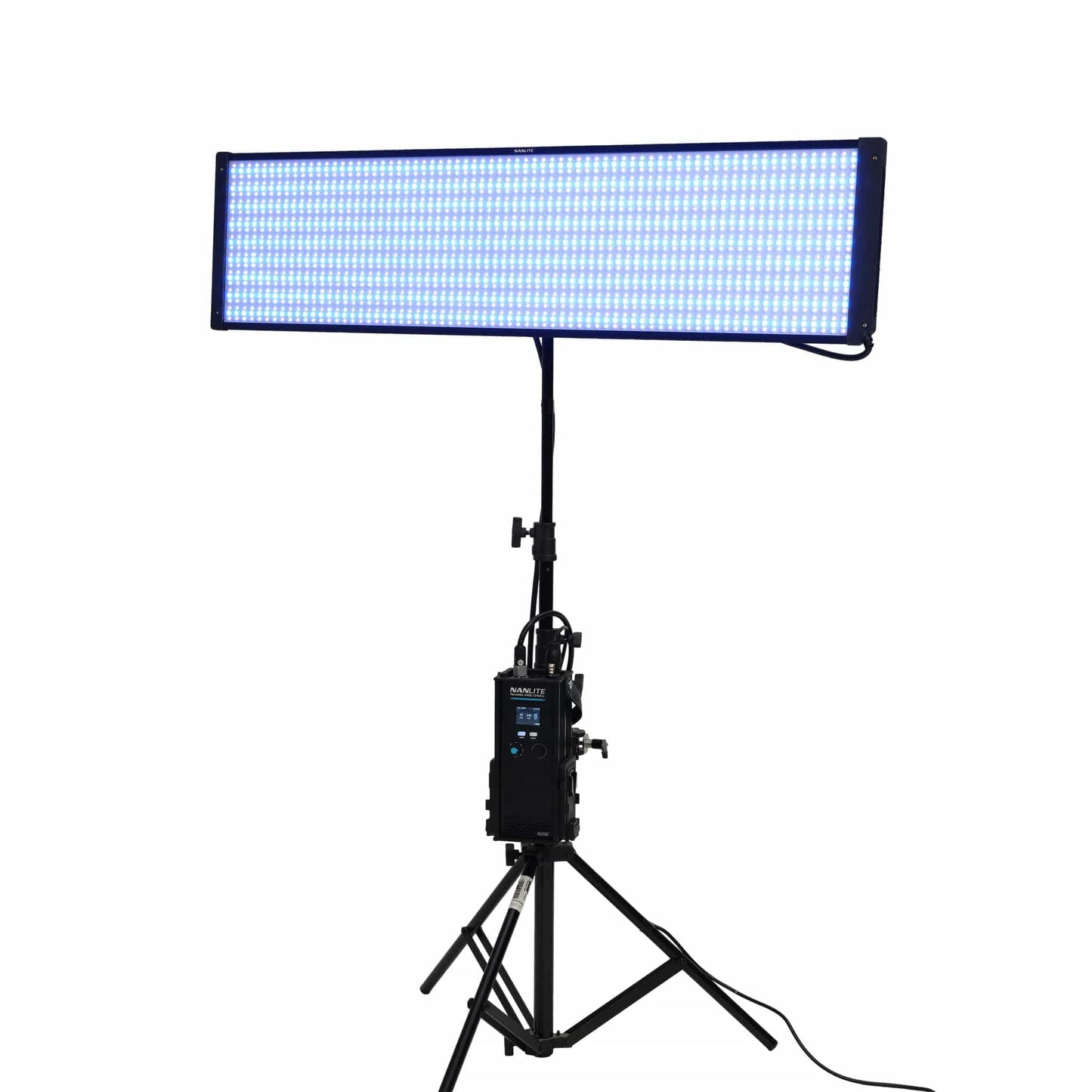

Complete Control

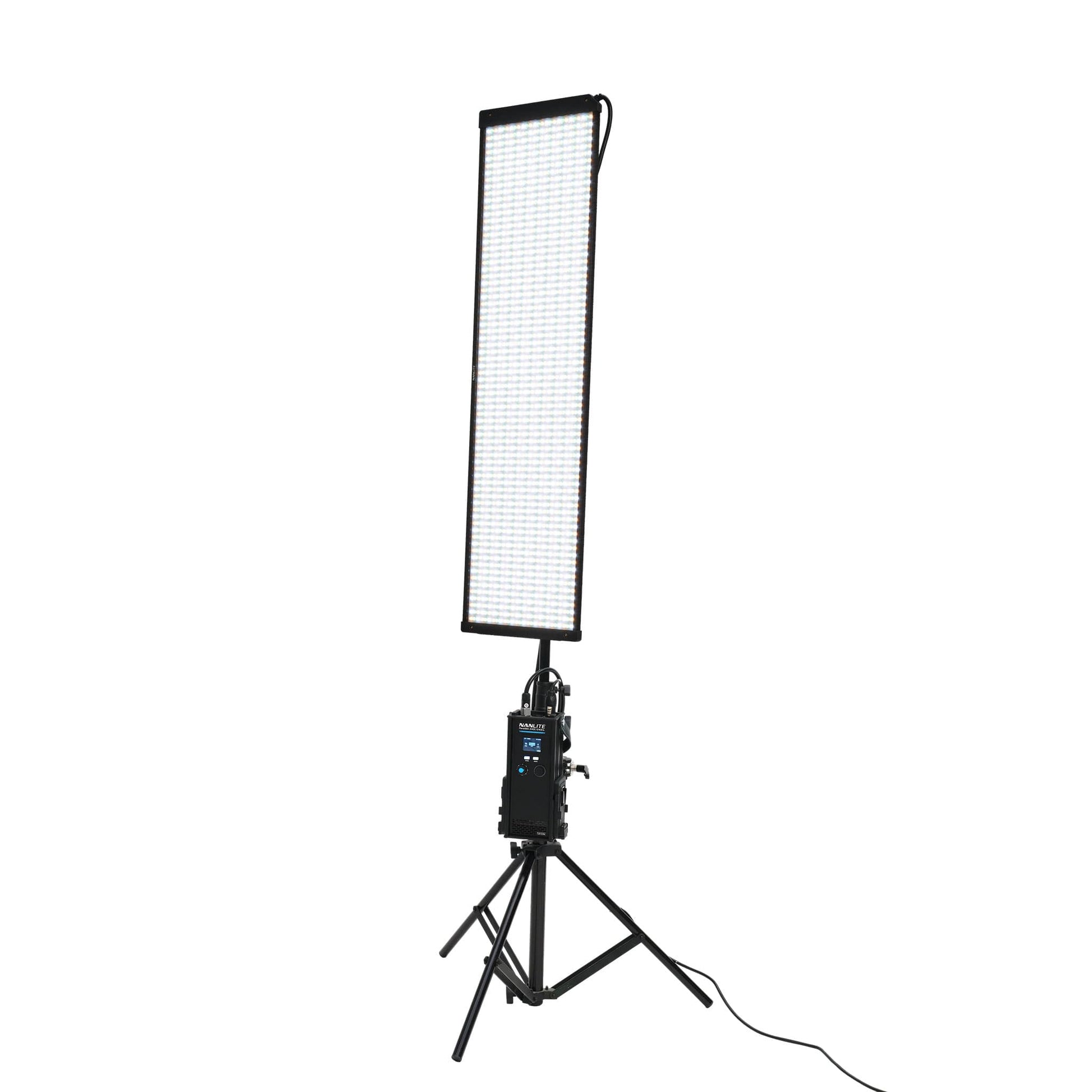

The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, built-in CRMX LumenRadio receiver, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).

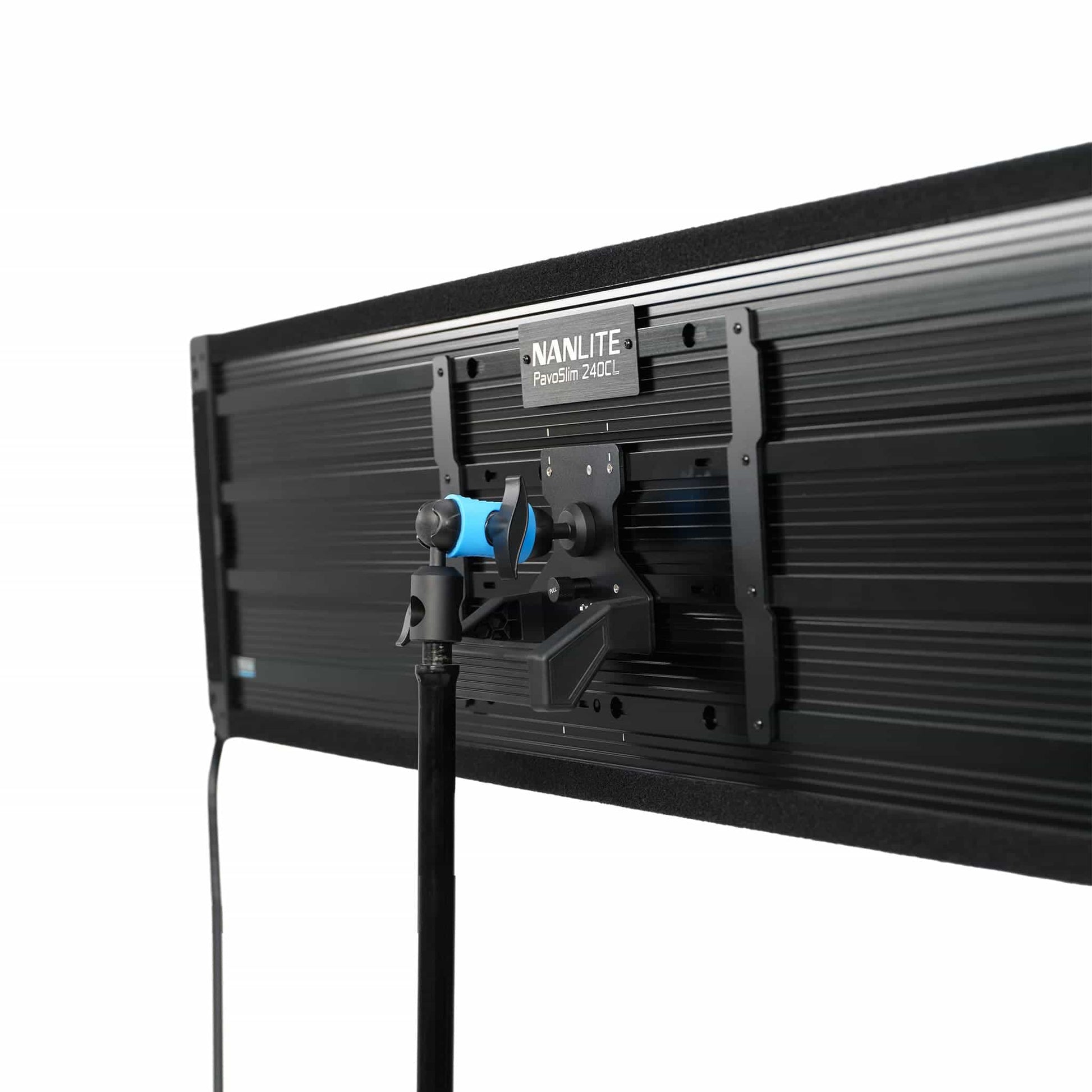

Multiple Mounts
The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The 2 included mounts slide into the plates and lock securely. One of the mounts has a fixed baby-pin, the other has two ball joints that can be swiveled and locked in a wide range of vertical and upward angles.
Expandable System
A coupling accessory is available (sold separately) that lets you fuse two PavoSlim 240CL panels together to create a larger 2x4 light source with a softbox and grid. The corners of the light have 1/4"-20 mounting points for the separately available AS-MBA-1/4-SET magnetic mounting adapters.

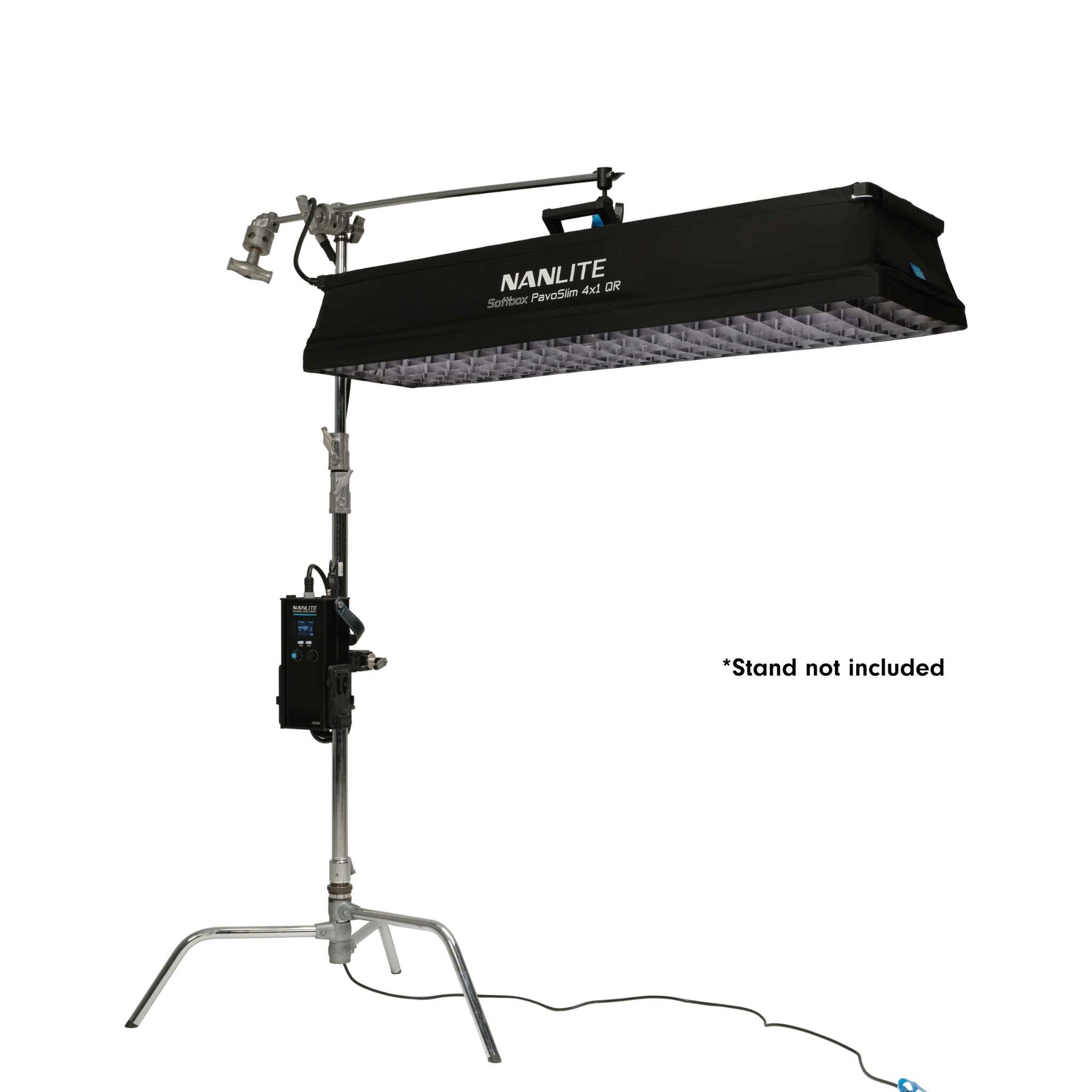

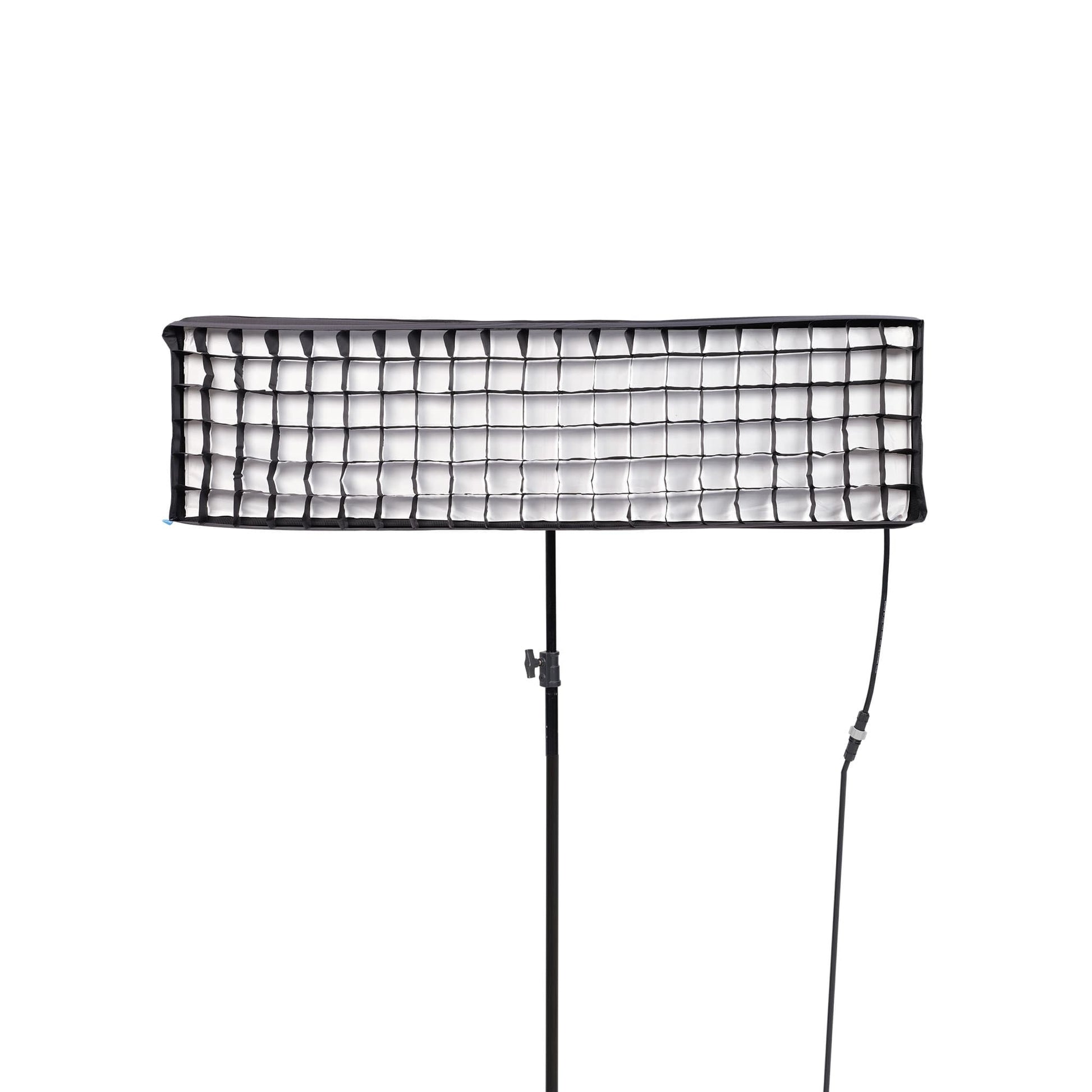

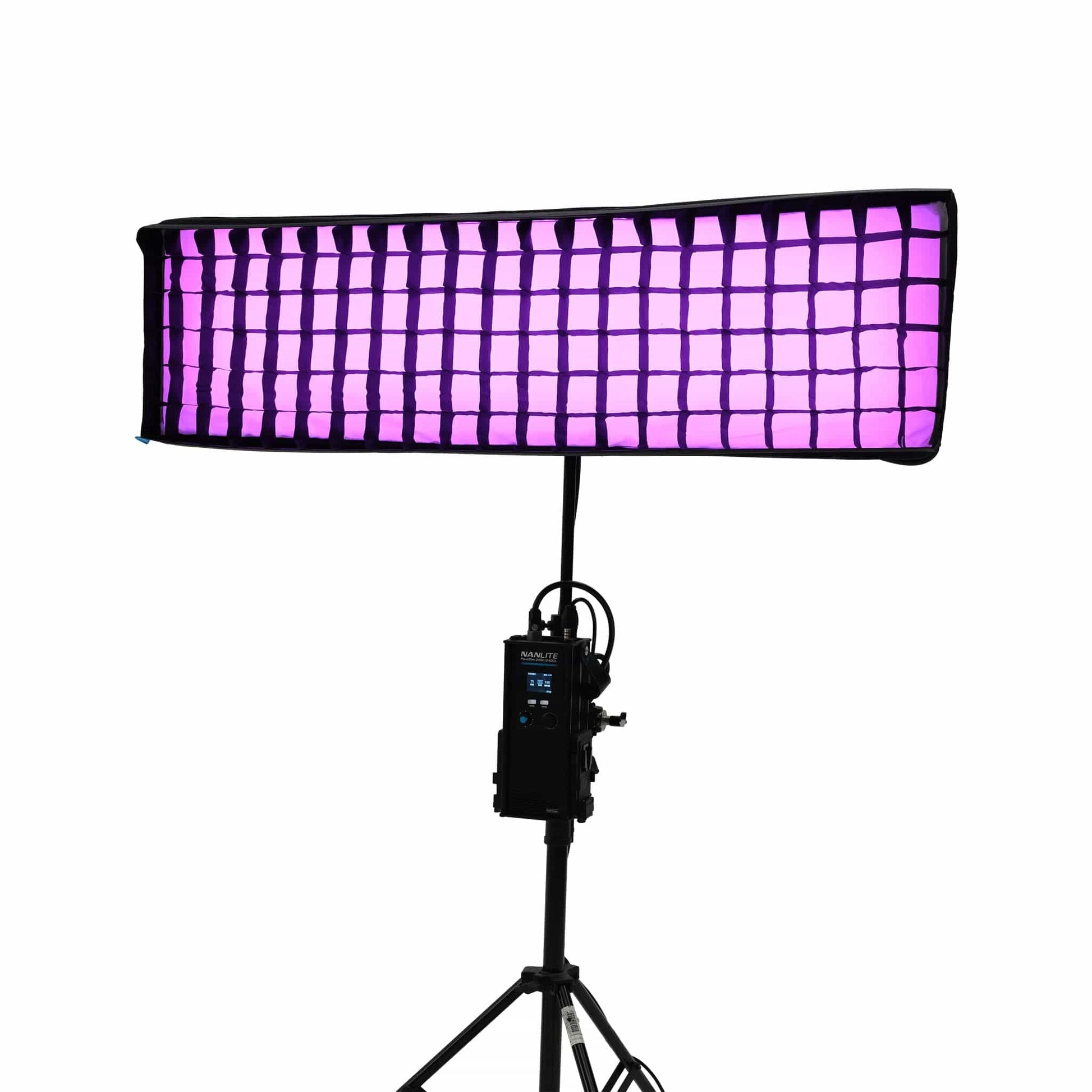

Softbox & Case

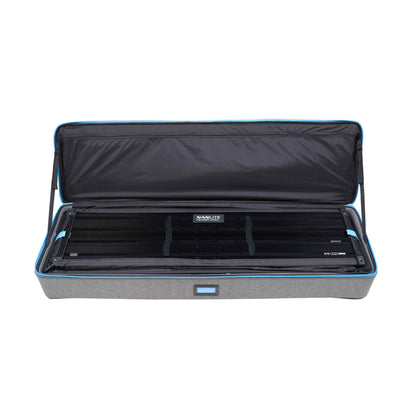

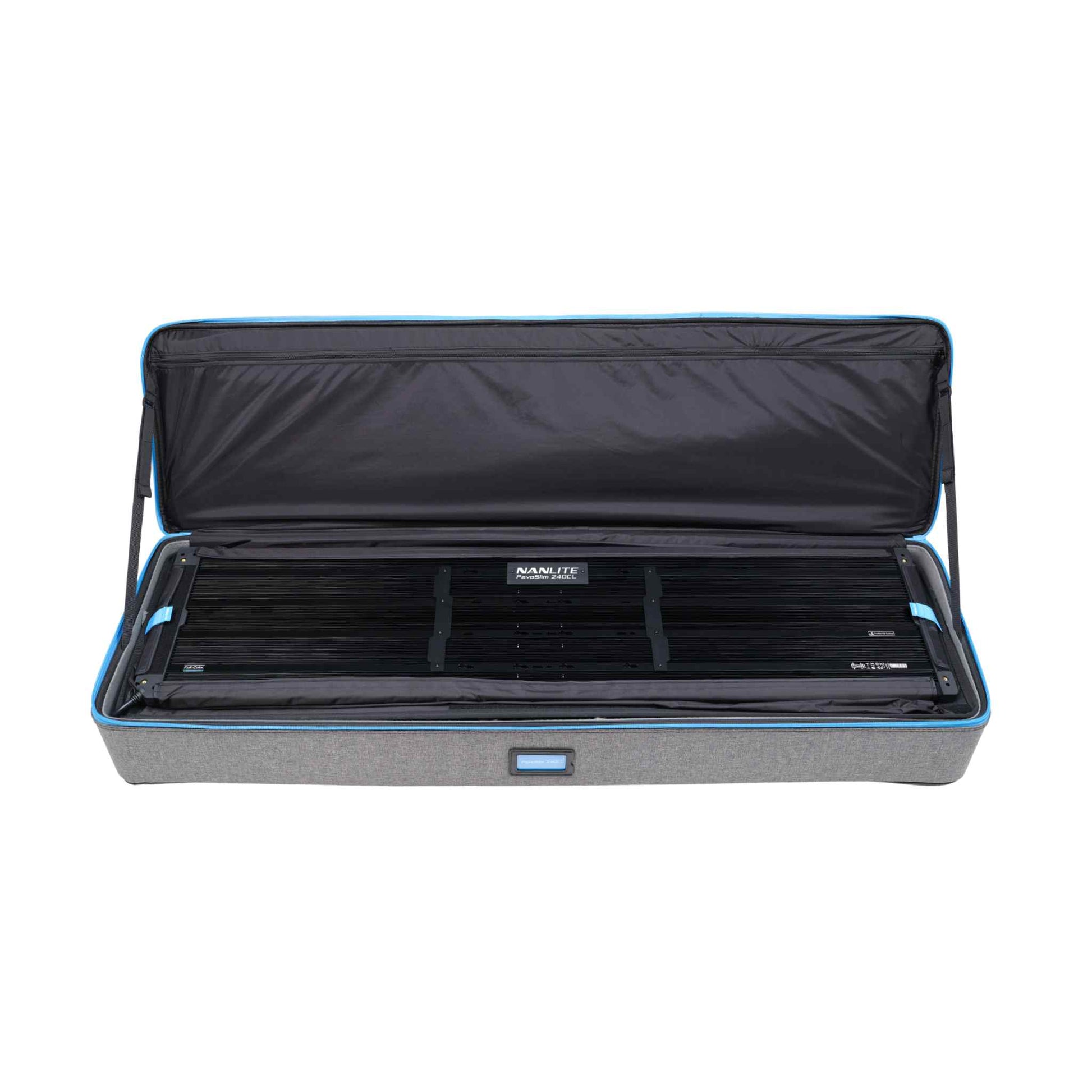

The slender padded carrying case has room for all the included accessories, like the pop-up softbox, grid, 1.5 stop, and 2.5 stop diffusers (which also set up and break down in seconds). The case won't weigh you down and because it's half the size of the fixture, it won't consume unnecessary space in transit or storage.
Flicker-Free Accuracy
Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 240CL, you can always have confidence in your colors: SSI 3200K 84, SSI 5600K 74, CRI average 96, TLCI average 97, TM-30 Rf average 94, and TM-30 Rg average 100.
Made at Nanlite
One important distinction that makes Nanlite stand out is that we design, build, and test every single light in our own facility. This gives us the best possible control over Quality Assurance. We're a family-owned business that incorporates environmentally friendly practices into our work and we're filled with people who are passionate about image making and creativity. Join us!
☀ Photometrics
| Distance and CCT | Distance and Color | ||
|---|---|---|---|
| @ 1m 2700K | 17690 lux / 1643 fc | @ 1m Red | 8350 lux / 775 fc |
| @ 2m 2700K | 5906 lux / 548 fc | @ 2m Red | 2597 lux / 241 fc |
| @ 3m 2700K | 2888 lux / 268 fc | @ 3m Red | 1267 lux / 117 fc |
| @ 1m 3200K | 19570 lux / 1818 fc | @ 1m Green | 15570 lux / 1446 fc |
| @ 2m 3200K | 6496 lux / 603 fc | @ 2m Green | 4722 lux / 438 fc |
| @ 3m 3200K | 3153 lux / 292 fc | @ 3m Green | 2240 lux / 208 fc |
| @ 1m 5600K | 21030 lux / 1954 fc | @ 1m Blue | 1900 lux / 176 fc | @ 2m 5600K | 6985 lux / 649 fc | @ 2m Blue | 580 lux / 53 fc |
| @ 3m 5600K | 3404 lux / 316 fc | @ 3m Blue | 273 lux / 25 fc |
| @ 1m 6500K | 20760 lux / 1928 fc | ||
| @ 2m 6500K | 6877 lux / 638 fc | ||
| @ 3m 6500K | 3368 lux / 312 fc |
⚙ Specifications
| LED Type | RGBWW |
| CCT | 2700K-7500K, G/M Adjustment ±150 |
| CRI | Average 96 |
| TLCI | Average 97 |
| SSI 3200K | 84 |
| SSI 5600K | 74 |
| TM-30 RF (Average) | 94 |
| TM-30 RG (Average) | 100 |
| Beam Angle | 60° |
| Rated Power | 260W |
| Input Voltage/Current | AC 100-240V 50/60HZ, DC 48V/5.6A, DC(Battery)14.4-26V |
| Operating Temperature | -20℃-45℃ |
| Dimming | 0–100% |
| Effects | HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding |
| Control | Built-in Controls and Screen, CRMX LumenRadio, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box, FC PowerController |
| Control Unit Dimensions | 6.01 x 4.39 x 11.14" (15.26 x 11.15 x 28.3cm) |
| Head Dimensions | 47.46 × 12.10 x 0.93" (120.55 × 30.73 x 2.35cm) |
| Head Weight | 7.98lbs (3.62kg) |
| Control Unit Weight | 6.08lbs (2.76kg) |

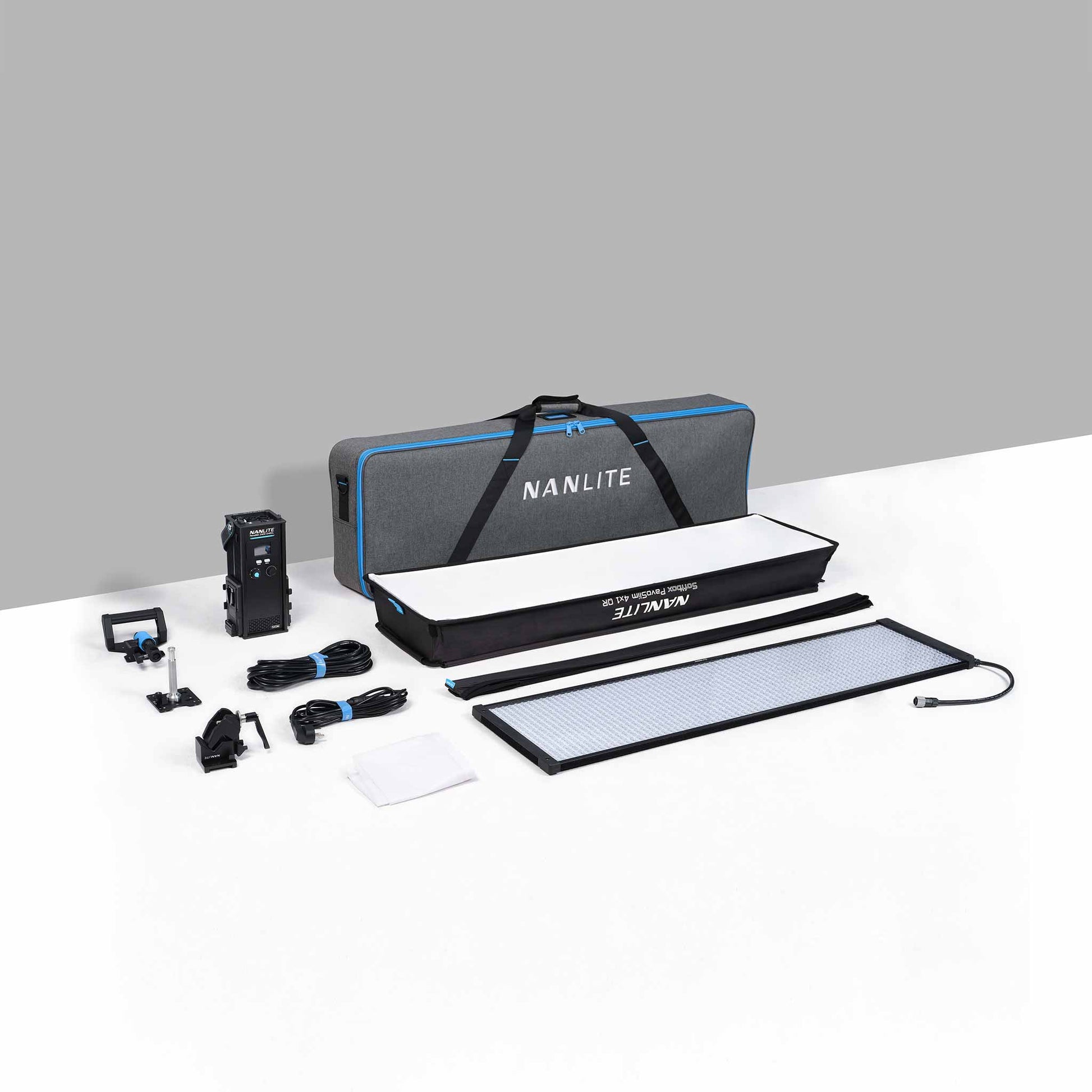

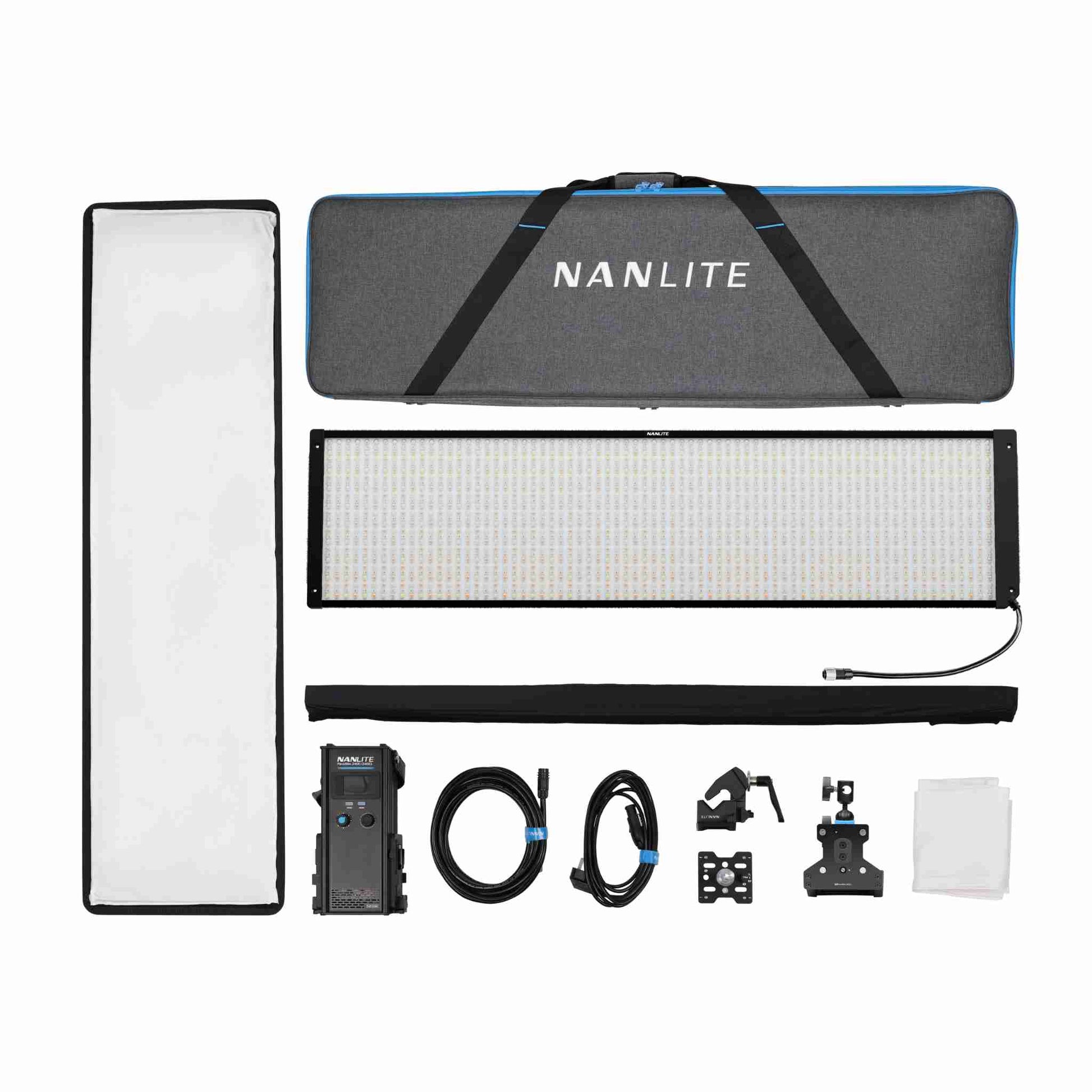

⁂ What's in the Box
| 1x PavoSlim 240CL 4x1 LED Panel |
| 1x Control Unit with 2 V-Mount Plates |
| 1x Reinforced Swivel Holder with Handle |
| 1x Baby-Pin Holder |
| 1x Quick-Release Clamp |
| 1x DC Connection Cable 8.5' (2.6m) |
| 1x AC Power Cable 14.7' (4.5m) |
| 1x Pop-Up Softbox |
| 1x 2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser) |
| 1x Egg-Crate Grid |
| 1x Padded Carrying Bag |
| 1x User Manual |
| 2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com) |
