Nanlite

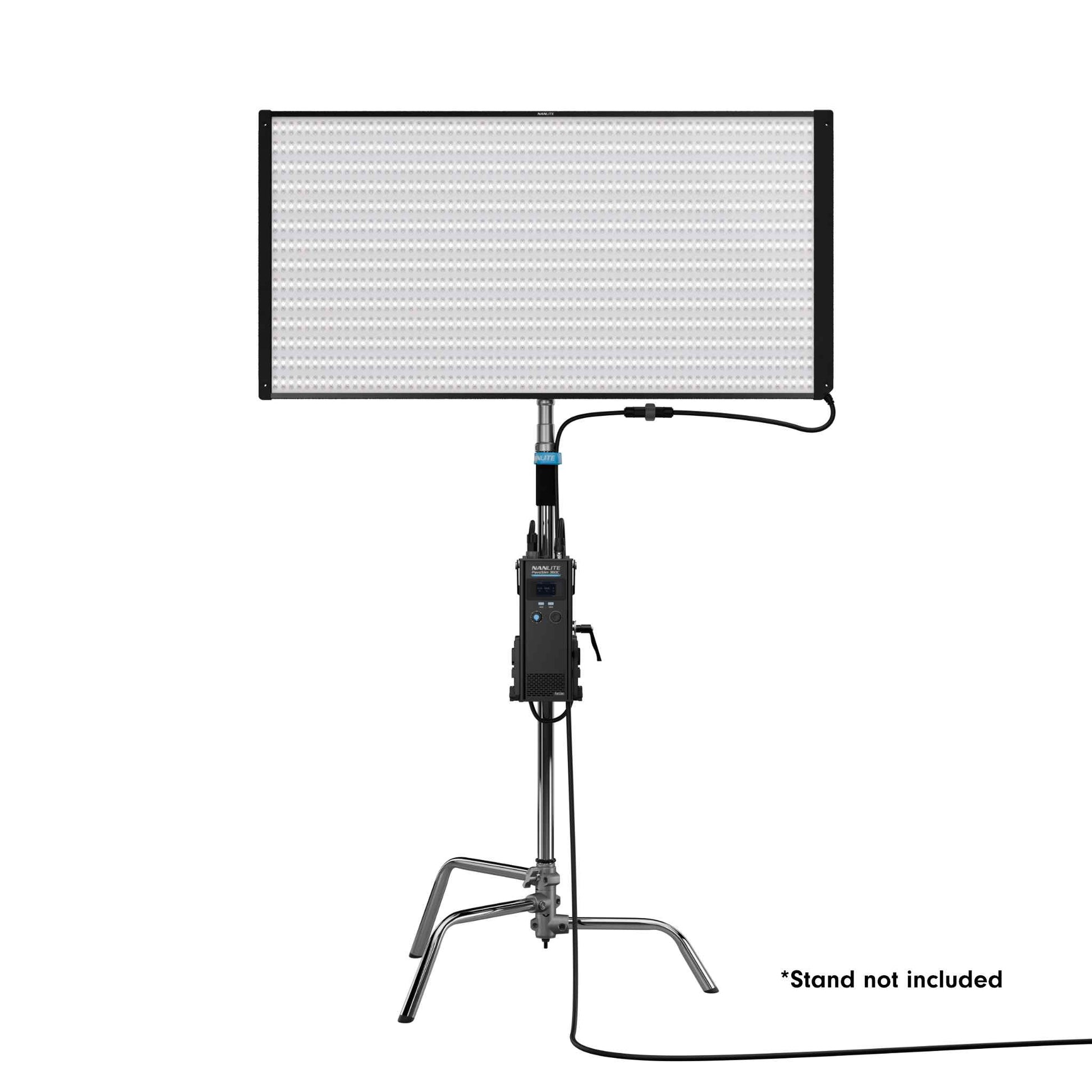

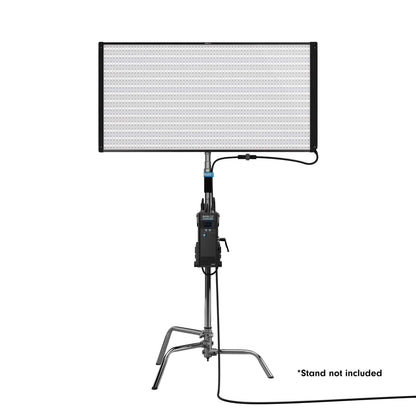

PavoSlim 360C 4x2 LED RGBWW Panel Light with CRMX

PavoSlim 360C 4x2 LED RGBWW Panel Light with CRMX

Regular price $1,992.00 USD
Regular price $2,490.00 USD Sale price $1,992.00 USD
Sale Sold out
  • Free shipping on orders over $50
  • Up to 3-year warranty
Quantity

SKU:PS360C

LARGE YET SLIM
A full 4x2 light source with a durable body that's only 0.77" (1.96cm) thick, and the panel weighs just 12.63 lb (5.73kg)

BRIGHT & EFFICIENT
Provides 27060 lux (2514 fc) @1m 5600K with 370 watts of output, runs cool with efficient heat dissipation via its magnesium alloy body and fanless light head

LIGHTNING FAST SETUP
Fully sets up and breaks down in one minute for the fastest possible workflow with the pop-up softbox and elastic grid

ACCURACY & CONTROL
High SSI ratings, a wide 2400K–12000K CCT with ±150 G/M adjustment, full-color RGBWW, 460 LEE and Rosco gels, and full control with LumenRadio CRMX, DMX/RDM, 2.4G, Bluetooth, and onboard

ACCESSORIES & 3-YEAR WARRANTY
Includes a padded case, softbox, grid, baby-pin mount, quick-release clamp and more, plus a 2-year limited warranty that extends to 3 years with registration on NanliteUS.com

PavoSlim 360C is a large 4x2 LED panel light that combines a slim, lightweight design with a fast setup and breakdown workflow. It's less than an inch thick yet provides a significant amount of output, a wide CCT range with G/M adjustment, full-color, AC or battery power, and a comprehensive set of control options that includes CRMX. PavoSlim 360C is stocked and supported by a dedicated team in the USA, and includes a 2-year limited warranty that extends to 3-years with online registration.

Read more...Read less...



Easy to Install, Conceal & Move

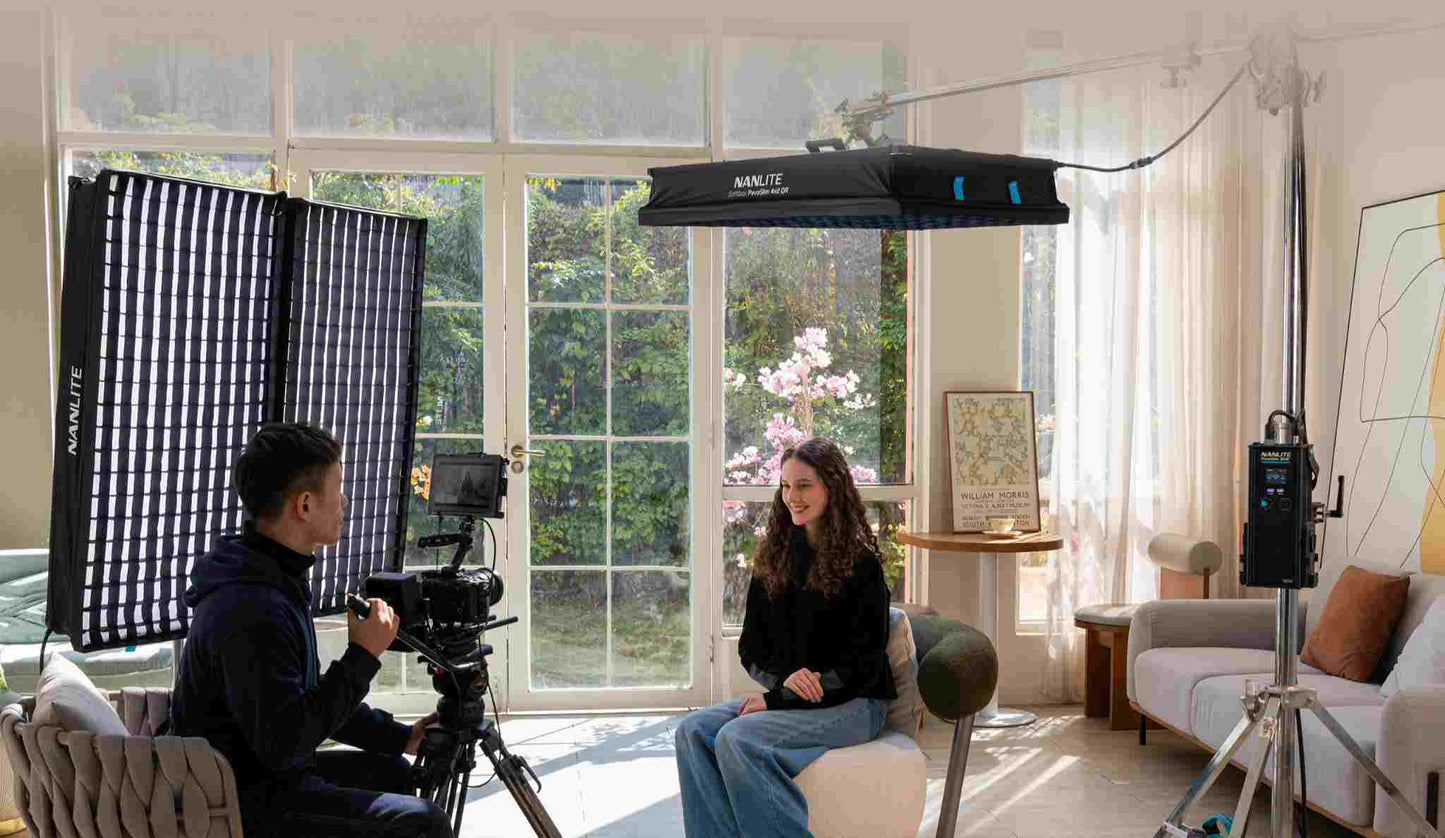

At 4 feet long and 2 feet wide, PavoSilm 360C provides a large source that's ideal for a key, overhead, or ambient lighting with even, soft-light coverage. However, its size and power come with an unusually fast workflow. A single person can set it up or tear it down in no time. Its ultra-thin body allows it to be easily hidden on set, and if packed up or on a stand, it's light enough to be easily moved.

Magnesium Alloy Construction

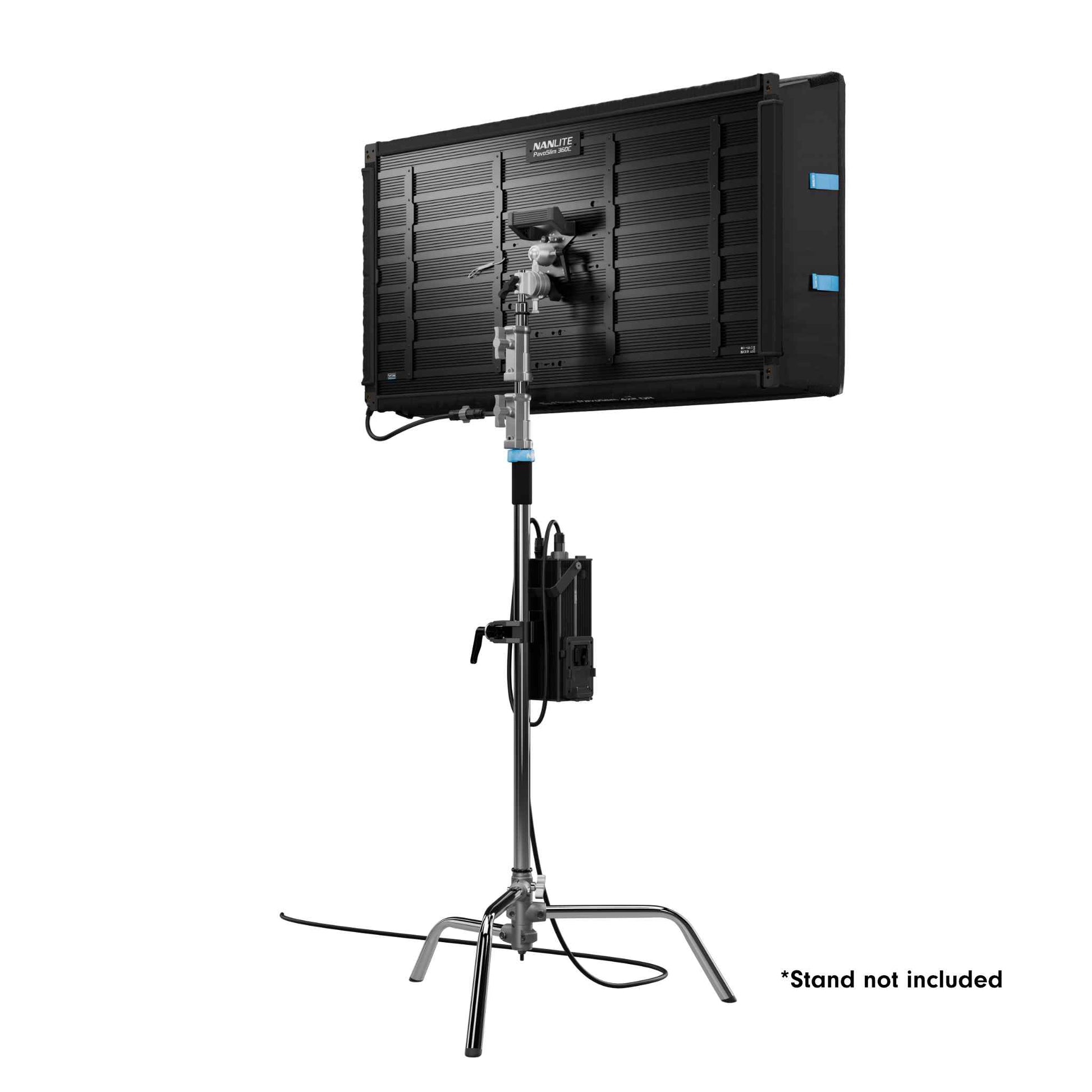

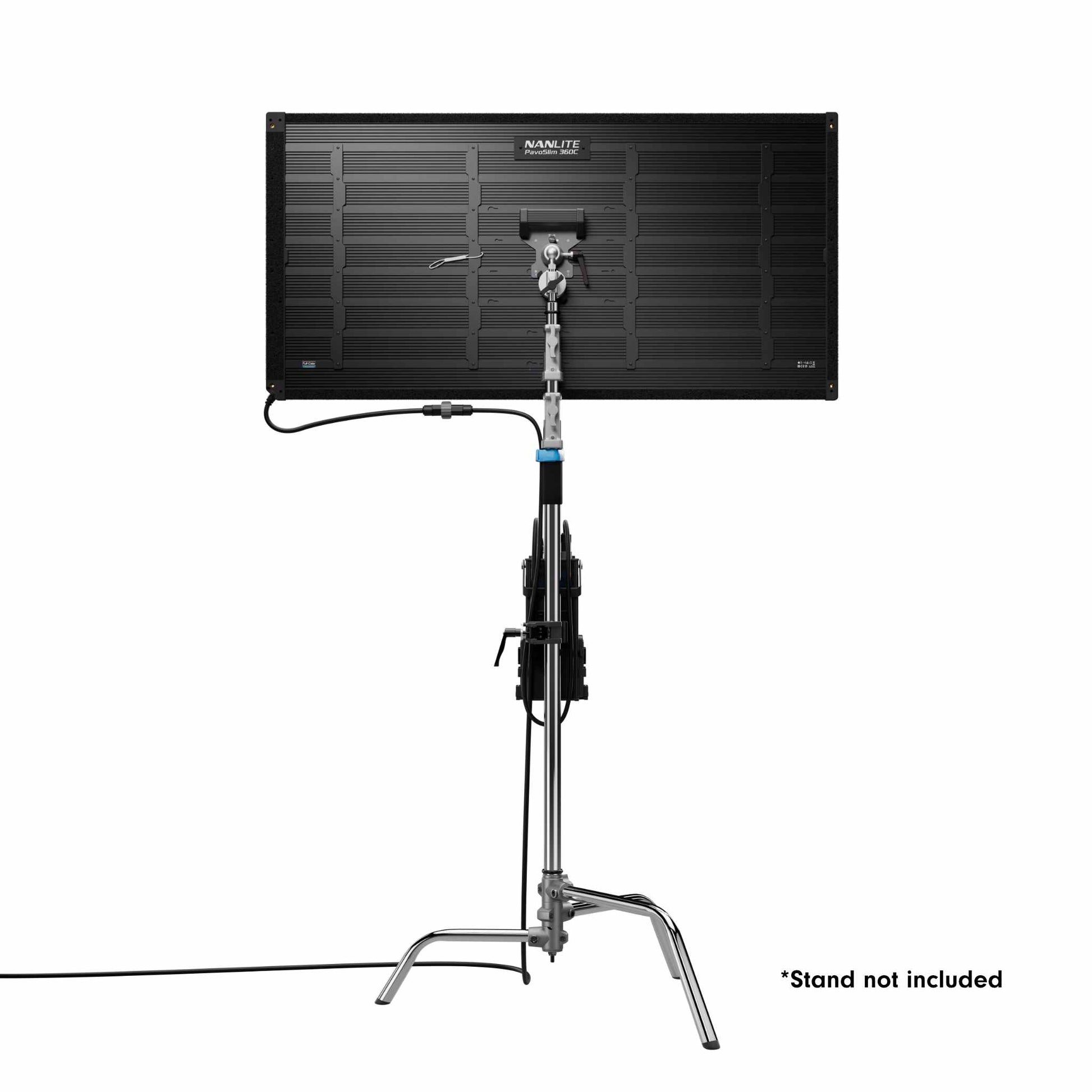

To deliver a superior level of durability, strength, and reduced weight, PavoSlim 360C features a magnesium alloy body. A large multi-row heatsink on the back of the panel delivers enhanced structural rigidity, efficient cooling, and silent, fanless operation, no matter how long the shoot.

Designed to Save Time

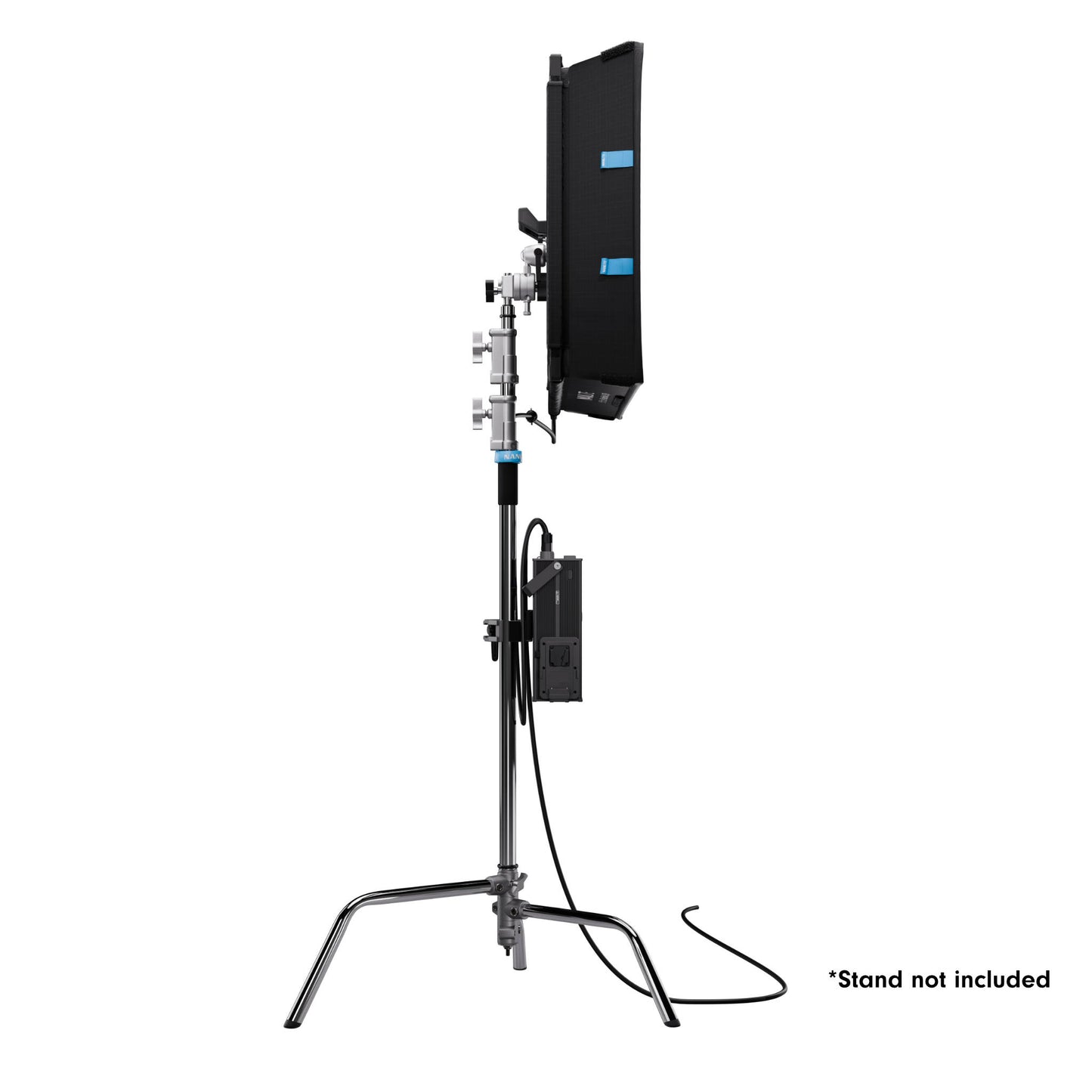

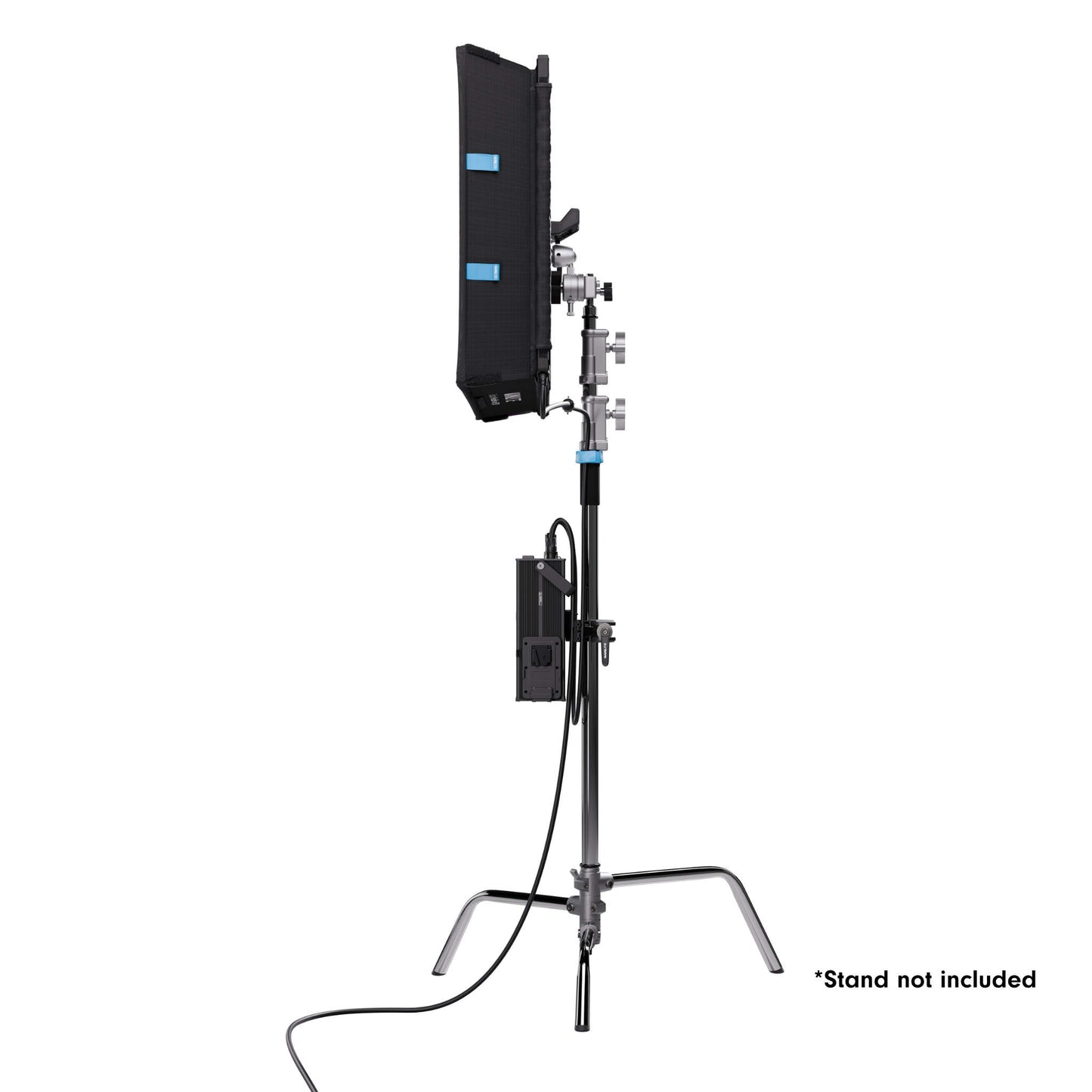

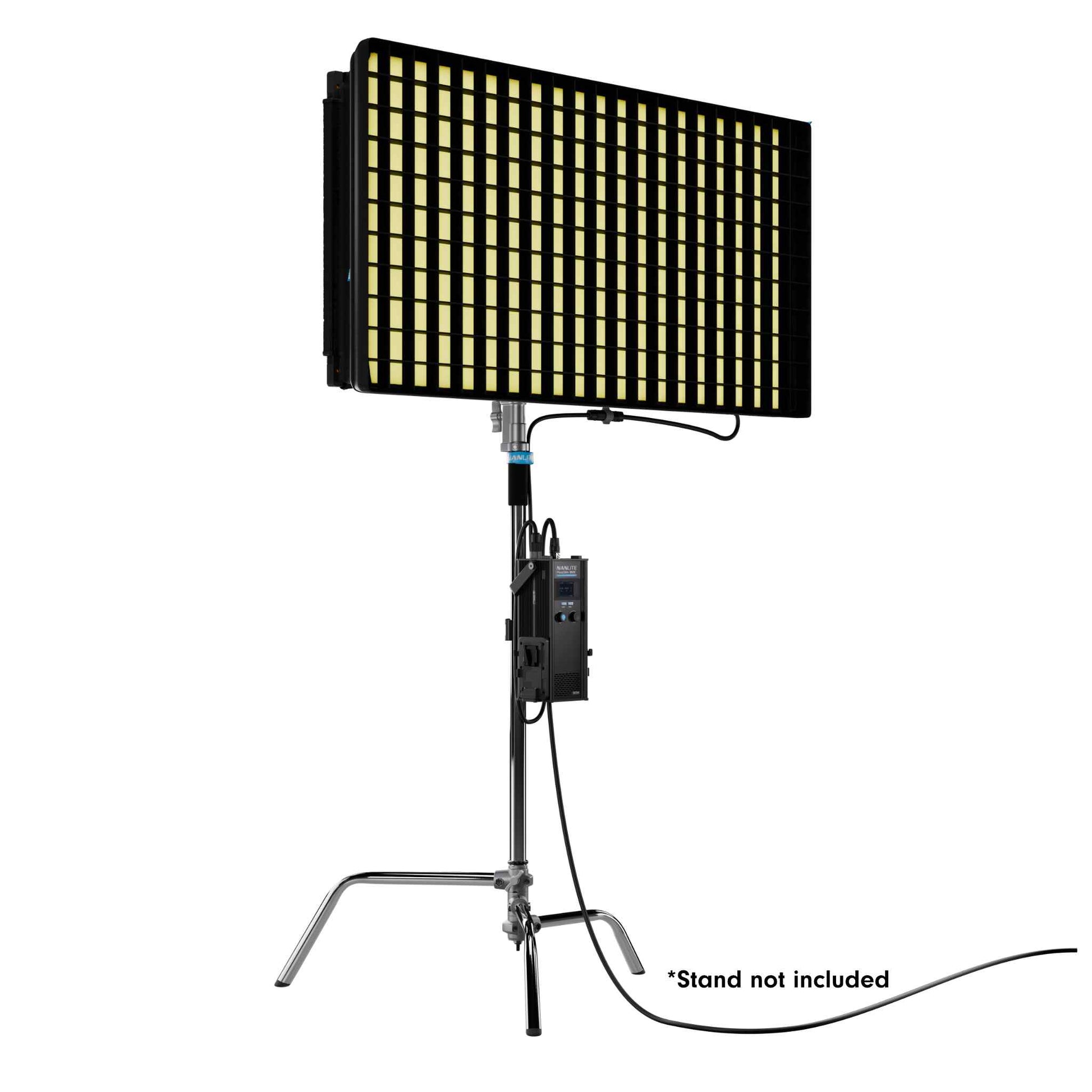

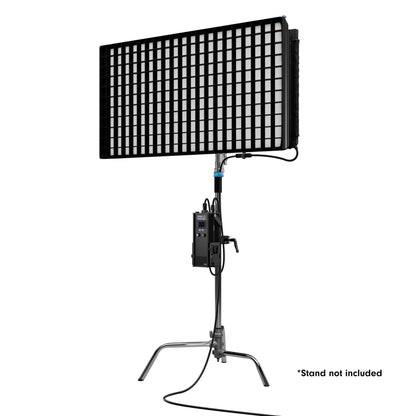

Every detail of PavoSlim 360C is made for ease of use and lightning-fast workflows: Snap and lock mounts quickly slide into place, a quick-release clamp securely speeds up Control Unit mounting and placement, a pop-up softbox can remain attached in the case in be deployed in seconds, and an eggcrate grid slips on quickly with elastics.

Exceptional Accuracy
Nanlite's advanced RGBWW full-color mixing technology provides a wide CCT of 2400K–12000K with ±150 G/M adjustment, SSI ratings of 84 (3200K) and 74 (5600K), CRI of average 96 and TLCI of average 97, TM-30 Rf of average 94 and TM-30 Rg of average 100.

Expand to 4x4 with Coupler
A dual-panel coupler is available as a separate accessory that joins two PavoSlim 360C's together as a single 4x4 source. The model name of the coupler is AS-DCP-PS360. It securely attaches to the mounting points on the back of the PavoSlim 360C.

Modes & Control

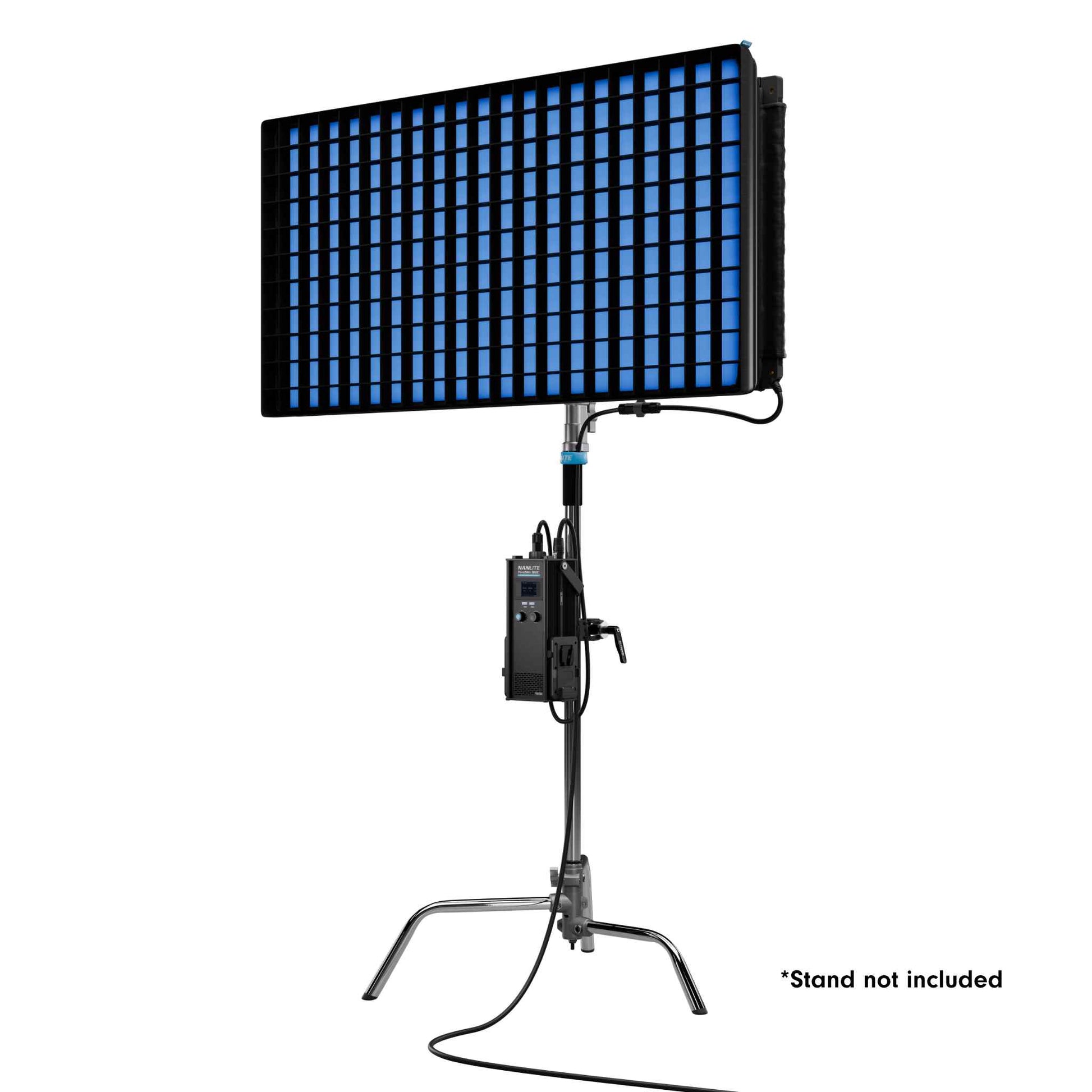

In addition to color temperature you have HSI mode for adjusting hue, saturation, and intensity, RGBW for individual control of red, green, and blue, Gel mode with 460 presets from LEE and Rosco, and 15 effects. It's also fully outfitted for control with LumenRadio CRMX, DMX/RDM, 2.4G for the optional WS-RC-C2 handheld and WS-TB-1 Transmitter Box, Bluetooth for the Nanlink mobile app, and intuitive built-in controls and screen.

Made by Nanlite
The PavoSlim concept and form factor was pioneered by the teams at Nanlite. We build and thoroughly test every light that ships in our own factory. This gives us the best possible quality control, and allows us to follow strict environmentally friendly manufacturing and business practices. Similar brands outsource their manufacturing to third-party factories with no commitment to the environment.

View full details
Unique Photometrics Chart
☀ Photometrics
Distance and CCT Distance and Color
@ 1m 2700K 23700 lux / 2202 fc @ 1m Red 13870 lux / 1289 fc
@ 3m 2700K 4030 lux / 374 fc @ 3m Red 1990 lux / 185 fc
@ 5m 2700K 1579 lux / 147 fc @ 5m Red 783 lux / 73 fc
@ 1m 3200K 25250 lux / 2346 fc @ 1m Green 18200 lux / 1691 fc
@ 3m 3200K 4280 lux / 398 fc @ 3m Green 2586 lux / 240 fc
@ 5m 3200K 1673 lux / 155 fc @ 5m Green 1010lux / 94 fc
@ 1m 5600K 27060 lux / 2514 fc @ 1m Blue 3480 lux / 323 fc
@ 3m 5600K 4590 lux / 426 fc @ 3m Blue 494 lux / 46 fc
@ 5m 5600K 1795 lux / 167 fc @ 5m Blue 192 lux / 18 fc
@ 1m 6500K 26740 lux / 2484 fc
@ 3m 6500K 4540 lux / 422 fc
@ 5m 6500K 1772 lux / 165 fc
Specifications Table
⚙ Specifications
LED TypeRGBWW
CCT2400K–12000K, G/M Adjustment ±150
CRIAverage 96
TLCIAverage 97
SSI 3200K84
SSI 5600K74
TM-30 RF (Average)94
TM-30 RG (Average)100
Beam Angle60°
Rated Power370W
Input Voltage/CurrentDC 48V/8A, DC(Battery)14.4-26V, AC100-240V 50/60Hz
Dimming0–100%
EffectsHUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
ControlBuilt-in Controls and Screen, LumenRadio CRMX, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box
Control Unit Dimensions6.01 x 4.39 x 11.93" (15.26 x 11.14 x 30.3cm)
Control Unit Weight7.23lbs (3.28kg)
Head Dimensions47.36 × 23.87 x 0.77" (120.3 × 60.63 x 1.96cm)
Head Weight12.63lbs (5.73kg)
What's in the Box Table

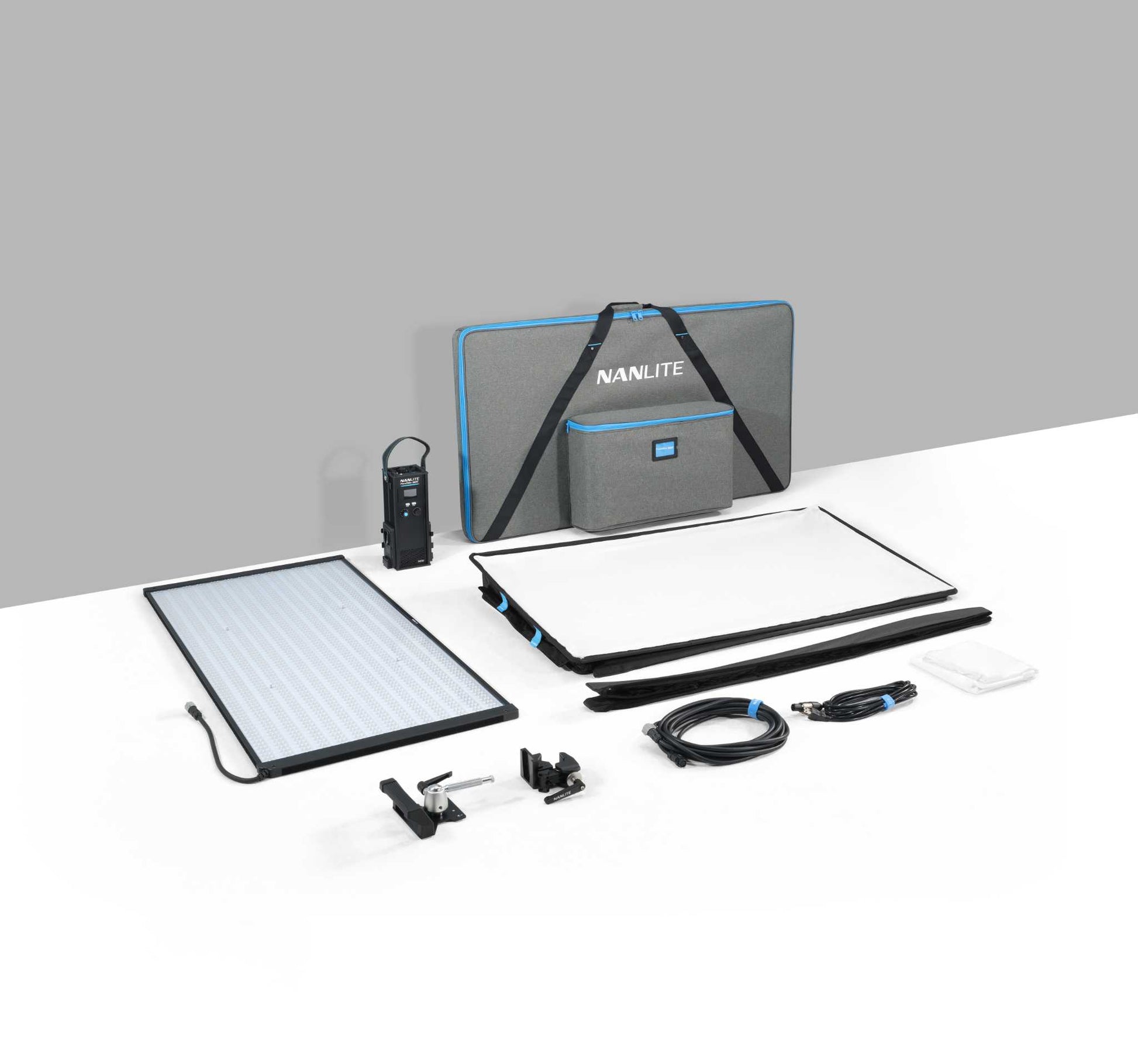

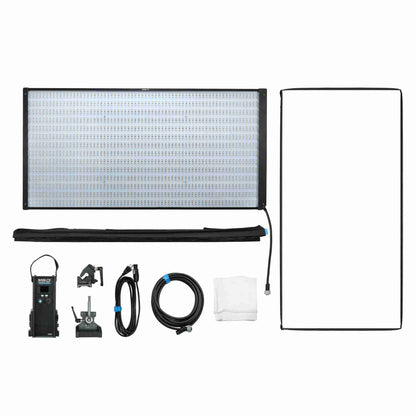

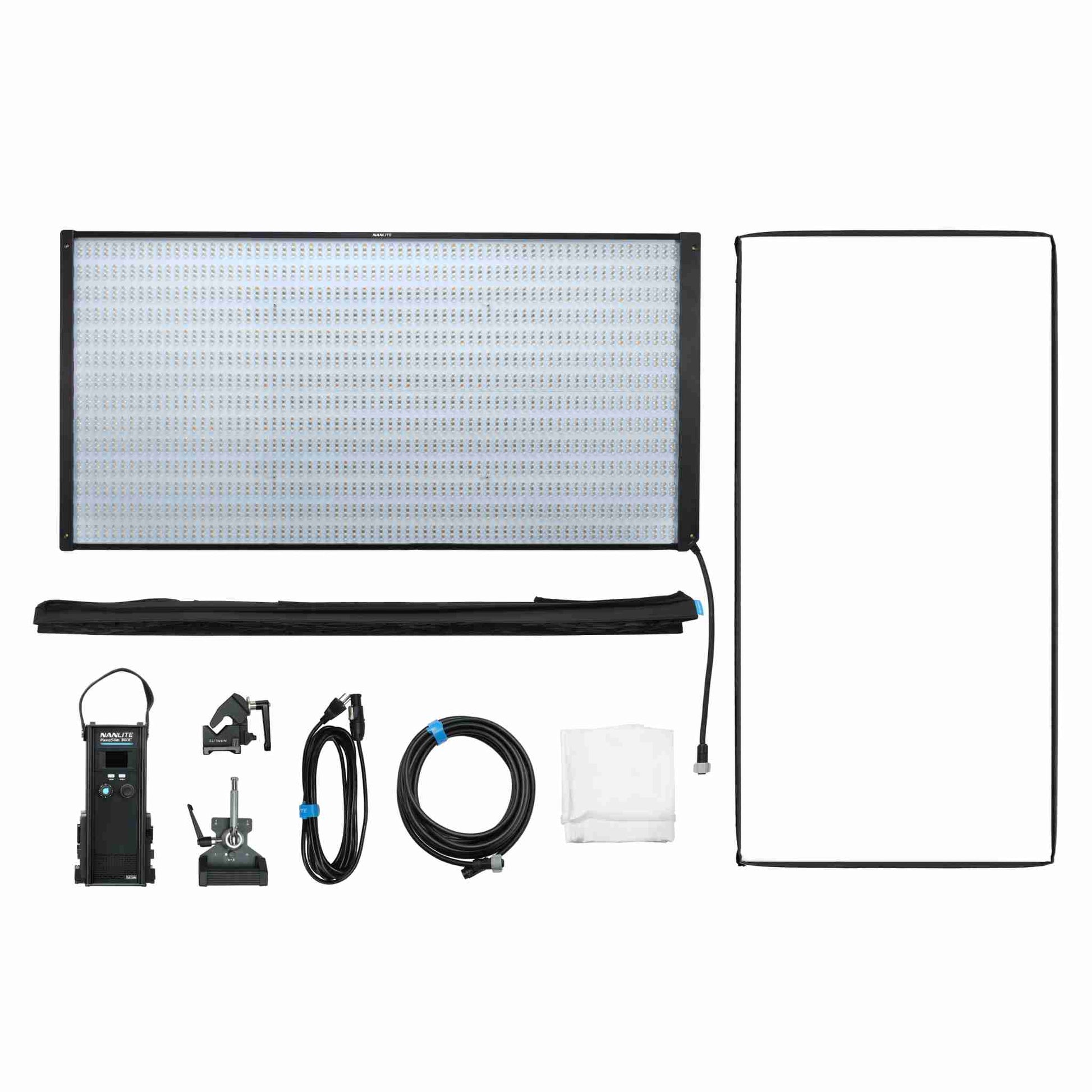

⁂ What's in the Box
1x PavoSlim 360C 4x2 LED Panel
1x Control Unit with 2 V-Mount Plates
1x Universal Holder with 5/8" Baby-Pin
1x Quick-Release Clamp
1x DC Connection Cable 24.6' (7.5m)
1x AC Power Cable 14.7' (4.5m)
1x Pop-Up Softbox
2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser)
1x Egg-Crate Grid
1x Padded Carrying Bag
1x User Manual
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)
