Nanlite

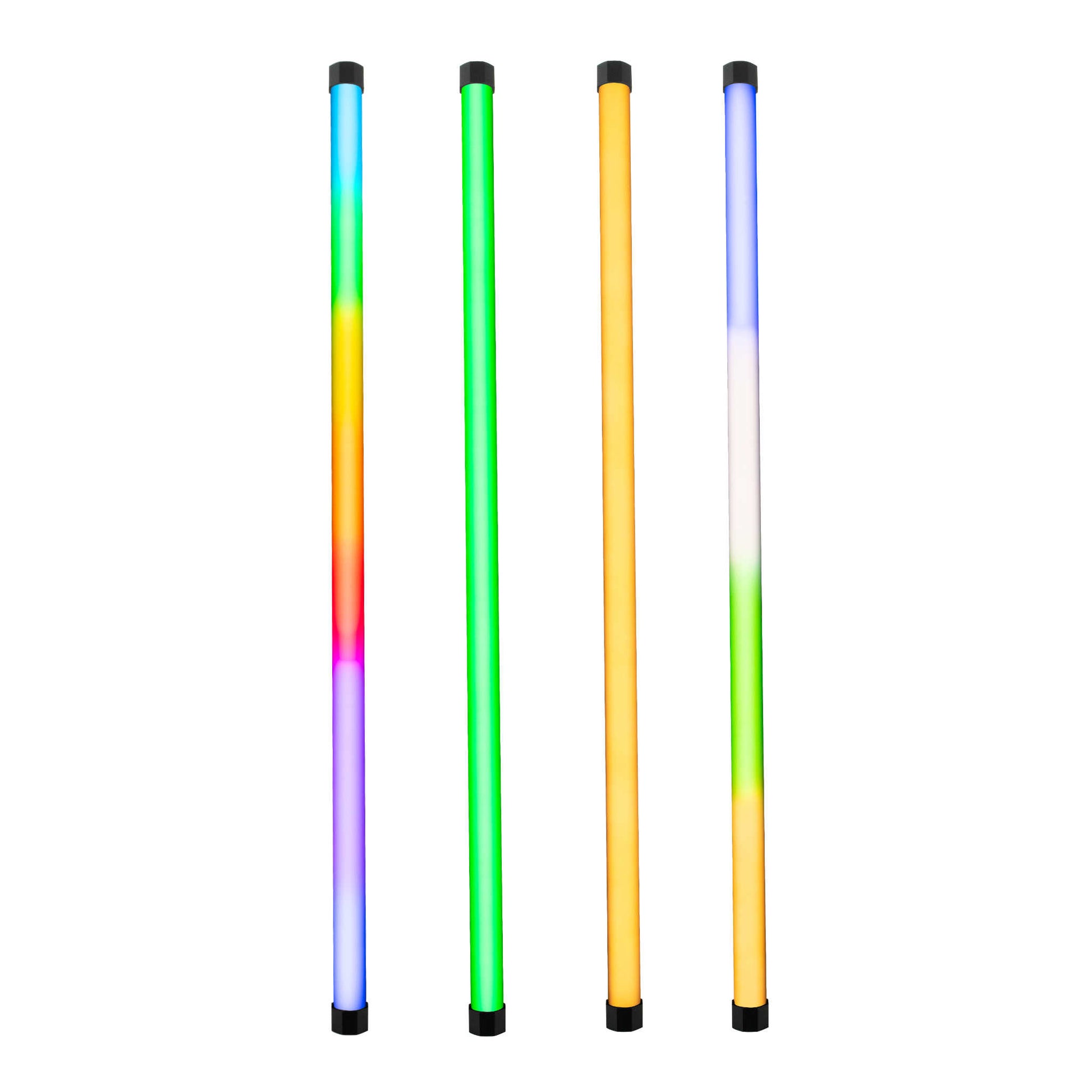

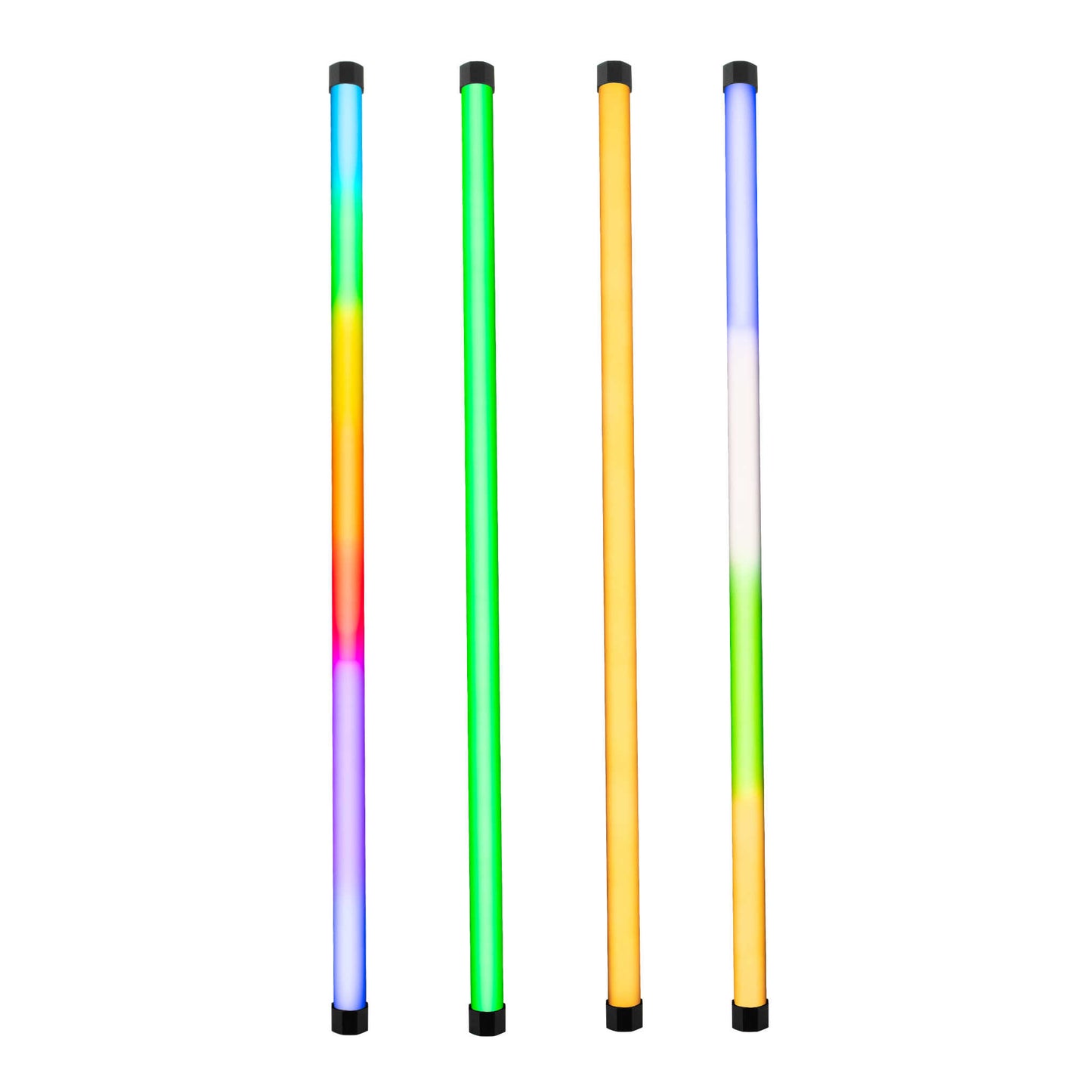

PavoTube II 30XR 4' RGBWW LED Pixel Tube with CRMX 4-Light Kit

PavoTube II 30XR 4' RGBWW LED Pixel Tube with CRMX 4-Light Kit

Regular price $2,199.00 USD
Regular price Sale price $2,199.00 USD
Sale Sold out
Quantity

SKU:PT30XR4KIT

STUDIO-QUALITY ANYWHERE
With a wide CCT, G/M adjustment, and color modes, this tube packs studio-quality lighting into a hardy, go-anywhere package

NEXT-GEN LED TUBE LIGHT
Brighter output with more uniform diffusion, upgraded control panel with locking buttons, built-in CRMX, DMX/RDM, and app control

NO CORDS NEEDED
Runs for 1 hour and 36 minutes at 100% brightness on internal battery, recharges with the included AC adapter, and runs continuously on AC

PIXEL EFFECTS
In addition to 15 practical effects, it features 10 animated pixel effects, and all effects are deeply adjustable and can be saved as presets in the app

METAL HOUSING
Worrying about an accidental drop or risky light placements a thing of the past, and 3 incorporated ¼-20" receivers expand your mounting options

The PavoTube XR-Series have been refined based on feedback from creators around the globe with pixel-based special effects, brighter output, uniform diffusion, robust metal housings, DMX/RDM, 2.4G, Bluetooth control with the free NANLINK mobile app for iOS and Android, and CRMX. This is a 4-light kit that includes accessories and a padded carrying bag.

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Distance and CCT Distance and Color
@ 0.5m 2700K 2744 lux / 254.9 fc @ 0.5m Red 1090 lux / 101.2 fc
@ 1m 2700K 686 lux / 63.7 fc @ 1m Red 272 lux / 25.2 fc
@ 2m 2700K 174 lux / 16.1 fc @ 2m Red 69 lux / 6.4 fc
@ 3m 2700K 78 lux / 7.2 fc @ 3m Red 30 lux / 2.7 fc
@ 0.5m 3200K 2756 lux / 256 fc @ 0.5m Green 2343 lux / 217.6 fc
@ 1m 3200K 688 lux / 63.9 fc @ 1m Green 586 lux / 54.4 fc
@ 2m 3200K 175 lux / 16.2 fc @ 2m Green 144 lux / 13.3 fc
@ 3m 3200K 78 lux / 7.2 fc @ 3m Green 64 lux / 5.9 fc
@ 0.5m 5600K 2989 lux / 277.6 fc @ 0.5m Blue 493 lux / 45.8 fc
@ 1m 5600K 746 lux / 69.3 fc @ 1m Blue 123 lux / 11.4 fc
@ 2m 5600K 189 lux / 17.5 fc @ 2m Blue 31 lux / 2.8 fc
@ 3m 5600K 84 lux / 7.8 fc @ 3m Blue 14 lux / 1.3 fc
@ 0.5m 6500K 3077 lux / 285.8 fc
@ 1m 6500K 770 lux / 71.5 fc
@ 2m 6500K 194 lux / 18 fc
@ 3m 6500K 87 lux / 8 fc
@ 0.5m 7500K 3123 lux / 290.1 fc
@ 1m 7500K 784 lux / 72.8 fc
@ 2m 7500K 198 lux / 18.4 fc
@ 3m 7500K 89 lux / 8.2 fc
@ 1m 10000K 721 lux / 67 fc
@ 2m 10000K 182 lux / 16.9 fc
@ 3m 10000K 83 lux / 7.7 fc
@ 1m 12000K 671 lux / 62.3 fc
@ 2m 12000K 171 lux / 15.8 fc
@ 3m 12000K 77 lux / 7.1 fc
Specifications Table
⚙ Specifications
LED TypeRGBWW
CCT Range2700K-12000K, G/M Adjustment ±100
CRIAverage 97
TLCIAverage 98
Rated Power70W
Input Voltage/CurrentDC 15V/4A Max, AC 100-240V 50/60Hz
Built-In Battery4400mAh
Runtime at 100% Brightness1 hr 36 mins
Charge Time3 hrs 30 mins
Operating Temperatureta45℃/td>
Dimming0–100%
EffectsHue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Pixel EffectsHue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, Driving
ControlBuilt-in Controls and Screen, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box, LumenRadio CRMX
Dimensions1.69 × 45.07" (4.3 × 114.5cm)
Weight3.48lbs (1.58kg)
What's in the Box Table

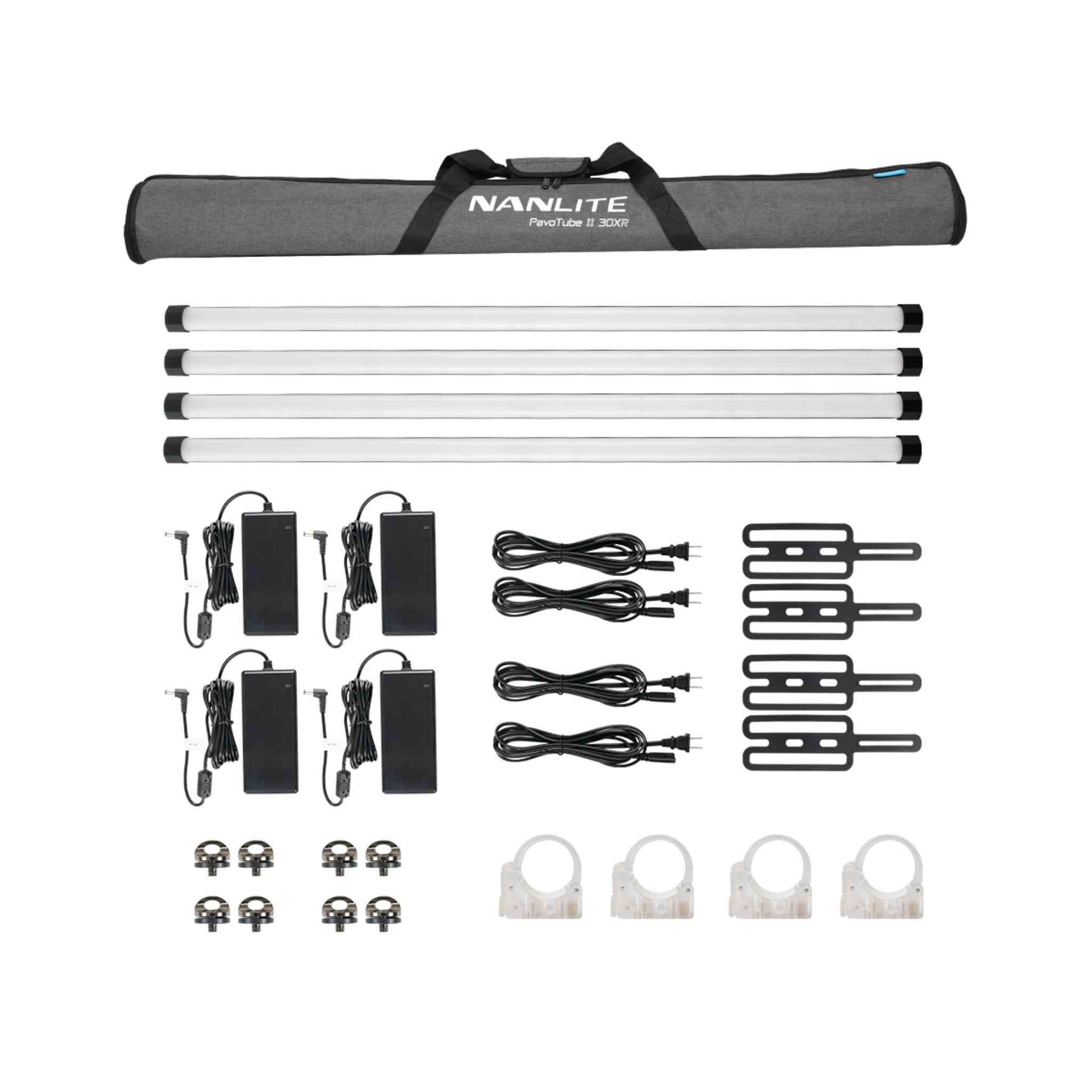

⁂ What's in the Box
4x Nanlite PavoTube II 30XR
4x 15V/4A Power Adapters
4x Power Cables 9.84-Foot (3m)
4x Power Adapter Safety Straps
4x Clear T12 Clips with Two 1/4"-20 Receivers
8x 1/4"-20 Eye Bolts
1x User Manual
1x Padded Carrying Bag
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)
