Nanlite

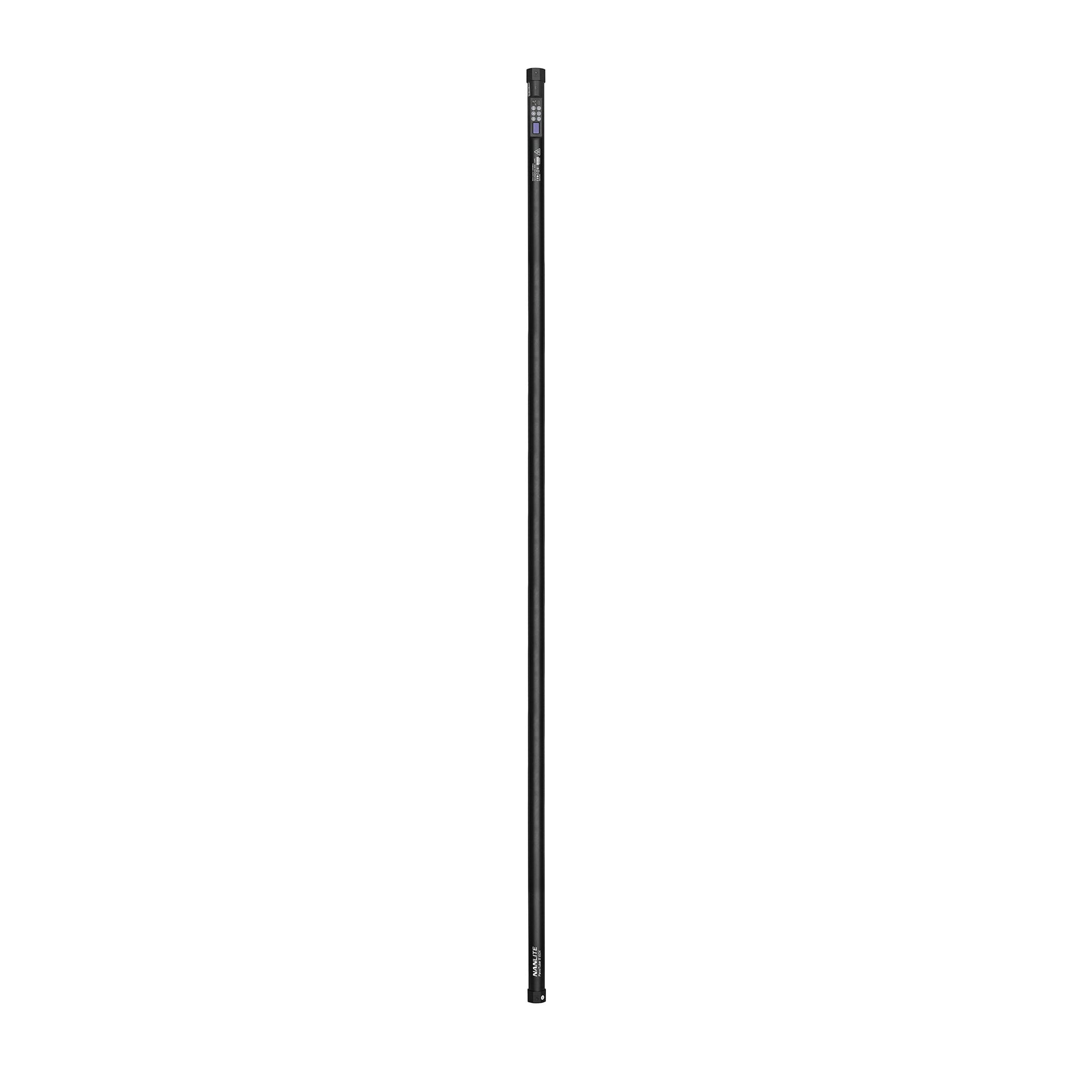

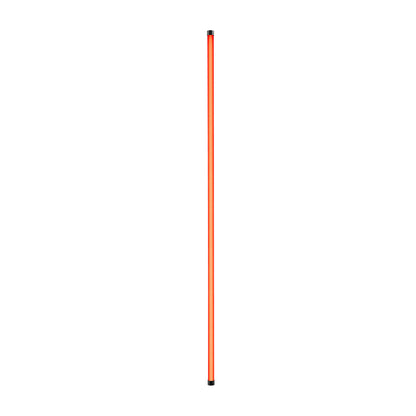

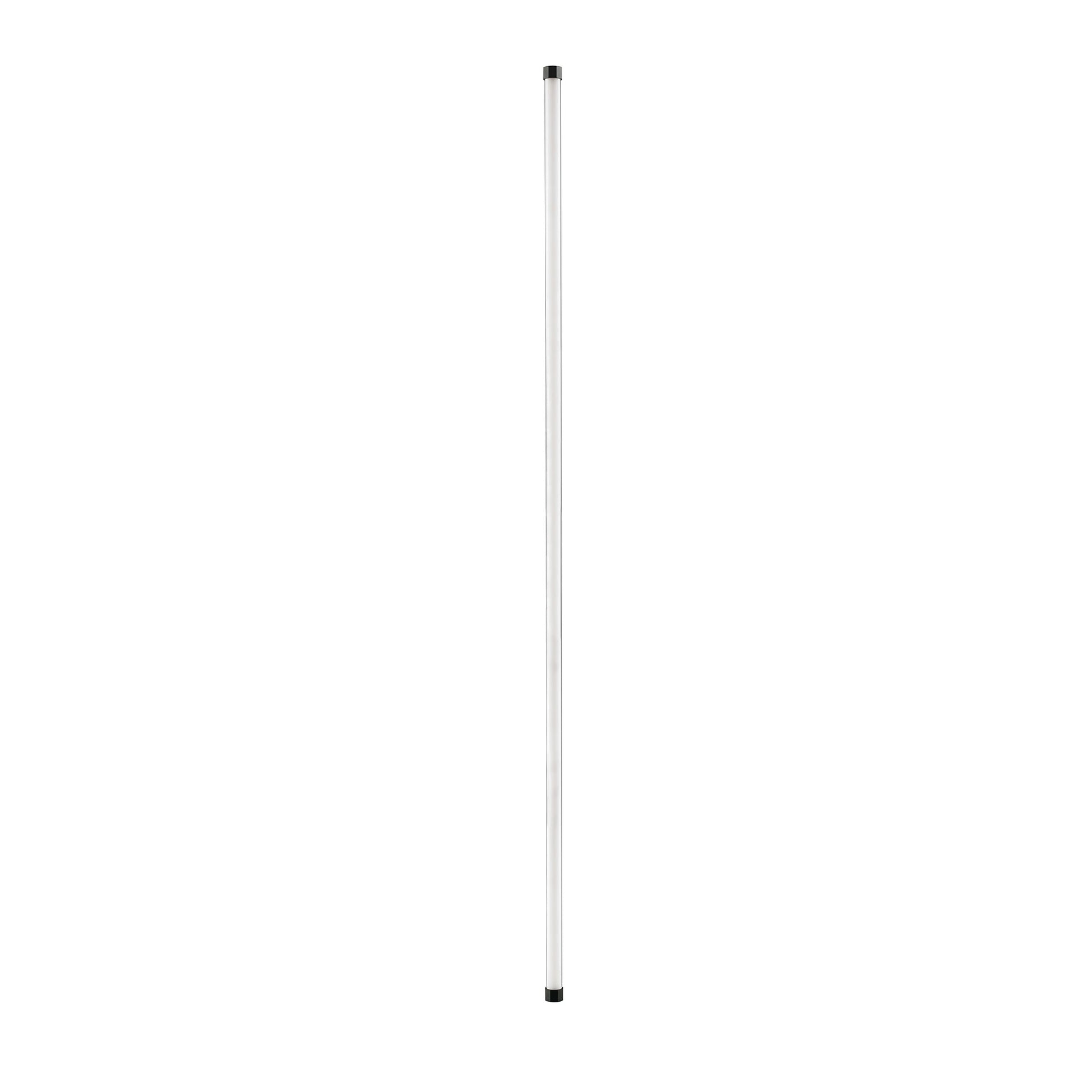

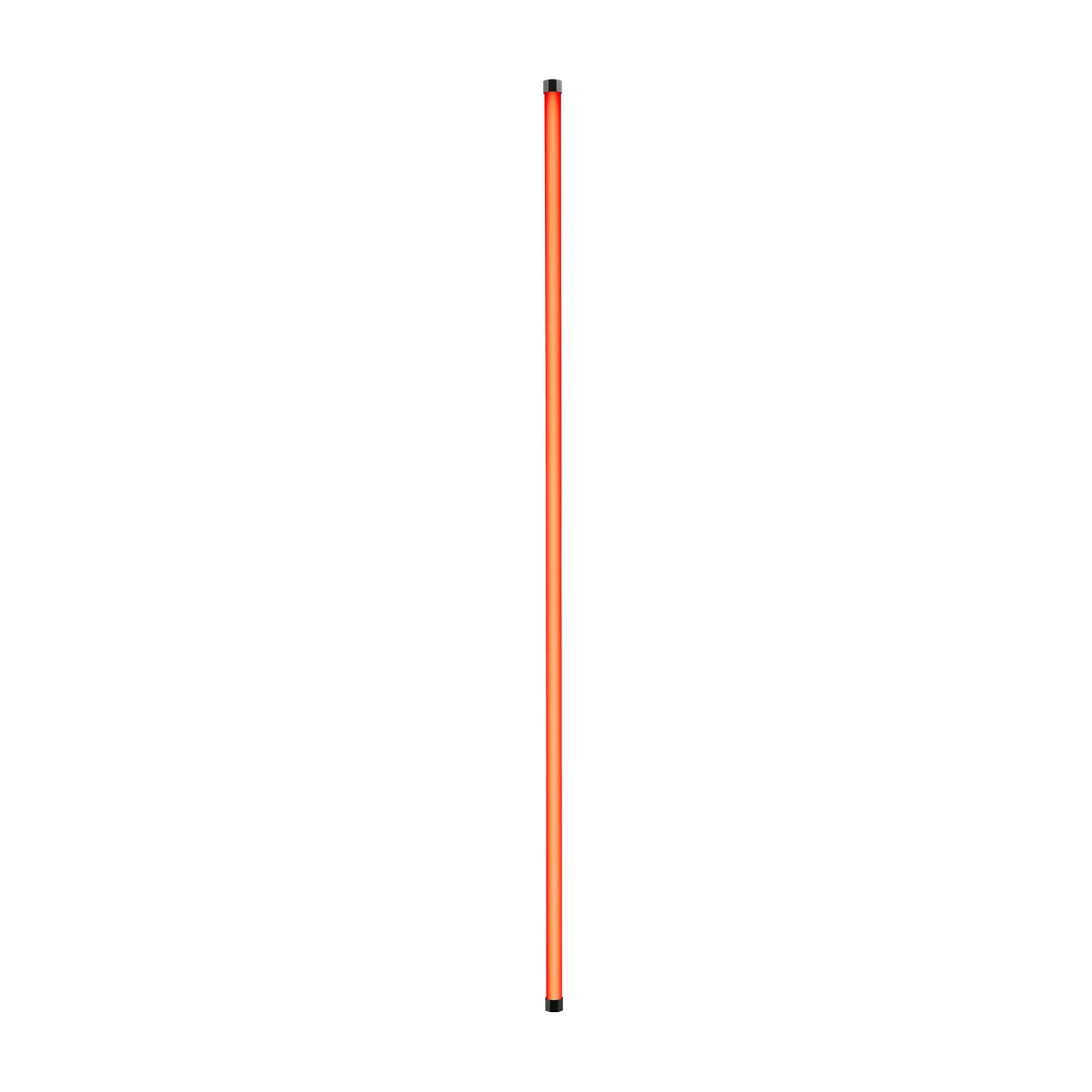

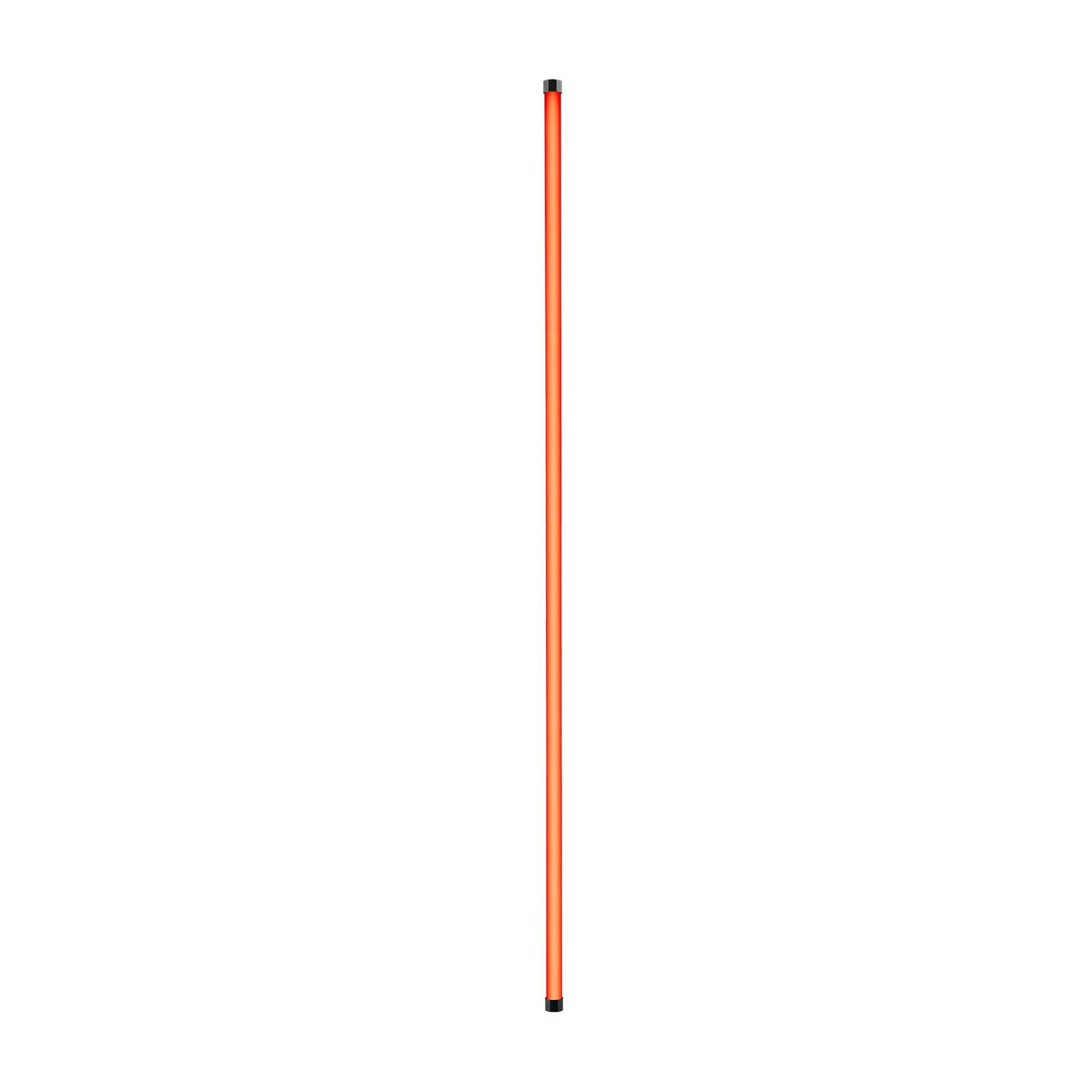

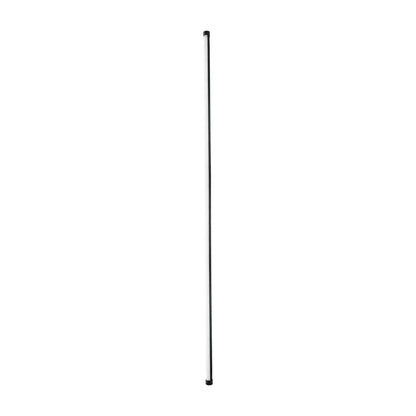

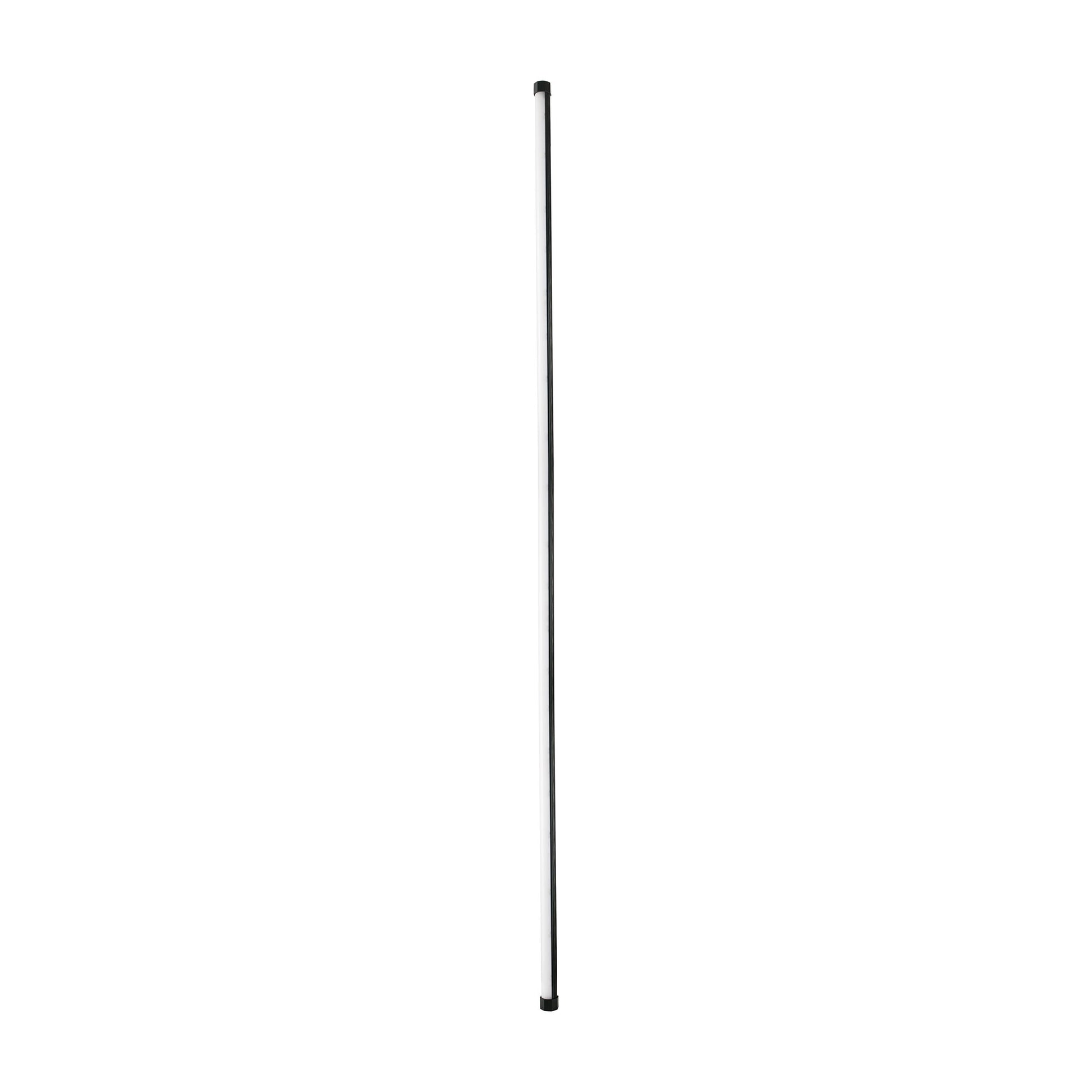

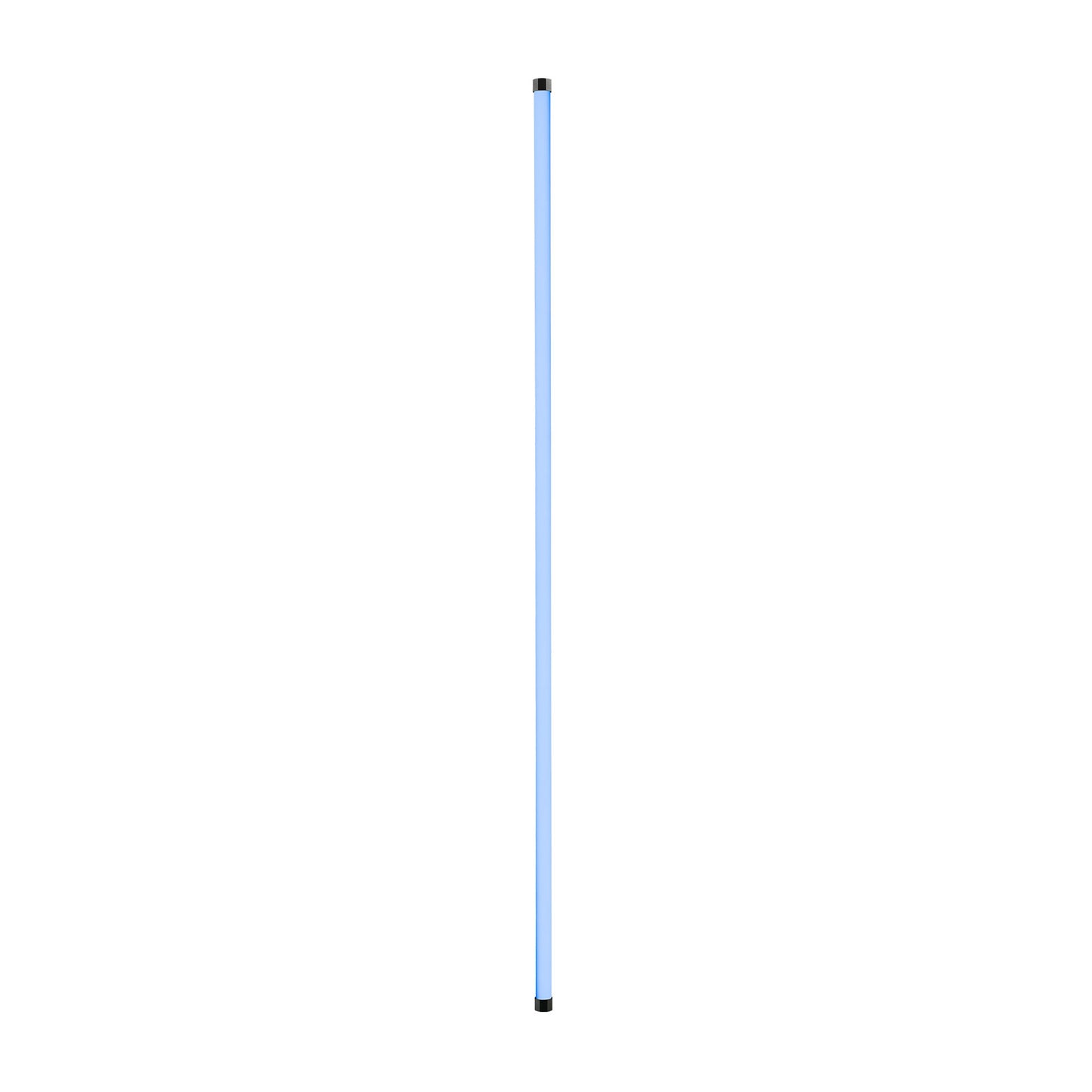

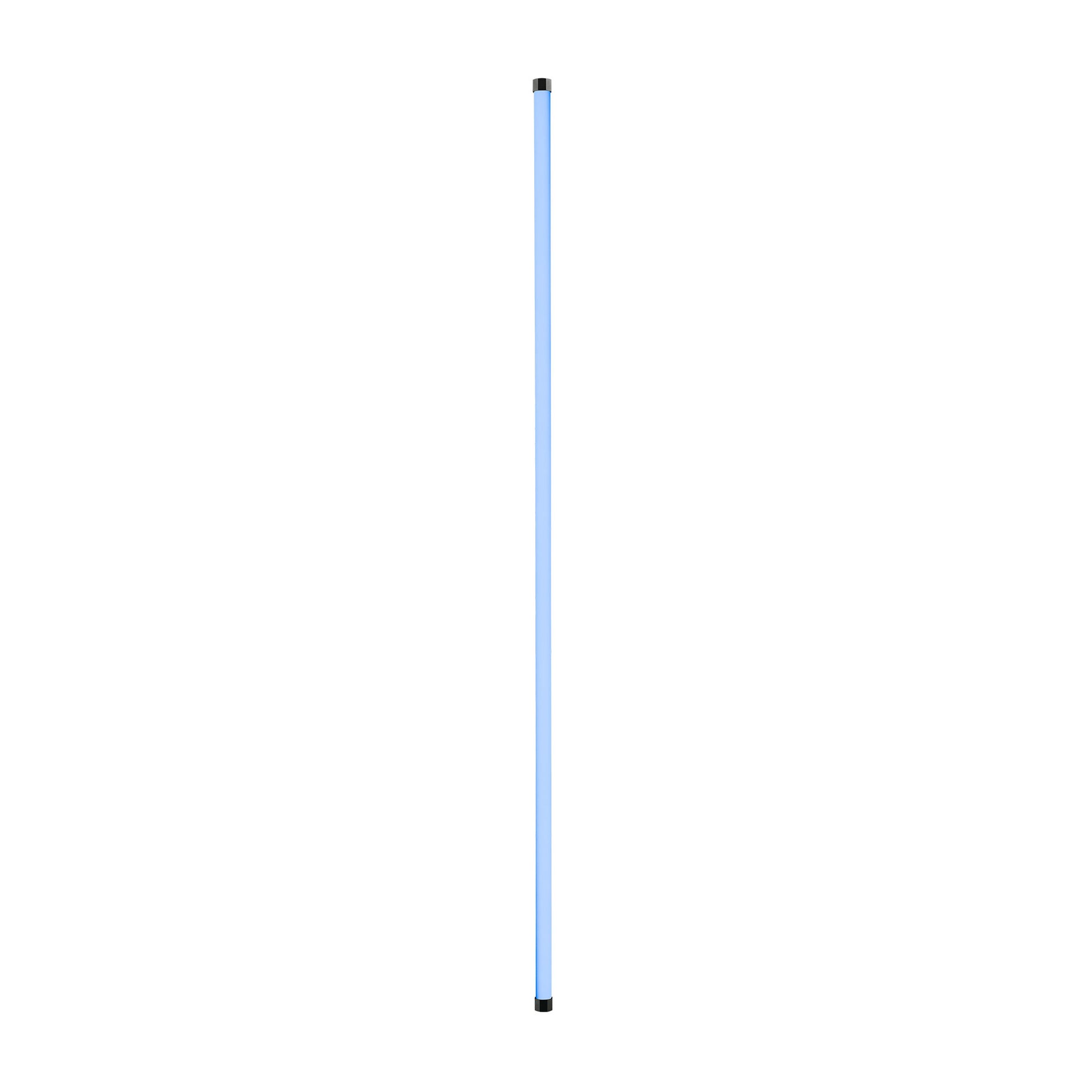

PavoTube II 60XR 8' RGBWW LED Pixel Tube with CRMX 8-Light Kit

PavoTube II 60XR 8' RGBWW LED Pixel Tube with CRMX 8-Light Kit

Regular price $9,880.00 USD
Regular price Sale price $9,880.00 USD
Sale Sold out
Quantity

SKU:PT60XR8KITS

STUDIO-QUALITY ANYWHERE
With a wide CCT, G/M adjustment, and color modes, this tube packs studio-quality lighting into a hardy, go-anywhere package

NEXT-GEN LED TUBE LIGHT

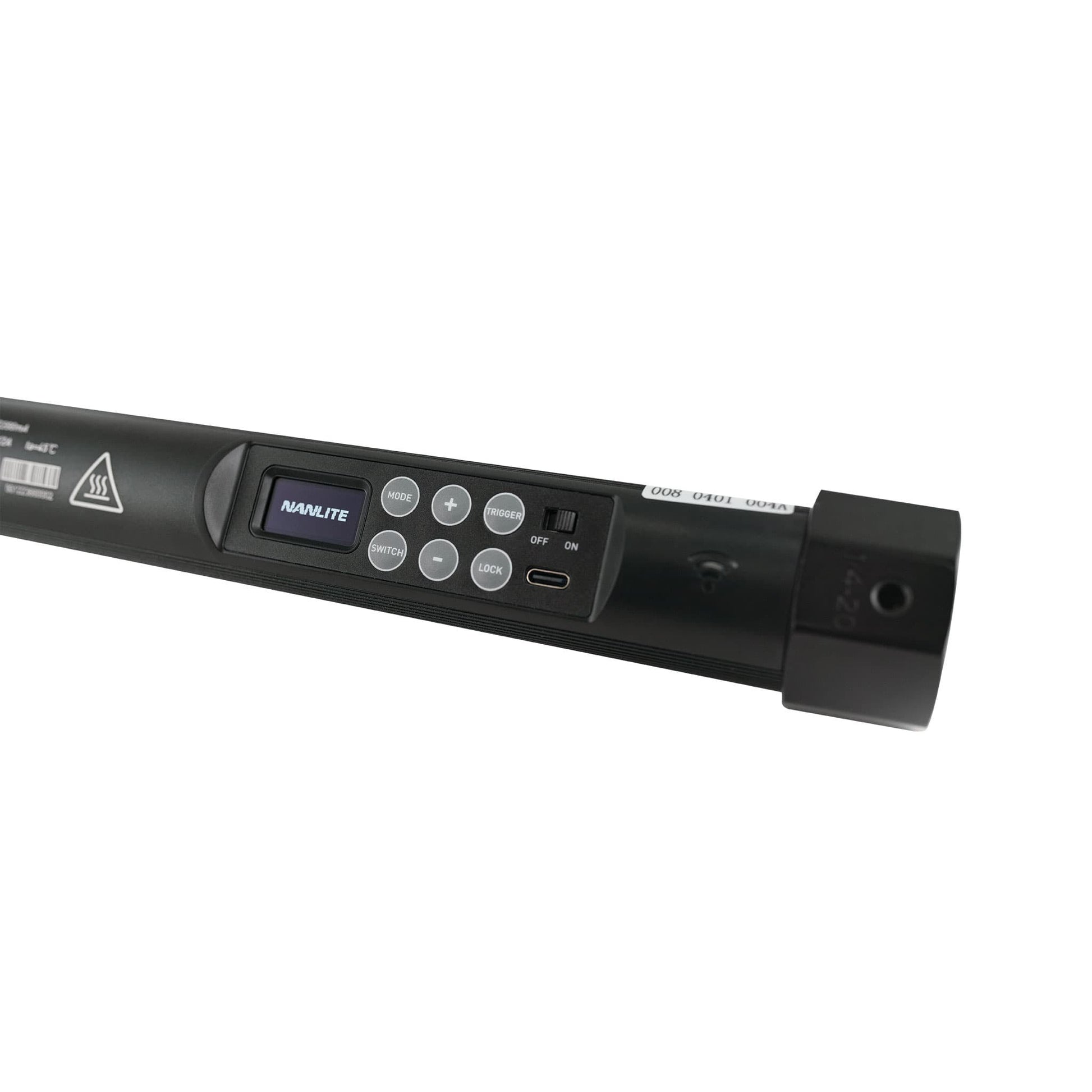

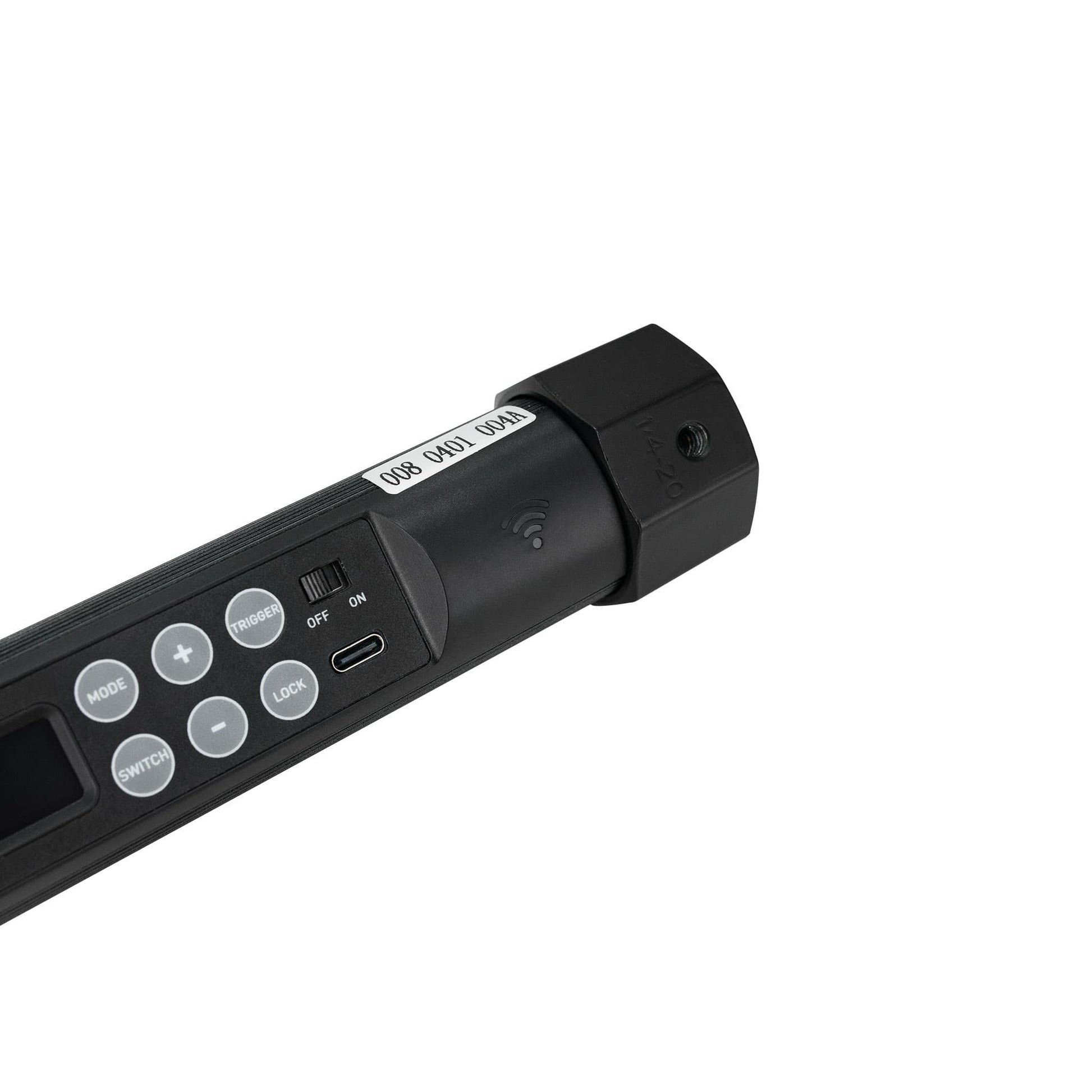

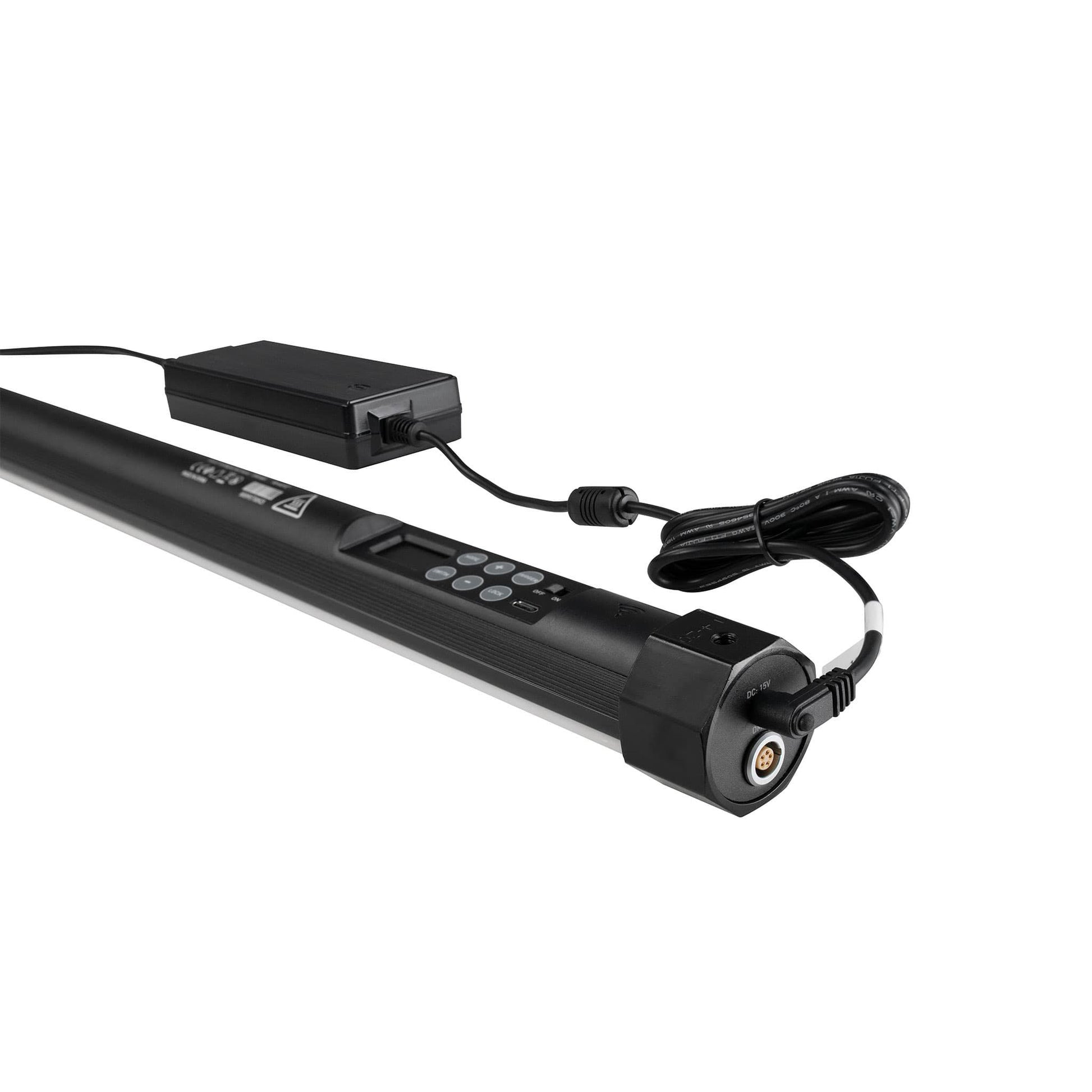

Brighter output with more uniform diffusion, upgraded control panel with locking buttons, built-in CRMX, DMX/RDM, and app control

NO CORDS NEEDED
Runs for 1 hour and 57 minutes at 100% brightness on internal battery, recharges with the included AC adapter, and runs continuously on AC

PIXEL EFFECTS
In addition to 15 practical effects, it features 10 animated pixel effects, and all effects are deeply adjustable and can be saved as presets in the app

METAL HOUSING

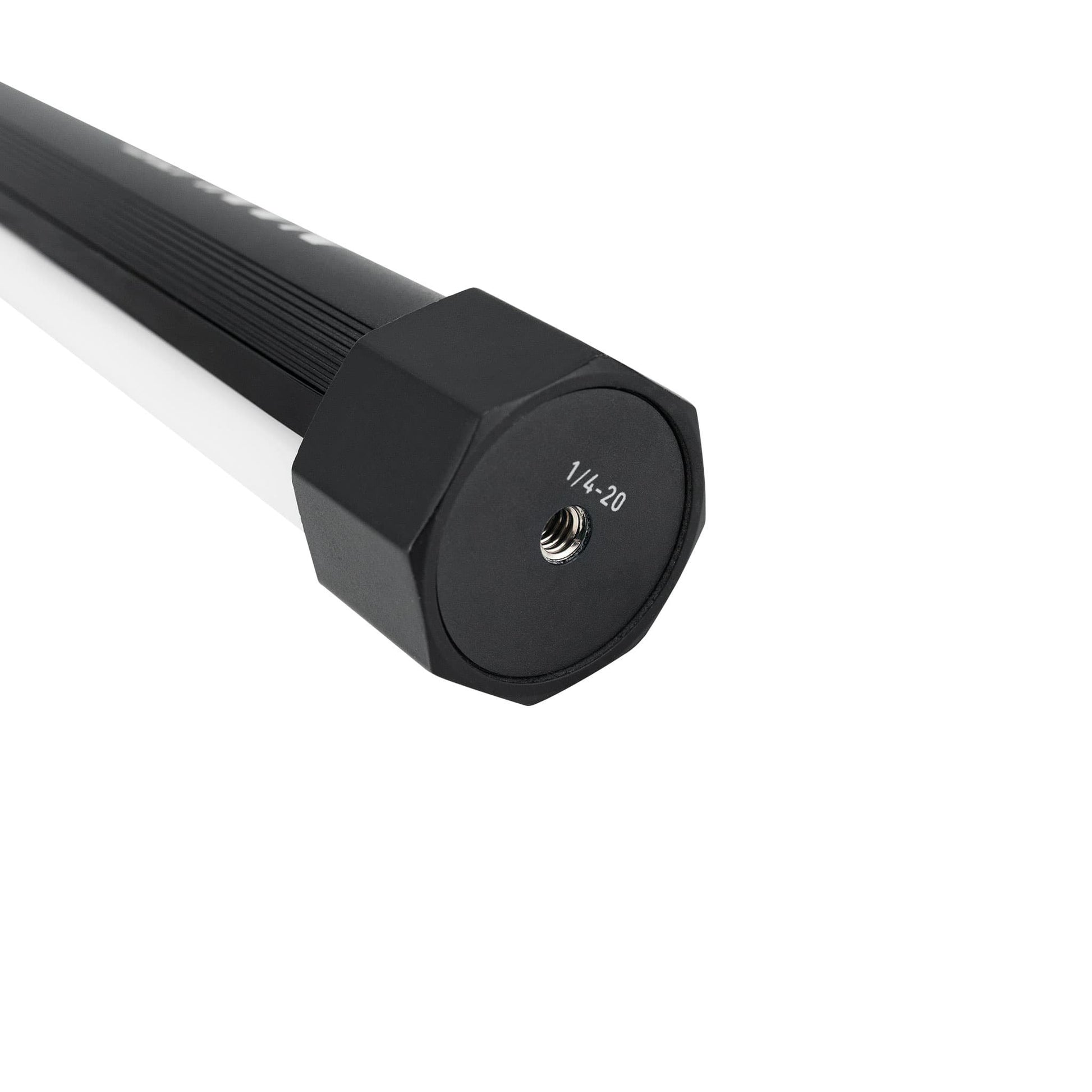

Worrying about an accidental drop or risky light placements a thing of the past, and 3 incorporated ¼-20" receivers expand your mounting options

The PavoTube XR-Series have been refined based on feedback from creators around the globe with pixel-based special effects, brighter output, uniform diffusion, robust metal housings, DMX/RDM, 2.4G, Bluetooth control with the free NANLINK mobile app for iOS and Android, and CRMX.

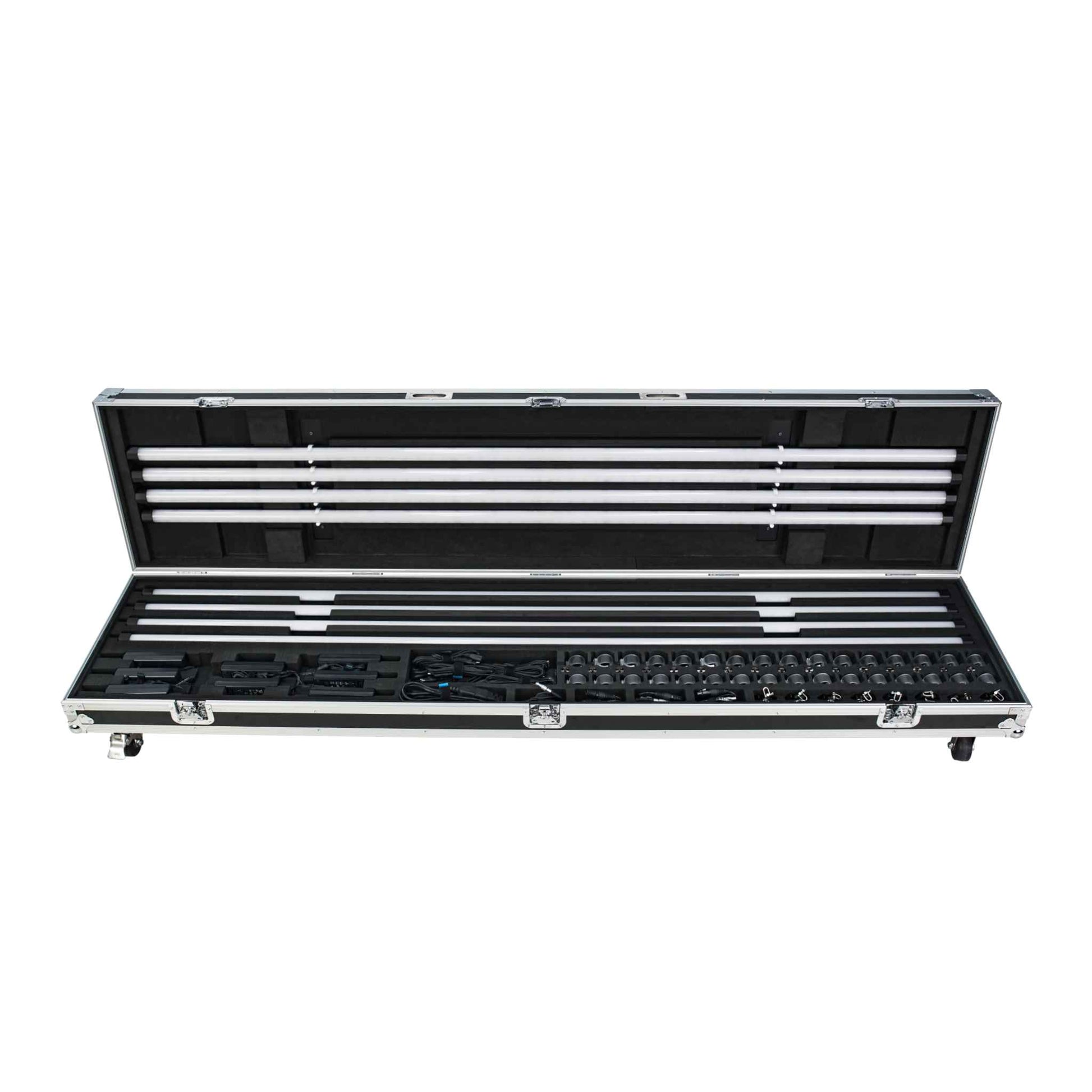

This 8-light kit of the 8-foot long PavoTube II 60XR includes a rolling flight case, 8 power adapters, an 8-in-1 power cable that can charge all 8 fixtures on a single outlet, 8 power adapter safety straps, 16 transparent clips with 1/4"-20 receivers, 16 magnetic tube clips, 16 multi-angle mounts, and 16 Eye Bolts.

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Distance and CCT Distance and Color
@ 0.5m 2700K 2114 lux / 196.4 fc @ 0.5m Red 783 lux / 72.7 fc
@ 1m 2700K 900 lux / 83.6 fc @ 1m Red 332 lux / 30.8 fc
@ 2m 2700K 336 lux / 31.2 fc @ 2m Red 131 lux / 12.1 fc
@ 3m 2700K 180 lux / 16.7 fc @ 3m Red 68 lux / 6.3 fc
@ 0.5m 3200K 2176 lux / 202.1 fc @ 0.5m Green 1831 lux / 170.1 fc
@ 1m 3200K 928 lux / 86.2 fc @ 1m Green 783 lux / 72.7 fc
@ 2m 3200K 345 lux / 32 fc @ 2m Green 295 lux / 27.4 fc
@ 3m 3200K 184 lux / 17.1 fc @ 3m Green 153 lux / 14.2 fc
@ 0.5m 5600K 2324 lux / 215.9 fc @ 0.5m Blue 337 lux / 31.3 fc
@ 1m 5600K 991 lux / 92 fc @ 1m Blue 143 lux / 13.2 fc
@ 2m 5600K 369 lux / 34.2 fc @ 2m Blue 55 lux / 5.1 fc
@ 3m 5600K 194 lux / 18 fc @ 3m Blue 28 lux / 2.6 fc
@ 0.5m 6500K 2405 lux / 223.4 fc
@ 1m 6500K 1024 lux / 95.1 fc
@ 2m 6500K 380 lux / 35.3 fc
@ 3m 6500K 201 lux / 18.6 fc
@ 0.5m 7500K 2461 lux / 228.6 fc
@ 1m 7500K 1047 lux / 97.2 fc
@ 2m 7500K 389 lux / 36.1 fc
@ 3m 7500K 206 lux / 19.1 fc
@ 1m 10000K 966 lux / 89.7 fc
@ 2m 10000K 358 lux / 33.2 fc
@ 3m 10000K 191 lux / 17.7 fc
@ 1m 12000K 934 lux / 86.7 fc
@ 2m 12000K 347 lux / 32.2 fc
@ 3m 12000K 186 lux / 17.2 fc
Specifications Table
⚙ Specifications
LED TypeRGBWW
CCT Range2700K-12000K, G/M Adjustment ±100
CRIAverage 97
TLCIAverage 98
Rated Power106W
Input Voltage/CurrentDC 15V/6.5A Max, AC 100-240V 50/60Hz
Built-In Battery8800mAh
Runtime at 100% Brightness1 hr 57 mins
Charge Time7 hrs
Operating Temperatureta40℃/td>
Dimming0–100%
EffectsHue Loop, CCT Loop, INT Loop, CCT Flash, HUE Flash, CCT Pulse, Hue Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Pixel EffectsHue Loop, CCT Loop, INT Loop, Multi-color, Gradient, Scrolling, Marching, Flame, Rainbow, Driving
ControlBuilt-in Controls and Screen, Bluetooth and the free Nanlink mobile app, DMX/RDM via locking metal port, 2.4G for the WS-RC-C2 Handheld Remote and WS-TB-1 Transmitter Box, LumenRadio CRMX
Dimensions1.69 × 87.4" (4.3 × 222cm)
Weight6.39lbs (2.9kg)

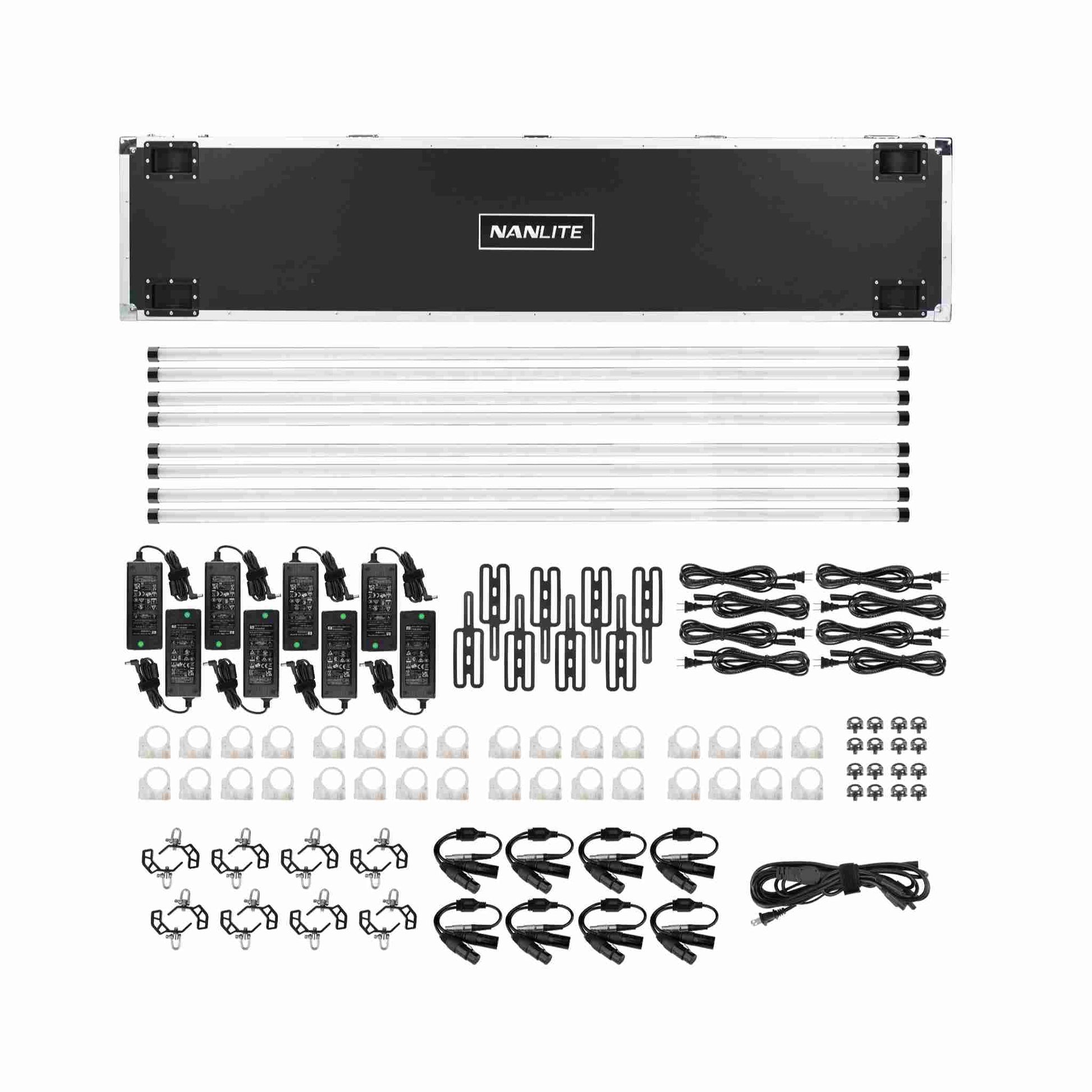

What's in the Box Table
⁂ What's in the Box
8x Nanlite PavoTube II 60XR
8x 15V/6.5A Power Adapters
8x Power Cables 9.84-Foot (3m)
8x Power Adapter Safety Straps
1x 8-in-1 DC Power Cable
8x DMX Adapter Cables
16x Clear T12 Clips with Two 1/4"-20 Receivers
16x HDT121MC Clear T12 Clips with Magnet
16x Multi-Angle Mounts
16x 1/4"-20 Eye Bolts
1x User Manual

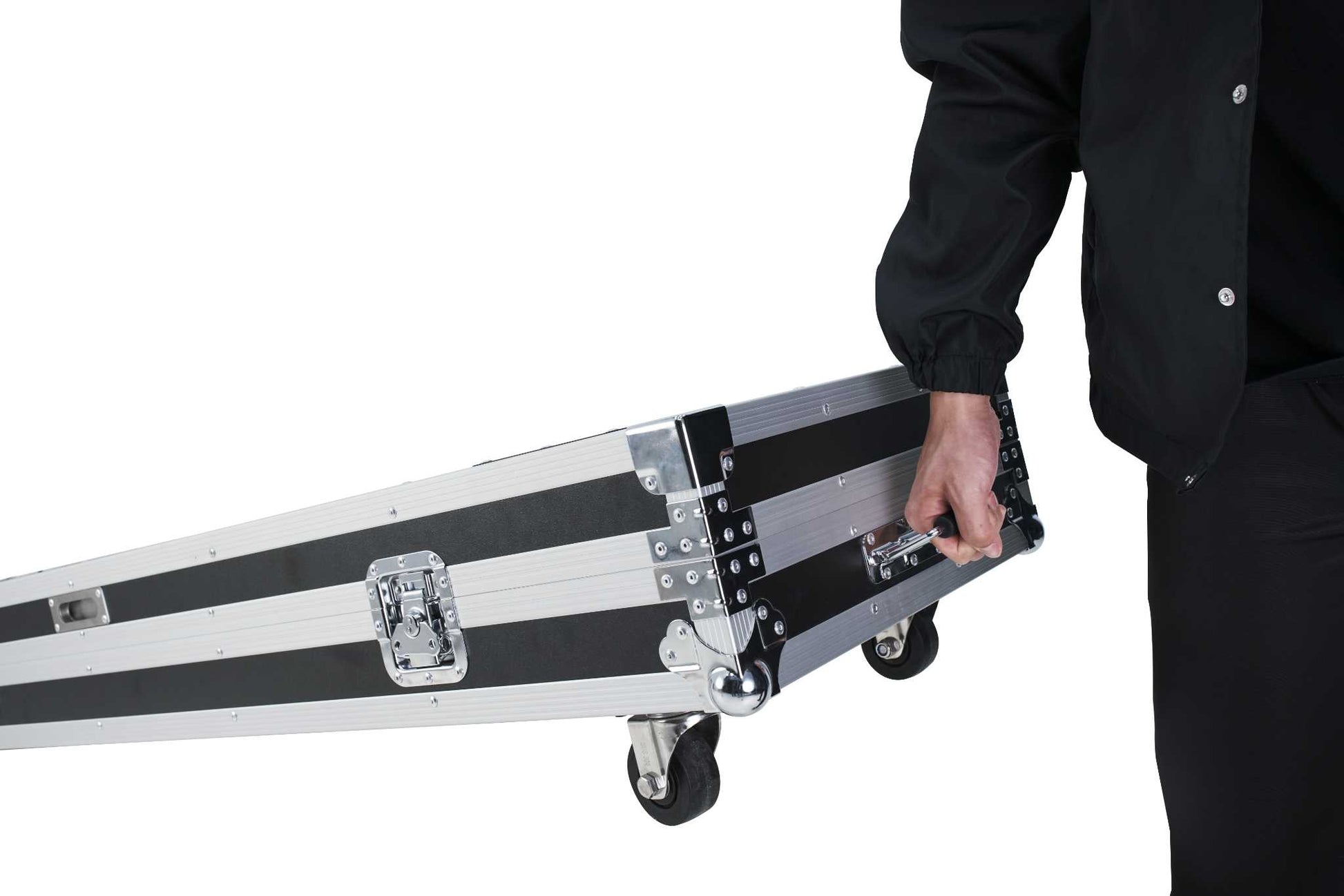

1x Rolling Flight Case
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)
