Nanlite

PavoTube II 6XR 10" RGBWW LED Pixel Tube with CRMX

PavoTube II 6XR 10" RGBWW LED Pixel Tube with CRMX

Regular price $149.00 USD
Regular price Sale price $149.00 USD
Sale Sold out
Quantity

SKU:PT6XR

GO ANYWHERE LIGHT
Compact and lightweight, runs on built-in battery, AC, or USB powerbanks, provides a 2700K-12000K CCT, G/M adjustment of ±150, 230 LEE and ROSCO gel presets

PIXEL-MAPPING EFFECTS
Features 10 pixel effects that can be deeply modified and saved as presets in the free NANLINK app, 15 practical effects, and the HSl lighting mode with 36,000 RGB colors

CRMX, DMX & BLUETOOTH
LumenRadio CRMX built in, DMX/RDM via USB-C, Bluetooth with dedicated apps for both phones and tablets, and easy-to-use onboard controls and screen

FAST-CHARGING BATTERY
The USB-C port is PD3.0 fast-charging compatible, can also be powered with external USB powerbanks (sold separately), and can run non-stop on AC

MANY WAYS TO MOUNT
Industry-standard diameter compatible with all T12 tube clips, 1/4"-20 threads at both ends for rigging, built-in magnets, stands upright, sides have flat edges for beam angle adjustment and to prevent rolling away

This is an updated, second-generation 10-inch tube light that features built-in CRMX LumenRadio and DMX/RDM. It's compact and lightweight, runs on built-in battery, AC, or USB powerbanks, provides a 2700K-12000K CCT, G/M adjustment of ±150, 230 LEE and ROSCO gel presets, fully customizable pixel-mapping effects, and much more.

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Distance and CCT Distance and Color
@ 1m 2700K128 lux / 12 fc@ 1m Red60 lux / 5.5 fc
@ 2m 2700K33 lux / 3 fc@ 2m Red15 lux / 1.4 fc
@ 3m 2700K15 lux / 1.4 fc@ 3m Red7 lux / 0.6 fc
@ 1m 3200K130 lux / 12 fc@ 1m Green134 lux / 12.4 fc
@ 2m 3200K33 lux / 3 fc@ 2m Green34 lux / 3 fc
@ 3m 3200K15 lux / 1.4 fc@ 3m Green16 lux / 1.5 fc
@ 1m 5600K139 lux / 12.9 fc@ 1m Blue23 lux / 2 fc
@ 2m 5600K35 lux / 3 fc@ 2m Blue6 lux / 0.55 fc
@ 3m 5600K17 lux / 5.1 fc@ 3m Blue3 lux / 0.27 fc
@ 1m 6500K140 lux / 13 fc
@ 2m 6500K36 lux / 3 fc
@ 3m 6500K17 lux / 1.5 fc
@ 1m 7500K142 lux / 13 fc
@ 2m 7500K36 lux / 3 fc
@ 3m 7500K17 lux / 1.5 fc
Specifications Table
⚙ Specifications
LED TypeRGBWW
CCT Range2700K-12000K, G/M Adjustment ±150
CRIAverage 96
TLCIAverage 97
SSI 3200K83
SSI 5600K73
TM-30 RF (Average)93
TM-30 RG (Average)100
Rated Power16W
Input Voltage/CurrentDC: 5V/2A, 5V/3A, 9V/2A, 9V/3A, 12V/2A, 12V/3A, 20V/1A PD3.0 adapter PD3.0: 20W Min
Charging InputUSB-C PD 3.0, Electrical Contacts for Optional Charging Case
Built-In Battery3200mAh
Runtime at 100% Brightness53 mins
Operating Temperature-20℃-45℃
Dimming0–100%
EffectsHue Loop, CCT Loop, Int Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Pixel EffectsHue Loop, CCT Loop, Int Loop, Multicolor, Fade, Scroll, Rainbow, Process, Fire, Driving
ControlBuilt-in Controls and Screen, Bluetooth and the free Nanlink mobile app, LumenRadio CRMX, NFT, and DMX/RDM with the separately available CB-DMX-USBC-1/3II adapter
Dimensions1.54 × 9.84" (39 × 250mm)
Weight0.6lbs (0.27kg)

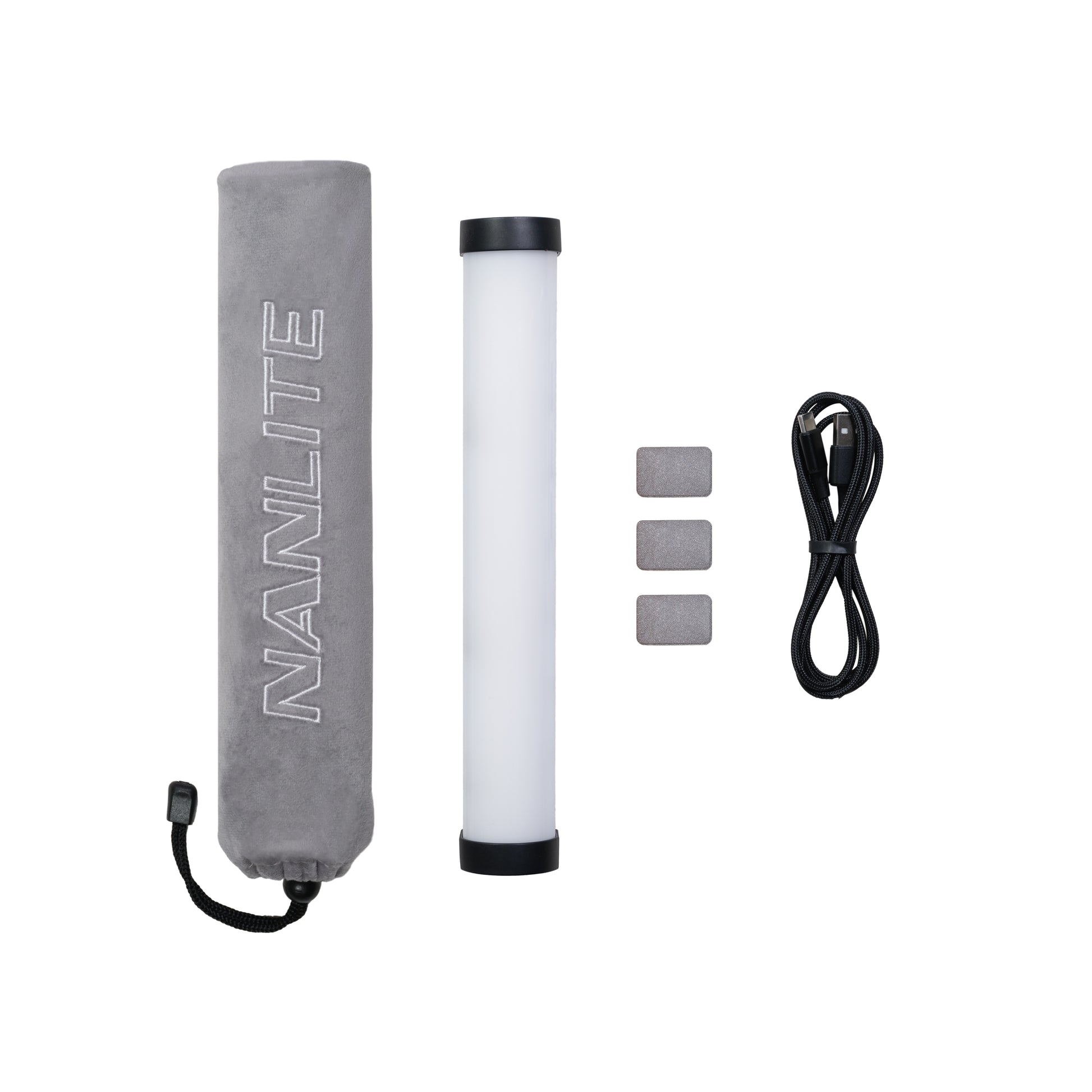

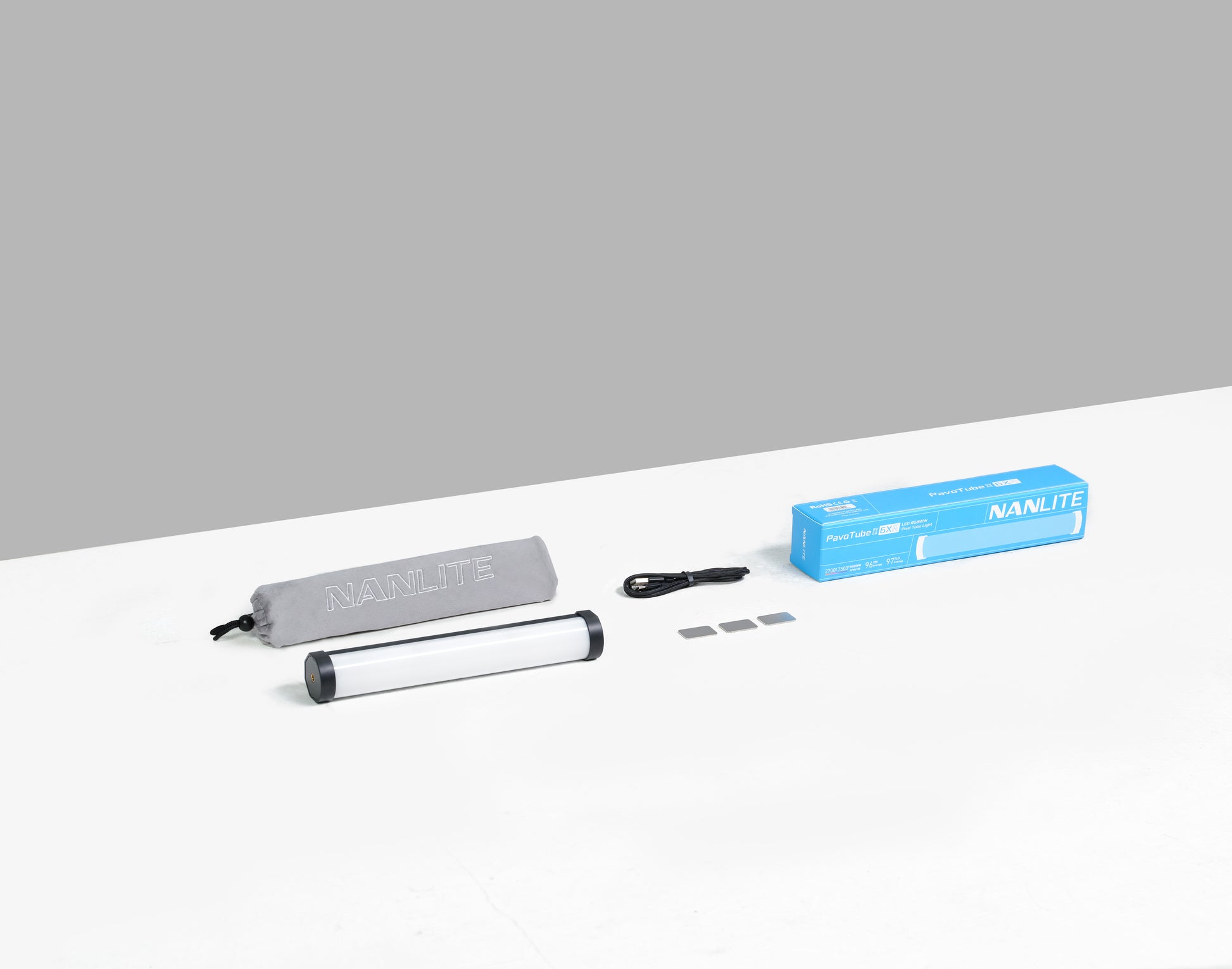

What's in the Box Table
⁂ What's in the Box
1x Nanlite PavoTube II 6XR
1x Braided Fabric USB-C Cable 3.28' (1m)
3x Iron Plates for Magnetic Mounting
1x User Manual
1x Carrying Bag
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)
