Nanlite

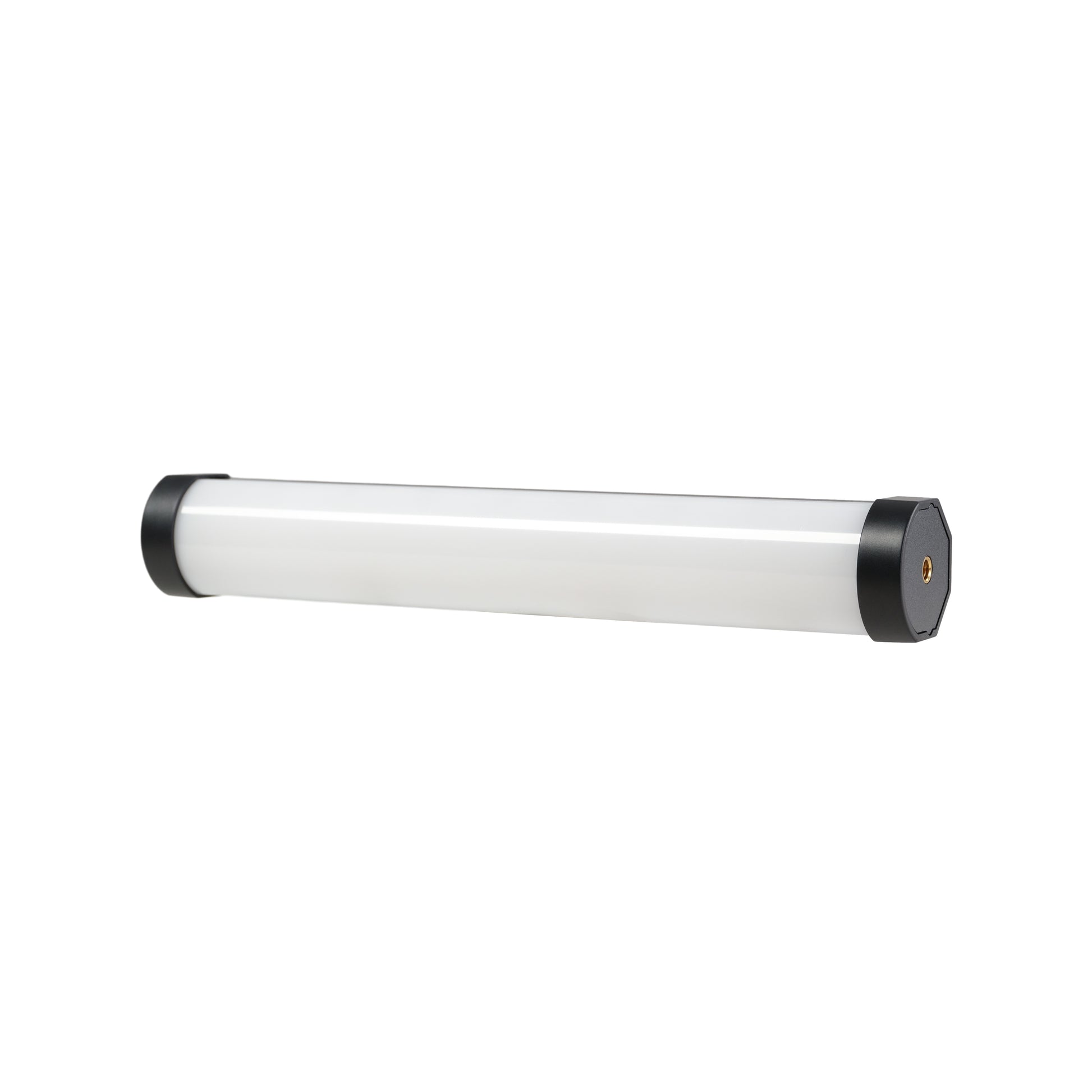

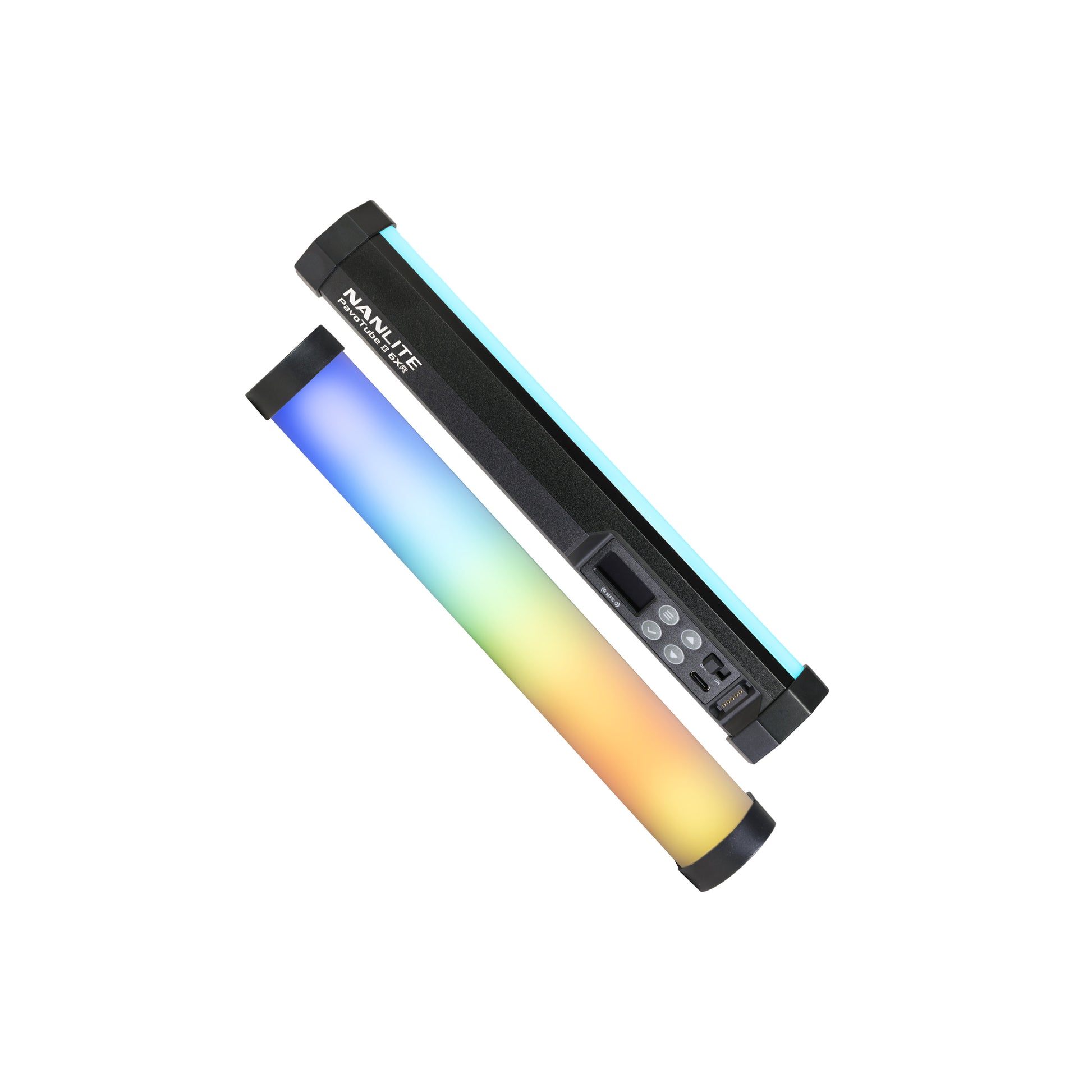

PavoTube II 6XR 10" RGBWW LED Pixel Tube with CRMX 8-Light Kit

PavoTube II 6XR 10" RGBWW LED Pixel Tube with CRMX 8-Light Kit

Regular price $1,490.00 USD
Regular price Sale price $1,490.00 USD
Sale Sold out
Quantity

SKU:PT6XR8KIT

GO ANYWHERE LIGHT
Compact and lightweight, runs on built-in battery, AC, or USB powerbanks, provides a 2700K-12000K CCT, G/M adjustment of ±150, 230 LEE and ROSCO gel presets

PIXEL-MAPPING EFFECTS
Features 10 pixel effects that can be deeply modified and saved as presets in the free NANLINK app, 15 practical effects, and the HSl lighting mode with 36,000 RGB colors

CRMX, DMX & BLUETOOTH

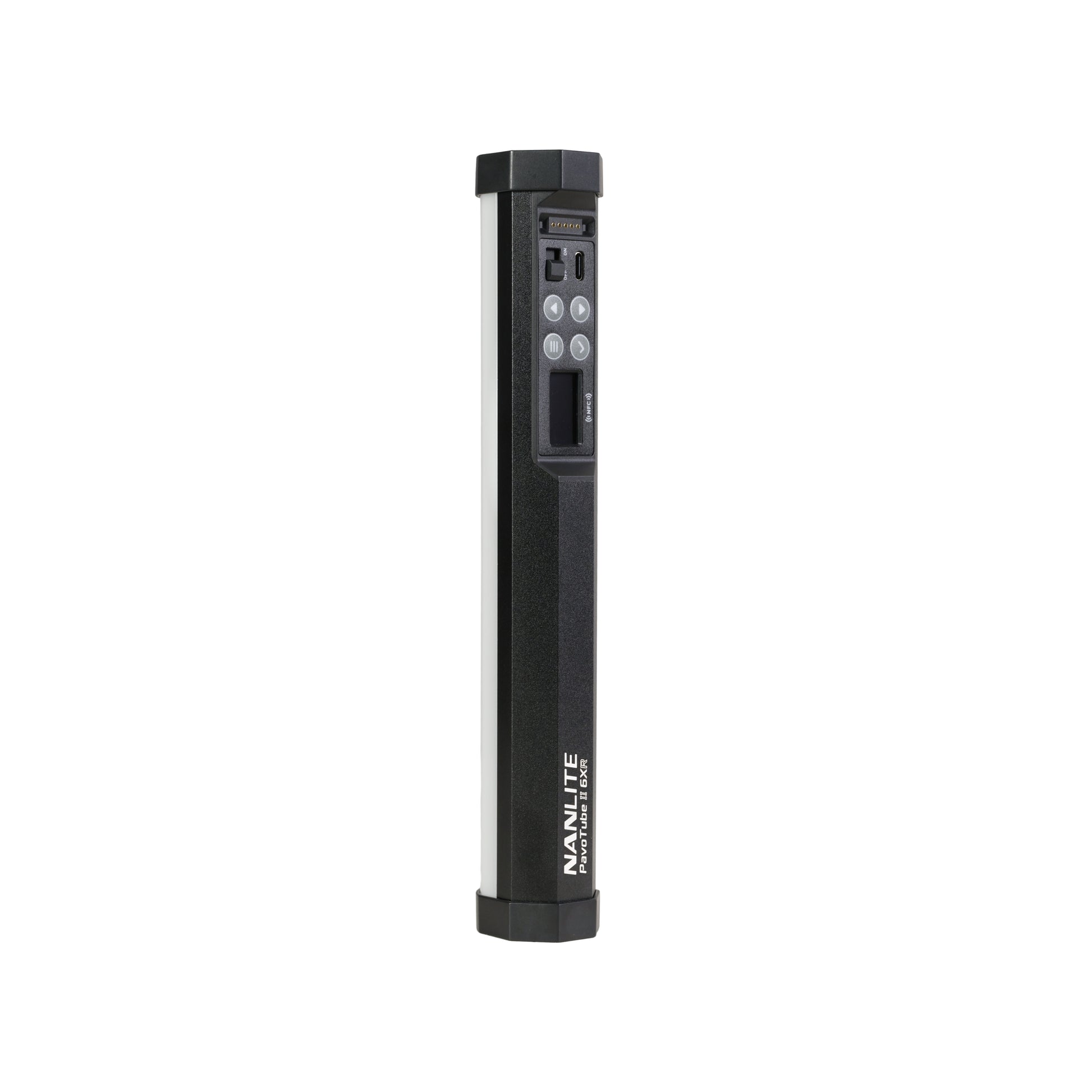

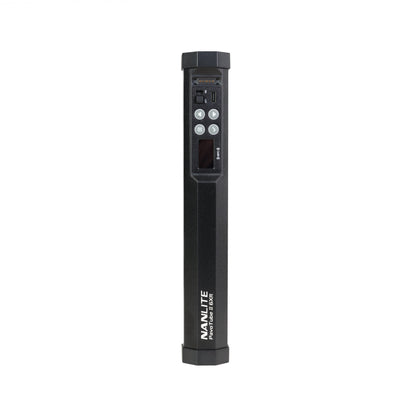

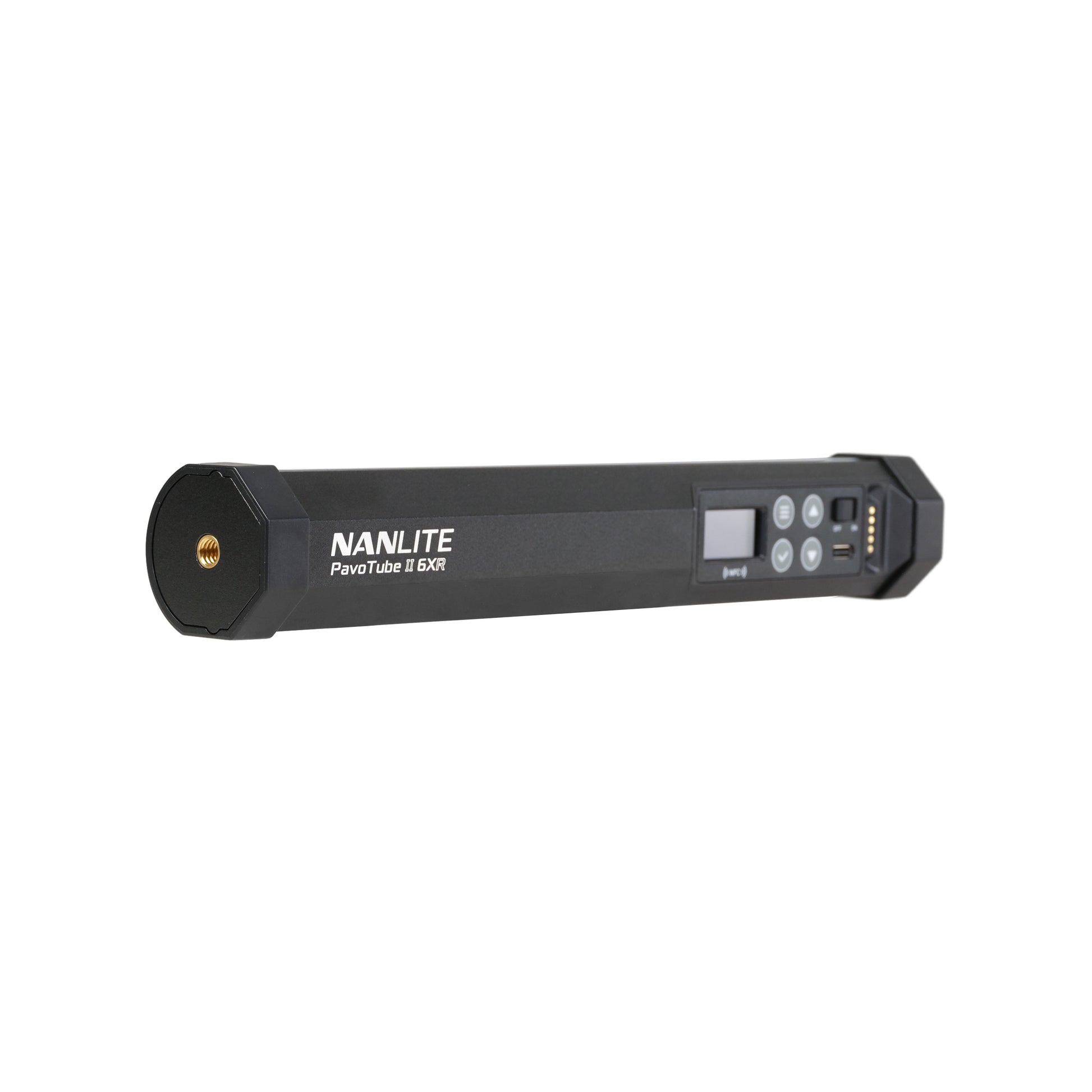

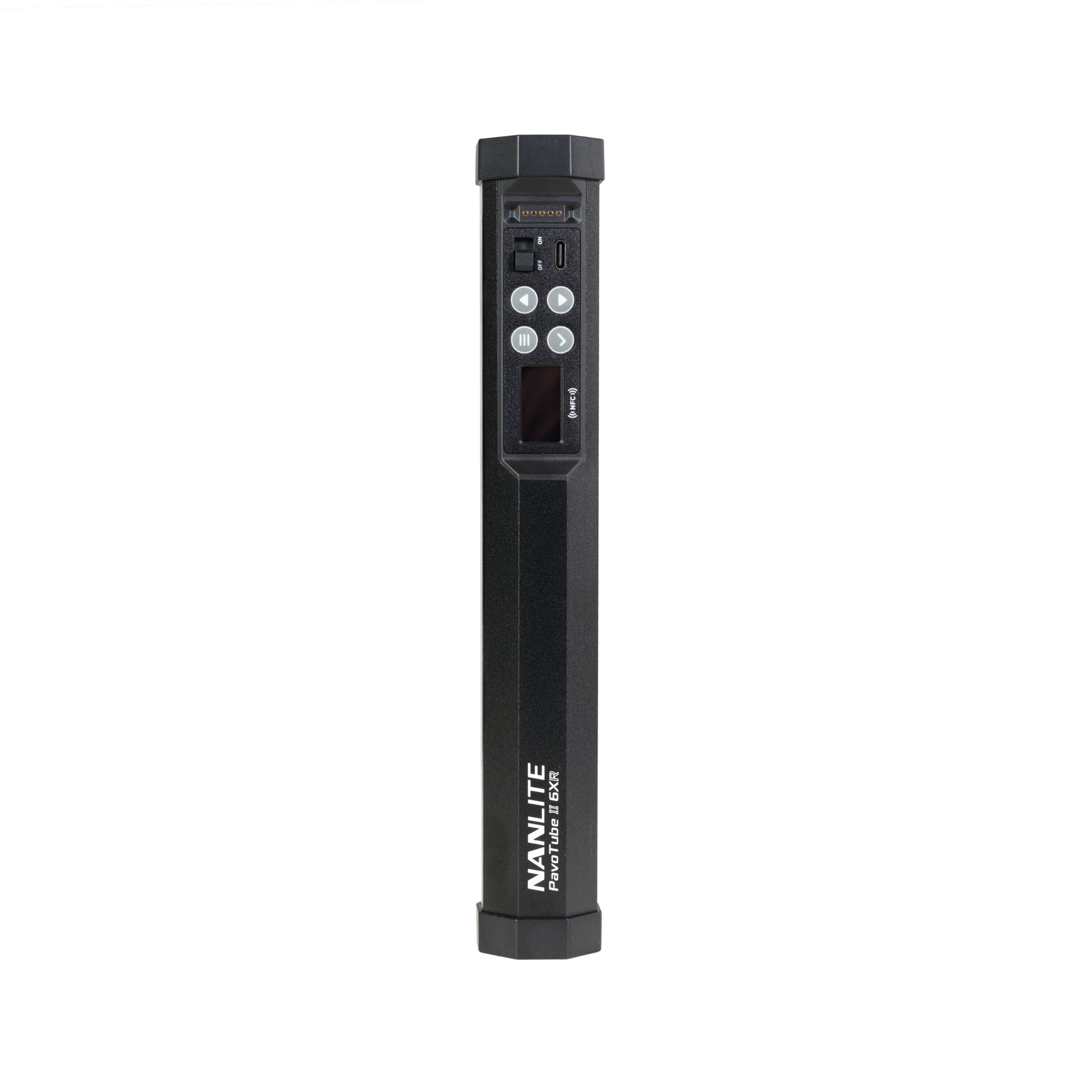

LumenRadio CRMX built in, DMX/RDM via USB-C, Bluetooth with dedicated apps for both phones and tablets, and easy-to-use onboard controls and screen

FAST-CHARGING BATTERY
The USB-C port is PD3.0 fast-charging compatible, can also be powered with external USB powerbanks (sold separately), and can run non-stop on AC

MANY WAYS TO MOUNT
Industry-standard diameter compatible with all T12 tube clips, 1/4"-20 threads at both ends for rigging, built-in magnets, stands upright, sides have flat edges for beam angle adjustment and to prevent rolling away

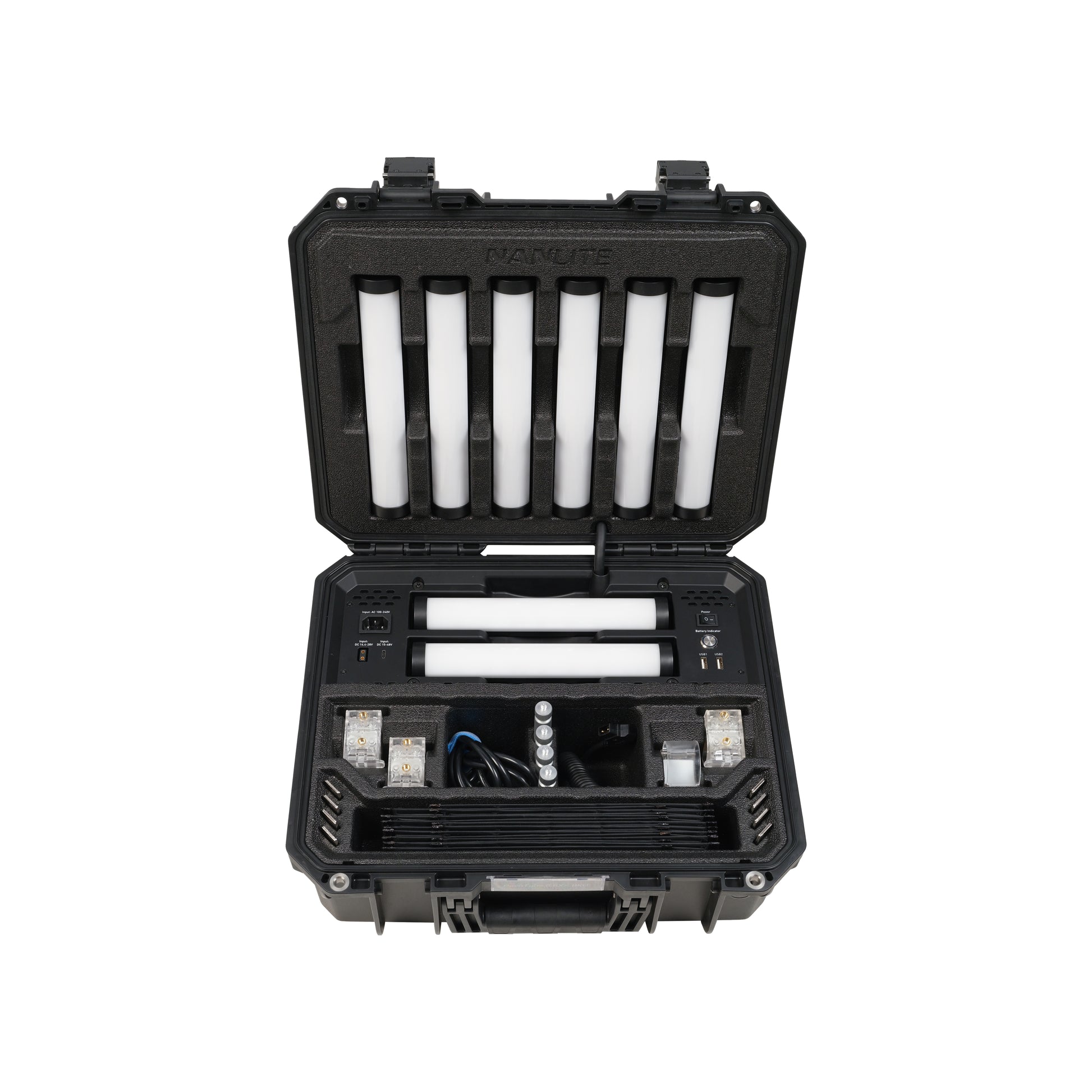

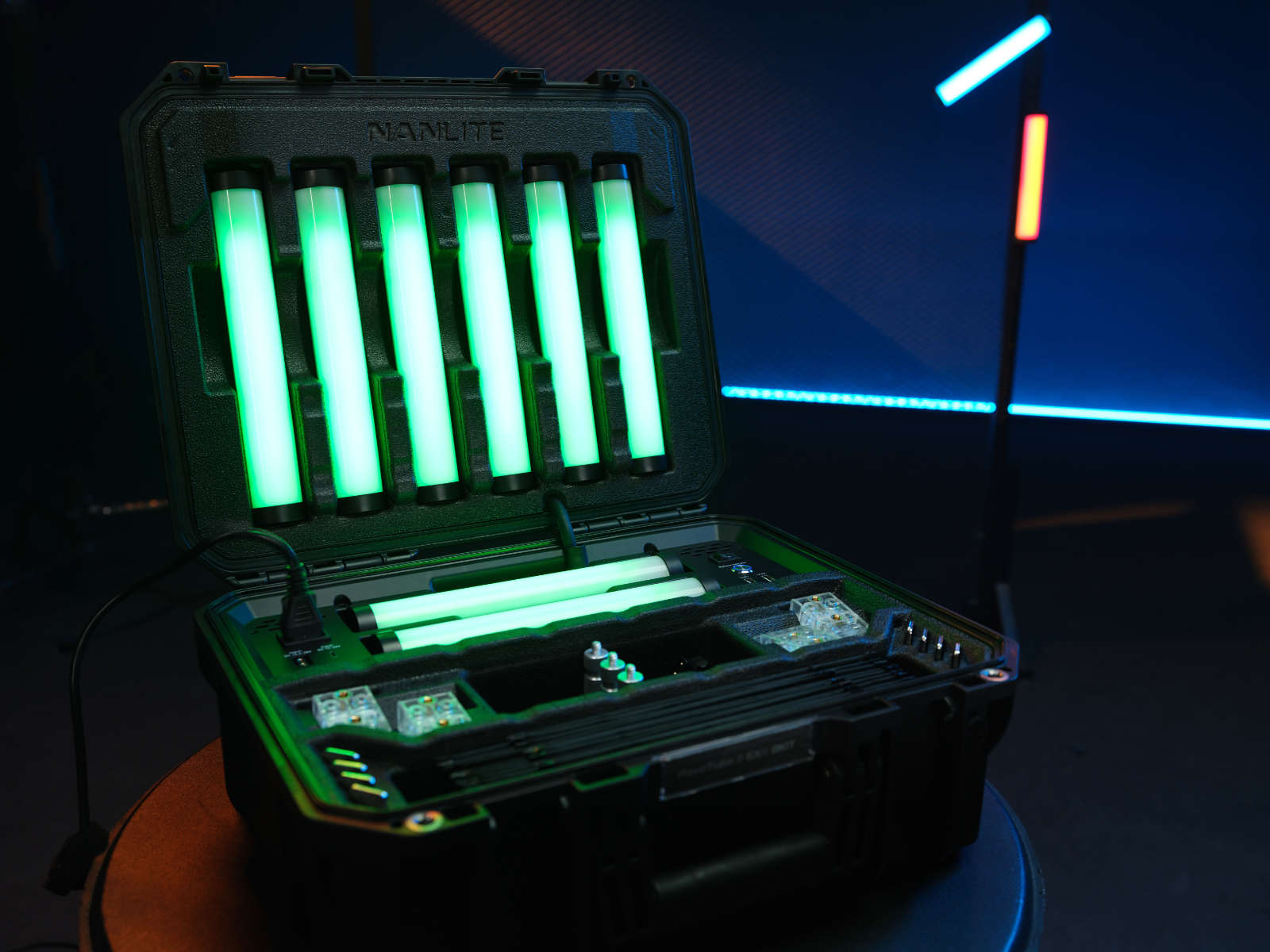

This is an updated, Nanlite PavoTube II 6XR RGBWW LED Pixel Tube is an updated, second-generation 10-inch tube light that features built-in CRMX LumenRadio, as well as wired DMX/RDM control. This is an 8-light kit that includes a charging hard case. The 6XR runs on an internal battery or AC and delivers an ultra-wide CCT range of 2700K-12000K, green-to-magenta adjustment of ±150, fully customizable pixel-mapping effects, gel presets, Bluetooth control, and much more.

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Distance and CCT Distance and Color
@ 1m 2700K128 lux / 12 fc@ 1m Red60 lux / 5.5 fc
@ 2m 2700K33 lux / 3 fc@ 2m Red15 lux / 1.4 fc
@ 3m 2700K15 lux / 1.4 fc@ 3m Red7 lux / 0.6 fc
@ 1m 3200K130 lux / 12 fc@ 1m Green134 lux / 12.4 fc
@ 2m 3200K33 lux / 3 fc@ 2m Green34 lux / 3 fc
@ 3m 3200K15 lux / 1.4 fc@ 3m Green16 lux / 1.5 fc
@ 1m 5600K139 lux / 12.9 fc@ 1m Blue23 lux / 2 fc
@ 2m 5600K35 lux / 3 fc@ 2m Blue6 lux / 0.55 fc
@ 3m 5600K17 lux / 5.1 fc@ 3m Blue3 lux / 0.27 fc
@ 1m 6500K140 lux / 13 fc
@ 2m 6500K36 lux / 3 fc
@ 3m 6500K17 lux / 1.5 fc
@ 1m 7500K142 lux / 13 fc
@ 2m 7500K36 lux / 3 fc
@ 3m 7500K17 lux / 1.5 fc
Specifications Table
⚙ Specifications
LED TypeRGBWW
CCT Range2700K-12000K, G/M Adjustment ±150
CRIAverage 96
TLCIAverage 97
SSI 3200K83
SSI 5600K73
TM-30 RF (Average)93
TM-30 RG (Average)100
Rated Power16W
Input Voltage/CurrentDC: 5V/2A, 5V/3A, 9V/2A, 9V/3A, 12V/2A, 12V/3A, 20V/1A PD3.0 adapter PD3.0: 20W Min
Charging InputUSB-C PD 3.0, Electrical Contacts for Optional Charging Case
Built-In Battery3200mAh
Runtime at 100% Brightness53 mins
Operating Temperature-20℃-45℃
Dimming0–100%
EffectsHue Loop, CCT Loop, Int Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
Pixel EffectsHue Loop, CCT Loop, Int Loop, Multicolor, Fade, Scroll, Rainbow, Process, Fire, Driving
ControlBuilt-in Controls and Screen, Bluetooth and the free Nanlink mobile app, LumenRadio CRMX, NFT, and DMX/RDM with the separately available CB-DMX-USBC-1/3II adapter
Dimensions1.54 × 9.84" (39 × 250mm)
Weight0.6lbs (0.27kg)
What's in the Box Table

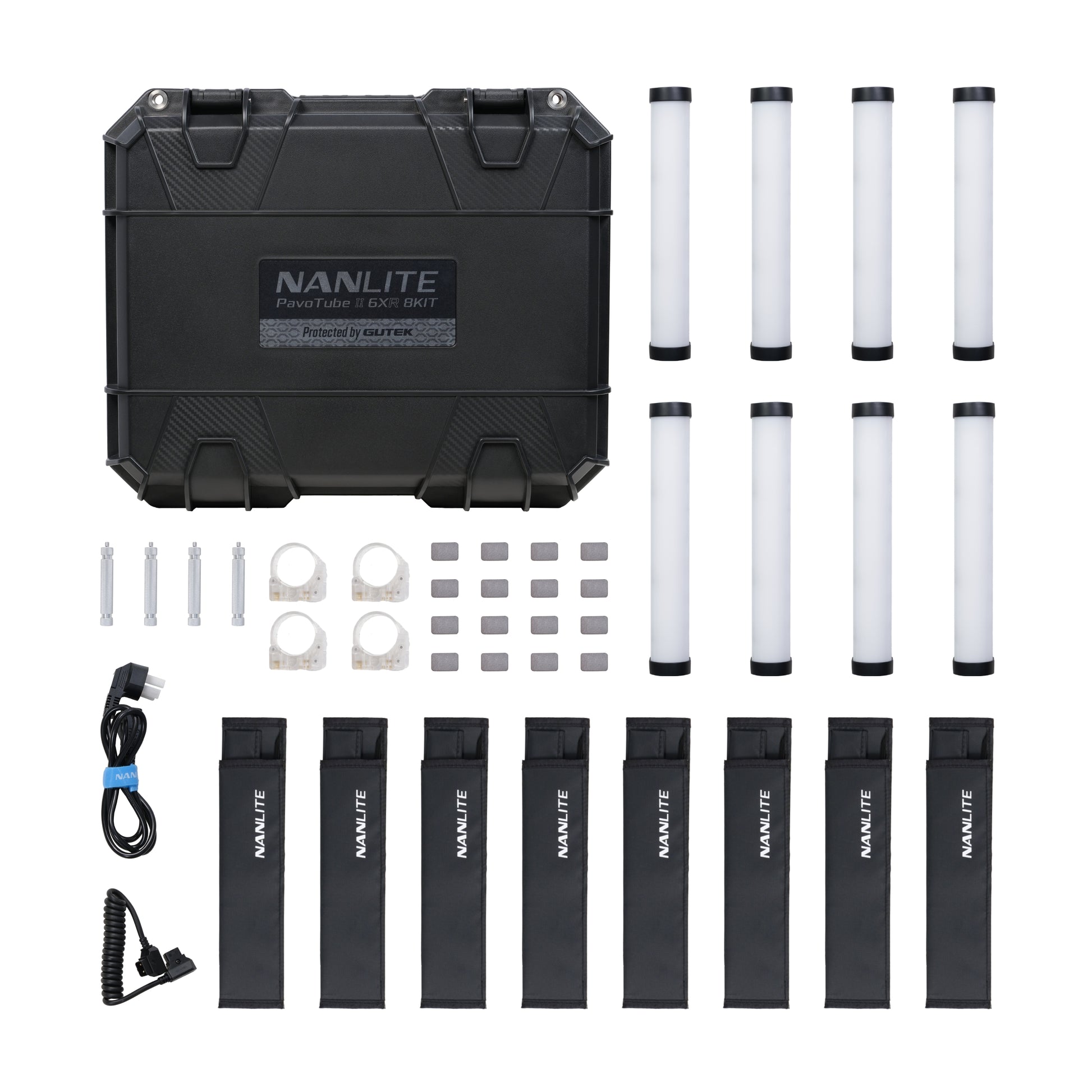

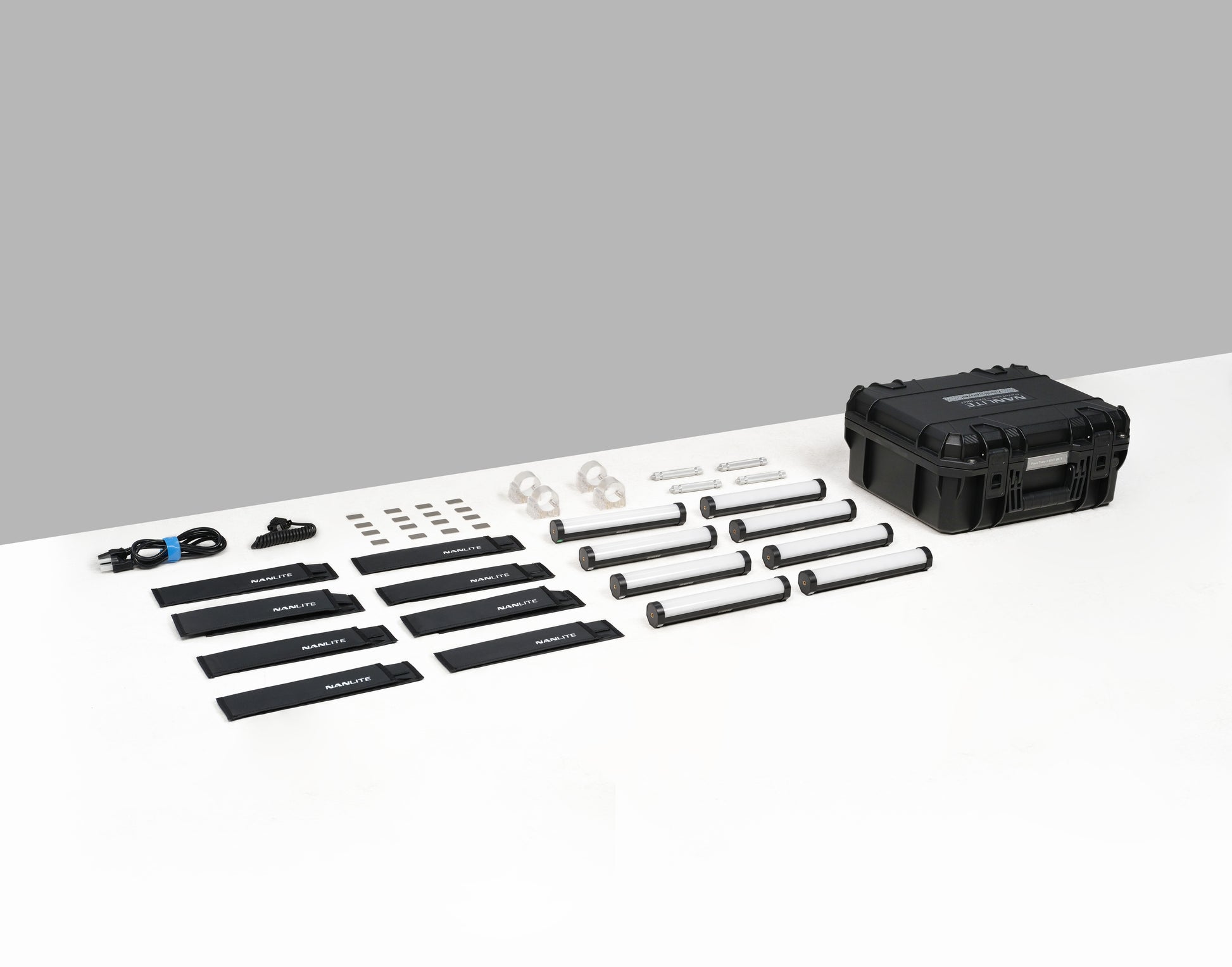

⁂ What's in the Box
8x Nanlite PavoTube II 6XR

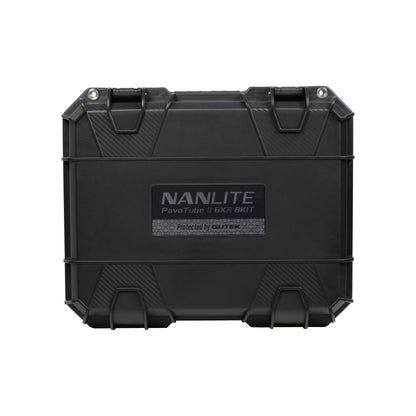

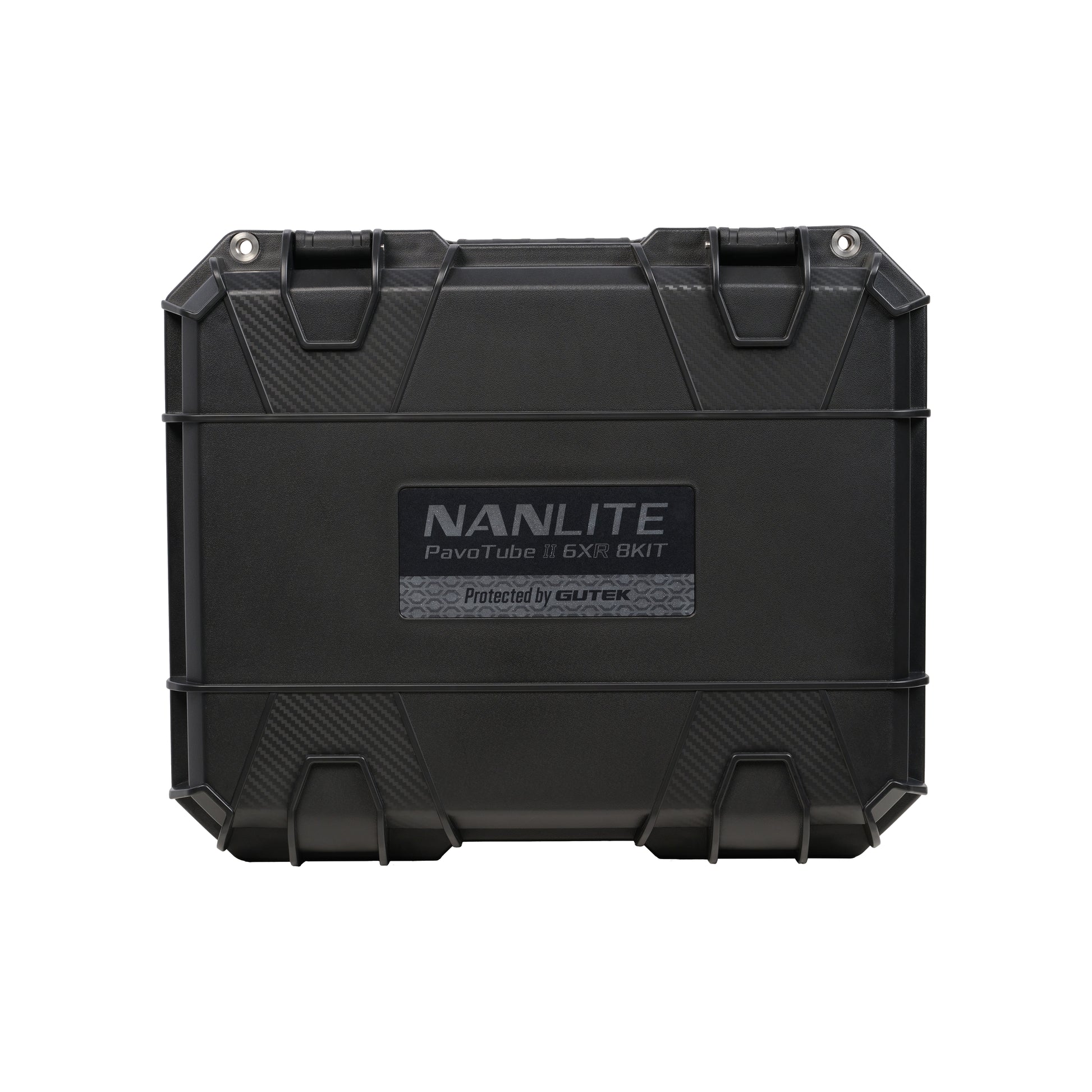

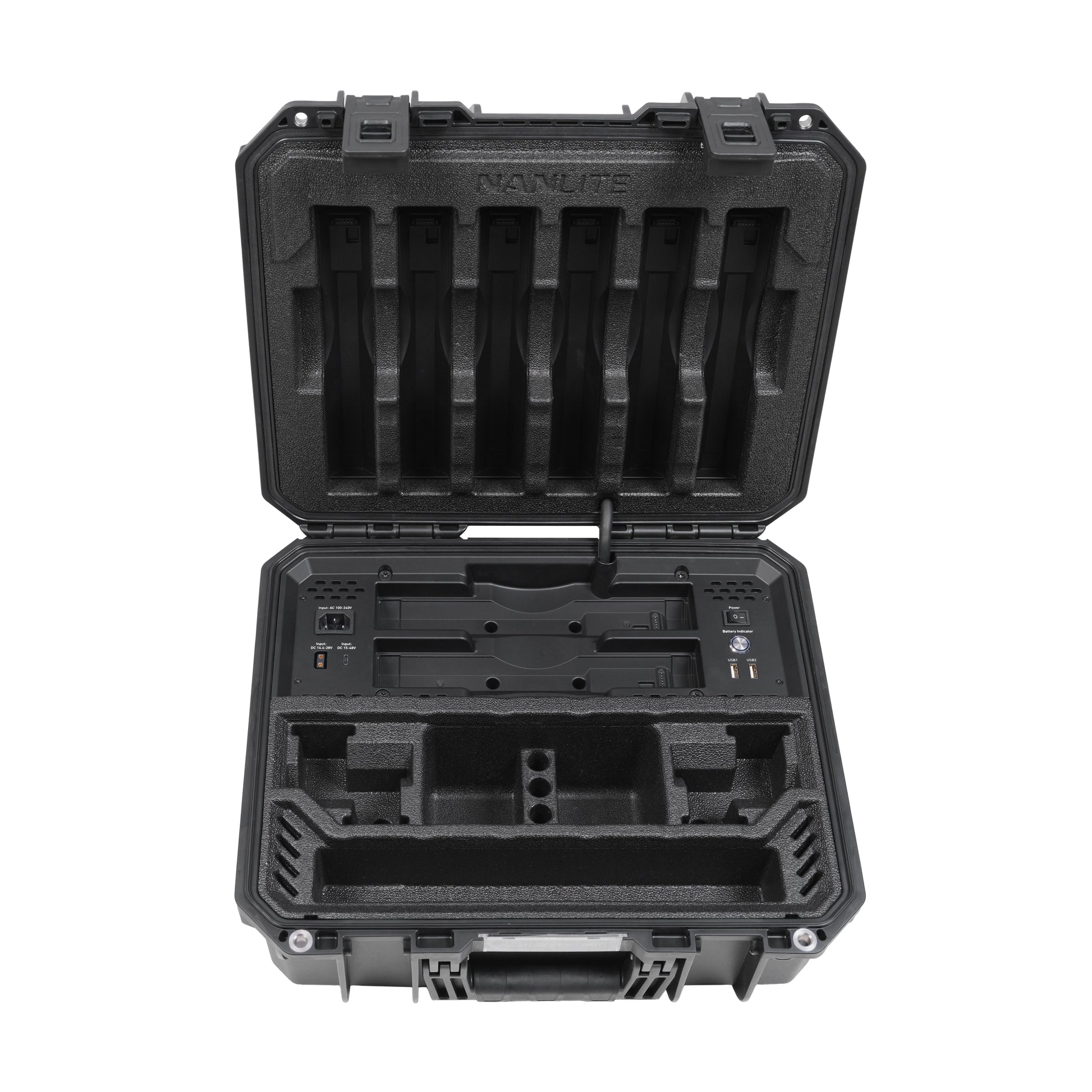

1x GUTEK T-230 Charging Protective Hard Case
16x Iron Plates for Magnetic Mounting
8x EC-PTII6C Eggcrate Grids
4x HD-T12-1-C Transparant Mounting Clips with 1/4"-20 Threads
4x 5/8" Baby Pin with 1/4"-20 Thread
1x D-Tap Cable
1x AC Cable 3.28' (1m)
1x User Manual
2-Year Limited Warranty (Extend to 3-Year Limited with Registration on NanliteUS.com)
