Nanlux

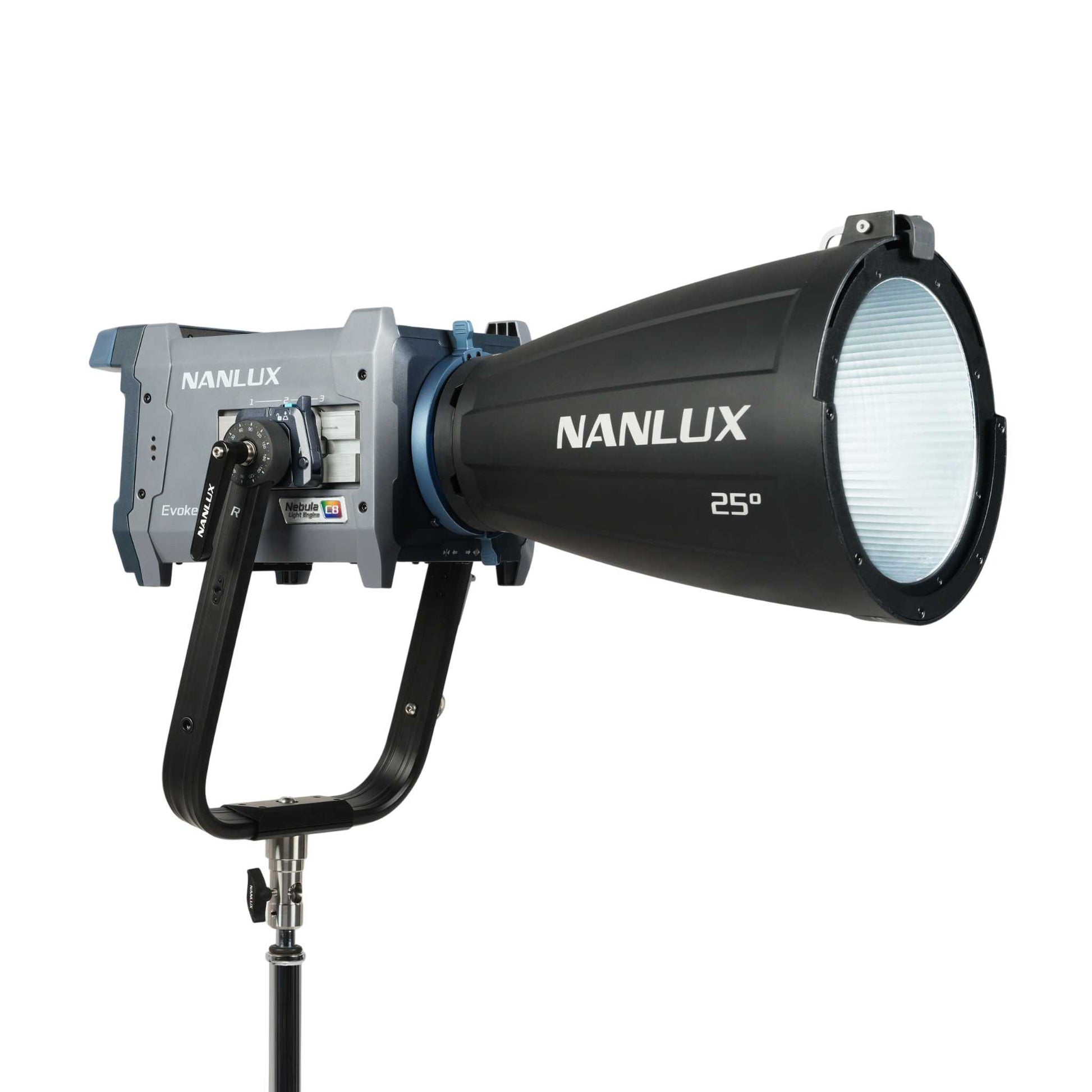

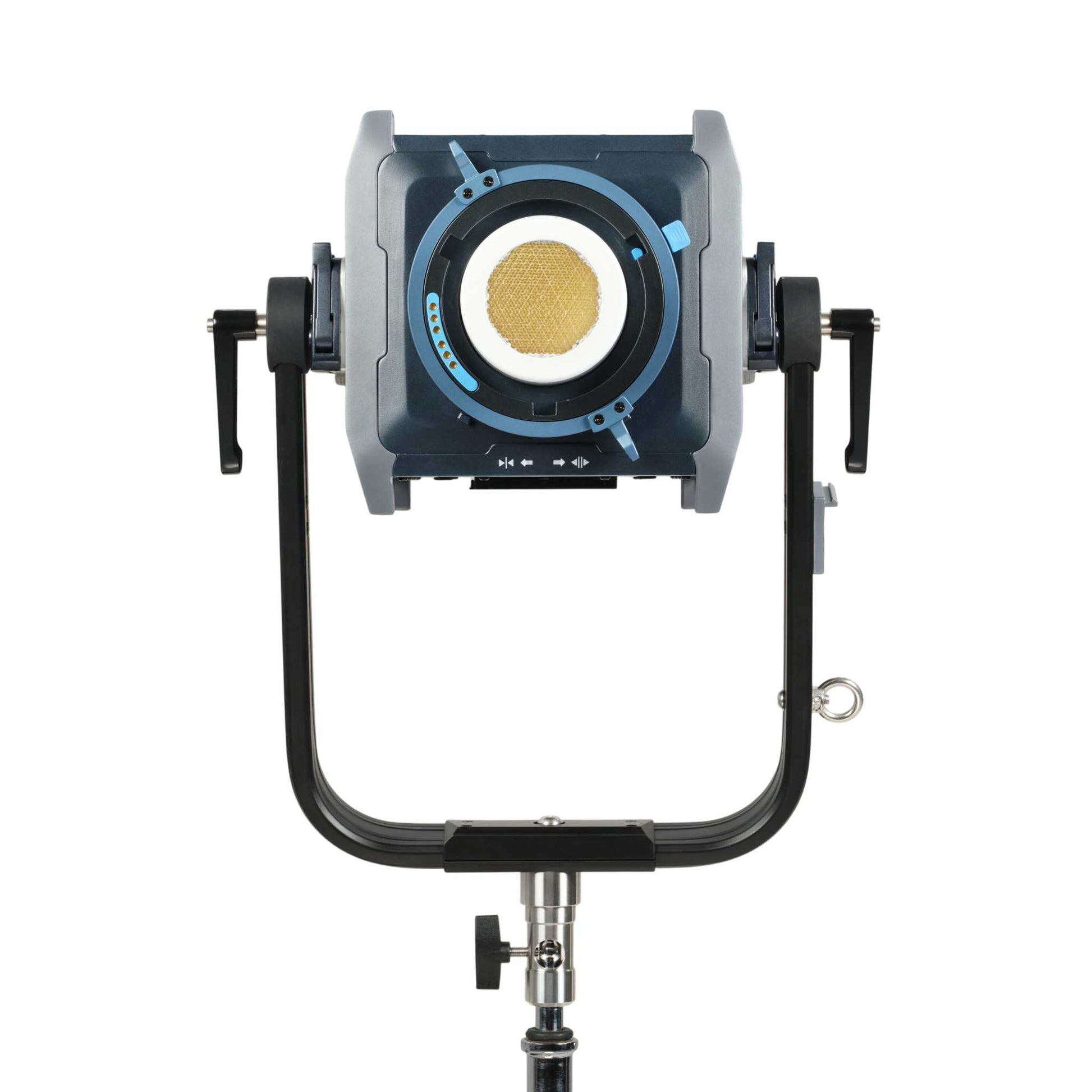

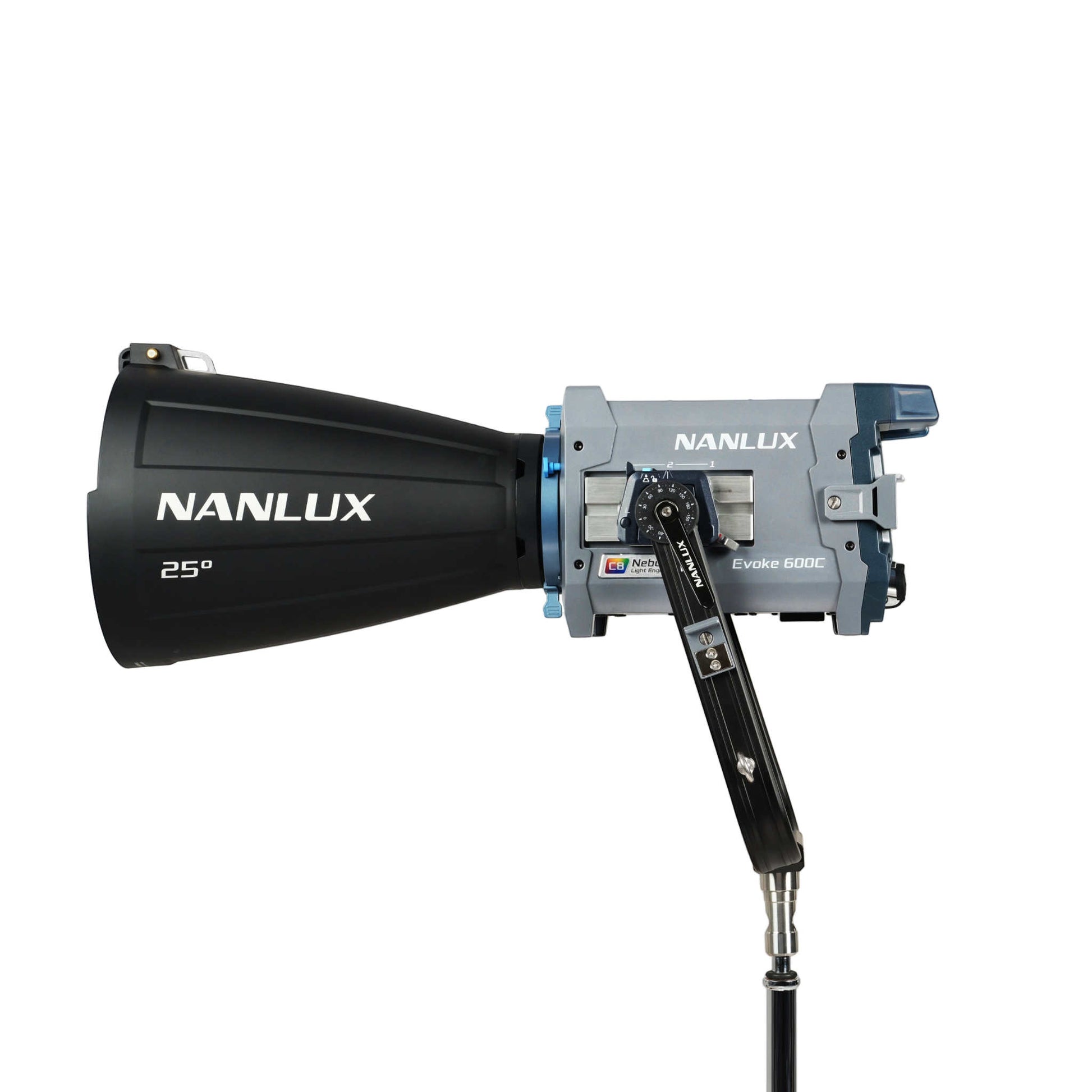

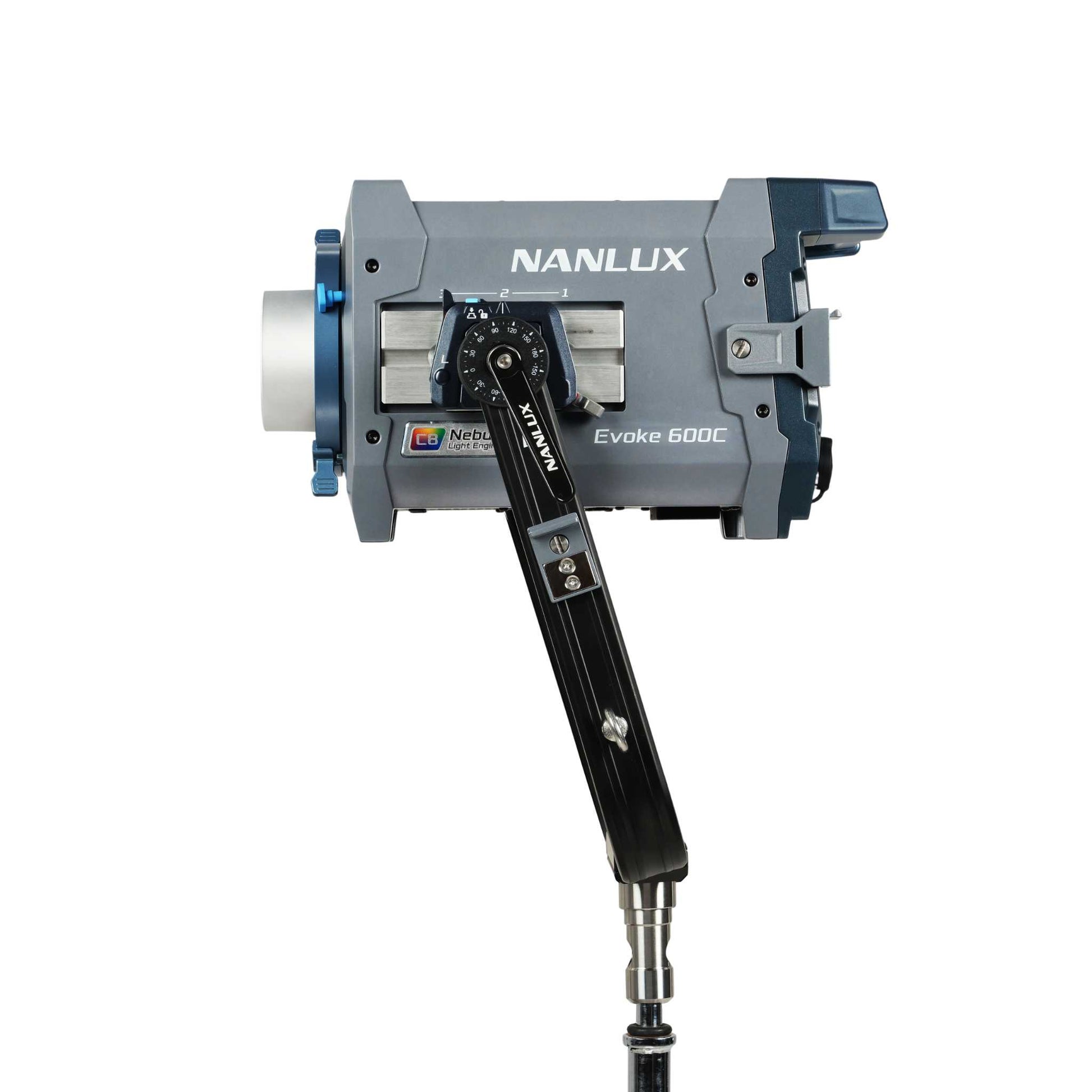

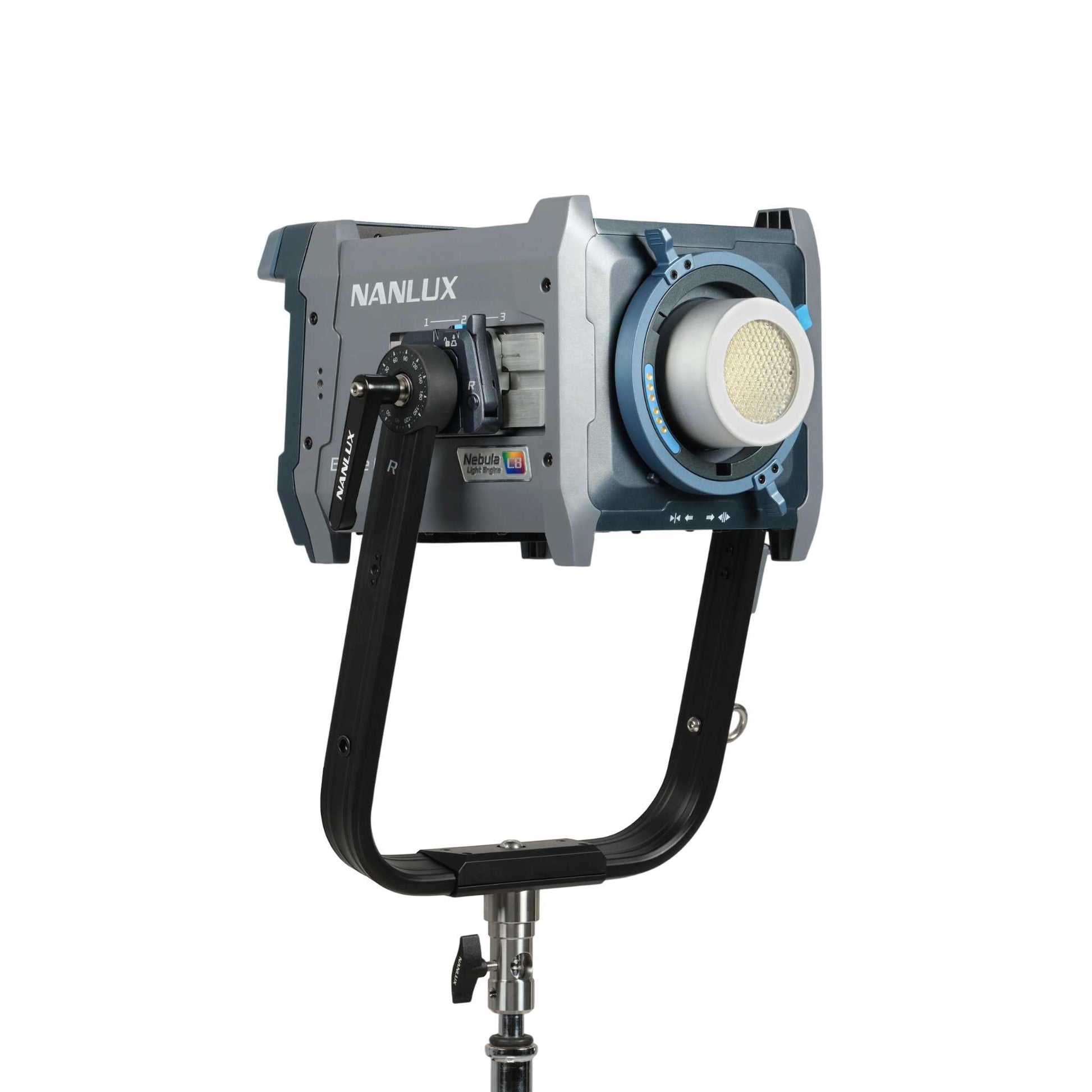

Evoke 600C 8-Chip LED Spotlight

Evoke 600C 8-Chip LED Spotlight

Regular price $2,065.00 USD
Regular price $2,580.00 USD Sale price $2,065.00 USD
Sale Sold out
Quantity

SKU:EV600CKIT

  • Free shipping on orders over $50
  • Hassle-free returns
  • Up to 3-year warranty

TOP QUALITY LIGHT
Equipped with the Nebula C8 light engine, Evoke 600C produces the highest possible quality of light with the deepest saturation, warmest CCT, and widest color gamut

EASY SETUP
The all-in-one design has no external power supply—just a single cord that plugs into one port for both AC and DC power; it's fast and easy to set up and wrap

VIVID COLORS, WIDE CCT
Easily produce everything from intensely saturated colors to subtle hues and utilize the ultra-wide 1000K–20000K CCT range with ±200 of G/M adjustment

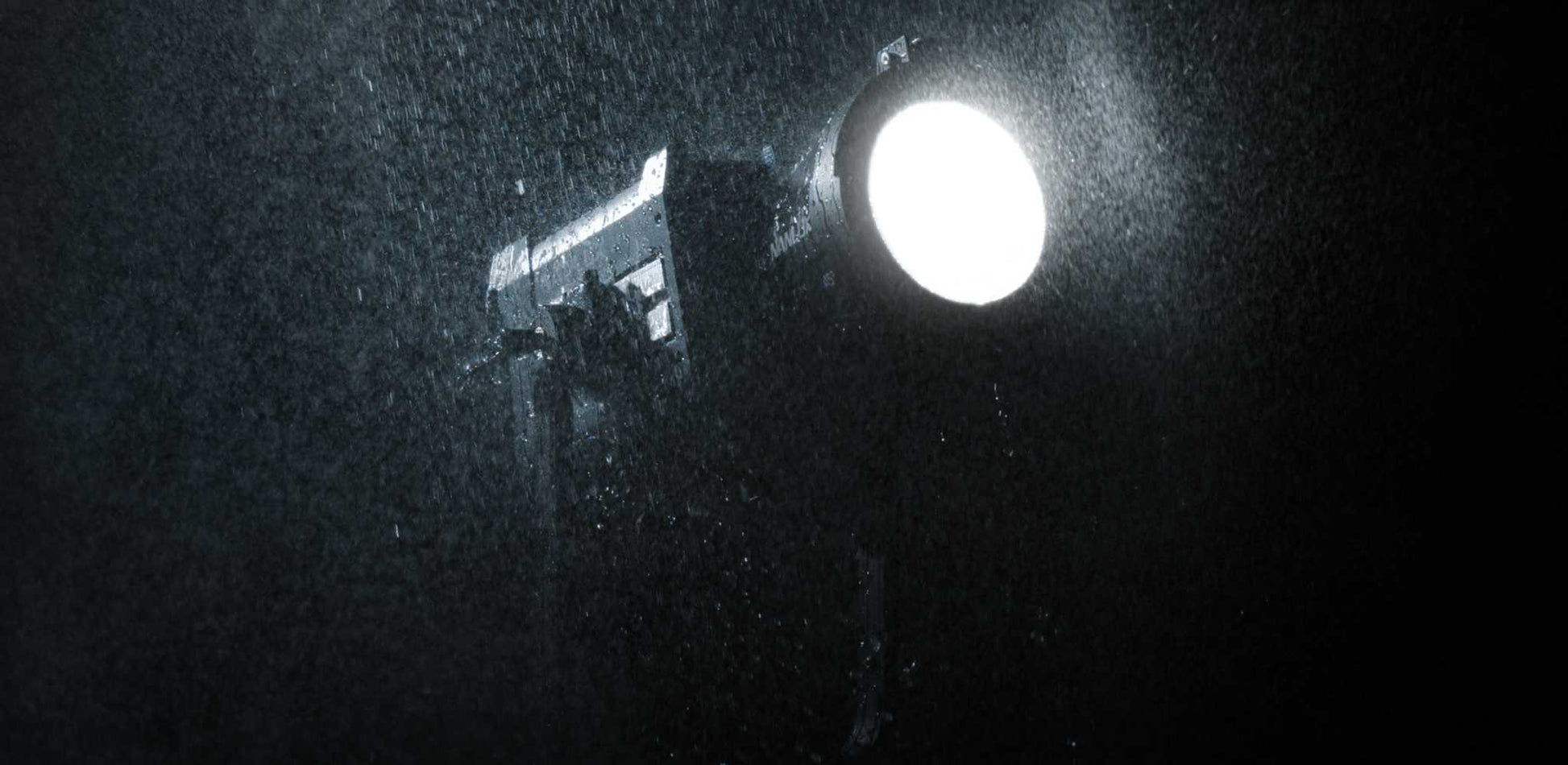

WEATHERPROOF
Features all-weather protection with a rating of IP66, freeing you to work on location in rain or dust storms without worry

SUPPORTED IN THE USA
Evoke 600C is built tough, comes with a 2-year limited warranty, it's stocked, supported, and serviced in the USA, and features a modular design with easy-to-replace parts

The Nanlux Evoke 600C is a powerful LED spotlight with an unparalleled 8-chip light engine that mixes Deep Red, Red, Amber, Lime, Green, Cyan, Blue, and Indigo LEDs to deliver vivid colors and a notably wide and accurate CCT range of 1000K-20000K with ±200 of G/M adjustment.

Read more...
View full details
Unique Photometrics Chart
☀ Photometrics
Bare Bulb CCT Bare Bulb Color
@ 1m 3200K 22130 lux / 2056 fc @ 1m Red 3790 lux / 352 fc
@ 3m 3200K 2512 lux / 233 fc @ 3m Red 421 lux / 39 fc
@ 5m 3200K 952 lux / 88 fc @ 5m Red 158 lux / 15 fc
@ 1m 5600K 24620 lux / 2287 fc @ 1m Green 13910 lux / 1292 fc
@ 3m 5600K 2754 lux / 256 fc @ 3m Green 1567 lux / 146 fc
@ 5m 5600K 1042 lux / 97 fc @ 5m Green 592 lux / 55 fc
@ 1m Blue 2109 lux / 196 fc
@ 3m Blue 236 lux / 22 fc
@ 5m Blue 89 lux / 8 fc
25° Reflector CCT 25° Reflector Color
@ 3m 3200K 17610 lux / 1636 fc @ 3m Red 2326 lux / 216 fc
@ 5m 3200K 5780 lux / 537 fc @ 5m Red 771 lux / 72 fc
@ 7m 3200K 2866 lux / 266 fc @ 7m Red 380 lux / 35 fc
@ 3m 5600K 20820 lux / 1934 fc @ 3m Green 11110 lux / 1032 fc
@ 5m 5600K 6810 lux / 633 fc @ 5m Green 3640 lux / 338 fc
@ 7m 5600K 3380 lux / 314 fc @ 7m Green 1810 lux / 168 fc
@ 3m Blue 1866 lux / 173 fc
@ 5m Blue 614 lux / 57 fc
@ 7m Blue 304 lux / 28 fc
Specifications Table
⚙ Specifications
LED Light EngineNebula C8 Light Engine: dRRALGCBI
CCT1000K-20000K (G/M±200)
CRIAverage 98
TLCIAverage 98
SSI 3200K86
SSI 5600K78
TM-30 RF (Average)96
TM-30 RG (Average)100
Beam Angle65°
Rated Power600W
Input Voltage/CurrentAC100-240V/50-60Hz, 8A Max, DC48V/12.5A
Dimming0–100% by 0.1% Increments
EffectsCCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding
ControlOn-board, Wired Controller, Nanlink App, Remote Controller, DMX/RDM*, LumenRadio CRMX, Art-Net/sACN*,NFC (*via the Extension Adapter)
DMX Dimming CurveLinear, Exponent, Logarithm, S Curve, Gamma 2.2, Gamma 2.4, Gamma 2.6
IP RatingIP66
Dimensions14.1 × 9.7 x 8.08" (35.82 × 24.63 x 20.53cm)
Weight16.01lbs (7.26kg)
What's in the Box Table

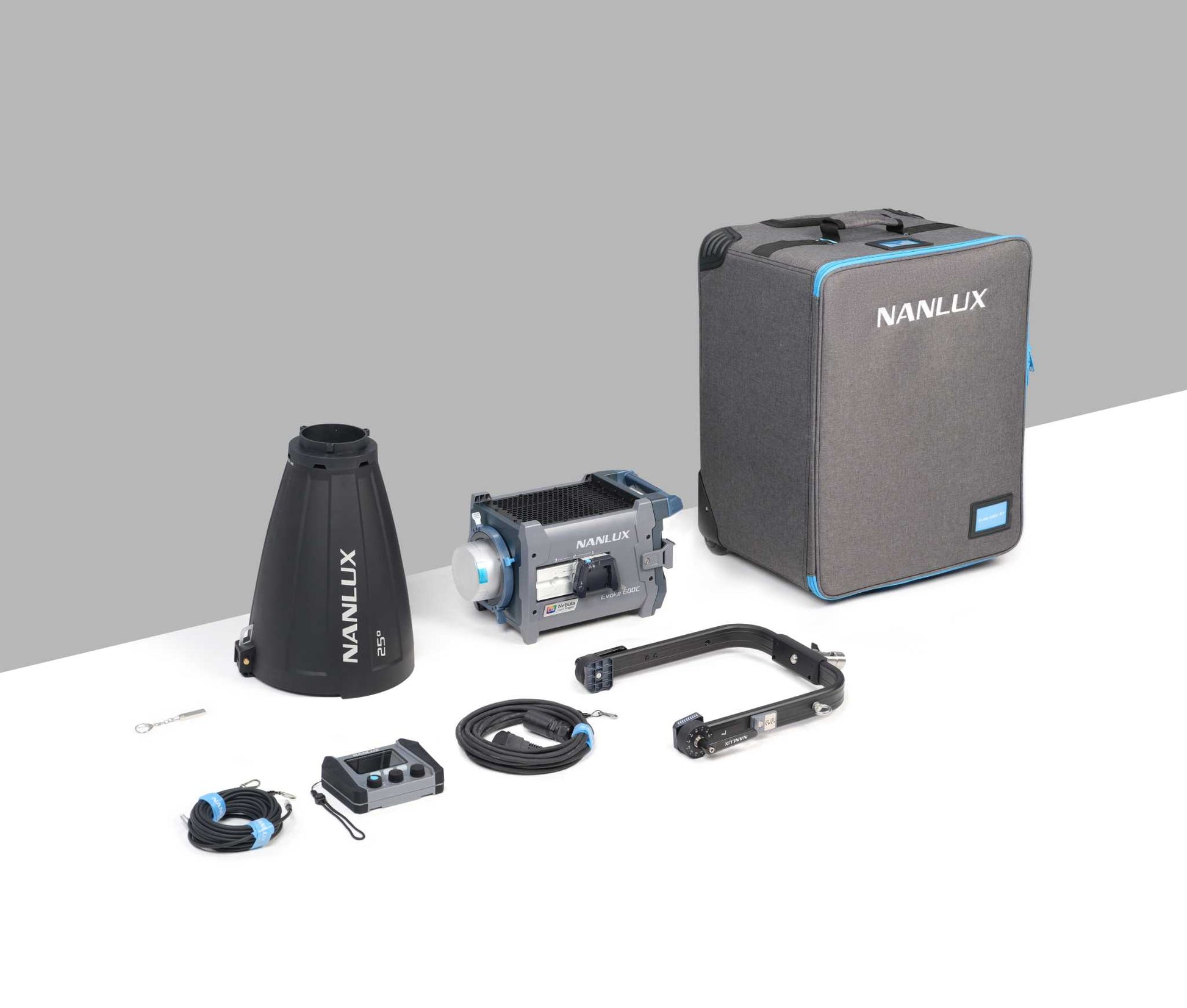

⁂ What's in the Box
Evoke 600C
Yoke
RF-BE-25 BE Mount Reflector 25°
AC Power Cable 19.68' (6m)
USB Flash Drive
WC-EXT Wired Controller
Connection Cable 26.24' (8m)
AS-MB-2 Magnetic Base
AS-MB-1 Magnetic Base
CC-ST-EV600C RollingCase
User Manuals
2-Year Limited Warranty
